Installation and commissioning

Instructions for installation and commissioning.

Name, article number and e-number

Table 1. Name, article number and email number.

Name

Article number

E-number (SE)

PoE Switch Managed 4p UT M

PL02P30024P050P-UTM

51 734 03



PoE


[sv] Om

[sv] PoE Switch Managed 4p UT M är en strömförsörjning med PoE switch för utomhusbruk. Byggd för att klara nordiska förhållande - sommar som vinter. Produkten skiljer sig från inomhus-batteribackuper från Milleteknik och vissa funktioner har tillkommit och andra har fallit från.

Revisions and the edition of this document

The current and most recently published edition of this document is available at www.milleteknik.com.

The validity of this document can not be guaranteed, as new editions are published without prior notice.

Original instructions for use: Swedish.[1].

Instructions for use, technical data and translations thereof may contain errors. It is always the responsibility of the installer to install the product in a safe manner.

Symbols

Table 2. Symbol Explanation

Symbols

Name

Explanation


Warning

Risk of electric shock, improper installation or hot surfaces. Appears in some manuals


Note

Used for supplementary information that clarifies the text.


Caution/Important

Indicates the risk of equipment damage or malfunction. Also used for information that is important but not security-related


Tips

Displays practical advice or shortcuts for installation, operation, or service.


CE marking

The product complies with applicable EU directives and harmonised standards.


Read the manual

Please read manual before installation and service.

soptunna_atervinning.ai

Do not dispose of in household waste

The product is covered by the WEEE Directive and must not be disposed of with household waste, it must be recycled and delivered to a recycling centre.

Recycle001.svg

Recycling

Packaging, products and other materials that do not contain electronics must be recycled in accordance with local environmental regulations.



Installation — general information

Installation shall be carried out by a competent electrician in accordance with the applicable national electrical installation rules.

The product is of protection class I and must be connected to a grounded 230 V AC circuit.

  • A main switch according to IEC 60947-1 shall be provided in the fixed installation. The switch should be easily accessible and clearly marked with its function.

  • The area of the supply cable shall be at least 1,0 mm² and fitted with a fuse T 2,5 A (slow-blown) or equivalent.

  • AC and low voltage cables must not be pulled together. Keep separate cable chutes or bundles

  • Check that protective earth (PE) is properly connected before turning on voltage.

  • Ensure free air circulation around the enclosure at least 100 mm, unless otherwise specified. Ventilation openings must not be covered.

  • [sv] Produkten är avsedd för montering utomhus.

These general requirements apply to all Milleteknik products with 230 V mains connection.

Requirements for main switch, fuse and cable area

In order to comply with applicable electrical safety requirements, the installation shall be equipped with a main switch according to IEC 60947-1.

Table 3. Main switch and fuse

Component

Requirements

Main switch

A main switch according to IEC 60947-1 shall be included in the installation and be easily accessible. Separated phase (L) and neutral (N)

Fuse

The supply circuit shall be protected by a fuse or automatic fuse with rated current according to the product specification (normally T 2,5 A slow-blow or equivalent). Refer to the device's nameplate.

Fuses

Approved type according to IEC 60127.

Cross-sectional area (230 V)

At least 1,0 mm2

Cable length

In the case of longer wiring, voltage drops should be taken into account so that the operating voltage does not fall below 230 V ± 10% at the unit.

Strain relief

All cables must be properly secured and strain relief checked before energizing the unit.



These requirements apply to all Milleteknik products with 230 V mains connection.

The table below shows recommended cable area for low current installations at different voltages, current strengths and cable lengths. Values are based on copper cable and a maximum voltage drop of approximately 3% to ensure operational reliability.

Table 4. Cable area weak current

V

Current strength (A)

Cable length 10 meters

Cable length 30 meters

Cable length 60 meters

Cable length 100 meters

24V

1 A

0,75 mm2

0,75 mm2

1,5 mm2

1,5 mm2

24V

3A

0,75 mm2

0,75 mm2

1,5 mm2

2,5 mm2

24V

5A

0,75 mm2

1,5 mm2

2,5 mm2

4 mm2

24V

10A

1,5 mm2

2,5 mm2

6 mm2

-*

24V

15A

1,5 mm2

4 mm2

-*

-*

24V

25A

2,5 mm2

6 mm2

-*

-*

24V

40A

4,0 mm2

-*

-*

-*

* Cable area would exceed connector terminal dimensions therefore it is not possible to use cable larger than 6 mm! 2



Enclosures

General assembly instructions

  • The enclosure shall be mounted vertically.

  • For good ventilation, at least 100 mm of free space should be provided above and on the sides of the enclosure.

  • The device should be mounted at a comfortable working height, normally between 1.4 and 1.8 m.

  • Avoid placement in direct sunlight, near heat sources, or in environments with high humidity or dust.

  • Installation shall be carried out in accordance with the applicable installation rules and by a competent installer.

Outdoor mounting on pole

  • The product is intended for mounting on a pole with rails or corresponding fastening parts.

  • Use rails and fasteners that are compatible with the weight and mounting pattern of the product.

  • Install the rails in the product before installing the post brackets or pipe clamps.

  • Place pipe clamps or corresponding fastening parts around the post and connect them to the mounting points of the rails.

  • Check that the product is aligned and mounted in a vertical position before tightening.

  • The diameter and material of the post should be suitable for the selected type of fastening detail.

  • Tighten all screws and nuts according to the recommendations of the fastening details.

  • Ensure that the product is firmly fixed and cannot rotate or slide on the post after assembly.

  • Cable connections should be oriented downwards or according to the specific installation instructions of the product.

  • Avoid locations where water can flow directly onto the enclosure from surfaces above.

Mounting

Use the appropriate screw for mounting on a wall or in a 19" rack. Screws for mounting on a wall or in a rack are not included.

For wall mounting in concrete, concrete screws must be used. For rack mounting, M6 with basket nut is used

Screw length should be adjusted according to wall material and load. The specified screw length is the minimum allowable length

Table 5. Screw when mounting

Kaspling

Number

Screw[a]

OUT M

4

Concrete screw 5,0×40 mm

[a] Screw for mounting is not included.



Mounting holes, spacing and ø.

Table 6. Dimensions

Enclosure, dimensions (WxHxD).

Mounting hole inside (W x H)

External mounting dimensions (W x H)

486 x 530 x 286 mm

-

-[a]

[a] Mounted on pole, see chair bracket for details.



Weight with batteries

Table 7. Weight

Net weight without batteries

Battery type

Number

Batteries/weight per piece

Weight with batteries

14.3 kg

20 Ah

2

6.0kg

26.3 kg



Mounting options and accessories

To ensure a smooth installation, we offer several custom mounts for our UT series enclosures (S, M and L). In the matrix below you will see which options are compatible

Please note that a wall mount is always included as standard with all models. For pole mounting or needing extra sun protection, separate optional kits are required

Table 8. Matrix bracket

Enclosure

Wall Bracket

Pole Bracket

Sun protection

Camera and pole mount (upcoming)

[sv] Högtalarfäste

OUT M

Included

Pole Mount Kit for UT S and UT M

Sun Shield Kit

[sv] Camera Mount Kit for UT M

[sv] Speaker Mount Kit for UT M



Table 9. Matrix bracket

Accessories

Enclosure

Pole Mount Kit for UT S and UT M

UT S and UT M

Sun Shield Kit

UT S, UT M and UT L

[sv] Camera Mount Kit for UT M

[sv] UT M

[sv] Speaker Mount Kit for UT M

[sv] UT M

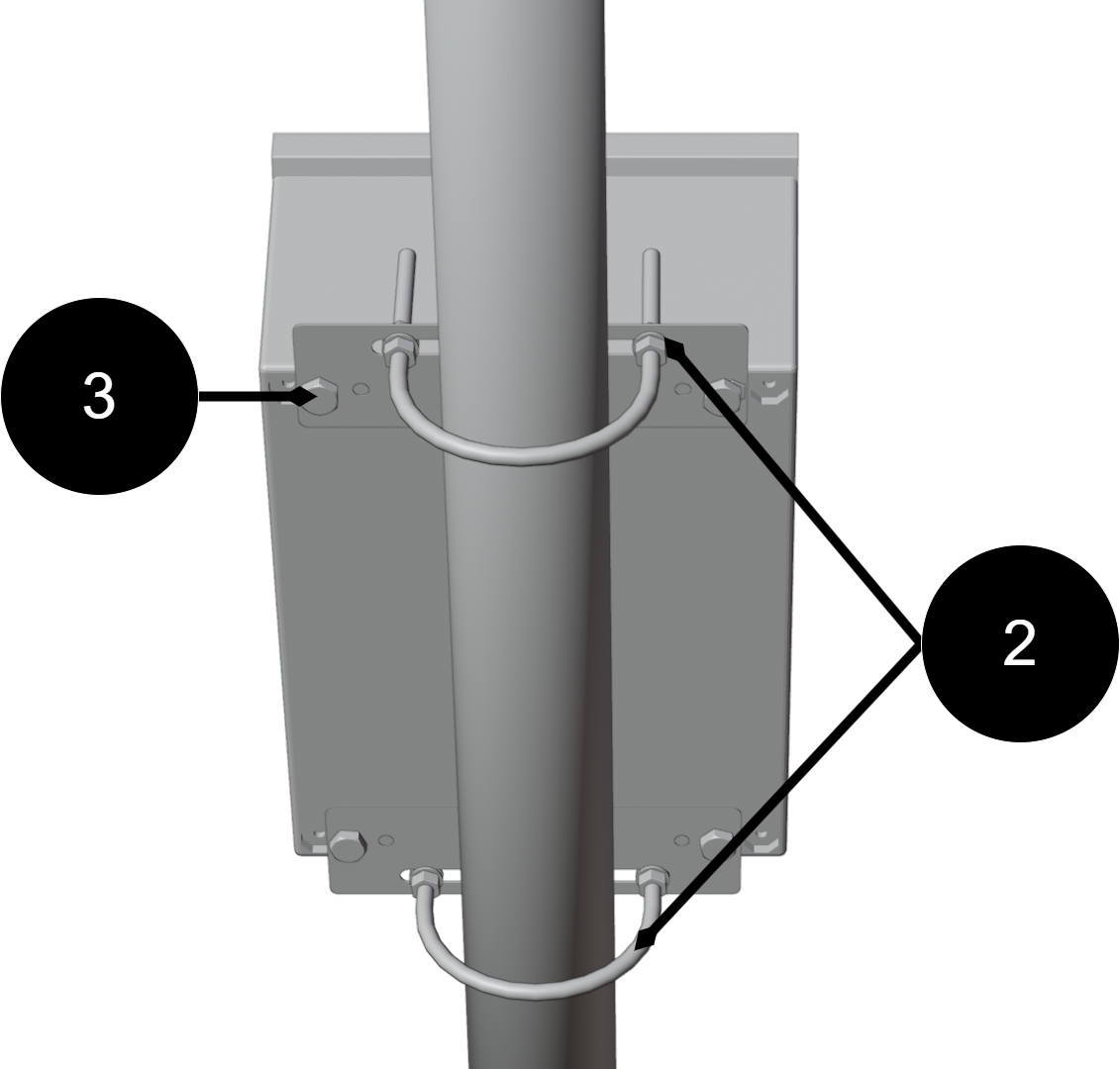

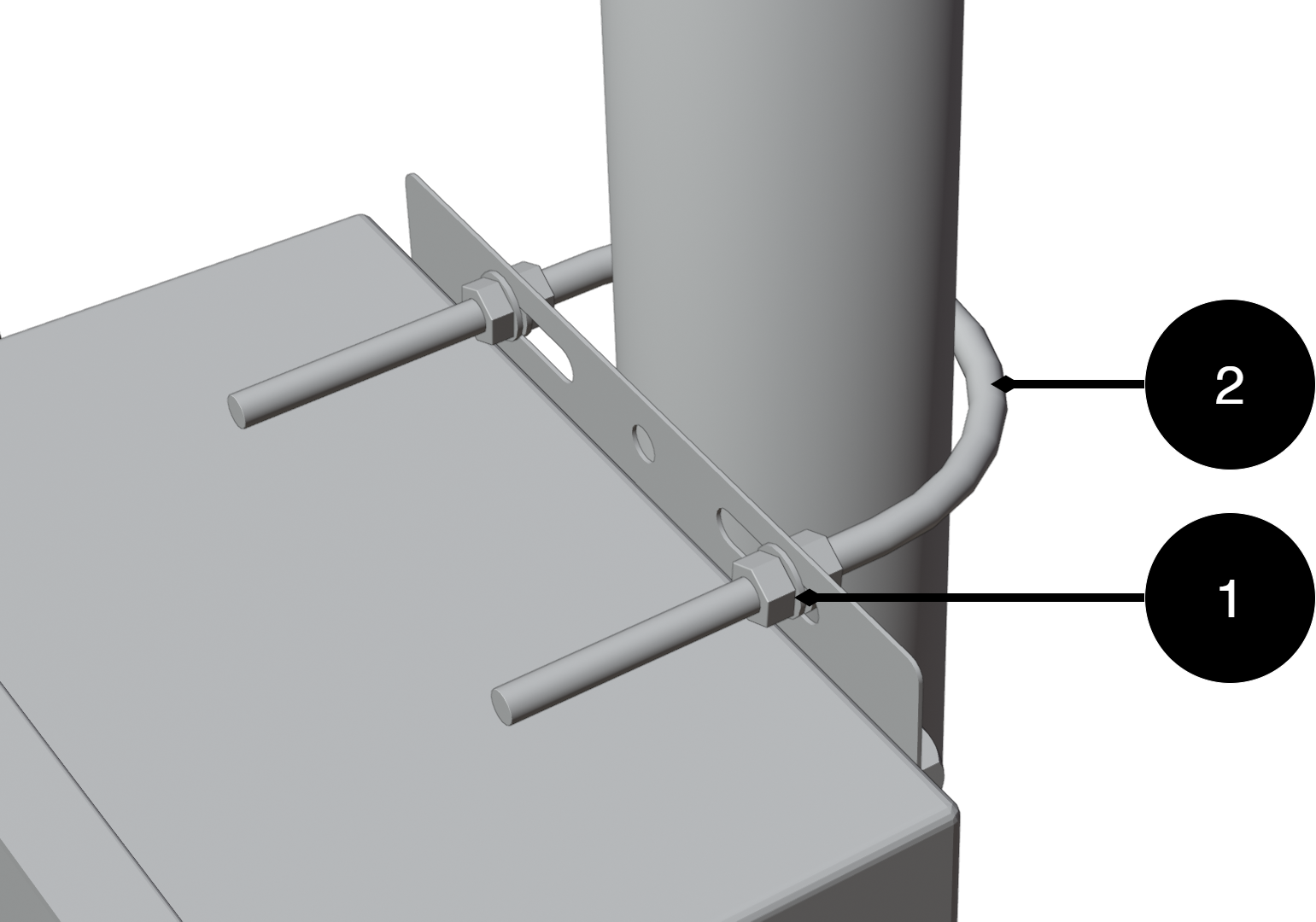

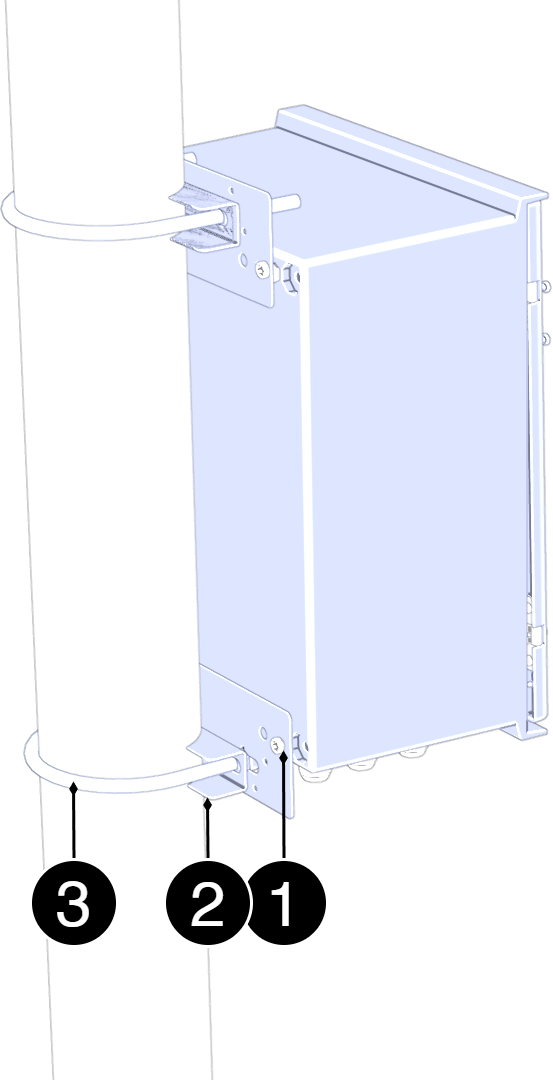

Mounting on pole


Mounting on pole

[sv] Se komponentöversikt för skruv, mutter, brickor och distanser.

Table 10. [sv] Komponenter för montering

[sv] Nr

[sv] Förklaring

1

[sv] Fästplåt.

2

[sv] Plåthållare.

3

[sv] U-bult.



Assemble in this order:

  1. Place the mounting plates (3) on the upper and lower attachment points of the enclosure and attach them lightly with the screws provided. Do not tighten finally yet.

  2. Pass the lower U-bolt (2) around the post and through the holes in the lower mounting plate. Install washers and nuts. Tighten lightly.

  3. Pass the upper U-bolt (2) around the post and through the holes in the upper mounting plate. Install washers and nuts

  4. Adjust the position of the enclosure so that it is in solder and centered toward the post.

  5. Tighten all nuts in sequence: — lower U-bolt — upper U-bolt — screws to the mounting plates

  6. Check the attachment by lightly loading the enclosure forward/backward to ensure stable mounting.

Component overviews

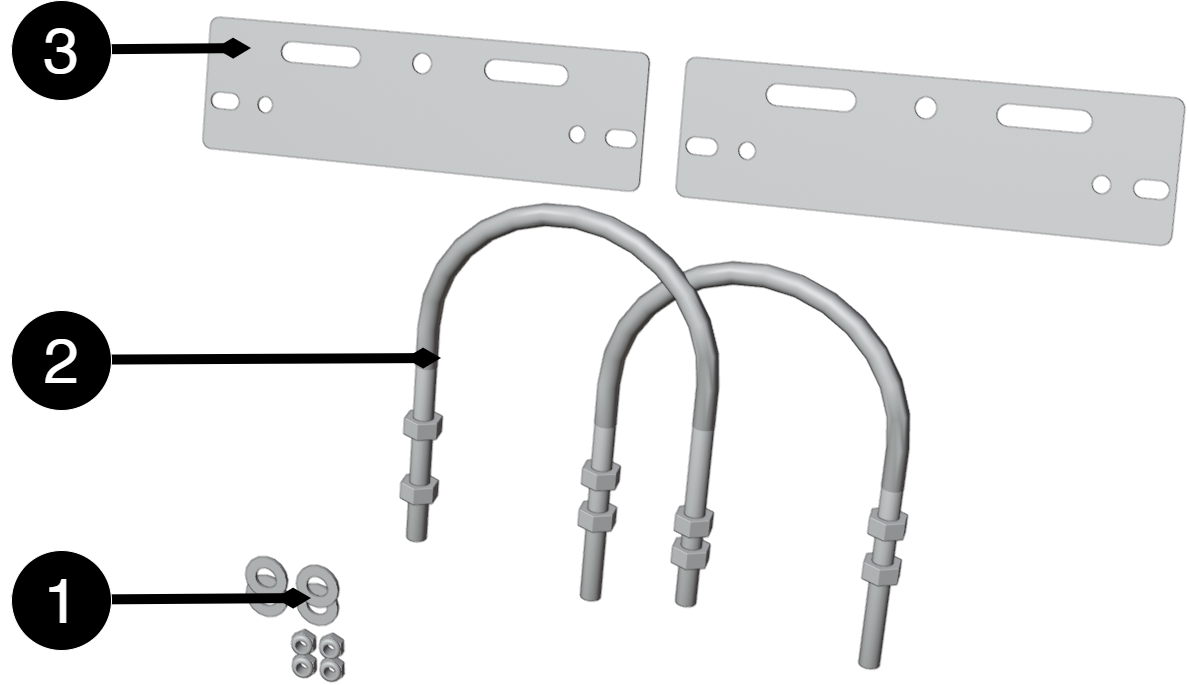

Component Overview Mounting Kits

Table 11. Component Overview

No.

Explanation

[sv] Storlek

[sv] Antal

1

Fixing plate

[sv] 125 mm

2

2

U-bolt for pole

-

2

3

Washers and nuts

-

2

4,7

[sv] Mutter

[sv] M10

4

5

[sv] Mutter

[sv] M6LM

8

6

[sv] Distans

[sv] Ø 36 mm, 20 mm djup

4

8

[sv] Bricka

[sv] 10 (5x20x2)

4



Component Overview PoE Switch Managed 4p UT M

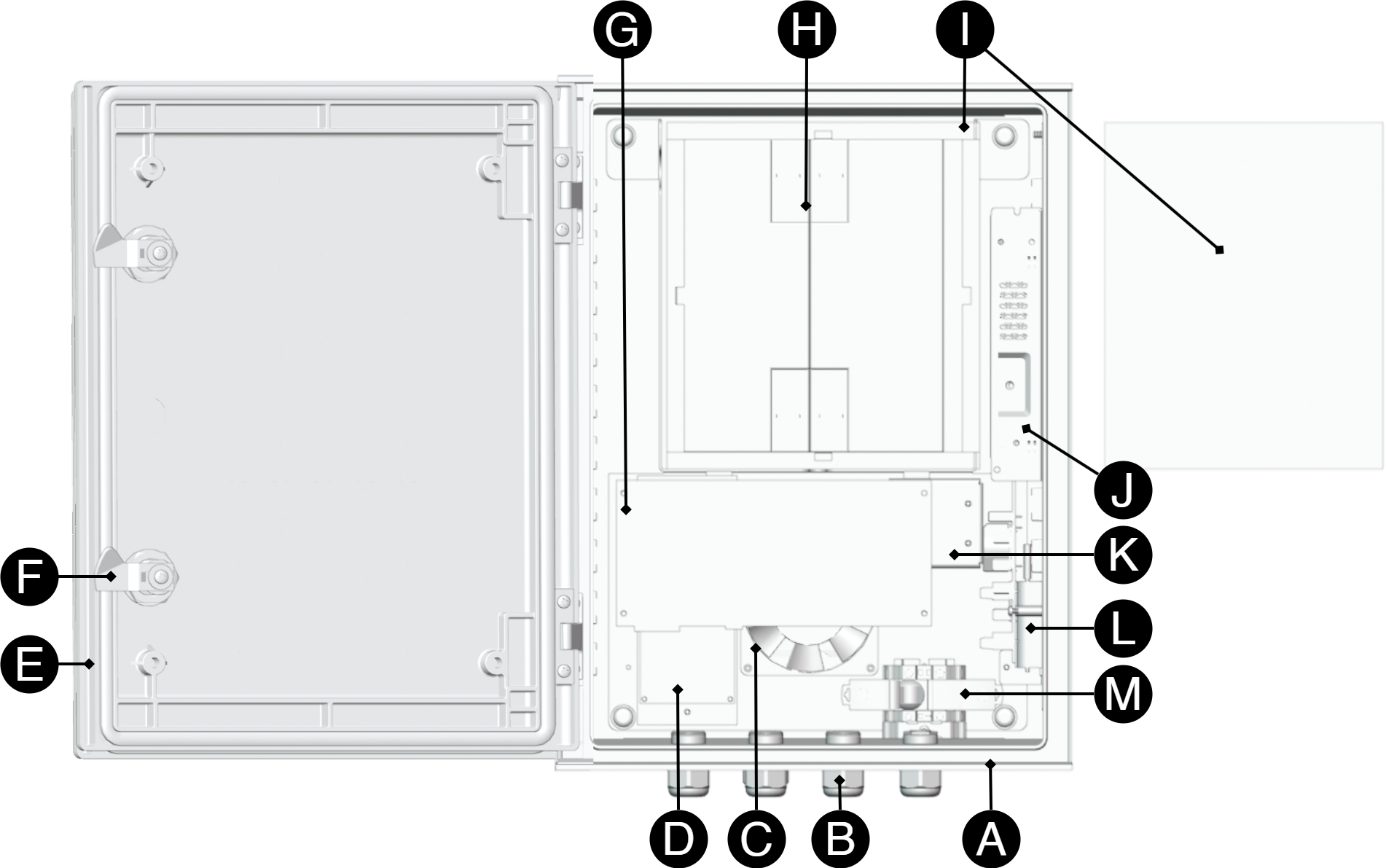

Figure 1. Component Overview PoE Switch Managed 4p UT M
Component Overview PoE Switch Managed 4p UT M

Configuration may differ from delivered product.



Table 12. Component Overview

Letter

Explanation

A

Enclosure.

B

Cable grommets.

C

Fan.

D

Power card - power supplies the PoE board with 48 V DC.

E

Door.

F

Lock.

G

Poe card.

H

Batteries, (purchased separately).

I

Isolation.

J

Power supplies.

K

Sabotage contact.

L

Temperature sensors.

M

Scoreboard.

N

Automatic fuse and connection incoming 230 V AC.



[sv] Anslutning av matningsspänning, 230 V AC

[sv] Innan anslutning ska matningskretsen vara frånkopplad och spänningslös. Kontrollera att ledararea och kabeltyp uppfyller gällande installationsregler samt att dragavlastning och isolationsnivåer följer kraven för 230 V AC-installationer.

[sv] Efter anslutning ska samtliga skruvanslutningar kontrolleras och dras åt. Spänningssättning får endast ske efter att mekaniskt skydd, kåpor och kapsling har återmonterats och uppfyller beröringsskydd enligt EN 62368-1.

Important

[sv] Installation och anslutning av 230 V AC får endast utföras av behörig elinstallatör enligt SS 436 40 00.

  • [sv] L (Fas) – anslut den inkommande fasledaren.

  • [sv] N (Neutral) – anslut den inkommande neutralledaren (nollan).

  • [sv] PE (Skyddsjord) – anslut skyddsjord till avsedd jordplint. Skyddsjord är obligatorisk för att upprätthålla utrustningens föreskrivna skyddsnivå (skyddsklass I).

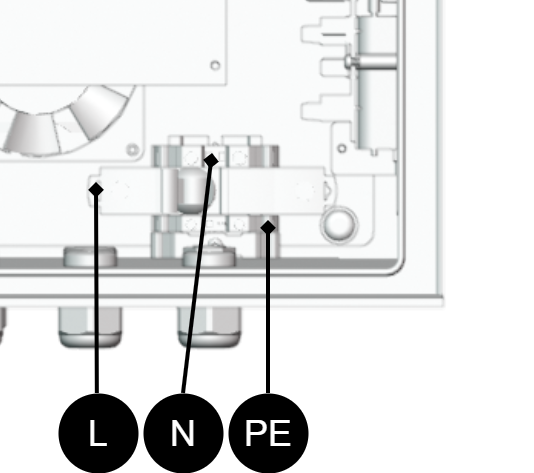

Figure 2. [sv] Inkoppling 230 V AC.
[sv] Inkoppling 230 V AC.


Table 13. [sv] Inkoppling 230 V AC

[sv] Beteckning

[sv] Förklaring

L

[sv] Fas.

N

[sv] Neutral (nolla)

[sv] PE

[sv] Jord.

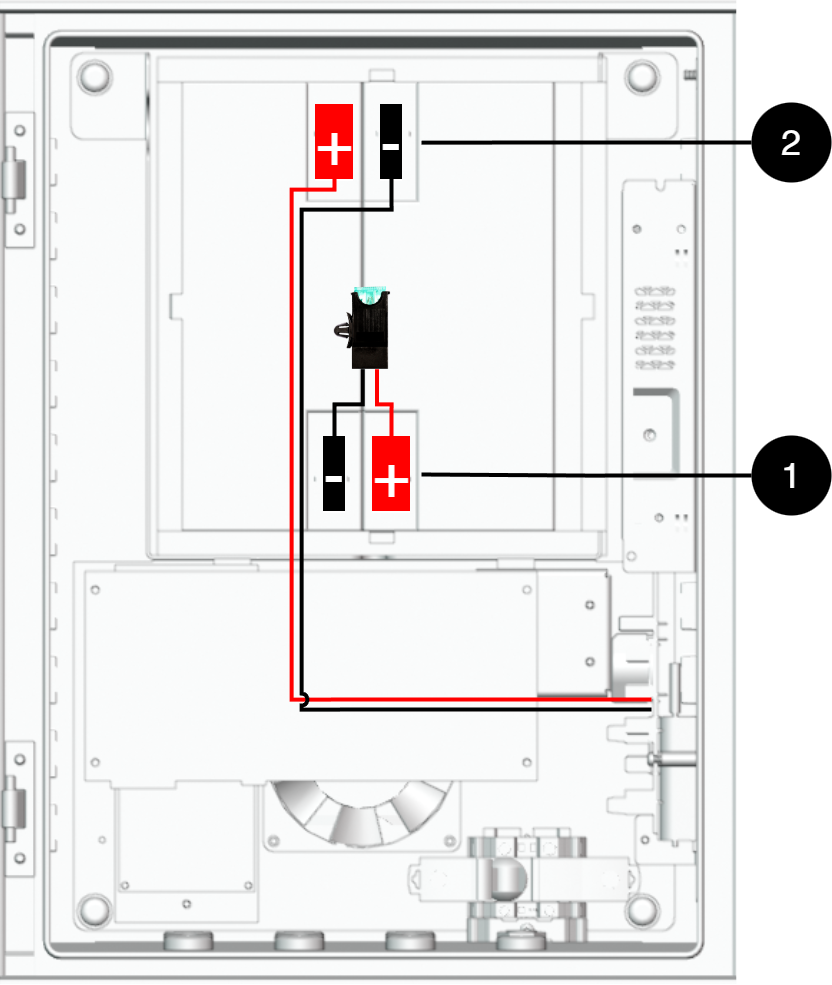

Batteries - placement and connection

Connecting batteries


Note that configuration may differ by product.

Table 14. Connecting batteries.

Nr

Explanation

B1-

Minus terminal to motherboard.

B1+

Plus terminal to battery fuse.



Short description for PoE switch 4p

Table 15. Short description PoE switch 4p.

No

Explanation

1-4

4 pcs RJ-45 powered ports for connecting PoE devices.

5-6

2 pcs. RJ-45 ports for connecting devices, not PoE-fed.

A

Dip switch.

B

Yellow LED on = PoE device connected. This is only an indication that the port is connected and not the connected device's status.

C

Indication, green LED lights up when device is plugged in. This is only an indication that the port is connected and not the connected device's status.



How the PoE switch software is accessed

How the software is accessed in the PoE Switch


This section shows how to log in to the switch's configuration web page.

To configure the software in the switch, the correct IP address needs to be set on the computer.

Access to the switch's software is through a browser, (such as: Chrome, Edge, Firefox, etc.).

Follow the steps to access the switch's settings.

Note

The settings shown are settings for PC, (Windows 7 - Windows 11). Windows and names may vary between different versions of Windows. Unfortunately, we cannot provide support for settings of your computer.

Note

IP address of the switch (factory setting): 192.168.2.1

Password (factory setting): admin

Notice

The address of the PoE switch is: 192.168.2.1 and username and password are: admin/admin The IP address in the switch is static (fixed) and therefore the computer's IP address and subnet mask must be static.

  1. Open settings and go to Network and Internet -> Advanced network settings. Open more network card options.

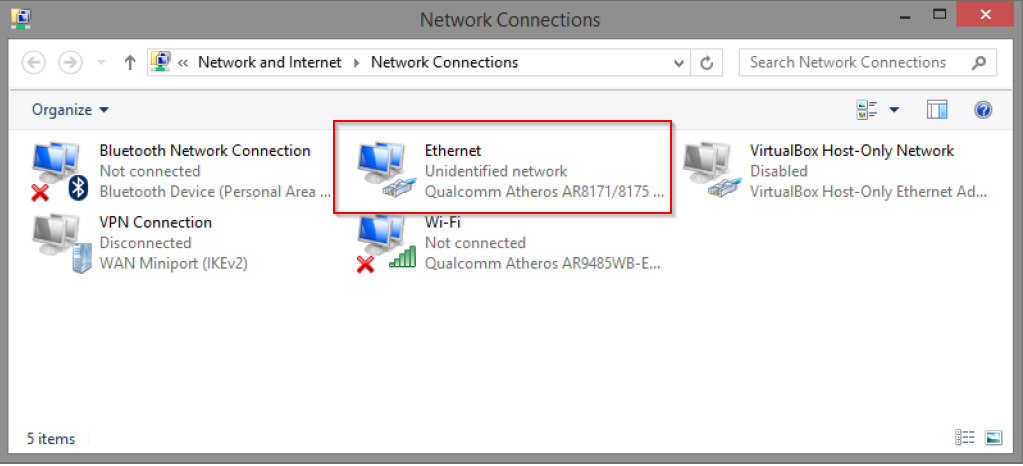

  2. A Network Connections window will appear showing all available network connections on the computer. Double-click the network connection you use to connect to the switch.

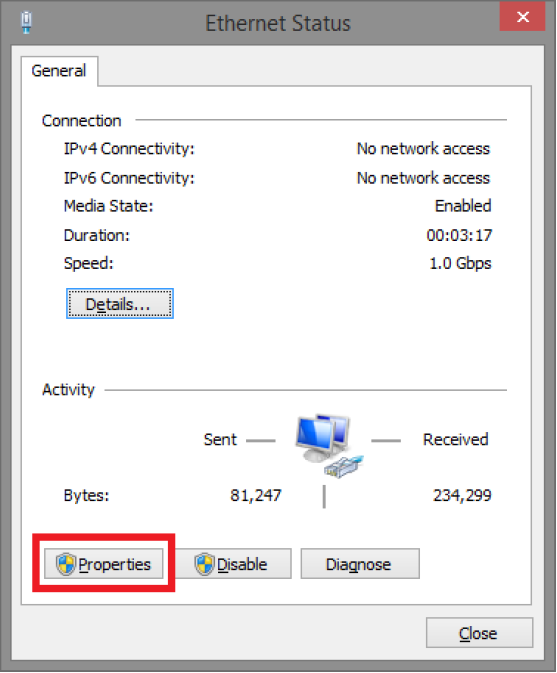

  3. Ethernet status window appears. Click the button Characteristics as shown in the figure below.

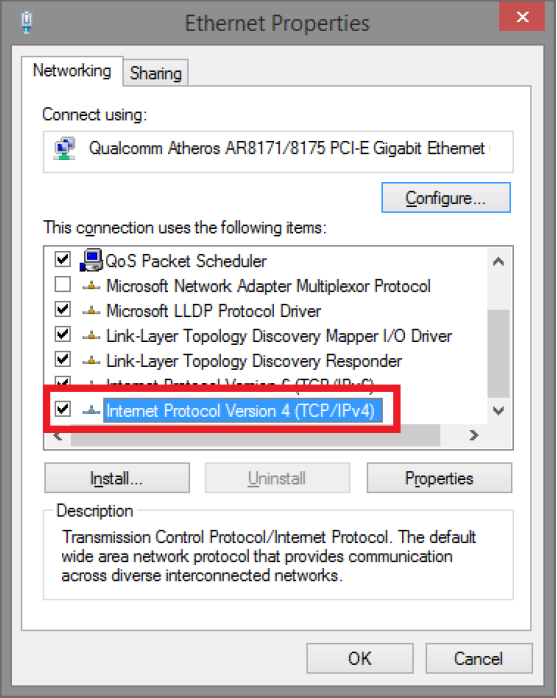

  4. Double-click: Internet Protocol Version 4 (TCP / IPv4).

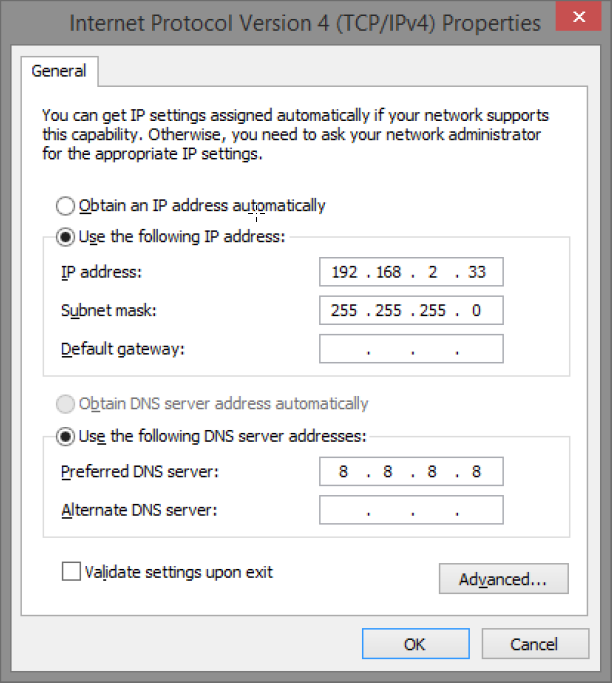

  5. Set the computer's IP address and subnet mask as shown in the figure below. By default, the product's IP address be 192.168.2.1. You can set any IP address as long as it is not the same as your switch's IP address and is in the same network segment as your switch's IP address. Press on OK to apply the TCP/IPv4 settings you just made. Now you can connect to your switch using a web browser (Chrome, Edge or Firefox).

  6. Connect an RJ-45 cable and connect to the PoE switch.

Log in to the PoE switch

Note

IP address of the switch (factory setting): 192.168.2.1

Password (factory setting): admin

Note

If you get a warning that the page is not secure/the connection is not private, click "advanced" and then "continue".

  1. Start the browser on your computer.

  2. Login to PoE switch.

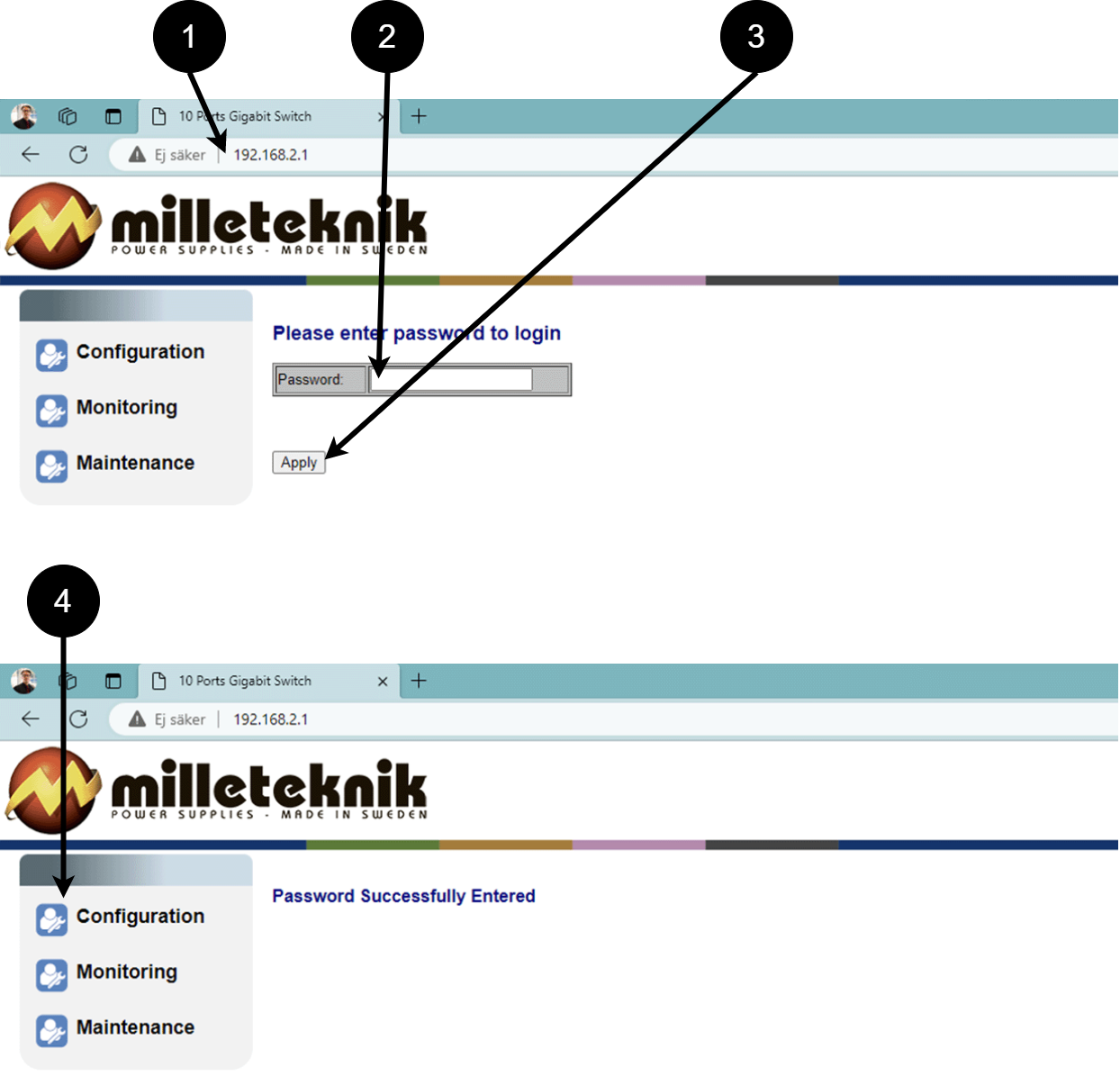

    Table 16. Log in to the switch.

    Number

    Explanation

    1

    IP address of the PoE switch: 192.168.2.1

    2

    Password: admin

    3

    Apply = Ok

    4

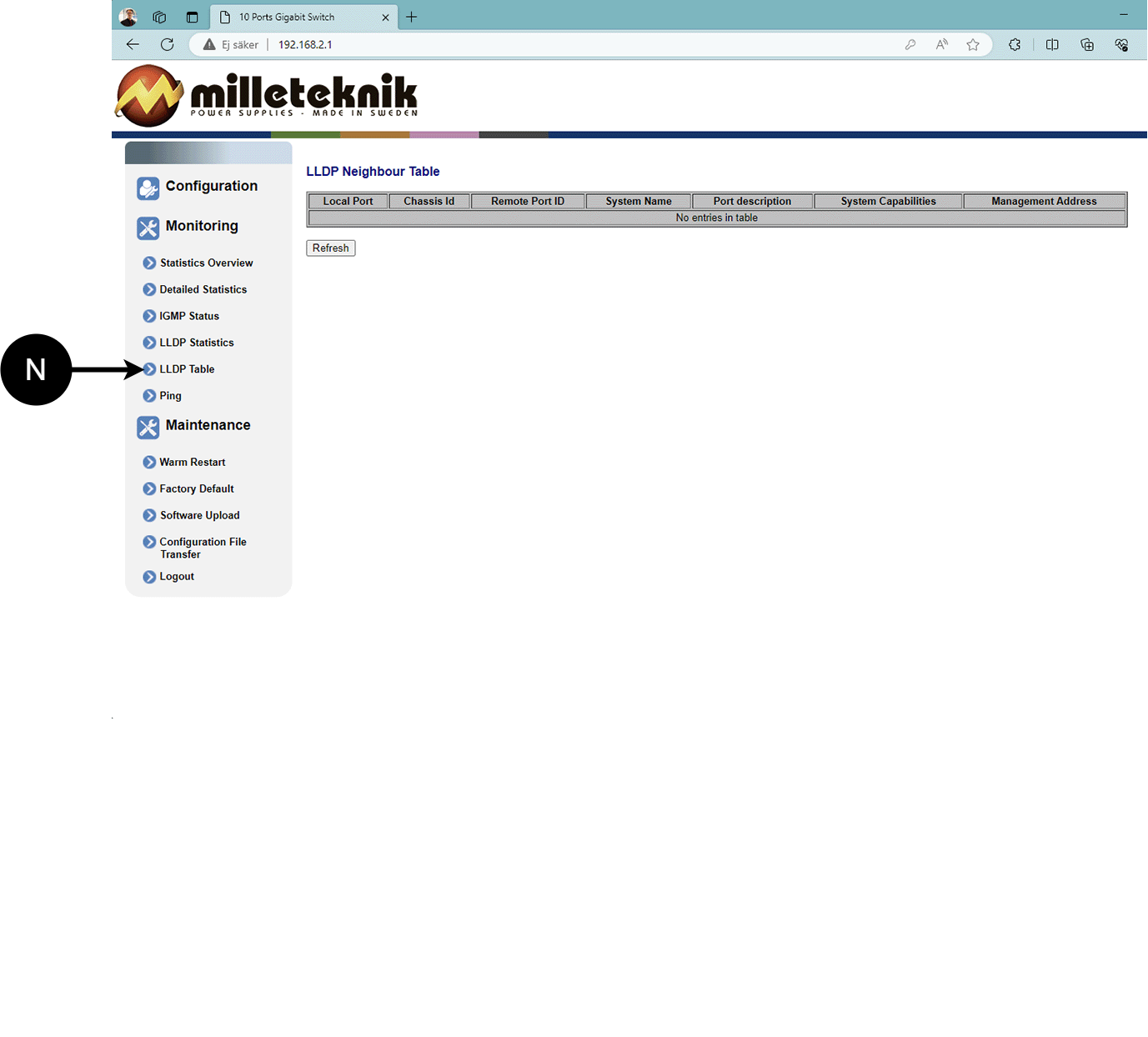

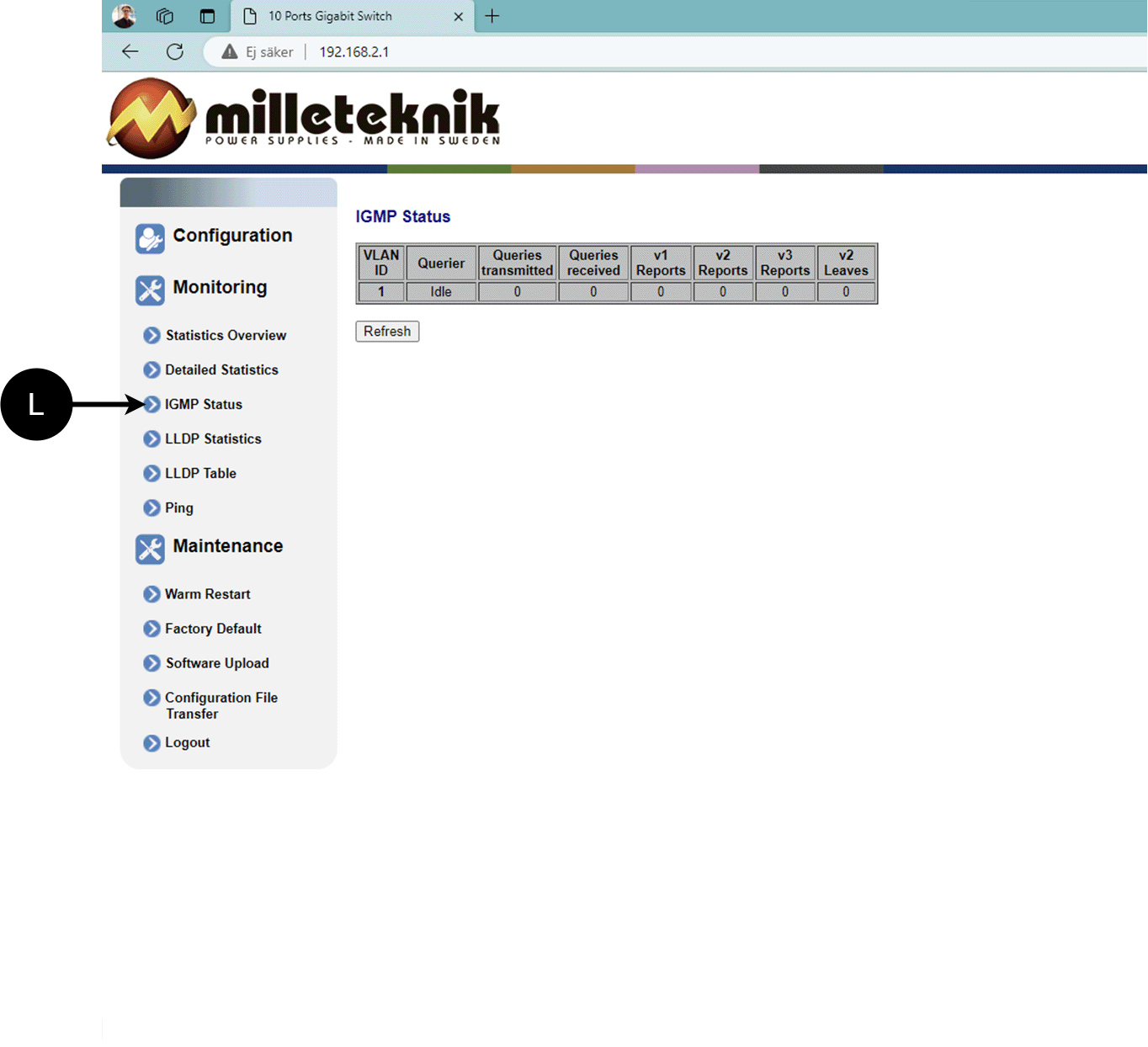

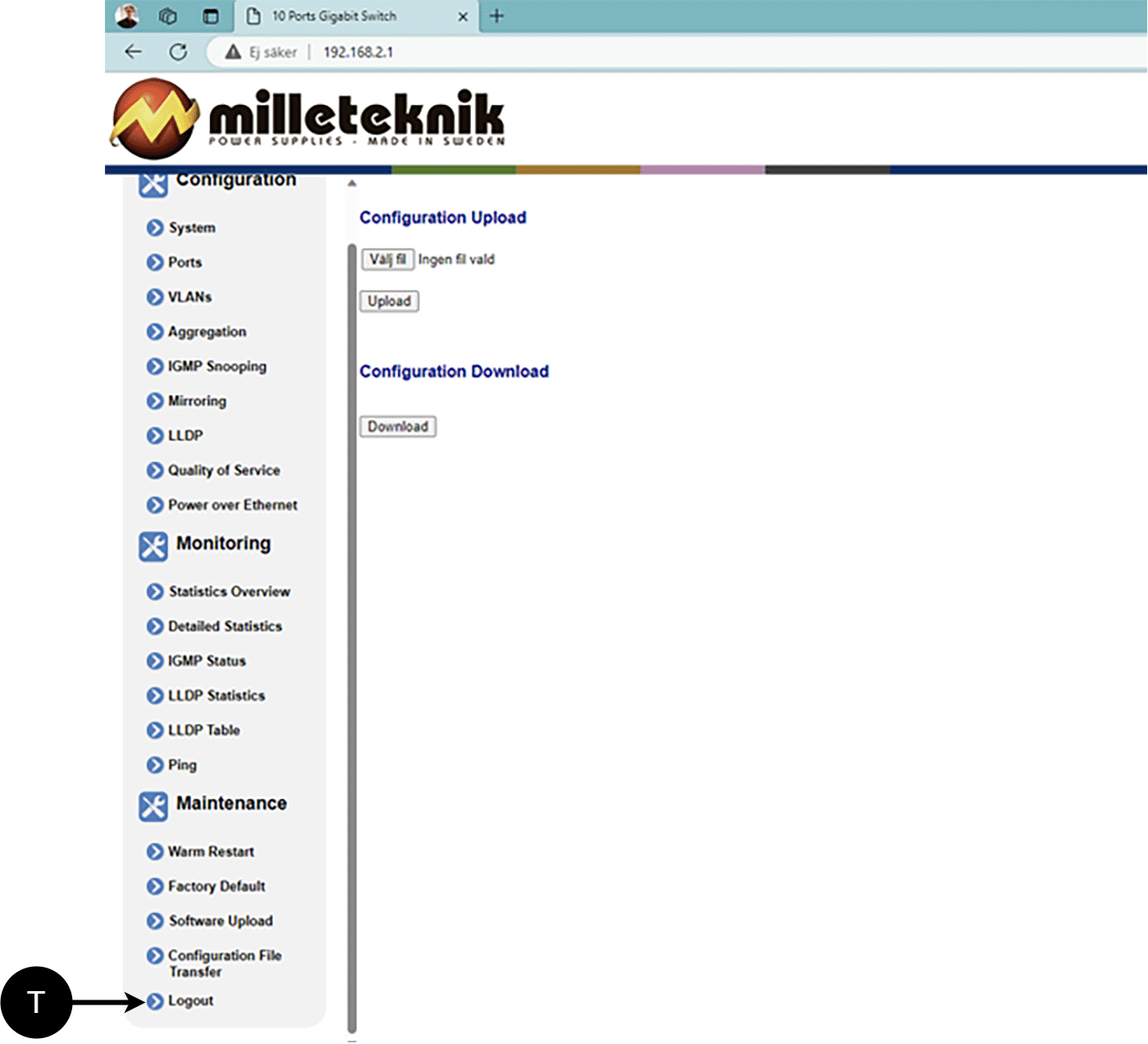

    Menu in the PoE switch



Configuration

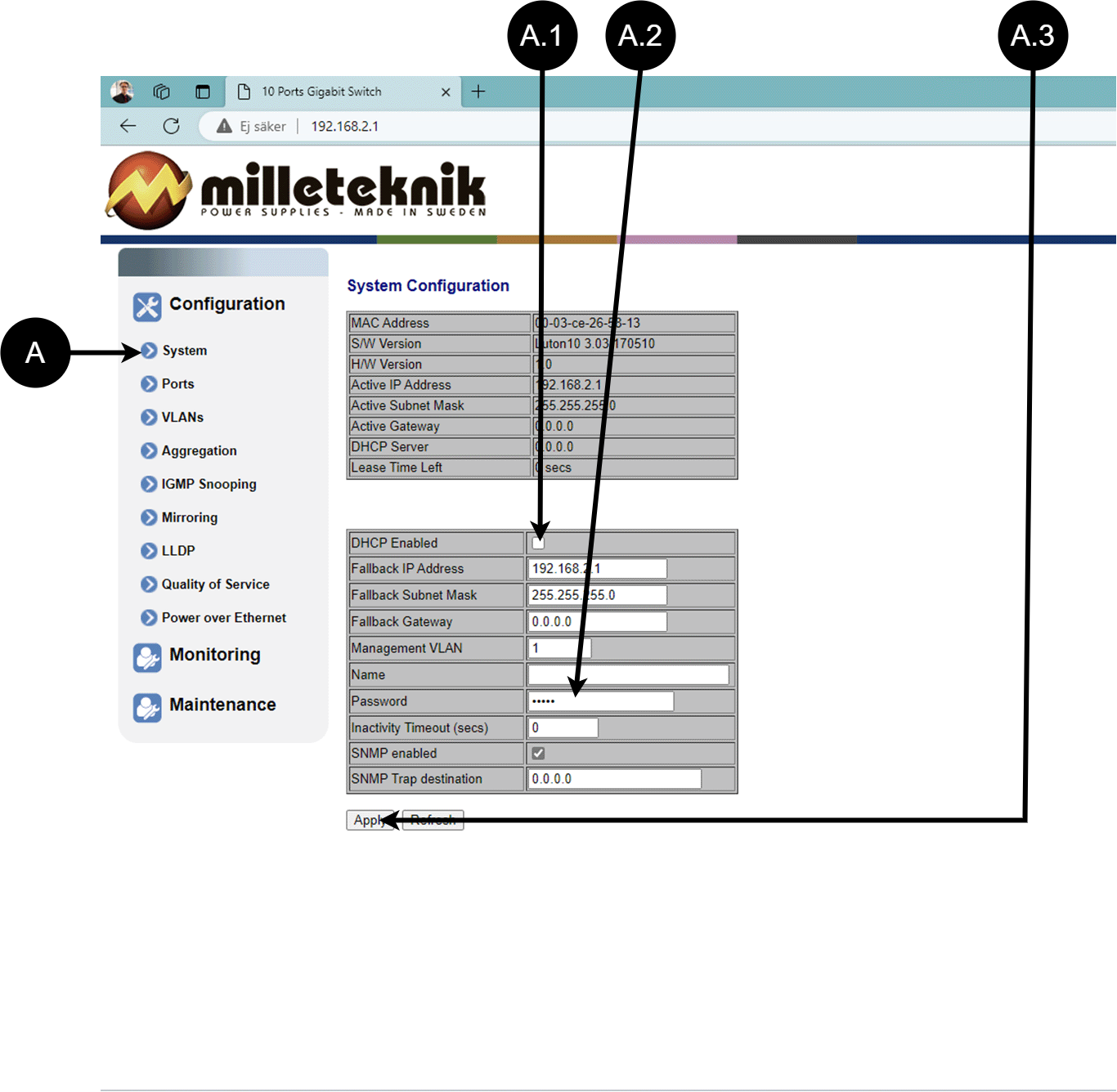

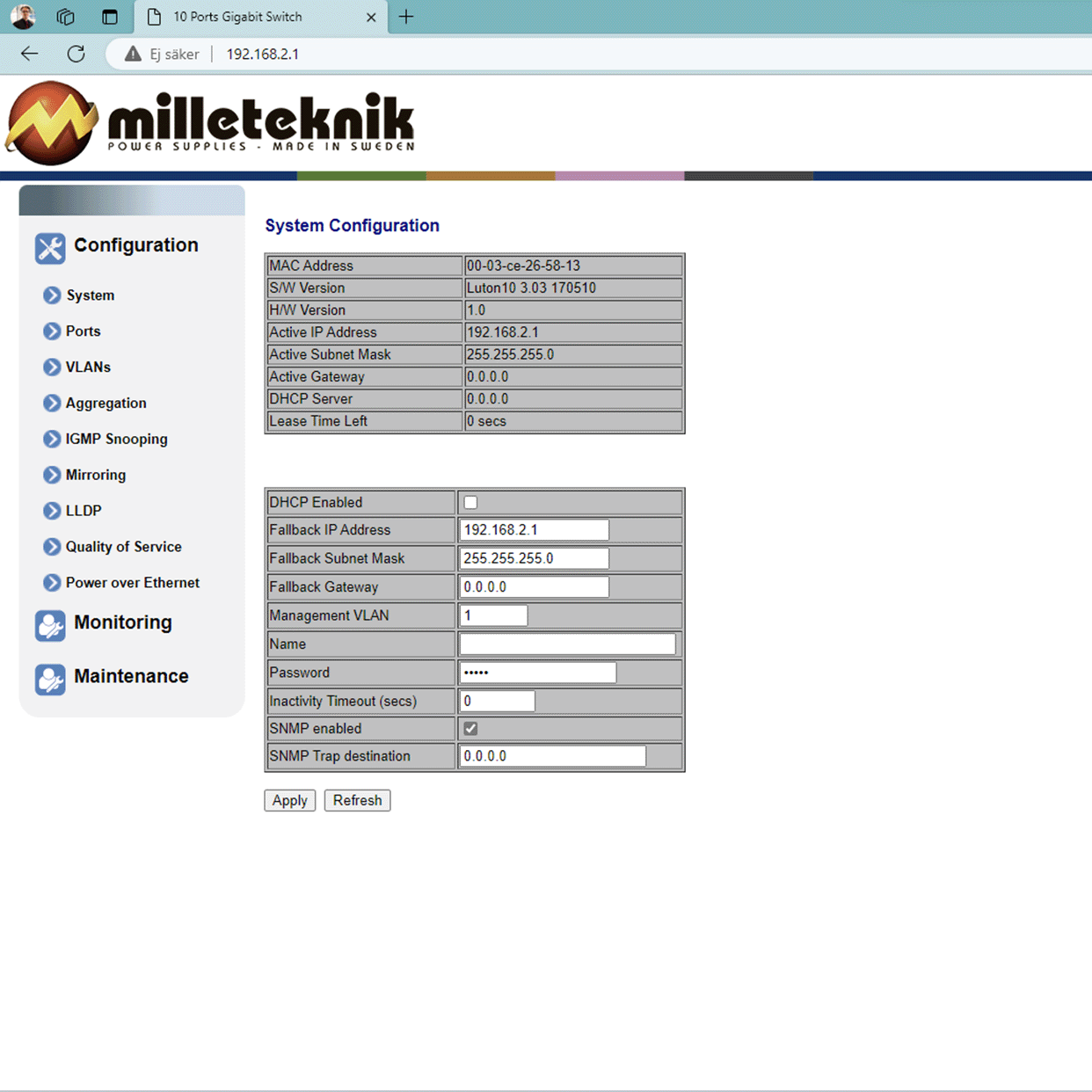

System, configuration

Table 17. System, configuration.

Letter, number

Explanation

A

PoE switch system configuration page

A.1

Tick here if you are going to use DHCP, see warning below.

A.2

Changes the factory default password, (admin).

A.3

If you have made any changes, you need to click "Apply" to save the changes.



Ports, configuration

Table 18. Ports, configuration.

Letter, number

Explanation

B

Gates

B.1

This setting normally does not need to be changed. Select the speed of the PoE switch's ports.

B.2

This setting normally does not need to be changed.

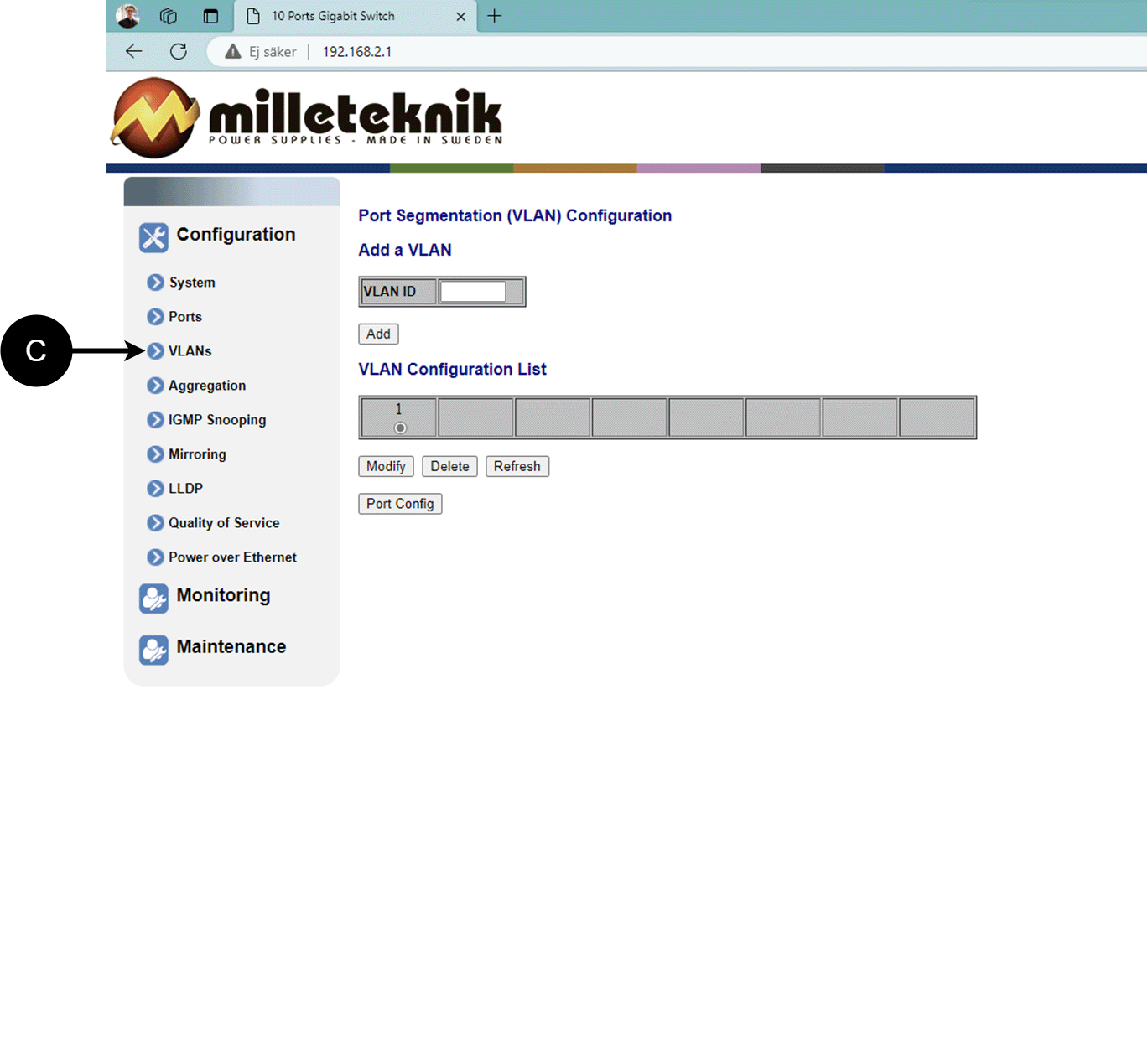

VLAN configuration


C: Configuration of Virtual LAN.

Aggregation, configuration

D: Load balancing between the ports.

IGMP Snooping, configuration

E: Switch that controls reception.

Mirroring, configuration

F: Mirroring of ports.

LLDP configuration

Table 19. LLDP configuration.

Letter, number

Explanation

G

LLDP stands for "Link Layer Discovery Protocol", which is a network protocol standard used to discover and communicate information about network devices connected to the same Ethernet network. The protocol allows devices such as switches and routers to send and receive messages containing information about the device's identification, capabilities, and connection topology.

G.1

RX and TX are abbreviations used in electronics, communications, and computer networking to indicate the direction of data flow between devices. RX: The abbreviation "RX" stands for "Receive" or "Reception". It indicates that the device is receiving data or signals from another device. When a device has an RX input, it means that it is designed to receive data or information from a transmitting device. TX: The abbreviation "TX" stands for "Transmit" or "Transmission". It indicates that the device is transmitting data or signals to another device. If a device has a TX output, it means that it is designed to transmit data or information to a receiving device. These abbreviations are especially common when it comes to data communication, such as in the context of network cables where there are specific RX and TX wires that allow for two-way communication between devices.

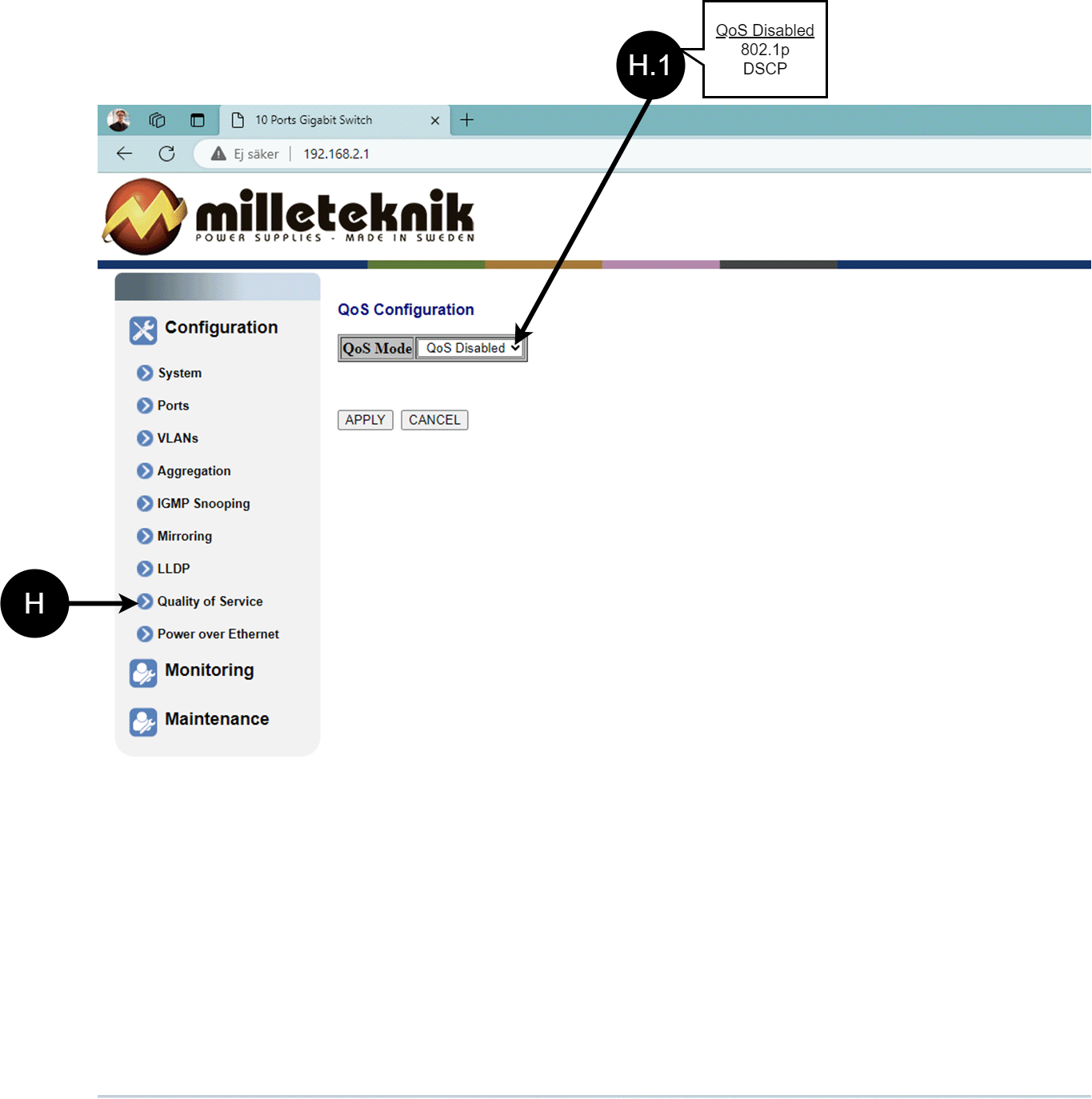

QoS, configuration

Table 20. QoS, configuration.

Letter, number

Explanation

H

QoS gives different network traffic different priority, helping to ensure that important services are delivered with sufficient bandwidth and minimal delay even when the network is under load.

H.1

Sets whether QoS is active.



PoE, configuration

Table 21. PoE, configuration

Letter, number

Explanation

I

Power over Ethernet

I.1

Turns PoE function/port on or off. Remember to press "Apply" to save changes.



Monitoring

Statistics, overview

Table 22. Statistics, overview.

Letter, number

Explanation

J

Statistics, overview

J.1

Traffic per port.



Statistics, detailed

Table 23. Statistics, detailed.

Letter, number

Explanation

K

Detailed statistics

K.1

Select the port for which you want statistics.



IGMP status


L: Status of IGMP

LLDP statistics

M: LLDP statistics

LLDP table


N: LLDP overview.

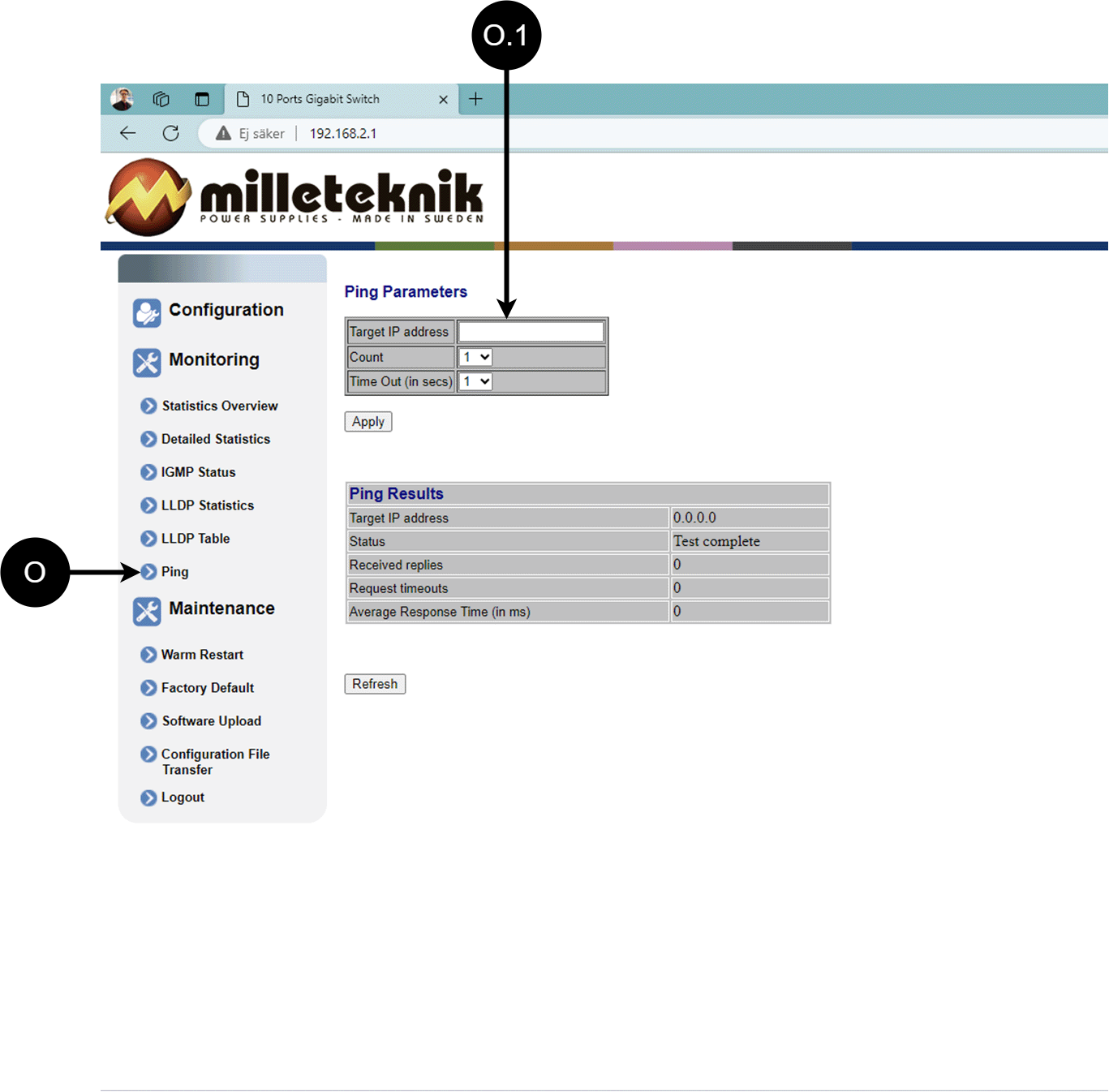

Ping

Table 24. Ping.

Letter, number

Explanation

O

Ping

[sv] O.1

Input address to test the connection and response time.



Maintenance

Reboot

Warning

Restart is done by PoE switch, battery backup is not restarted. Upon reboot, connected devices will lose connection. Alarm can be set to battery backup, but it disappears when the PoE switch is back on.

Table 25. Restarting the PoE switch.

Letter, number

Explanation

P

Rebooting the PoE switch.

P.1

Select "Yes" to reboot the switch.

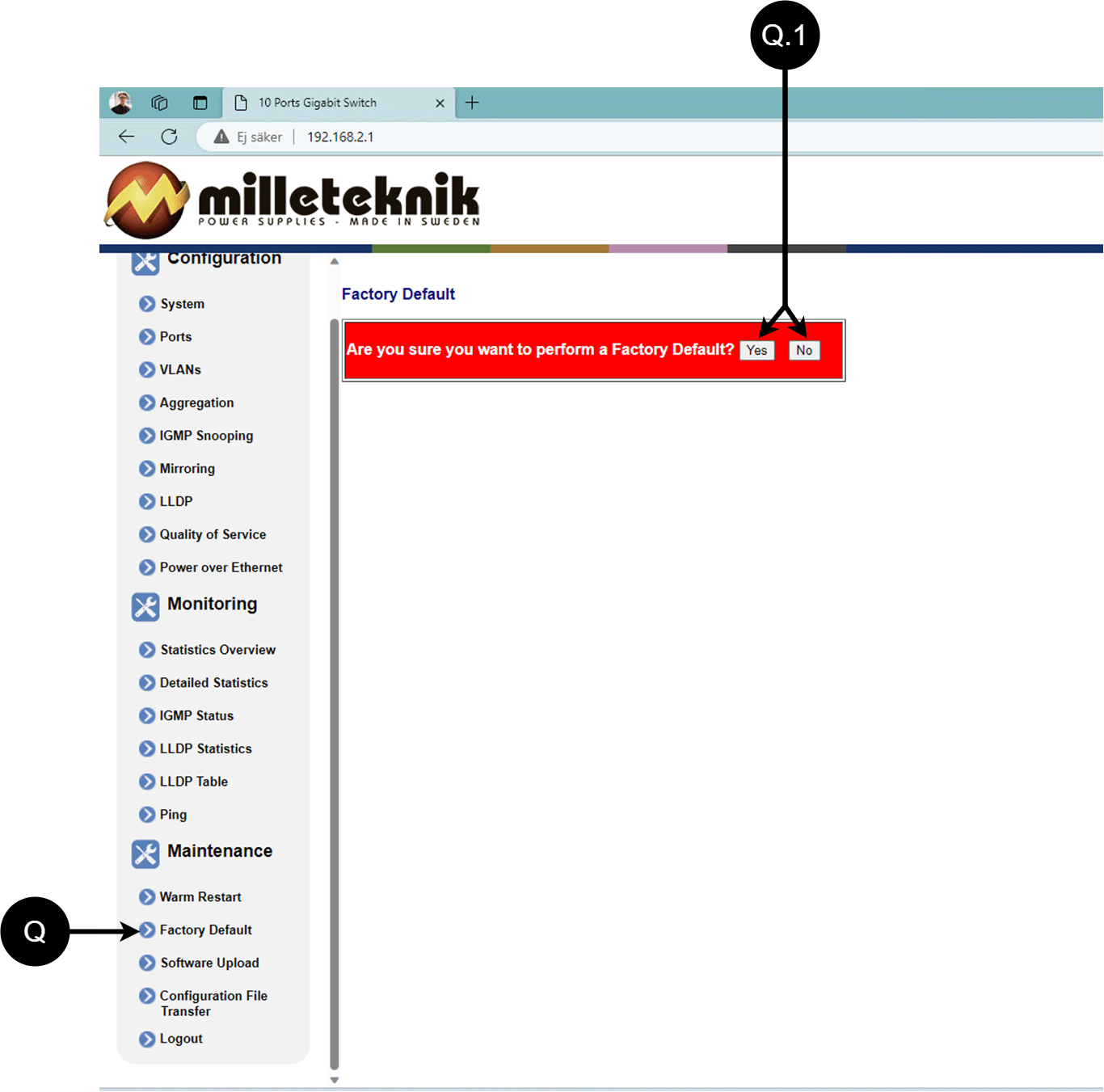

Factory reset

Warning

Factory reset is done by PoE switch. Battery backup is not restored. On reset, connected devices will lose connection. Alarm can be set to battery backup, but it disappears when the PoE switch is back on.

Factory reset of the switch can only be done from the software's (this) interface.

Recommendation: Keep IP address 192.168.2.1 and note password.

Important

During a factory reset, all settings, including IP settings, are lost. Save configuration before factory reset. See Upload new software

Table 26. PoE switch factory reset.

Letter, number

Explanation

Q

Factory reset the PoE switch.

Q.1

Select "Yes" to factory reset the PoE switch.

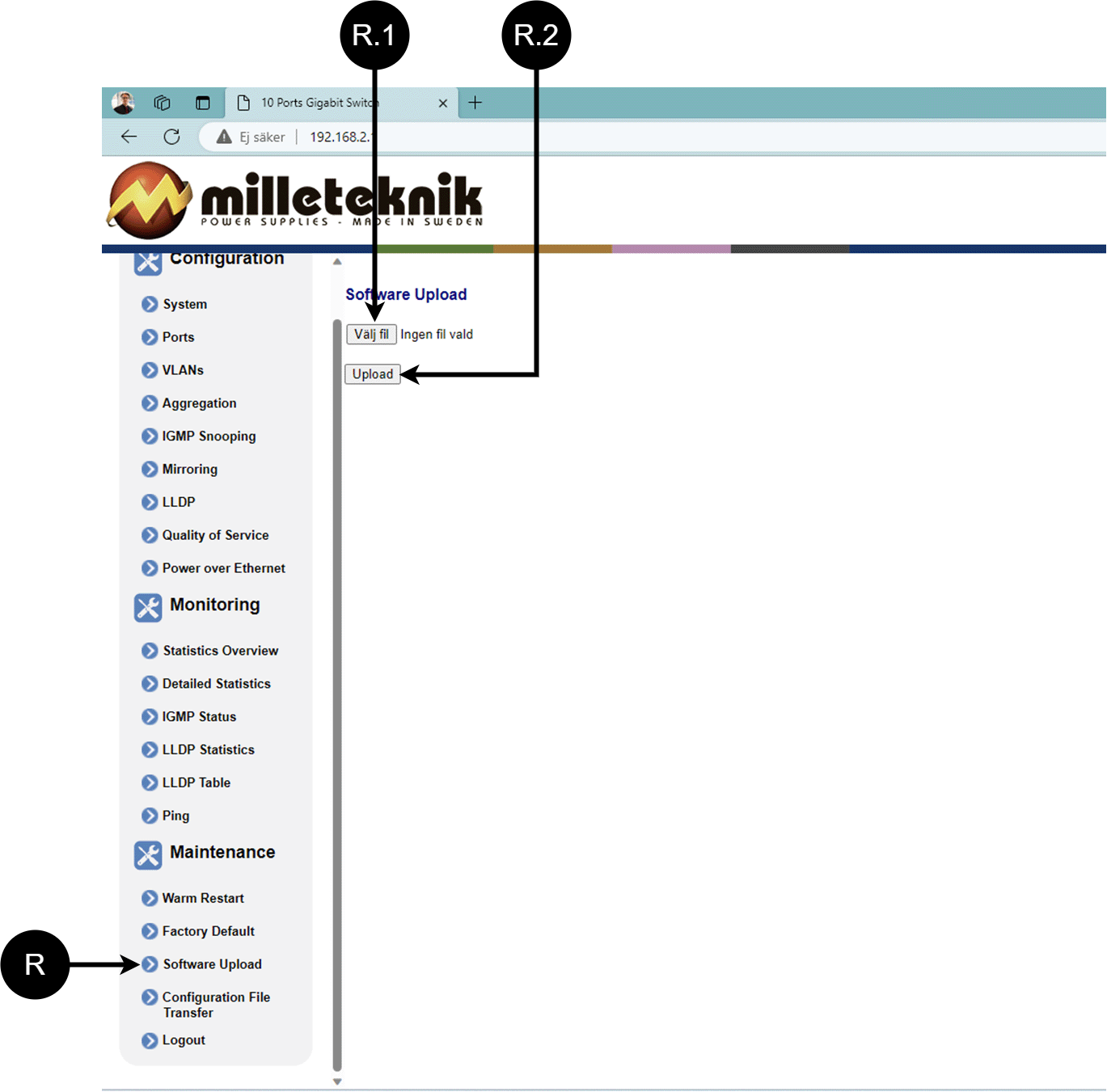

Upload new software

Warning

Only use software you received from Milleteknik's support. Milleteknik assumes no responsibility for software or consequences such as damage to the device or peripheral equipment or other damage that may arise from uploading unapproved software.

Table 27. Upload new software.

Letter, number

Explanation

R

Upload new software to the Switch.

R.1

Navigate to the location on your computer where you saved the file.

R.2

Click "Upload" to upload the software.

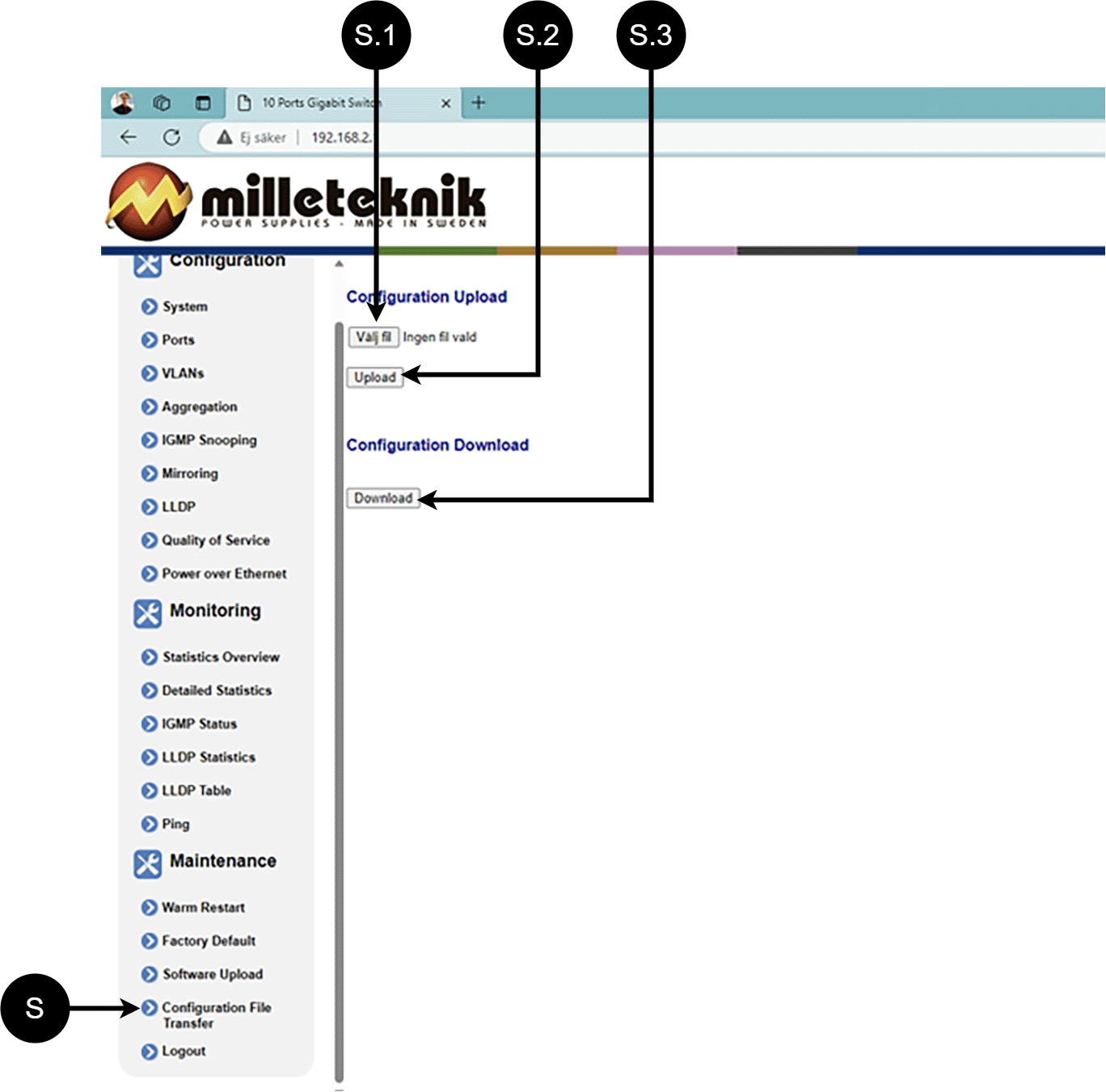

Load and save configuration file

Table 28. Load and save configuration file.

Letter, number

Explanation

S

Upload or download the switch's configuration.

S.1

Select new configuration file.

S.2

Upload new configuration file.

S.3

Download configuration file to computer[a].

[a] Newer Windows computers do not allow *.cfg files to be downloaded without additional approval in the browser when downloading. Antivirus programs may delete the file during download.



Sign out


T: Log out of the switch. This does not affect the operation of the switch.

About this information

All information is published subject to possible errors. Information is updated without prior notice.

Milleteknik with the associated logo is a trademark of Milleteknik AB.

PowerWatch is a trademark of Milleteknik AB.

Publication date 2026-05-13

[sv] Driftsättning - hur enheten skall startas

Danger

Personal injury or death can occur if the device is connected to the mains or live when disassembling / moving.

  1. [sv] Anslut last.

  2. [sv] Anslut nätspänning.

  3. [sv] Koppla in nätspänning.

Maintenance

[sv] Systemet, med undantag för fläktar och batterier, är underhållsfritt. Kontrollera fläktar årligen. Fläkt skall rotera problemfritt utan missljud. Rengör fläkten ifrån damm och smuts. Fläkt skall bytas om den inte roterar problemfritt eller är så smutsig att den inte kan rengöras helt. Om fläkt inte fungera bra kommer luftflödet i enheten att hindras vilket leder till att värmen ökar i kapslingen det leder till att batterielivslängd försämras och därmed att bytesintervall på batterier avsevärt förkortas.

[sv] Temperaturgivare

[sv] Enheten är utrustad med en temperaturgivare för mätning av batteritemperatur som styr fläkten som jämnar ut temperaturen i kapslingen. Genom att begränsa den interna temperaturökningen minskar belastningen på batterierna, vilket kan öka deras livslängd. Som referens halveras batteriets livslängd vid en temperaturökning på 10 °C, vilket gör effektiv värmehantering till en avgörande faktor för långsiktig driftsekonomi.

Safety Information - Service and Troubleshooting

  • If possible, disconnect the mains supply before starting any work, such as servicing, battery replacement, metering or troubleshooting.

  • Remove the battery fuse/plug before working on the DC side.

  • Check that all cables are properly connected and grounded before re-energizing the unit.

  • The product may contain components that become hot during operation. Avoid touching internal parts immediately after the power has been switched off.

  • If fuses blow repeatedly see Troubleshooting or disconnect the unit and contact Milleteknik technical support.

  • In case of suspicion of damage, liquid ingress or burnt odour, the product must not be used until it has been inspected by qualified personnel.

  • During operation, the housing should be closed and locked (if the device has a lock).

  • Only authorized service personnel may perform repairs on the device.

  • Use only original fuses and batteries of the same type and value as specified in the manual/product sheet.

Milleteknik is not responsible for damage caused by improper handling, modification or unapproved components.

Troubleshooting

If the device does not work as expected, go through the following checks:

Table 29. Troubleshooting

Problem

Possible cause

Action

No output voltage.

No mains voltage, fuse triggered or battery failure.

Check the supply, fuses and battery connections.

Battery does not charge.

Faulty battery connection or battery fuse has blown.

Check battery cables and replace battery fuse if necessary.

The device starts but alarms.

Batteries not sufficiently charged or faulty load or battery.

Wait 72 hours until the batteries are fully charged. Ensure that the connected load does not exceed the rated current.

LED flashes.

Information, warning or error.

See panel or manual for explanation.

Fuses blow frequently.

Short circuit or overload.

Check connected devices, change the fuse only after the cause has been resolved.

Unit overheating

High load or insufficient ventilation

Check that the rated current is not exceeded and ensure adequate ventilation around the enclosure.



If the problem persists after these checks, contact Milleteknik support and provide the product name, serial number, and a brief description of the fault.

Product sheet - power supply / battery backup

Product sheet - power supply from Milleteknik

PoE


Name, article number and e-number

Table 30. Name, article number and email number.

Name

Article number

E-number (SE)

PoE Switch Managed 4p UT M

PL02P30024P050P-UTM

51 734 03



Technical description

PoE Switch Managed 4p UT M is a PoE managed switch with 4 pcs. PoE+ ports according to AT standard where all ports can deliver power at the same time. The unit holds 2 x 12 V 20 Ah batteries in a thermally insulated space with heating element and thermostat for reliable use in outdoor environments. The system logs temperature, current and voltage for real-time monitoring. The integrated managed switch provides remote access via VPN for control of ports (on/off) and display of current power. In addition to the PoE ports, there is a separate 24 V load output for external equipment with higher power requirements. The product is prepared for external 4G/5G router and can be supplemented

[sv]

[sv]

Table 31. Quick Facts

Quick Facts

Supply voltage (V)

[sv] 230 V AC - 240 V AC, 47 Hz- 63 Hz

Voltage out (V)

[sv] 27,3 V DC som boostas till 54 V DC Gäller även i batteridrift.

Current output (A), max load current output.

[sv] 5 A

Batteries[a]

2 x 20 Ah

[a] Recommended. If batteries are included, it is indicated, otherwise batteries are ordered separately



Areas of application

Table 32. [sv] Användningsområden

Areas of application

Yes

No

PowerWatch compatible

IP camera, power supply.

Networked devices that can be powered by PoE.



Electronics

Table 33. [sv] Elektriska data

[sv] Elektriska data

[sv] Matningsspänning

[sv] 230 V AC - 240 V AC, 47 Hz- 63 Hz

[sv] Laddström

[sv] Beroende på strömuttag. Max 1A

[sv] Verkningsgrad[a]

[sv] 87%

[sv] Standbyförbrukning

[sv] Uppgift saknas.

[sv] Spänning ut

[sv] 27,3 V DC som boostas till 54 V DC Gäller även i batteridrift.

[sv] Ström (A)[b]

[sv] 5 A

[sv] Effekt (W)

[sv] 30,8W per port

[a] Vid nominell last.

[b] Strömuttag/last anges som max, normalt strömuttag skall vara 80% av max.



Table 34. Electrical data

Electrical data

Mains fuse

2.5 A.

Load fuses

Fuse on supply to PoE switch : 10 A.

Battery fuse

16 A.



Table 35. Printed circuit boards and Internal power consumption

Circuit Boards

Internal power consumption (during battery operation)

Other. info

PRO3

< 120 mA

All relays on external alarm board pulled in normal mode.

[sv] PoE switch Managed 4p

[sv] Uppgift saknas



Load outputs

Table 36. Load outputs

Load outputs

[sv] Antal lastutgångar

[sv] PoE-switch kan driva last till fyra PoE-enheter och moderkort kan driva en (1) 24 V lastutgång för att driva andra applikationer.



Table 37. Total maximum load and recommended load.

Model

Recommended total load (80%)[a]

5A

4 A

[a] Typically, 70-80% of the maximum load is recommended in continuous operation, depending on the thermal margins of the product.



Table 38. POE outputs

POE outputs

Number of PoE ports (RJ-45)

4

[sv] PoE-budget

[sv] 336 W

POE Budget/Max Power Per Port

30.8 W.

Number of LAN ports

2

Network ports/interfaces, RJ-45

1000Mbps

Managed

Yes



Alarm and protection

Table 39. Number of relay on which alarm can be given

Number of Relays

Alarm on switching relay?[a]

0

[a] Relay, alternating potential-free contacts.



Table 40. [sv] Larm över kommunikation och på LED på moderkort PRO3

[sv] Larm

[sv] Larm via kommunikation[a]

[sv] Indikeringsdiod på huvudkort.

[sv] Nätavbrott

[sv] Säkringsfel

[sv] Sabotagebrytare

[sv] Fläktfel

[sv] Laddarfel, överspänning

[sv] Laddarfel, underspänning

[sv] Cellfel eller ej anslutet batteri

[sv] Låg systemspänning, (systemspänning under 24,0 V i nätdrift).

[sv] Låg batterispänning (<24,0 V DC) eller nätavbrott

[sv] Övertemperatur

[sv] Undertemperatur

[sv] Kort batteritid kvar

[sv] Åldrat batteri

[sv] Överström 100 %, minutmedelvärde

[sv] Överström 80 %, dygnsmedelvärde

[sv] Överström 175 %, sekundmedelvärde

[a] Gäller kommunikation mot överordnat system, aktiv endast om konfiguration medger. PoE-enheter har ej kommunikation mot överordade system.



Table 41. Alarm and protection

Alarm and protection

Yes

No

Battery charge protection/controlled charging[a]

✔ Batteries are charged with a maximum of 0.5 A.[b]

Deep discharge protection, see Battery[c]

Overload Protection/Surge Protection

Over-temperature protection

Short circuit protection

[a] Controlled charging protects and extends battery life.

[b] Factory setting. Adjustable in PowerWatch

[c] When the deep discharge protection is activated, the device turns off and the LED goes out.



Communication and Indications

Table 42. Communication and Indications

Communication and Indications

Yes

No

Other. info.

Communication

RJ-45

Refer to manual for alarms that PoE switch can provide.

[sv] Portstyrning via ansluten dator

PowerWatch[a]

Indicators/LEDs

LED on circuit board.

[a] PowerWatch consists of a cable and software, it is ordered separately.



Battery

Table 43. Technical data - Batteries

Battery

Recommended Batteries[a]

2 x 20 Ah

Battery type

Maintenance-free AGM (lead-acid) batteries.

Deep discharge protection

[a] If batteries are included, it is indicated, otherwise batteries are ordered separately.

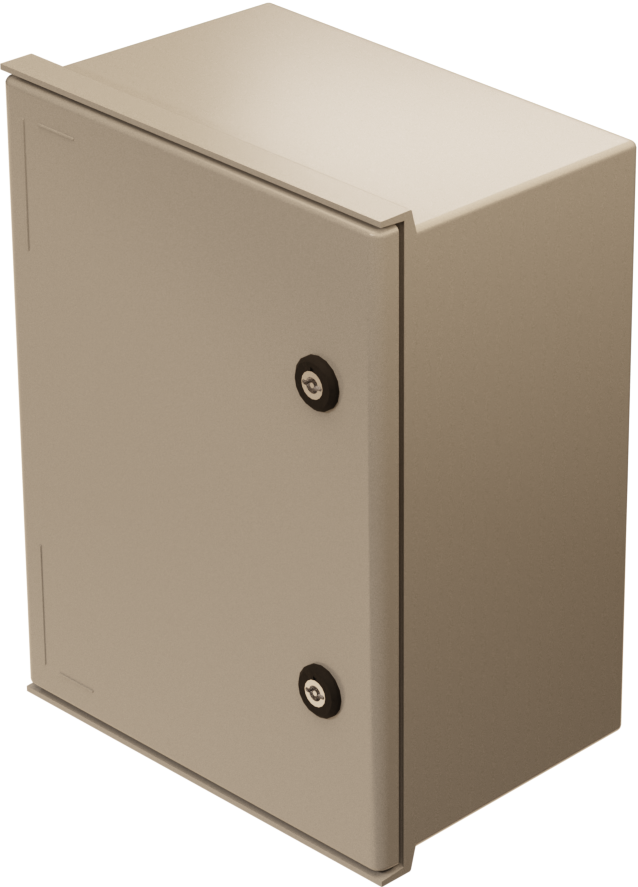

Enclosure and Mechanics

Table 44. Enclosure and Mechanics

Enclosure and Mechanics

Enclosure

IP class

IP65

Material

Fiberglass Reinforced Acrylic Plastic

Colour

Beige

Cable grommets

10 pcs.

Lock

✔, 2 pcs. keys included.

Fan in enclosure



Assembly, installation and eligibility requirements

Table 45. Fitting

Fitting

[sv] Ja

[sv] Nej

Pole.



Table 46. Installation

Installation

Yes

No

Fixed installation.



Dimensions, weight and packaging information

Table 47. Dimensions

Dimensions, (WxHxD).

Dimensions with packaging[a]

486 x 530 x 286 mm

550 x 500 x 300 mm

[a] Dimensions (WxHxD) of product and packaging may differ, this is because the product may be oriented differently in the package.



Table 48. Weight

Net weight

Weight with packaging

14.3 kg

14.5 kg



Table 49. Packaging

Packaging

Packaging

Cardboard and plastic shock protection.

Quantity in pack

1 pc.

Packaging Type (GS1 T0137)

BX box.

Conditions EUR pallet

EUR pallets may not be stacked during transport or storage. Stacking may result in damage to product and packaging

Transport environment

The product must be protected from condensation and direct precipitation during transportation.

Transport temperature (without battery)

−30 °C to +70 °C

Storage environment

Dry indoor environment, protected from condensation. Relative humidity: max 95%, non-condensing

Storage temperature without batteries

−20 °C to +60 °C



The accessories fits in

Table 50. [sv] Fäste som passar till enhet

[sv] Tillbehör

[sv] UT S

[sv] UT M

[sv] UT L

[sv] Väggfäste

[sv] ✔ (Ingår)

[sv] ✔ (Ingår)

[sv] ✔ (Ingår)

[sv] Solskydd

[sv] ✔ (

[sv] Kamerafäste

[sv] Högtalarfäste



Contact

Table 51. Contact

Department

Switchboard

031-340 02 30

Support and technical issues

support@milleteknik.se

Sales

sales@milleteknik.se

WWW

www.milleteknik.se

Address

Ögärdesvägen 8B, 433 30 Partille



About this information

All information is published subject to possible errors. Information is updated without prior notice.

Milleteknik with the associated logo is a trademark of Milleteknik AB.

PowerWatch is a trademark of Milleteknik AB.

Publication date 2026-05-13

[sv] Compliance och regelefterlevnad

Delivery time, warranty and terms

Table 52. Delivery time, warranty and terms

Delivery time, warranty and terms

Warranty period[a]

[sv] Produkten har två (2) års garanti mot tillverkningsfel.

Special warranty conditions

Batteries and wear parts are not covered by warranty. See also general terms and conditions.

General Terms and Conditions

ALEM09 with exceptions, see: www.milleteknik.se/conditions/

Support

Telephone support and email support during the warranty period are free of charge. For spare parts that are not covered by warranty, there is a charge

Delivery and stock

Delivery time[b]

10 working days. Or as per agreement. Delivery from factory, transportation time is added.

[a] If the device is purchased through a wholesaler or other supplier, other warranty conditions may apply

[b] In the case of larger orders, delivery time increases, acc. to agreement.



Operation and maintenance

Table 53. Operation

Operation

Data

Other. info

Environment

Outdoor Class 3.

Operating temperature (permissible) [a]

-25°C to +50°C

Class 3 according to EN 50131-6/ EN 60839-11

Load, power supply

80%

Average load shall not exceed 80% of the rated capacity of the power supply.

Ventilation, free distance around the enclosure.

100 mm

Ventilation openings must not be blocked or covered.

[a] Specifies the permissible ambient temperature range in which the product can operate without damage. See also table on battery life.



Table 54. Maintenance

Yes

No

Interval

Other. info

Annually

The fan should be cleaned annually. Battery terminal voltage must be measured. Ensure that the average load does not exceed 80% of the rated capacity of the power supply.



Certifications and approvals

Table 55. Approved according to

Complies with

Directives

PoE

IEEE 802.3af, IEEE 802.3at/30.8 W up to type2, class 4.

Emissions

Immunity

EN61000-6-2:2005, EN61000-4-2, -3, 4, -5, -6, -11 SS-EN 50130-4:2011 Edition 2, EN50131-6

C.E.

CE marking according to (EC) 765/2008

EMC

EMC Directive 2014/30EU

Electric (LVD)

Low Voltage Directive: 2014/35/EU



Environmental data

Table 56. Environmental data

Environmental data

J/N

Informație

Other. info.

Building Product Declaration (BPD)

Yes, see iBvd at www.milleteknik.se.

-

REACH Information Obligation

(EC) No 1907/2006

Yes, see the DoC at www.milleteknik.se The product complies with REACH Regulation (EC) No 1907/2006.

If empty, the product is not covered.

SVHC substances, CAS/EC

Yes, lead, 7439-92-1/231-100-4

For text, see iBvd at www.milleteknik.se. If blank, substance is missing.

Subject to the RoHS Directive, (EU) 2015/863)

Yes, see the DoC at www.milleteknik.se

WEEE

2012/19/EU

The product contains electrical components or wiring and is covered by the WEEE Directive (2012/19/EU).

If empty, the product is not covered. End-of-life products must be returned to a recycling centre

Battery Regulation

(EU) 2023/1542

SCIP No

2008/98/EC

Yes, registered under the EU Waste Directive where applicable, (2008/98/EC).

If empty, no SCIP number is needed.

Conflict minerals

(EU) 2017/821

✗/✗/✗/✗/✔

No=Gold, Tungsten, Tantalum, Cobalt. Yes=Tin

[sv] Tenn i lödningar i kretskort som köps in via svensk leverantör.

Contains nanomaterials:

EC 1272/2008

The product does not contain nanomaterials.

Ecodesign

2009/125/EC

Milleteknik's products are intended for professional use and are therefore not directly covered by the Ecodesign Regulation (EU 2019/1782). As some components may be covered, we nevertheless disclose relevant information[a], where applicable, to provide our customers with confidence in their choice.

Machine Directive

2006/42/EC

The product is part of electrical systems, is subject to the relevant electrical and safety directives and is not a machine according to the Machinery Directive (2006/42/EC).

Will be replaced by Machinery Regulation (EU) 2023/1230, which will apply in 2027.

The product is designed and constructed for a long service life, which reduces the environmental impact. The life of the product (except wearing parts) depends on, among other things, environmental factors, mainly ambient temperature, unforeseen load on components such as lightning strikes, external impact, handling errors, etc. Products are recycled, simply because they are modular, by being left at the nearest recycling station or sent back to the manufacturer.[b]Contact your distributor for more information.

[a] Standby consumption and power.

[b] Costs incurred in connection with recycling are not reimbursed.



soptunna_atervinning.ai

Manufacturer and country of origin

Table 57. Manufacturer and country of origin

Manufacturer and origin

Manufacturer[a]

Milleteknik AB

Customs State. Nos.

85043180

Country of origin

Sweden

[a] Manufacturer is the trademark indicated on the product, regardless of what is stated in this product sheet.



[sv] Bilaga

[sv] Behörighetskrav, installation

[sv] Krav på behörighet varierar mellan länder. Tabellen sammanfattar nationella krav för fast installation respektive anslutning av utrustning med stickkontakt.

Table 58. Eligibility requirements by country. Applies only to the installation of this product in a fixed network connection

Permission Requirements for Installation

Fixed installation (230 V)

Plug

Other. info

Sweden

Fixed installation may be performed by technicians but shall be under the responsibility of a qualified installer. (Electrical Safety Act, SS 436 40 00) Plug may be connected without authorization.

Norway

Requirements for qualified electricians also for equipment with a plug socket in fixed installations. (NEK 400, DSB

Finland

Plug may be connected without authorization. (Tukes, SFS 6000

Denmark

Plug may be connected without authorization. (Safety Board

Germany

All fixed installations require a qualified electrician according to VDE 0100. Plug sockets may be connected without authorization, but only by person with basic electrical knowledge (“Elektrotechnisch unterwiesene Person”)



[sv] Referenstabell: miljöklasser enligt EN 50130-5 (som hänvisas till i EN 50131-6)

Table 59. Reference table: environmental classes according to EN 50130-5 (referred to in EN 50131-6)

Class

Type

Temperature range

Environmental Class 1

Heated indoors (type office/residence).

+5°C to +40°C

Environmental Class 2

Generally indoors (type warehouses/stairwells, not temperature controlled).

-10°C to +40°C

Environmental class 3

Protected outdoors.

-25°C to +50°C

Environmental class 4

Generally outdoors.

-25°C to +60°C



Miscellaneous

[sv] Referenstabell: tillverkares angivna livslängd och rekommenderat batteribyte

Table 60. Reference table: manufacturer's stated service life and recommended battery replacement

Battery Type (Design Life)[a]

Battery replacement time in normal operation, +20°C.

Replacement during hot operation, +30°C

Replacement during hot operation, +40°C

3 - 5 years

2 - 3 years

1 - 1.5 years

0.5 - 0.75 years

6 - 9 years

5 - 6 years

2.5 - 3 years

1.2 - 1.5 years

10 - 12 years

6 - 7 years

3 - 3.5 years

1.5 - 1.75 years

15 + years

10 - 12 years

5 - 6 years

2.5 - 3 years

[a] Valid in case of completely unused battery stored under optimal conditions.



About this information

All information is published subject to possible errors. Information is updated without prior notice.

Milleteknik with the associated logo is a trademark of Milleteknik AB.

PowerWatch is a trademark of Milleteknik AB.

Publication date 2026-05-13

Address and contact details

Milleteknik AB

Ögärdesvägen 8 B

S-433 30 Partille

Sweden

+46 31 340 02 30

info@milleteknik.se

www.milleteknik.com



[1] Translations in languages other than Swedish are indicative only and not verified. Translation should always be checked against the Swedish original to ensure accurate information
