Power Supply 24V 15A 1U | 1U01D10024P1501 | 5213517 |

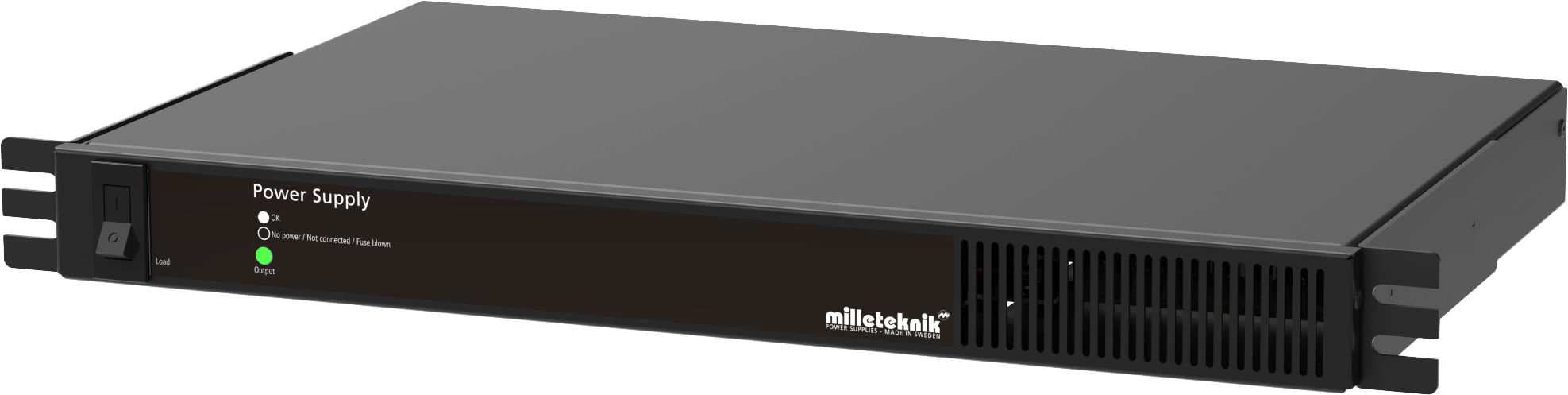

Power supply 24V 15A is a rack-mounted power supply that can be used independently or together with Redundancy panel 1U or with a battery backup from Milleteknik.
Area of use: To supply power to access systems, locking systems and fire alarms and other facilities operated with 24 V DC.
Read this first!
If possible, leave 100 mm of free space.
The system is intended for use in a controlled indoor environment.
Only authorized persons should install and maintain the system.
It is the installer's responsibility to ensure that the system is suitable for its intended use.
Documents accompanying the system must be kept in or in its immediate vicinity.
Ventilation should not be covered. Mains voltage should be disconnected during installation.
All information subject to change.
Upon installation of this product, the installer acknowledges and accepts the limitations of this product as described in this manual.
Instructions original language: Swedish.
Installation and commissioning
Instructions for installation and commissioning.
Component overview
No | Explanation |
|---|---|

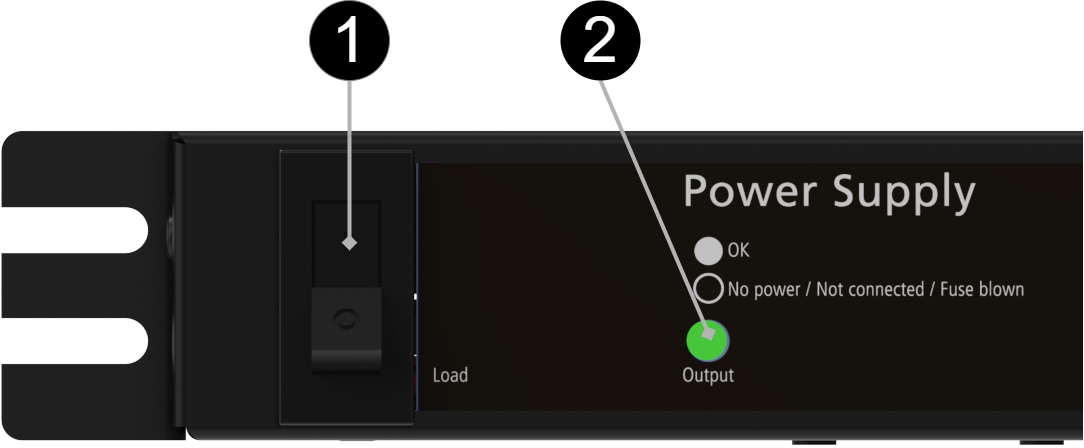

1 | Load on/off |
2 | LED |
No | Explanation |
|---|---|

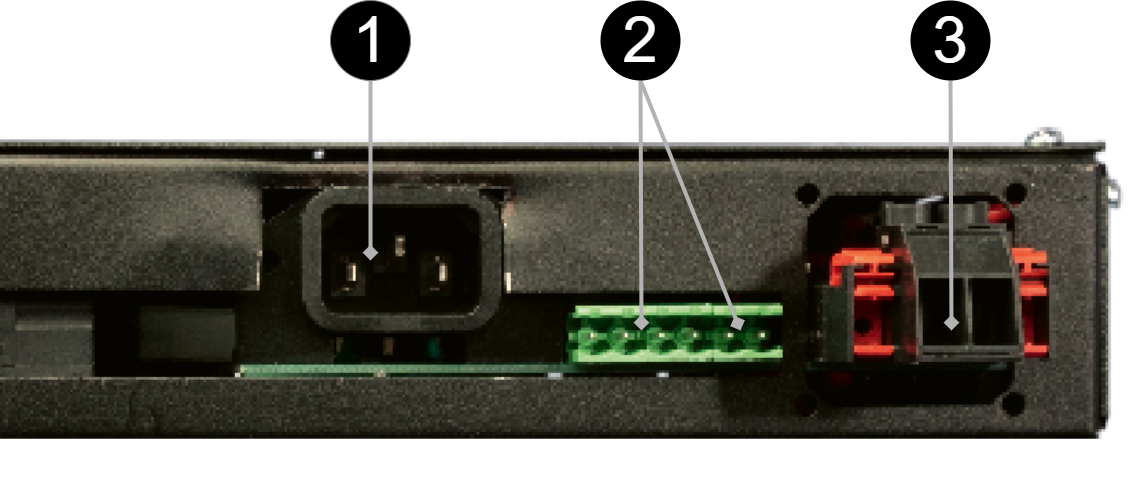

1 | Mains, 230 V in |
2 | Double sum alarm, NO/COM/NC+NO/COM/NC.Sum alarm: alarm in the event of a loss of voltage from the power supply unit after the load fuse has tripped. |
3 | Load -- / ++ |
Enclosures
General assembly instructions
Indoor mounting in 19" rack
The product should be mounted in a standardized 19" rack or cabinet with sufficient carrying capacity for the weight of the enclosure including batteries.
The device should be mounted at a comfortable working height, normally between 1.4 and 1.8 m.
The device is mounted horizontally in the rack with the included rack ears or corresponding brackets.
Check that the rack posts are properly aligned and that the spacing corresponds to the 19" standard (465—470 mm between the inner edge of the posts).
Use at least two mounting points (on each side) on the rack ears for stable attachment. Recommended screw size is M5 or M6
When assembling, cage nuts or locking washers should be used to ensure that the screws fit securely.
For good ventilation, at least 100 mm of free space should be provided above and below the unit. Do not block the air flow on the front or back.
Batteries should always be placed as directed and must not block ventilation openings or wiring.
Installation shall be carried out in accordance with the applicable installation rules and by a competent installer.
Mounting
Use the appropriate screw for mounting on a wall or in a 19" rack. Screws for mounting on a wall or in a rack are not included.
For wall mounting in concrete, concrete screws must be used. For rack mounting, M6 with basket nut is used
Screw length should be adjusted according to wall material and load. The specified screw length is the minimum allowable length
Mounting holes, spacing and ø.
Installation in 19" rack

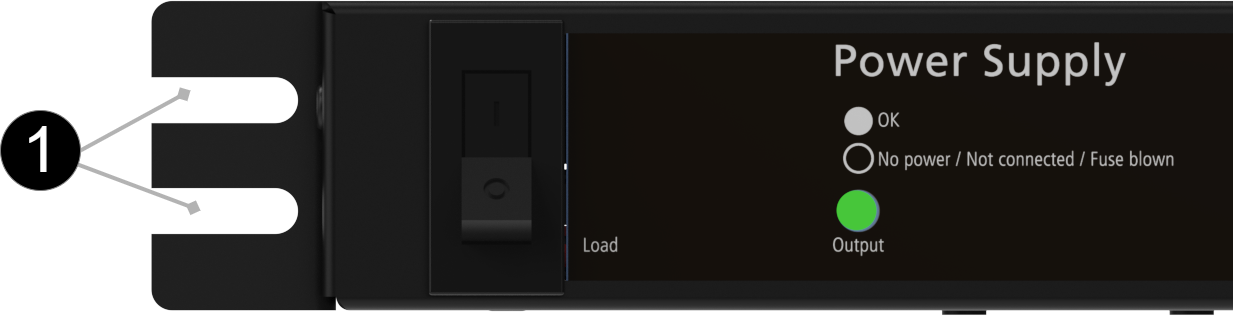

The unit must be mounted in a 19" rack. Bracket is screwed into rack with M6 screw and basket nut, at least one on each side. Use the appropriate screw and nut for the rack. Screw and nut not included.
No . | Explanation |
|---|---|
1 | The unit is screwed into a 19" rack. |
Mains connection
Connect load
24 V load is connected via quick contact. (Redundancy panel 1U is also connected here.)
Connect alarm
Alarm is connected on the back. NO/CO/NC. Use any connection, the alarms are duplicated.
Total alarm: Alarm in the event of loss of voltage from the power supply unit after load protection.
Alarm functions
Double total alarm: Alarm in the event of loss of voltage from the power supply after load protection.
Commissioning
After connection, startup must take place in the following steps:
Connect load.
Check that the fuse on the front is ON.
Voltage setting of power grid.
The device works normally when the indicator diode on lights up with a solid green light.
Recovery
Reset the unit by completely de-energizing the unit.
Disconnect battery wiring and mains voltage and reconnect after 5 seconds.
Panel explanation
LEDs | Explanation |
|---|---|
Solid green | Ok - normal mode |
Flashing green | Alarm |
Turned off | No power from mains / not connected to mains / Fuse has tripped. |
Regulations and certifications
Requirements that the product meets
EMC: | EMC Directive 2014/30/EU |
Electricity: | Low Voltage Directive 2014/35/EU |
CE marking: | Regulation (EC) No 765/2008 |
Machinery Directive | The product is part of electrical systems, is subject to the relevant electrical and safety directives and is not a machine according to the Machinery Directive (2006/42/EC). |
Ecodesign | Milleteknik's products are intended for professional use and are therefore not directly covered by the Ecodesign Regulation (EU 2019/1782). As some components may be covered, we nevertheless disclose relevant information to give our customers confidence in their choice |
Technical data enclosures
Technical data 1U
Info | Explanation |
|---|---|
Name | 1U |
Enclosure class | IP 20 |
Measure | Height: 44 mm, width: 244 mm, depth: 280 mm. |
Height units | 1 |
Mounting | 19 "rack |
Ambient temperature | + 5 ° C - + 40 ° C. For best battery life: + 15 ° C to + 25 ° C. |
Environment | Environmental class 1, indoors. 20% ~ 90% relative humidity |
Material | Powder coated sheet metal |
Color | Black |
Cable glands, number | 8 |
Power supply
Power supply - Technical Data HRP-300-24
In: |
|---|
Power Supply 24V 15A 1U |
Info | Explanation |
|---|---|
Output voltage | 27.3 V |
Output current | 0 A - 14 A |
Output voltage, ripple | 150 mVp-p |
Overvoltage | 30 V - 34.8 V |
Voltage recharge, ripple / current limitation | Less than 1.2 Vp-p |
Efficiency | 87% |
Current limitation | 105% - 135% |
Constant voltage | +/- 0.5% |
Regulatory accuracy | +/- 1.0% |
Input current (230 V) | 1,8 A |
Mains voltage frequency | 47 Hz- 63 Hz |
Mains voltage | 230 V AC - 240 V AC |
Brand effect | 336 W |
Temperature range | -40 ° C - + 70 ° C |
Humidity range | 20% - 90% RH non-condensed |
Warranty, support, country of manufacture and country of origin
Warranty
The product has a two-year warranty, from the date of purchase (unless otherwise agreed). Support during the warranty period can be reached at support@milleteknik.se or telephone, +46 31-34 00 230. Compensation for travel and / or working hours in connection with locating faults, installing repaired or replaced goods is not included in the warranty. Contact Milleteknik for more information. Milleteknik provides support during the product's lifetime, however, no later than 10 years after the date of purchase. Switching to an equivalent product may occur if Milleteknik deems that repair is not possible. Support costs may (at Milleteknik's discretion) occour after the warranty period has expired.
Country of manufacture
Country of manufacture / country of origin is Sweden. For more information, contact your seller.
Designed and produced by: Milleteknik AB
Designed and produced by Milleteknik AB
Product life cycle, environmental impact and recycling
The product is designed and constructed for a long service life, which reduces the environmental impact. The product's service life depends on, among other things, environmental factors, mainly ambient temperature, unforeseen load on components such as lightning strikes, external damage, handling errors, and more. Products are recycled by being handed over to the nearest recycling station or sent back to the manufacturer. Contact your distributor for more information. Costs that arise in connection with recycling are not reimbursed.
About this document
This document is subject to change without prior notice.
All information is published with reservation for printing errors.
About translation of this document
User manual and other documents are in the original language in Swedish. Other languages may be machine translated and/or not reviewed, errors may occur.
