Product Identification
Product designation | Item No. | E-number (SE) (sv) |
|---|---|---|
PoE Switch 8p 1HE | 1U02PU004808OP01 | 51 731 53 |
Installation and commissioning
Instructions for installation and commissioning.
Area of use
PoE Switch 8p 1HE distributes both power and data via eight PoE ports as well as data via two LAN ports. Expandable to a total of 16 PoE ports, with a power of 30.8 W per port. It easily mounts in a 19” rack. PoE switch 8p 1HE provides control of both power supply (via PoE ports) and network data to eight devices. If necessary, you can expand the system with one card and get 16 PoE ports
Component overviews
Component overview
Letter | Explanation |
|---|---|
1 | Motherboard. |
2 | Lockable door. |
3 | Battery fuse |

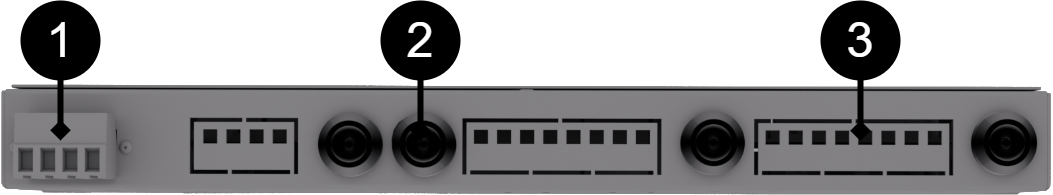

No . | Explanation | Comment |
|---|---|---|
1 | Connection of battery cables | 48yrs. |
2 | Load output 2 | The fuse on the front is the one closest to the display. |
3 | Load output 1 | Fuse on the front is the one closest to the corner. |

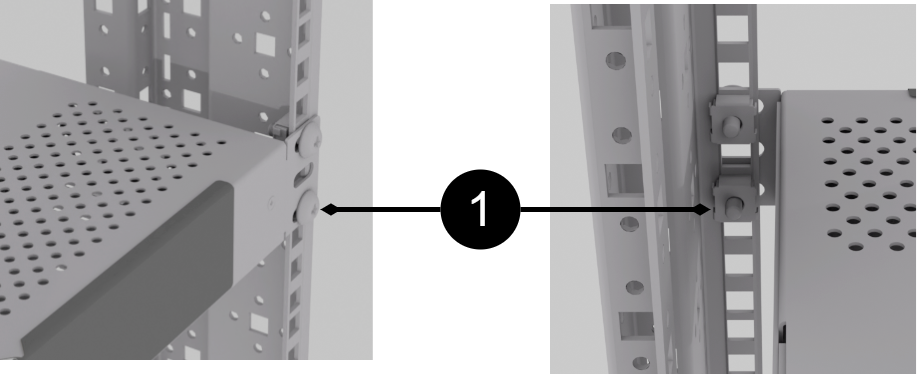

Mounting in 19" rack
The unit is a height unit (44 mm) high, and should be mounted in 19" racks with two screws on each side (1).
Screw and nut for 19" rack not included.
Caution
Leave at least 100 mm above and below for best ventilation.
Plug into this order
Plugging in load.
Plug in power supply, 48V.

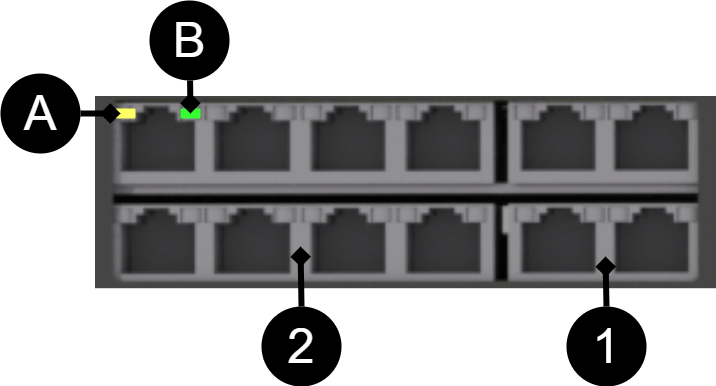

Short description for PoE switch 4p
No | Terminal no | Explanation |
|---|---|---|
1 | J5 | 2 pcs RJ-45 ports for data, not PoE, (powered). |
2 | J5 | 4 pcs RJ-45 powered ports for connecting PoE devices. |
A | - | Indication, yellow LED lights when data is being transferred. |
B | - | Indication, green LED lights up when device is plugged in. This is only an indication that the port is connected and not the connected device's status. |

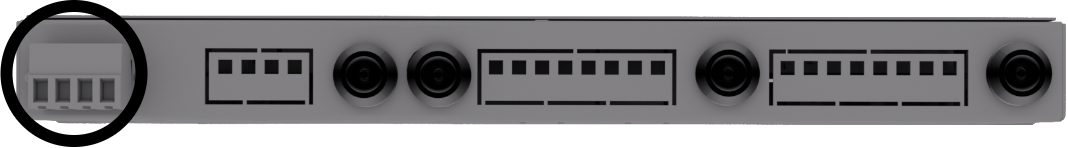

Plug-in - power supply
Switching on 48V takes place on the back, via the jackable terminal.
Compatible Products
The product is compatible with all Milleteknik battery backups that supply 48V out.
Product data sheet
Product Sheet

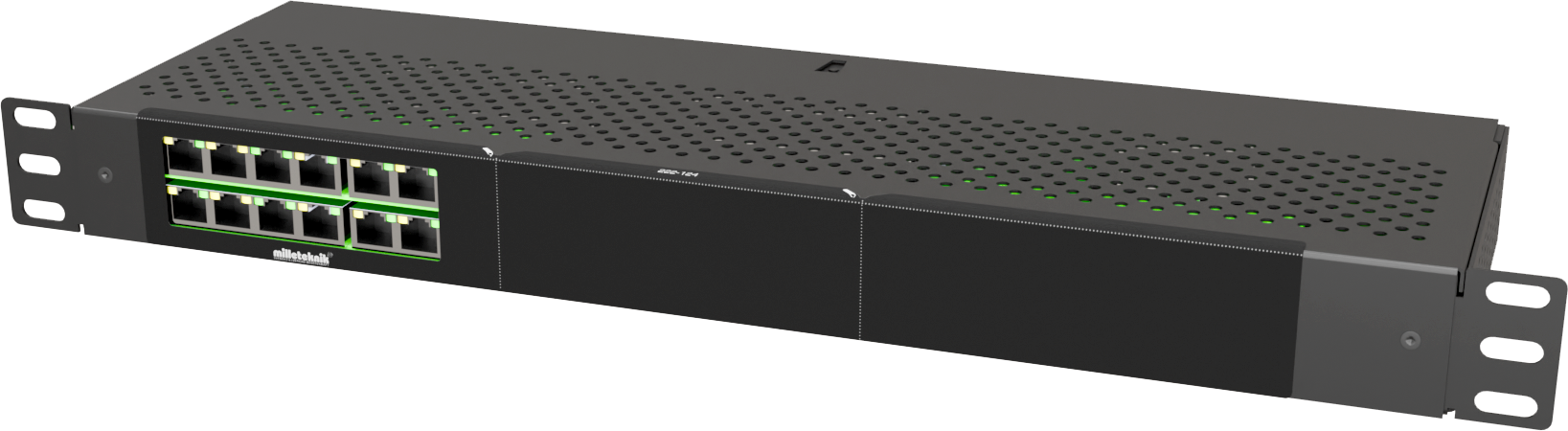

Product image
Product Identification
Product designation | Item No. | E-number (SE) (sv) |
|---|---|---|
PoE Switch 8p 1HE | 1U02PU004808OP01 | 51 731 53 |
Designation
Eight-port PoE switch in enclosure for 19" rack.
Area of use
PoE Switch 8p 1HE distributes both power and data via eight PoE ports as well as data via two LAN ports. Expandable to a total of 16 PoE ports, with a power of 30.8 W per port. It easily mounts in a 19” rack. PoE switch 8p 1HE provides control of both power supply (via PoE ports) and network data to eight devices. If necessary, you can expand the system with one card and get 16 PoE ports
Common uses
Power and data to security cameras.
Connection of access points and IP telephones.
Network management in security installations.
Technical description
PoE switch for up to AT standard. Delivers 30.8W per PoE port. No 24 V load outputs are available on this unit PoE switch 8p 1HE distributes both power (via PoE ports) and data to eight devices and can be expanded to 16 ports.
Voltage, current and power
Voltage in: 48 IN DC.
Voltage Out: 48 IN DC.
Max power per port: 30.8 W.
Outputs
Eight PoE ports for both power and data, and four LAN ports for network connectivity. No separate loading outputs
Alarm
Alarm functions are missing.
Enclosure
Sheet metal box for mounting in a 19" rack stand. Powder coated black.
Weight
Name | Net weight | Weight incl. packaging |
|---|---|---|
PoE Switch 8p 1HE | 1.65 kg | 1.95kg |
Installation requirements
The device is intended for fixed installation. The unit must be installed indoors, environmental class 1, ambient temperature: +5°C to +40°C.
Requirements that the product meets
EMC: | EMC Directive 2014/30/EU |
Electricity: | Low Voltage Directive 2014/35/EU |
CE marking: | Regulation (EC) No 765/2008 |
Environment | REACH: The product complies with REACH Regulation (EC) No 1907/2006. RoHS Directive 2011/65/EU, including amendment (EU) 2015/863 SCIP: registered under the EU Waste Directive where applicable, (2008/98/EC). WEEE: The product contains electrical components or wiring and is covered by the WEEE Directive (2012/19/EU). End-of-life products must be returned to a recycling centre Batteries: If the product is supplied with batteries, it is covered by the Battery Regulation (2023/1542). Expired batteries must be removed from the product and returned to a recycling centre |
Machinery Directive | The product is part of electrical systems, is subject to the relevant electrical and safety directives and is not a machine according to the Machinery Directive (2006/42/EC). |
Ecodesign | Milleteknik's products are intended for professional use and are therefore not directly covered by the Ecodesign Regulation (EU 2019/1782). As some components may be covered, we nevertheless disclose relevant information to give our customers confidence in their choice |
Limitations
Important
Note that 802.3at type2 is not supported, as the PoE card lacks a handshake function for type 2. Read more.
The product is tested and verified against Axema access systems and Dinbox access systems and is therefore recommended for use only with these systems. The product is currently not recommended for other products that have an af/at handshake procedure. The product deviates from standard IEEE 802.3af per port and IEEE 802.3at as the power is modified to be used together with Axema passer system and Dinbox passer system, which leads to shortcomings, (PoE-connected product does not start), against products that require handshake.
Guarantee
Manufacturing, lifespan, environmental impact and recycling
Manufactured by Milleteknik in Partille, Sweden.
Link to technical specifications
Miscellaneous
About this information
All information is published subject to possible errors. Information is updated without prior notice. |
Publication date 2026-07-09
