Technical specifications Relay Card NOVA Series (15A and 25A-PRO2V3)


With 4 pcs. relay outputs for systems supplied with PRO2 v3 motherboards.

Installation and commissioning

Instructions for installation and commissioning.

Assembly of Relay Card NOVA Series (15A and 25A-PRO2V3) Motherboard-PRO2 v3

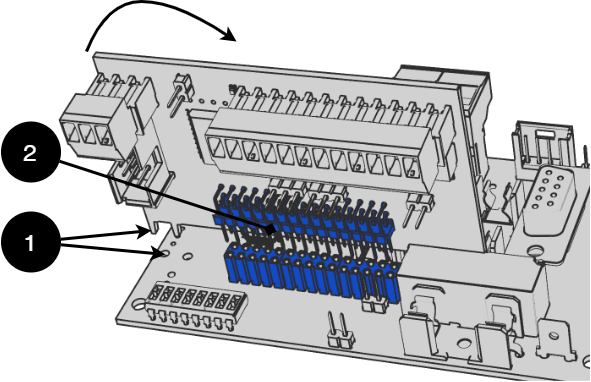

Figure 1. Relay cards are mounted on terminals on motherboards
Relay cards are mounted on terminals on motherboards


Table 1. Mounting

No

Explanation

1

Insert the tags into the holes first. Then fold the card down towards the stiffener.

2

Pin and pin strip for connection.

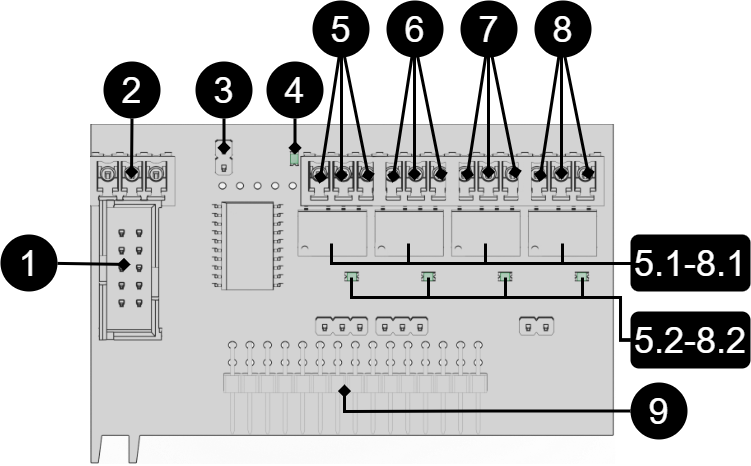

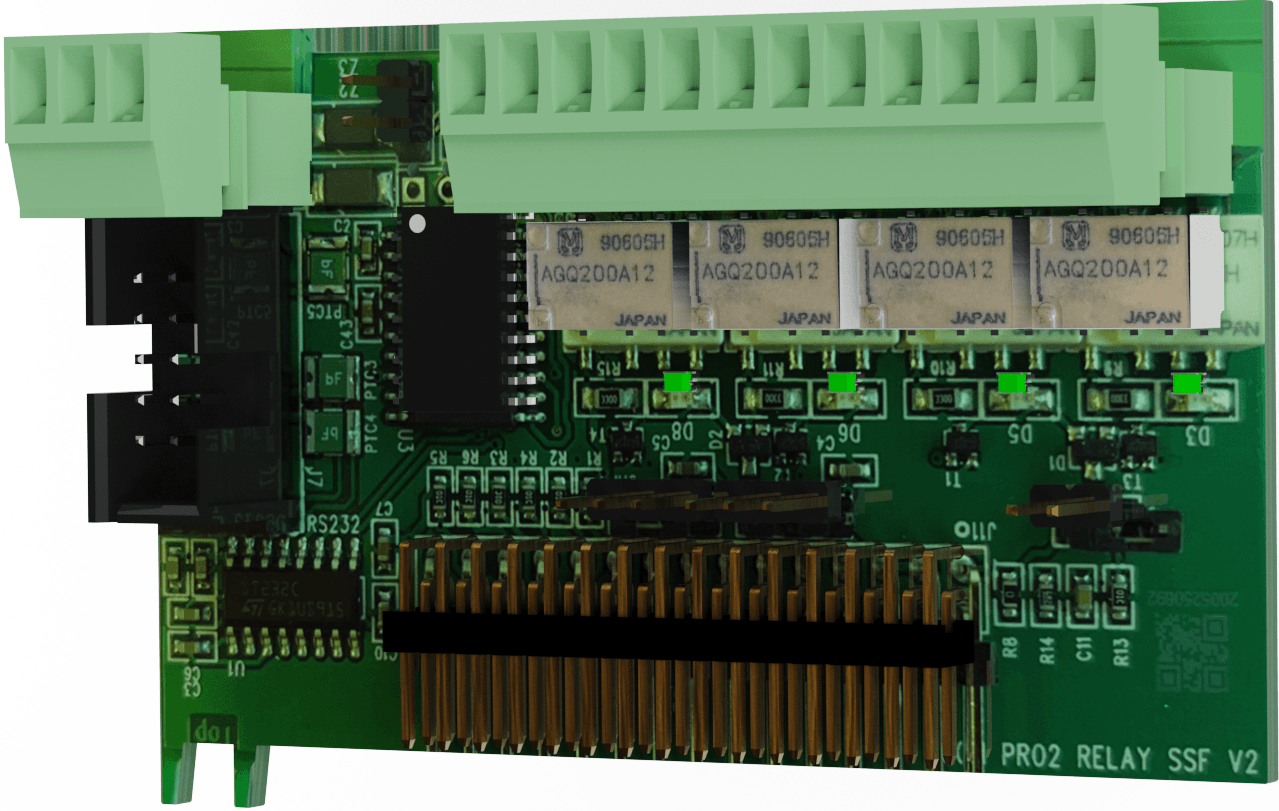

Alarm card for PRO2

Relay card - description, connections and alarm outputs.

  • All fault arm relays must be in the drawn state. Check that there is a gap between CO and NC. Put the measuring instrument on continuity measurement and test closure. This should then indicate a short circuit.

  • All relay outputs are normally live and give an alarm in the event of no voltage.

Important

There is normally a 10 second delay in alarm reset. The software on the main board must be configured for a different time period.

Table 2. Alarm board for motherboard: PRO2.

No .

Relay (Terminal no.)

The relay is normally energized.

Alarm type / explanation

1

J7

-

Connection for RS-232 cable.

2

P4:1

-

RS-232: TxD, data OUT from motherboard.

P4:2

-

RS-232: RxD, data IN to motherboard.

P4:3

-

RS-232: Ground, do not connect ground to another terminal.

3

J6

-

Reset jumper.

4

D7

-

Indicator diode, flashes green during normal operation.

5,5.1, 5.2

P5:1-3

NO, COM, NC

Tamper alarm, (optional for EN54). 5.1 Relay. 5.2 LED, lights up green when relay is energized.

6, 6.1, 6.2

P5:4-6

NO, COM, NC

Alarm for: Low system voltage. 6.1 Relay. 6.2 LED, lights up green when relay is energized.

7, 7.1, 7.2

P5:7-9

NO, COM, NC

Alarm for: Fuse failure, charger failure overvoltage, charger failure undervoltage, cell failure/not connected battery, low battery voltage in case of mains failure and aged battery. 7.1 Relay. 7.2 LED, lights up green when relay is energized.

8, 8.1, 8.2

P5:10-12

NO, COM, NC

Power failure alarm. 8.1 Relay. 8.2 LED, lights up green when relay is energized.

9

J11

-

Connection to motherboard.

Via communication on PRO1 card: All alarms and alarms for: Fan fault, overtemperature, subtemperature, short battery life left, overcurrent 100% of minute average, overcurrent 80% daily average and overcurrent 175% second average.



Technical data, alarm cards for PRO 2 and PRO2 V3

Info

Explanation

Card name:

PRO2 larmkort

Version:

2.0

Product description

Alarm card for PRO2 and PRO2 V3 with alarm on alternating relay. All relays are normally energized and give an alarm in a voltage-free position.

self-consumption

40 mA

Table 3. Alarm overview

Alarm overview in alphabetical order

Relay 1 * / Alarm output 1

Relay 2 * / Alarm output 2

Relay 3 * / Alarm output 3

Relay 4 * / Alarm output 4

Communication (P1: 1-12)

Indicator LED on motherboard and LED on door.

Mains outages

X

-

-

-

X

X

Fuse fault

-

X

-

-

X

X

Sabotage switch

-

-

-

X

X

X

Fan fault

-

-

-

-

X

-

Charger fault, overvoltage

-

X

-

-

X

X

Charger fault, undervoltage

-

X

-

-

X

X

Cell fault or unconnected battery

-

X

-

-

X

X

Low system voltage. **

-

-

X

-

X

X

Low battery voltage (<24.0 V DC) or power failure

-

X

-

-

X

X

Overtemperature

-

-

-

-

X

-

Undertemperature

-

-

-

-

X

-

Undertemperature

-

-

-

-

X

-

Short battery life left

-

-

-

-

X

-

Aged battery

-

X

-

-

X

X

Overcurrent 100%, minute average

-

-

-

-

X

-

Overcurrent 80%, daily average

-

-

-

-

X

-

Overcurrent 175%, second average

-

-

-

-

X

-



* Alarm on potential-free relay contact.

** System voltage in mains operation is below 24.0 V.
