Installation and commissioning
Instructions for installation and commissioning.
Product Identification
Product designation | Item No. | E-number (SE) (sv) |
|---|---|---|
Pole Mount Kit for UT L | A-CA00000PM02 | 52 579 24 |

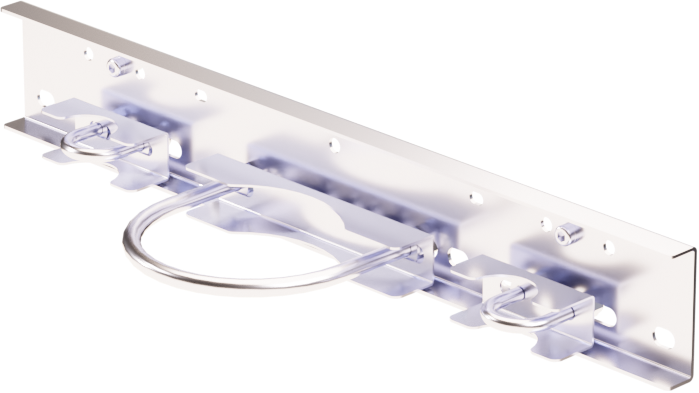

Product image
Technical description
The UT L pole mount provides a stable mounting of the enclosure on round posts. The kit consists of brackets and stainless steel plates that ensure structural stability in outdoor environment. The solution supports posts or mast within the specified diameter range and correctly distributes the load across the enclosure. All components are corrosion resistant and dimensioned for the mechanical requirements of the UT L. This kit contains all the parts required for mounting on a pole or mast
Quick Facts | |
|---|---|
Accessories for | Outdoor Enclosures. |
Component overviews
Component Overview Mounting Kits
No. | Explanation | Size | Number |
|---|---|---|---|
1 | Fixing plate | M8 | 4 |
2 | U-bolt for mast | RBR M6x12 | 4 |
3 | U-bolt for pole | OD12 | 4 |
4 | Washers and nuts | M6x14 | 4 |
5 | Counter for smaller u-bolt | - | 2 |
6 | U-bolt, smaller | 28mm | 2 |
7 | U-bolt, larger | 125mm | 1 |
8 | Counter for larger u-bolt | - | 1 |
9 | Washer | 10 (5x20x2) | 4 |
10, 12,13 | Nut | M10 | 8 |
11 | Sheet rail for mounting in enclosure | - | 1 |
Enclosures
General assembly instructions
Mounting options and accessories
To ensure a smooth installation, we offer several custom mounts for our UT series enclosures (S, M and L). In the matrix below you will see which options are compatible
Please note that a wall mount is always included as standard with all models. For pole mounting or needing extra sun protection, separate optional kits are required
Accessories | Enclosure |
|---|---|
Pole Mount Kit for UT L | OUT L |
Mounting on pole and mast
See component overview for screw, nut, washers and spacers.
No. | Explanation |
|---|---|
1 | Sheet metal rail. |
2 | Counter. |
3 | U-bolt for mast/pipe. |
4 | Screw/nut for mounting in housing. |
5 | U-bolt for pole. |
Mounting on mast
Position the mounting plates (1) against the vertical tubes of the mast at the height where the enclosure is to be mounted. The holes should be in line with the attachment points of the U-bolts
Pass the U-bolts (3) around the mast pipe (2) and through the holes in the mounting plates (4). Install washers and nuts but do not tighten finally
Center the housing towards the front of the mast by adjusting the position of the mounting plates (4) sideways until the housing is flush.
Tighten the nuts on all U-bolts in turn from top to bottom to ensure uniform loading across the mast tubes.
Check the attachment by lightly loading the housing sideways and forward/backward, and verify that all U-bolts are properly aligned against the mast tube.
Mounting on pole
Place the mounting plates (1) on the upper and lower attachment points of the enclosure and attach them lightly with the screws provided. Do not tighten finally yet.
Pass the lower U-bolt (2) around the post and through the holes in the lower mounting plate. Install washers and nuts. Tighten lightly.
Pass the upper U-bolt (3) around the post and through the holes in the upper mounting plate. Install washers and nuts (4)
Adjust the position of the enclosure so that it is in solder and centered toward the post.
Tighten all nuts in sequence: — lower U-bolt — upper U-bolt — screws to the mounting plates
Check the attachment by lightly loading the enclosure forward/backward to ensure stable mounting.
Product sheet - power supply / battery backup
Product Sheet
Product image
Item Information
The table shows the name, part number and email number of the product
Product Identification
Product designation | Item No. | E-number (SE) (sv) |
|---|---|---|
Pole Mount Kit for UT L | A-CA00000PM02 | 52 579 24 |
Technical description
The UT L pole mount provides a stable mounting of the enclosure on round posts. The kit consists of brackets and stainless steel plates that ensure structural stability in outdoor environment. The solution supports posts or mast within the specified diameter range and correctly distributes the load across the enclosure. All components are corrosion resistant and dimensioned for the mechanical requirements of the UT L. This kit contains all the parts required for mounting on a pole or mast
Quick Facts | |
|---|---|
Accessories for | Outdoor Enclosures. |
Areas of application
Areas of application | Yes | No |
|---|---|---|
For outdoor enclosures in the size UT L | ✔ | |
For mounting enclosure on pole | ✔ |
Enclosure and Mechanics
Enclosure and Mechanics | |
|---|---|
Type | Optional, does not have enclosure |
IP class | IP00 |
Material | Sheet metal |
Colour | Silver Grey/Stainless Steel Sheet |
Component | Number | Description |
|---|---|---|
Sheet metal rail | 2 | Load-bearing detail for pole or mast mounting. |
U-bolt for pole mounting, M10 | 2 | For mounting on round posts according to the specified diameter range |
U-bolt for mast mounting, M8 | 4 | Suitable for truss mast pipe; includes nut and washer |
Screw, nut and washers | ||
Assembly, installation and eligibility requirements
Fitting | Yes | No |
|---|---|---|
Pole or mast. | ✔ |
Installation | Yes | No |
|---|---|---|
Fixed installation. | ✔ |
Dimensions, weight and packaging information
Net weight | Weight with packaging |
|---|---|
1.9 kg | 2.1 kg |
Packaging | |
|---|---|
Packaging | Cardboard and impact protection in cardboard. |
Quantity in pack | 1 pc. |
Packaging Type (GS1 T0137) | BX box. |
Conditions EUR pallet | EUR pallets may not be stacked during transport or storage. Stacking may result in damage to product and packaging |
Transport environment | The product must be protected from condensation and direct precipitation during transportation. |
Storage environment | Dry indoor environment, protected from condensation. Relative humidity: max 95%, non-condensing |
Fits
Accessories | OUT S | OUT M | OUT L |
|---|---|---|---|
Pole Mount: Pole Mount Kit for UT L | ✗ | ✗ | ✔ (Included) |
Contact
Department | |
|---|---|
Switchboard | 031-340 02 30 |
Support and technical issues | support@milleteknik.se |
Sales | sales@milleteknik.se |
WWW | www.milleteknik.se |
Address | Ögärdesvägen 8B, 433 30 Partille |
