Installation and commissioning
Instructions for installation and commissioning.
Product Identification
Product designation | Item No. | E-number (SE) (sv) |
|---|---|---|
Sun Shield Kit | A-CA00000SS01 | 52 579 25 |

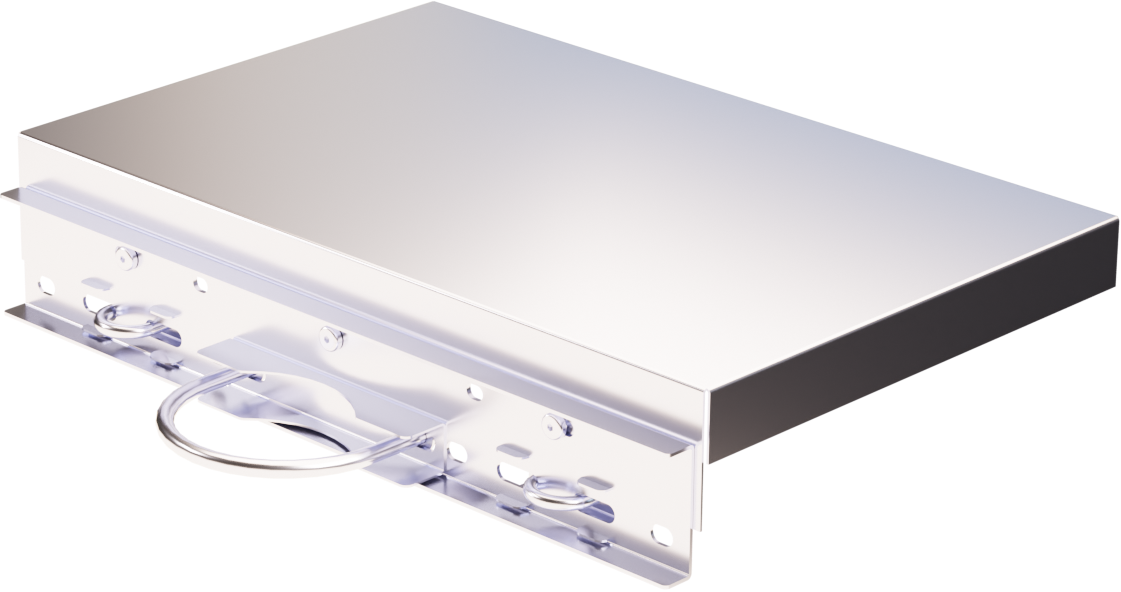

Product image
Technical description
The sun visor is designed to reduce the direct weather impact on the enclosure and thus limit the temperature impact in the outdoor environment. The kit consists of shaped stainless steel protective surfaces that are mounted with included fasteners. The flexibility of the design allows the shelter to be positioned at the correct distance from the enclosure to ensure air circulation and maintain weather protection. All components are designed for long-term use in varying climatic conditions. This kit includes all parts required for pole mounting
Quick Facts | |
|---|---|
Accessories for | Outdoor Enclosures. |
Component overviews

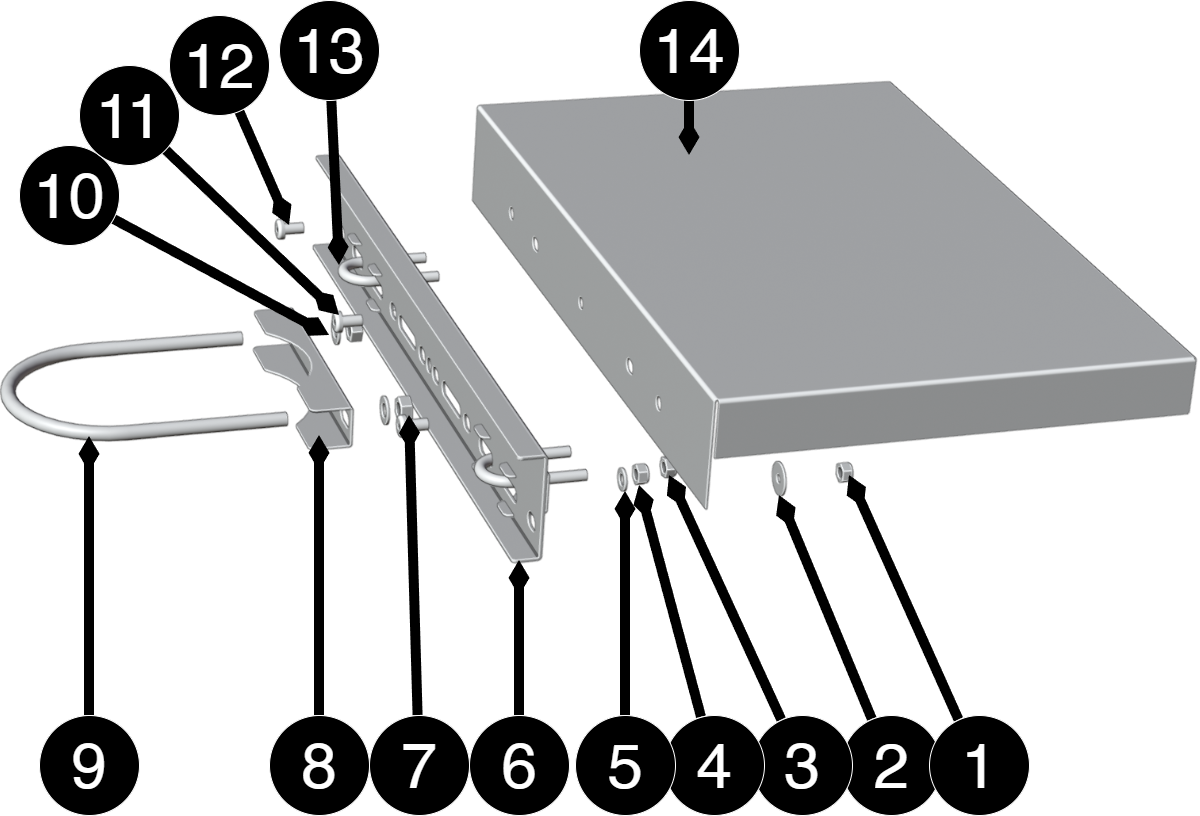

Component Overview Mounting Kits
No. | Explanation | Size | Number |
|---|---|---|---|
1,11 | U-bolt for pole | M10 | 4 |
2,10 | Sun protection | M8 | 4 |
3,4 | Screw, washers and nut for sun protection and fixing plate. | LM6x8 | 4 |
5 | U-bolt for mast | 10 (5x20x2) | 2 |
6 | Metal rail for mounting in sunshade | - | 1 |
7, 12 | Screw | M8x16 | 3 |
8 | U-bolt counter | - | 1 |
9 | U-bolt, larger | 125mm | 1 |
13 | U-bolt, smaller | 28mm | 1 |
14 | Sun protection | 540 x 348 x 78 mm | 1 |
Enclosures
General assembly instructions
Mounting options and accessories
To ensure a smooth installation, we offer several custom mounts for our UT series enclosures (S, M and L). In the matrix below you will see which options are compatible
Please note that a wall mount is always included as standard with all models. For pole mounting or needing extra sun protection, separate optional kits are required
Accessories | Enclosure |
|---|---|
Sun Shield Kit | UT S, UT M and UT L |
Assembling the Sun Shield Kit
Warning
sun visor is not designed to carry loads. Do not place tools, equipment or other objects on the sun visor during installation or operation
No. | Component |
|---|---|

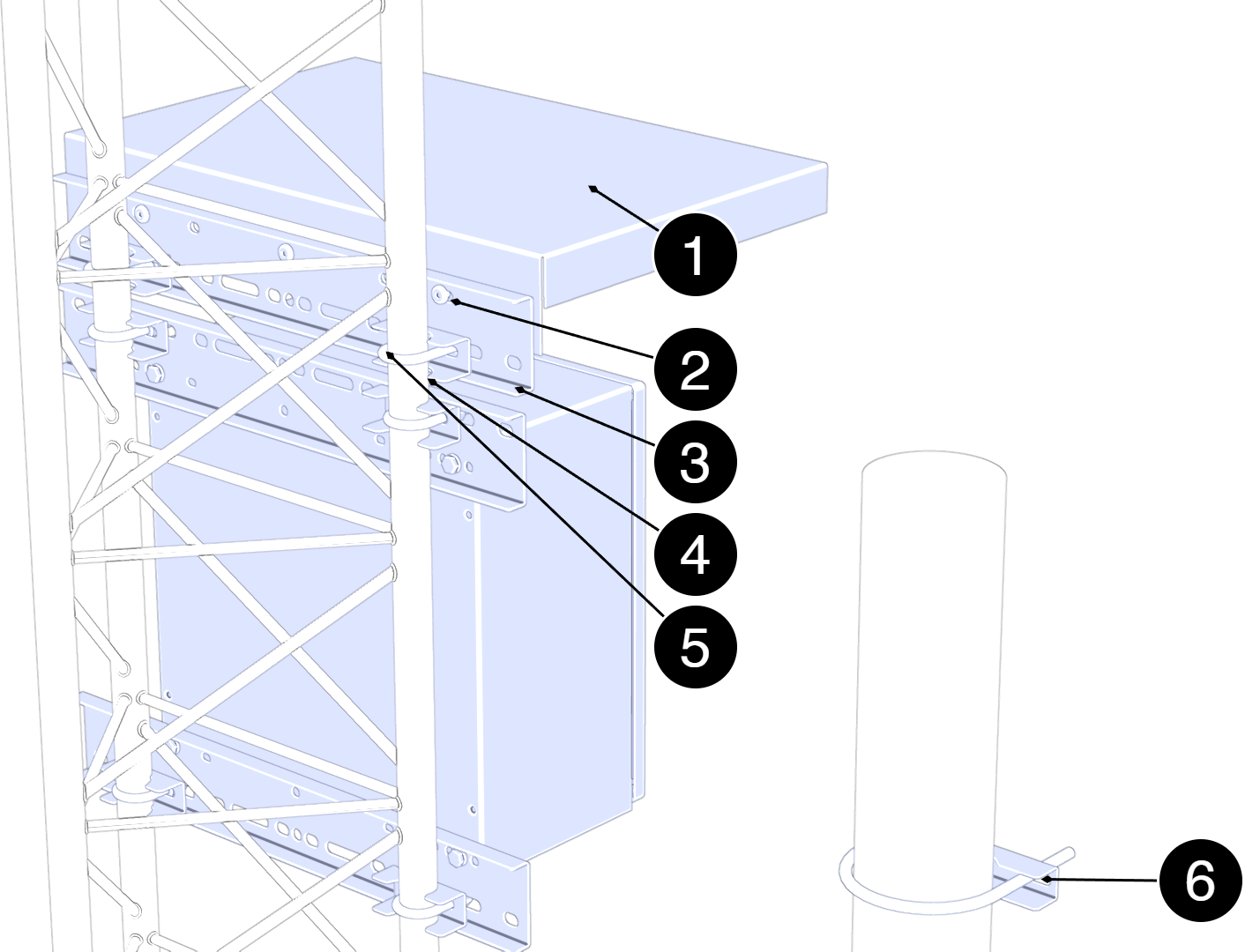

1 | Sun protection. |
2 | Screw and nut for attaching sun protection to sheet metal. |
3 | Sheet rail for sun visor attachment and mast-/post mount. |
4 | Counter for fixing the u-bolt to the tube of the mast. |
5 | U-bolt |
6 | For mounting on pole use post bracket. |
Position the mounting plate (3) against the top edge of the enclosure and align the holes with the existing attachment points of the enclosure.
Install the mounting plate (2) with the corresponding screws and washers. Tighten lightly so that the plate can still be adjusted sideways if necessary
Place the sun visor (3) on top of the mounting plate and align the shield so that it covers the top of the enclosure with proper overhang.
Attach the sun visor (2) by pulling the screws through the holes (4) in the sun visor and into the fixing plate. Install washers and nuts. Tighten the screws evenly without overloading the plate
Pass the U-bolt (1) around the pole and through the mounting plate if installation is done together with the Pole Mount Kit. Install washers and nuts. Adjust so that the guard is centered
Tighten all screws and nuts in the order: — mounting plate — sun visor — U-bolt (if mounted against pole)
Check the stability of the mount by pressing lightly on the front edge of the cover and ensure that it is fixed without movement.
Product sheet - power supply / battery backup
Product Sheet
Product image
Item Information
The table shows the name, part number and email number of the product
Product Identification
Product designation | Item No. | E-number (SE) (sv) |
|---|---|---|
Sun Shield Kit | A-CA00000SS01 | 52 579 25 |
Technical description
The sun visor is designed to reduce the direct weather impact on the enclosure and thus limit the temperature impact in the outdoor environment. The kit consists of shaped stainless steel protective surfaces that are mounted with included fasteners. The flexibility of the design allows the shelter to be positioned at the correct distance from the enclosure to ensure air circulation and maintain weather protection. All components are designed for long-term use in varying climatic conditions. This kit includes all parts required for pole mounting
Quick Facts | |
|---|---|
Accessories for | Outdoor Enclosures. |
Areas of application
Areas of application | Yes | No |
|---|---|---|
Sun and weather protection for outdoor enclosures. | ✔ |
Alarm and protection
Enclosure and Mechanics
Enclosure and Mechanics | |
|---|---|
Type | Optional, does not have enclosure |
IP class | IP00 |
Material | Sheet metal |
Colour | Silver Grey/Stainless Steel Sheet |
Component | Number | Description |
|---|---|---|
Protective plate | 1 | Sun/weather protection in sheet metal. |
Fixing plate | 1 |
|
U-bolt for pole mounting, M10 | 1 | For mounting on round posts according to the specified diameter range |
U-bolt for mast mounting, M8 | 2 | Suitable for truss mast pipe; includes nut and washer |
Nut and washers | ||
Assembly, installation and eligibility requirements
Fitting | Yes | No |
|---|---|---|
Pole or mast. | ✔ |
Installation | Yes | No |
|---|---|---|
Fixed installation. | ✔ |
Dimensions, weight and packaging information
Bracket | Width | Length | Fits pole diameter |
|---|---|---|---|
U-bolt for pole mounting | 145mm | 182mm | 90-125 mm |
Net weight | Weight with packaging |
|---|---|
2.7 kg | 3.1 kg |
Packaging | |
|---|---|
Packaging | Cardboard and impact protection in cardboard. |
Quantity in pack | 1 pc. |
Packaging Type (GS1 T0137) | BX box. |
Conditions EUR pallet | EUR pallets may not be stacked during transport or storage. Stacking may result in damage to product and packaging |
Transport environment | The product must be protected from condensation and direct precipitation during transportation. |
Storage environment | Dry indoor environment, protected from condensation. Relative humidity: max 95%, non-condensing |
Contact
Department | |
|---|---|
Switchboard | 031-340 02 30 |
Support and technical issues | support@milleteknik.se |
Sales | sales@milleteknik.se |
WWW | www.milleteknik.se |
Address | Ögärdesvägen 8B, 433 30 Partille |
About this information
All information is published subject to possible errors. Information is updated without prior notice. |
Publication date 2026-06-29
Compliance and regulatory compliance
Delivery time, warranty and terms
Delivery time, warranty and terms | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Warranty period[a] | The product has a two (2) year warranty against manufacturing defects. | ||||||||||||||||||||||||||||||||||||||||||||||||
Special warranty conditions | See also general terms and conditions. | ||||||||||||||||||||||||||||||||||||||||||||||||
General Terms and Conditions | ALEM09 with exceptions, see: www.milleteknik.se/conditions/ | ||||||||||||||||||||||||||||||||||||||||||||||||
Support | Telephone support and email support during the warranty period are free of charge. For spare parts that are not covered by warranty, there is a charge | ||||||||||||||||||||||||||||||||||||||||||||||||
Delivery and stock | |||||||||||||||||||||||||||||||||||||||||||||||||
Delivery time[b] | 3 working days. Or as per agreement. Delivery from factory, transportation time is added. | ||||||||||||||||||||||||||||||||||||||||||||||||
[a] If the device is purchased through a wholesaler or other supplier, other warranty conditions may apply [b] In the case of larger orders, delivery time increases, acc. to agreement. | |||||||||||||||||||||||||||||||||||||||||||||||||
Operation and maintenance
Operation | Data | Other. info |
|---|---|---|
Environment | Outdoor Class 3. |
Yes | No | Interval | Other. info |
|---|---|---|---|
✔ | Maintenance-free. |
Certifications and approvals
Complies with | Directives |
|---|---|
C.E. | CE marking according to (EC) 765/2008 |
Environmental data
Environmental data | J/N | Informație | Other. info. | ||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Building Product Declaration (BPD) | ✔ | Yes, see iBvd at www.milleteknik.se. | - | ||||||||||||||||||||||||||||||||||||||||||||||
REACH Information Obligation (EC) No 1907/2006 | If empty, the product is not covered. | ||||||||||||||||||||||||||||||||||||||||||||||||
SVHC substances, CAS/EC | For text, see iBvd at www.milleteknik.se. If blank, substance is missing. | ||||||||||||||||||||||||||||||||||||||||||||||||
Subject to the RoHS Directive, (EU) 2015/863) | ✔ | Mechanical parts are covered if they are part of a RoHS mandatory product | |||||||||||||||||||||||||||||||||||||||||||||||
WEEE 2012/19/EU | If empty, the product is not covered. End-of-life products must be returned to a recycling centre | ||||||||||||||||||||||||||||||||||||||||||||||||
Battery Regulation (EU) 2023/1542 | ✗ | ||||||||||||||||||||||||||||||||||||||||||||||||
SCIP No 2008/98/EC | If empty, no SCIP number is needed. | ||||||||||||||||||||||||||||||||||||||||||||||||
Conflict minerals (EU) 2017/821 | ✗/✗/✗/✗/✗ | No=Gold, Tungsten, Tantalum, Cobalt, Tin. | |||||||||||||||||||||||||||||||||||||||||||||||
Contains nanomaterials: EC 1272/2008 | ✗ | The product does not contain nanomaterials. | |||||||||||||||||||||||||||||||||||||||||||||||
Ecodesign 2009/125/EC | Milleteknik's products are intended for professional use and are therefore not directly covered by the Ecodesign Regulation (EU 2019/1782). As some components may be covered, we nevertheless disclose relevant information[a], where applicable, to provide our customers with confidence in their choice. | ||||||||||||||||||||||||||||||||||||||||||||||||
Machine Directive 2006/42/EC | The product is part of electrical systems, is subject to the relevant electrical and safety directives and is not a machine according to the Machinery Directive (2006/42/EC). Will be replaced by Machinery Regulation (EU) 2023/1230, which will apply in 2027. | ||||||||||||||||||||||||||||||||||||||||||||||||
The product is designed for a long service life, which reduces the environmental impact. End-of-life products are handed over to the nearest recycling centre. | |||||||||||||||||||||||||||||||||||||||||||||||||
[a] Standby consumption and power. | |||||||||||||||||||||||||||||||||||||||||||||||||
Manufacturer and country of origin
Appendix
Reference table: environmental classes according to EN 50130-5 (referred to in EN 50131-6)
Class | Type | Temperature range |
|---|---|---|
Environmental Class 1 | Heated indoors (type office/residence). | +5°C to +40°C |
Environmental Class 2 | Generally indoors (type warehouses/stairwells, not temperature controlled). | -10°C to +40°C |
Environmental class 3 | Protected outdoors. | -25°C to +50°C |
Environmental class 4 | Generally outdoors. | -25°C to +60°C |
About this information
All information is published subject to possible errors. Information is updated without prior notice. |
Publication date 2026-06-29
