Interception boards, with buzzer alarms, are used to protect electronic circuits from damage due to overcurrent or short circuit.

Installation and commissioning

Instructions for installation and commissioning.

Mounting in battery backup

The card is delivered mounted in it's plastic casing, for easy installation.

Mount the card on any card slot in the enclosure, leave space for cables.

Important

Install the board before screwing on wiring or commissioning.

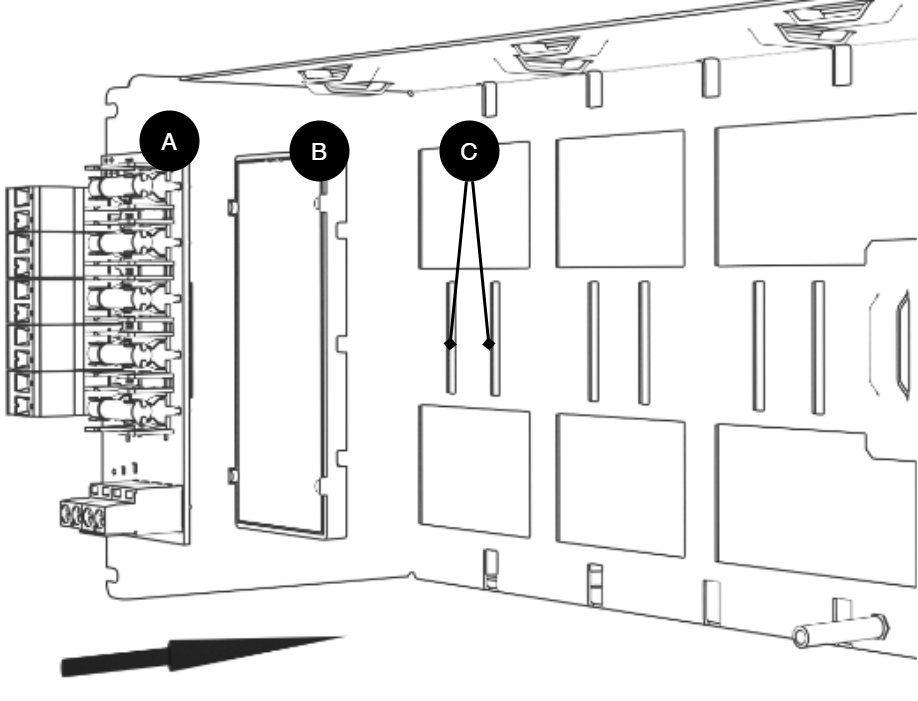

Letter	Explanation	Comment
A	Optional card	Optional card comes mounted on plastic housing from factory. Has it come loose? Snap it back on before mounting the card.
B	Plastic casing	The plastic casing has hooks for attaching slots in the plate.
C	Place for plastic casing	Slits in sheet metal.

Short description

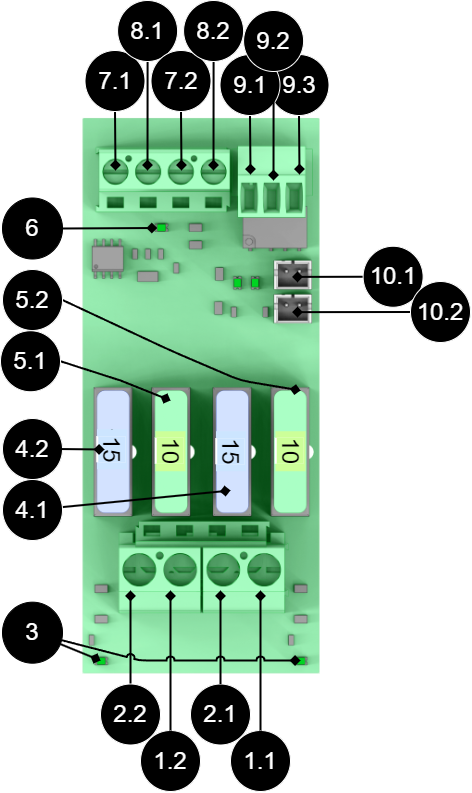

Table 1. Card overview

No.	Description
1.1, 1.2	- (minus) out.
2.1, 2.2	+ (plus) out.
3	Indication diode, lights green if there is a load plugged in.
4.1, 4.2	+ (plus) fuse, 15 A
5.1, 5.2	- (minus) fuse, 10 A
6	Indicating diode, lights green if there is plugged in power supply.
7.1, 7.2	- (minus) power supply from motherboard or other optional card.
8.1, 8.2	+ (plus) power supply from motherboard or other optional card.
9.1	Alarm, NO.
9.2	Alarm, CO
9.3	Alarm, NC.
10.1, 10.2	Alternate alarm connection.

Use the supplied cable

Use the cable that comes with the box to connect the card.

Connect 2 Output modules to motherboard PRO2v3 15A-25A

Table 2. Connections 15 A and 25 A devices

Number/letter	Circuit Boards	Explanation
D	PRO2 v3	Motherboard in battery backup.
C	Power card	Available in battery backup 15 A and 25 A units.
1	A and B	Connect power supply from 2 output module (B) to 2 Output module 15A (A).
2	A	Connect alarm from 2 Ouput module 15A to load board.
A	2 Output module 15A	Optional card (A).
B	2 Modul de uitgang	Connect power supply (24V) to 2 Output module 15A (A).
3, 4	-	Internal power supply and communication between cards.

Product data sheet

Product Sheet

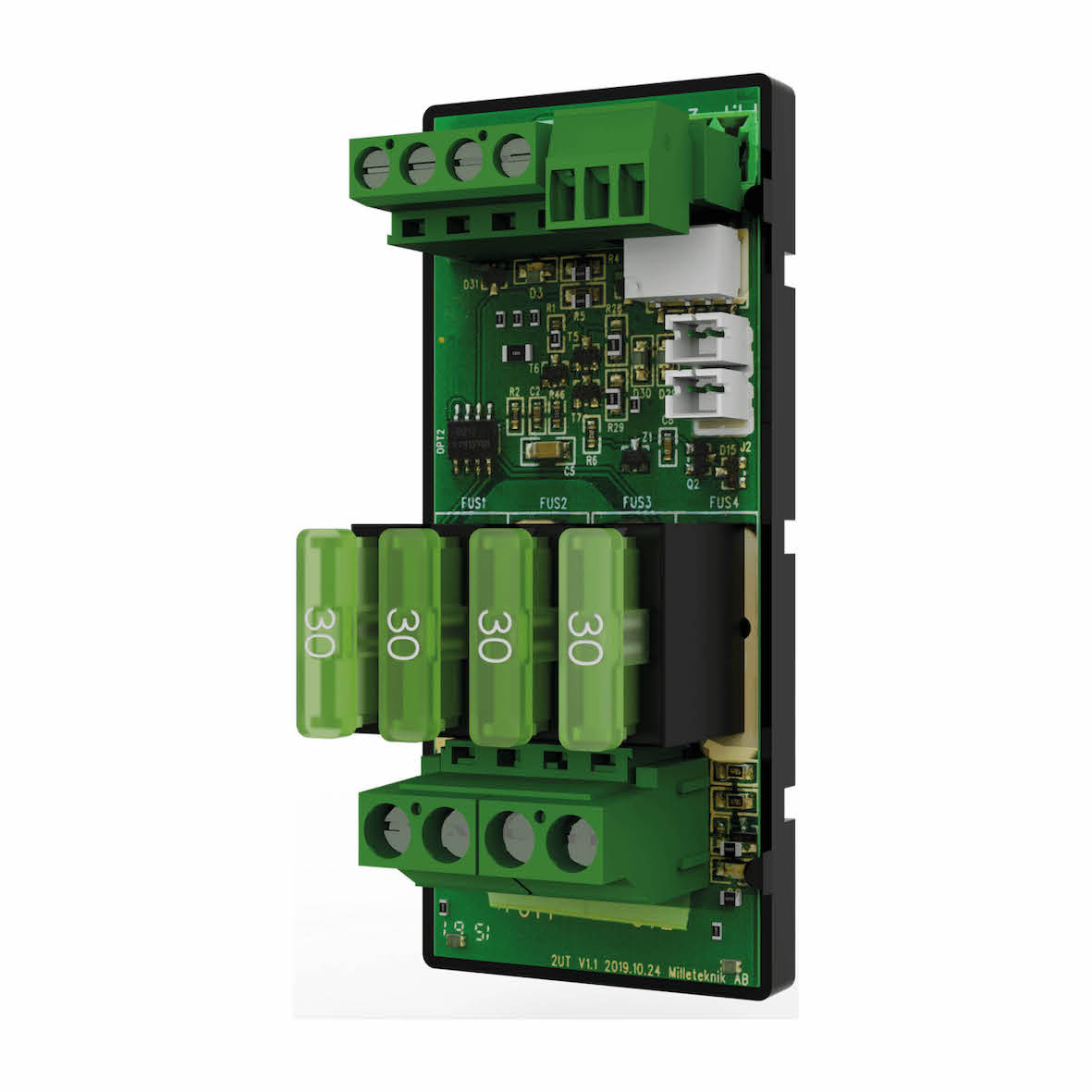

Product image

Product Identification

Table 3. Product designation, Part Number and E-Number

Product designation	Item No.	E-number (SE) (sv)
2 Output module 15A (attached 10, 25, 30)	A-FU00240M15ALM01	-

Designation

Fuse cards, with sum-alarm, are used to protect electronic circuits from damage due to overcurrent or short circuit.

Area of use

Used when more load outputs are needed.

Technical description

Fuse card with two 2-pin fused outputs.

Voltage, current and power

Voltage in: 27.3 V DC, (24 V).

Voltage Out: 27.3 V DC, (24 V).

Power Outlet: 15 A.

Self-consumption is the power outlet the circuit board has when the system is deployed and in battery operation.

Table 4. Self-consumption

Circuit Boards	Self-consumption (in battery operation)	Comments

Outputs

Two 2-pole fused load outputs.

Alarm

Alarms for fuse failures are forwarded to the battery backup, which displays the alarm on the LED or via communication.

Fuses

Enclosure

The product lacks an enclosure and is mounted in an existing enclosure.

Table 5. Dimensions, with and without packaging.

Dimensions, height x width x depth.^[a]	Dimensions with packaging.
30 x 40 x 89 mm.	120 x 215 x 165 mm.
^[a]Dimensions of product and packaging may differ, this is because the product may lie differently in the packaging.

Table 6. Height units, fan and IP class.

HE	Built-in fan	IP class
The product lacks an enclosure	No	IP00

Weight

Table 7. Weight.

Name	Net weight	Weight incl. packaging
Fuse card 2 outputs 15 A	0.1 kg	0.2 kg

Installation requirements

The product must be installed in a compatible product from Milleteknik.

The accessories fits in

Table 8. Number of cards that fit in the power supply.

Product series	Enclosure size	Number of cards that can fit^[a]
ECO	M, L	2,4
ECO, NEO, NOVA	FLX S	2
EN54, NEO, NOVA	FLX M	3
NEO, NOVA	FLX L	3
19 rack module holders	4U	8
^[a]The number of cards/accessories that can fit is the total number that can fit in the housing. Electronic and mechanical limitations may exist.

Requirements that the product meets

Table 9. The product meets the following requirements.

EMC:	EMC Directive 2014/30/EU
Electricity:	Low Voltage Directive 2014/35/EU
CE marking:	Regulation (EC) No 765/2008
Environment	REACH: The product complies with REACH Regulation (EC) No 1907/2006. RoHS Directive 2011/65/EU, including amendment (EU) 2015/863 SCIP: registered under the EU Waste Directive where applicable, (2008/98/EC). WEEE: The product contains electrical components or wiring and is covered by the WEEE Directive (2012/19/EU). End-of-life products must be returned to a recycling centre Batteries: If the product is supplied with batteries, it is covered by the Battery Regulation (2023/1542). Expired batteries must be removed from the product and returned to a recycling centre
Machinery Directive	The product is part of electrical systems, is subject to the relevant electrical and safety directives and is not a machine according to the Machinery Directive (2006/42/EC).
Ecodesign	Milleteknik's products are intended for professional use and are therefore not directly covered by the Ecodesign Regulation (EU 2019/1782). As some components may be covered, we nevertheless disclose relevant information to give our customers confidence in their choice

Denomination	Efficiency (%)^[a]	Standby consumption, typical (W):
	1. Accessories, expansion or optional cards that do not convert energy themselves, but only control, monitor or distribute it, do not fall under the Ecodesign Directive
	-^{! 1}	-
^[a]At rated load.

Guarantee

Manufacturing, lifespan, environmental impact and recycling

Manufactured by Milleteknik in Partille, Sweden.

About this information

All information is published subject to possible errors. Information is updated without prior notice.
