Installation and commissioning

Instructions for installation and commissioning.

Product Identification

Table 1. Product designation, Part Number and E-Number

Product designation

Item No.

E-number (SE) (sv)

4 Output module PTC CTRL

A-FU122404OP01LM01

52 13 795

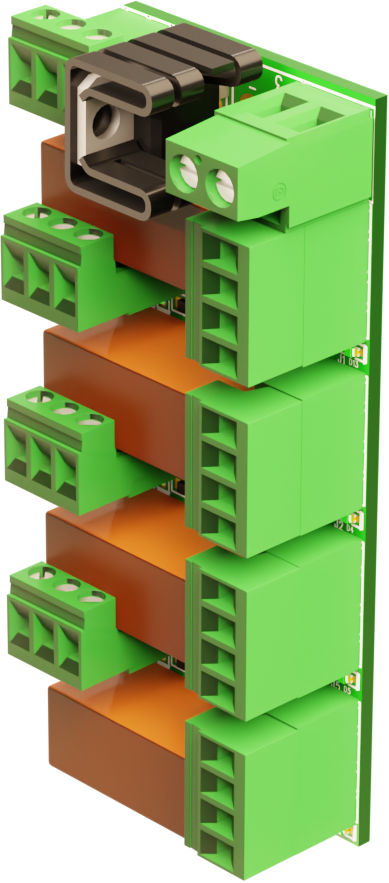

Product image


If

Fuse cards with eight outputs protected by PTC fuses. Protects electrical circuits against overcurrent and short

What is a PTC fuse?

A PTC fuse, where "PTC" stands for "Positive Temperature Coefficient," is a type of thermal fuse or overcurrent protection device. These fuses are used to protect electrical circuits from overcurrent and short circuits.

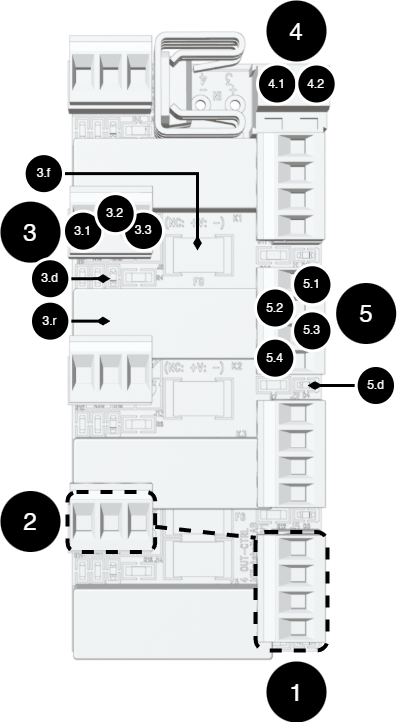

Description 4 Output module PTC CTRL

Table 2. Short description

Designation

Explanation

1

Controllable output

2

Control - alarm, input. Can be controlled by alarm or other

3

Control + alarm

3.r

Switching Relay

3.d.

Indication diode lights green when output is activated

3.1

V+

3.2

N.C.

3.3

GND/ground/0 V

3.f.

PTC fuse

4

Input supply, 12 V/24 V.

4.1

-

4.2

+

5

Load output

5.1

NC (24V (Enabled Relay=0V))

5.2

Abandoned supply voltage (12 V/24 V)

5.3

NO, 0V (Activated relay= 12 V/24 V)

5.4

GND/ground/0 V (Minus. Always=0V)

5.d.

Indicator diode lights green at all ok



Load and alarm switching

The output (! 1), such as a lock or alarm device, controlled via control/alarm (! 2). In factory mode, the output is active at NC, which means that load connected to VC is energized in normal mode. When a control signal is activated, the output switches to NO and the load on the NV is broken and any load on the NO is

Function description

The card contains four identical and independent channels. Each channel consists of a Ctrl input (! 3) and a load output (! 5) which are interconnected via an internal switching relay (3.r).

Control and alarm are connected to the CTRL input (! 3). The load, such as a lock or alarm device, is connected to the load output (! 5). Feed to the card is connected via (! 4).

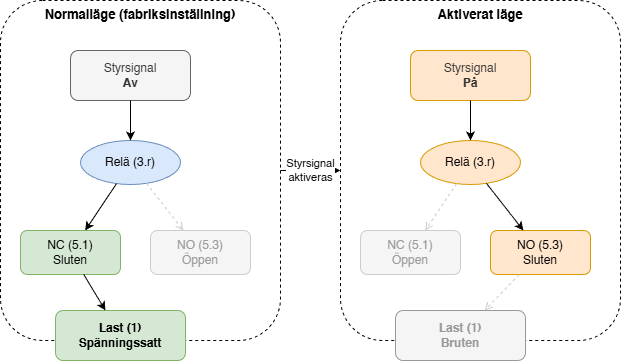

Relay logic

In normal mode, when the relay is not activated, the NC contact is closed and the drive voltage is on (5.1). When the relay is activated via a! 3) breaks the NC and the drive voltage is passed on to NO (5.3).

Each channel is protected by a PTC fuse (3.f.) which restores itself automatically after an overcurrent is remedied. Each channel also has a green indication diode (3.d. and 5.d.) indicating active mode.

Feeding

Table 3. The board is supplied with 12 V or 24 V DC via connector (4).

Designation

Function

4.1

- (minus)

4.2

+ (plus)




Control and Alarm Switching (3)

Control signal and alarm signal are connected to contact (3). The relay is activated when voltage3.2).

Table 4. Control and Alarm Switching (3)

Designation

Function

3.1

V+

3.2

Control signal in (NC), see also table below

3.3

GND/ground/0 V

3.f.

PTC fuse

3.r

Switching Relay

3.d.

Indicating diode, green



Control modes (3)

Table 5. Control modes (3)

Location

Designation

Control signal (3.2)

Load output (5)

X

Deactivated

0 V

Supply voltage on NC (5.1)

Y

Activated

+ 12V/24V

Supply voltage on NO (5.3)

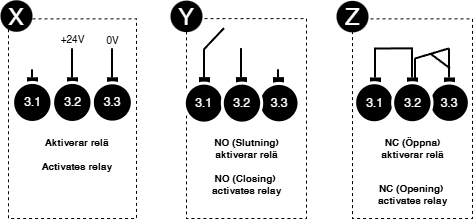

Z

Jumper

Jumper mounted between 3.1 and 3.2

Supply voltage on NO (5.3)



Load plugging in (5)

The load is connected to the contact (! 5). Select NC (5.1) or NO (5.3) depending on the desired function in alarm activation.

Table 6. Load plugging in (5)

Designation

Function

5.1

NC — normally closed

5.2

+ 12 V/24 V, supply voltage

5.3

NO — normally open

5.4

GND/ground/0 V

5.d.

Indicating diode, green



Mounting in battery backup

The card is delivered mounted in it's plastic casing, for easy installation.

Mount the card on any card slot in the enclosure, leave space for cables.

Important

Install the board before screwing on wiring or commissioning.

VMC 2026 edition

Letter

Explanation

Comment

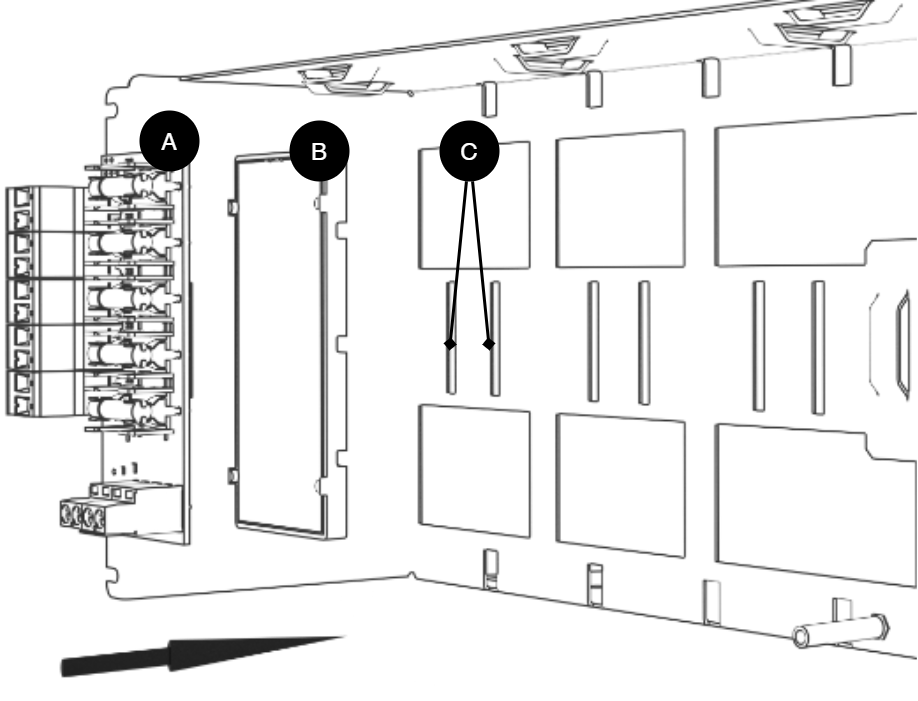

A

Optional card

Optional card comes mounted on plastic housing from factory. Has it come loose? Snap it back on before mounting the card.

B

Plastic casing

The plastic casing has hooks for attaching slots in the plate.

C

Place for plastic casing

Slits in sheet metal.

Product sheet - power supply / battery backup

Product Sheet

Product image


Product Identification

Table 7. Product designation, Part Number and E-Number

Product designation

Item No.

E-number (SE) (sv)

4 Output module PTC CTRL

A-FU122404OP01LM01

52 13 795



Technical description

4 Output Module PTC CTRL is an optional card for Milleteknik's 12 V or 24 V battery backup system that enables control of four separate load outputs. The board has four configurable inputs that individually control the corresponding output drive voltage on the input. Each output is protected with PTC fuse and can supply up to 2 A. The module is used to control external functions or loads

Table 8. Quick Facts

Quick Facts

Supply voltage (V)

27.3 V DC (24 V DC) or 13.6 V DC (12 V DC)

Voltage out (V)

27.3 V DC (24 V DC) or 13.6 V DC (12 V DC)[a]

Current output (A), max load current output.

1 A per output

Accessories for

Outdoor Enclosures.

[a] The device is not equipped with any DC/DC converter. The output voltage therefore corresponds to the input



Areas of application

Table 9. Areas of application

Areas of application

Yes

No

To expand the number of load outputs



Electrical data

Table 10. Electrical data

Electrical data

Supply voltage

27.3 V DC (24 V DC) or 13.6 V DC (12 V DC)

Current (A)[a]

1 A per output

Input control

Input drive voltage, (12 V)

Max current, full board

8 A, (16A maximum short-term)10A

[a] Power outlet/load is specified as max, normal current output should be 80% of max.



Table 11. Printed circuit boards and Internal power consumption

Circuit Boards

Internal power consumption

Other. info

4 Output module PTC CTRL

17 mA



Load outputs

Table 12. Load outputs

Load outputs

Number of load outputs

! 4[a]

[a] Load outputs share on the total maximum load. The value does not apply per output



Table 13. Total maximum load and recommended load.

Model

Recommended total load (80%)[a]

4 A

4 A

[a] Typically, 70-80% of the maximum load is recommended in continuous operation, depending on the thermal margins of the product.



Alarm and protection

Table 14. Alarms

Alarms

Yes

No

Triggered load fuse



Table 15. Alarm and protection

Alarm and protection

Yes

No

Overload Protection/Surge Protection



Communication and Indications

Table 16. Communication and Indications

Communication and Indications

Yes

No

Other. info.

Communication

Indicators/LEDs



Enclosure and Mechanics

Table 17. Enclosure and Mechanics

Enclosure and Mechanics

Type

Printed circuit board, product does not have enclosure



Assembly, installation and eligibility requirements

Table 18. Fitting

Fitting

Yes

No

In product (optionally fitted in compatible product).



Table 19. Installation

Installation

Yes

No

Installed in product.



Dimensions, weight and packaging information

Table 20. Dimensions

Dimensions, (WxHxD).

Dimensions with packaging[a]

30 x 40 x 89mm

100 x 210 x 155 mm

[a] Dimensions (WxHxD) of product and packaging may differ, this is because the product may be oriented differently in the package.



Table 21. Weight

Net weight

Weight with packaging

0.2 kg

0.4 kg



Table 22. Packaging

Packaging

Packaging

Quantity in pack

1 pc.

Packaging Type (GS1 T0137)

BX box.

Conditions EUR pallet

EUR pallets may not be stacked during transport or storage. Stacking may result in damage to product and packaging

Transport environment

The product must be protected from condensation and direct precipitation during transportation.

Storage environment

Dry indoor environment, protected from condensation. Relative humidity: max 95%, non-condensing



The accessories fits in

Table 23. Number of cards that fit in the power supply.

Product series

Enclosure size

Number of cards that can fit[a]

ECO

M, L

2,4

ECO, NEO, NOVA

FLX S

2

EN54, NEO, NOVA

FLX M

3

NEO, NOVA

FLX L

3

19 rack module holders

4U

8

[a] The number of cards/accessories that can fit is the total number that can fit in the housing. Electronic and mechanical limitations may exist.



Contact

Table 24. Contact

Department

Switchboard

031-340 02 30

Support and technical issues

support@milleteknik.se

Sales

sales@milleteknik.se

WWW

www.milleteknik.se

Address

Ögärdesvägen 8B, 433 30 Partille



About this information

All information is published subject to possible errors. Information is updated without prior notice.

Publication date 2026-07-01

Compliance and regulatory compliance

Delivery time, warranty and terms

Table 25. Delivery time, warranty and terms

Delivery time, warranty and terms

Warranty period[a]

The product has a two (2) year warranty against manufacturing defects.

Special warranty conditions

See also general terms and conditions.

General Terms and Conditions

ALEM09 with exceptions, see: www.milleteknik.se/conditions/

Support

Telephone support and email support during the warranty period are free of charge. For spare parts that are not covered by warranty, there is a charge

Delivery and stock

Delivery time[b]

Or as per agreement. Delivery from factory, transportation time is added.

[a] If the device is purchased through a wholesaler or other supplier, other warranty conditions may apply

[b] In the case of larger orders, delivery time increases, acc. to agreement.



Operation and maintenance

Table 26. Operation

Operation

Data

Other. info

Environment

Operating temperature (recommended)

+15°C to +25°C

Operating temperature (permissible)[a]

+5°C to +40°C

Class 1 according to EN 50131-6/ EN 60839-11

[a] Specifies the permissible ambient temperature range in which the product can operate without damage. See also table on battery life.



Table 27. Maintenance

Yes

No

Interval

Other. info

Maintenance-free.



Certifications and approvals

Table 28. Approved according to

Complies with

Directives

C.E.

CE marking according to (EC) 765/2008

EMC

EMC Directive 2014/30EU

Electric (LVD)

Low Voltage Directive: 2014/35/EU



Environmental data

Table 29. Environmental data

Environmental data

J/N

Informație

Other. info.

Building Product Declaration (BPD)

Yes, see iBvd at www.milleteknik.se.

-

REACH Information Obligation

(EC) No 1907/2006

If empty, the product is not covered.

SVHC substances, CAS/EC

For text, see iBvd at www.milleteknik.se. If blank, substance is missing.

Subject to the RoHS Directive, (EU) 2015/863)

WEEE

2012/19/EU

If empty, the product is not covered. End-of-life products must be returned to a recycling centre

Battery Regulation

(EU) 2023/1542

SCIP No

2008/98/EC

If empty, no SCIP number is needed.

Conflict minerals

(EU) 2017/821

✗/✗/✗/✗/✔

No=Gold, Tungsten, Tantalum, Cobalt. Yes=Tin

Tin in solders in printed circuit boards purchased through a Swedish supplier.

Contains nanomaterials:

EC 1272/2008

The product does not contain nanomaterials.

Ecodesign

2009/125/EC

Milleteknik's products are intended for professional use and are therefore not directly covered by the Ecodesign Regulation (EU 2019/1782). As some components may be covered, we nevertheless disclose relevant information[a], where applicable, to provide our customers with confidence in their choice.

Machine Directive

2006/42/EC

The product is part of electrical systems, is subject to the relevant electrical and safety directives and is not a machine according to the Machinery Directive (2006/42/EC).

Will be replaced by Machinery Regulation (EU) 2023/1230, which will apply in 2027.

The product is designed for a long service life, which reduces the environmental impact. End-of-life products are handed over to the nearest recycling centre.

[a] Standby consumption and power.



soptunna_atervinning.ai

Manufacturer and country of origin

Table 30. Manufacturer and country of origin

Manufacturer[a]

Customs State. Nos.

85044095[b]

Country of origin

[a] Manufacturer is the trademark indicated on the product, regardless of what is stated in this product sheet.

[b] Verify with the Customs Ombud/Customs Service for export/import; alternative classification 85044055 may become applicable if the product is assessed as a battery charger.



Appendix

Eligibility requirements, installation

Eligibility requirements vary between countries. The table summarizes national requirements for fixed installation and connection of equipment with a plug socket, respectively.

Options on the secondary side of the product, such as 12 V, 24 V or 48 V DC, are connected according to the respective instructions. Work on the network connection of the product shall be carried out in accordance with national eligibility requirements

Table 31. Eligibility requirements by country. Applies only to the installation of this product in a fixed network connection

Permission Requirements for Installation

Fixed installation (230 V)

Plug

Other. info

Sweden

Fixed installation may be performed by technicians but shall be under the responsibility of a qualified installer. (Electrical Safety Act, SS 436 40 00) Plug may be connected without authorization.

Norway

Requirements for qualified electricians also for equipment with a plug socket in fixed installations. (NEK 400, DSB

Finland

Plug may be connected without authorization. (Tukes, SFS 6000

Denmark

Plug may be connected without authorization. (Safety Board

Germany

All fixed installations require a qualified electrician according to VDE 0100. Plug sockets may be connected without authorization, but only by person with basic electrical knowledge (“Elektrotechnisch unterwiesene Person”)



Reference table: environmental classes according to EN 50130-5 (referred to in EN 50131-6)

Table 32. Reference table: environmental classes according to EN 50130-5 (referred to in EN 50131-6)

Class

Type

Temperature range

Environmental Class 1

Heated indoors (type office/residence).

+5°C to +40°C

Environmental Class 2

Generally indoors (type warehouses/stairwells, not temperature controlled).

-10°C to +40°C

Environmental class 3

Protected outdoors.

-25°C to +50°C

Environmental class 4

Generally outdoors.

-25°C to +60°C



About this information

All information is published subject to possible errors. Information is updated without prior notice.

Publication date 2026-07-01
