Before you begin
Information
Read this first!
Electronics, regardless of enclosure, are intended for use in a controlled indoor environment. Mains voltage should be disconnected during installation.
It is the installer's responsibility that the system is suitable for its intended use. Only authorized persons should install and maintain the system.
All information subject to change.
Support
Do you need help with installation or connection? Scan the QR code to read the entire manual.
You will find answers to many questions at: www.milleteknik.se go to your product to read more, download manuals and other product information.
Telephone: +46 31- 340 02 30, e-mail: support@milleteknik.se.
Support is open: Monday-Thursday 08:00-16:00, Fridays 08:00-15:00. Closed 11:30-13:15.
Link to the latest information
Products and software are subject to updates, you will always find the latest information on our website.
Link to technical specifications
Help us make better products
With your help we can develop and produce better products, please fill in our form customer satisfaction survey.
Installation and commissioning
Instructions for installation and commissioning.

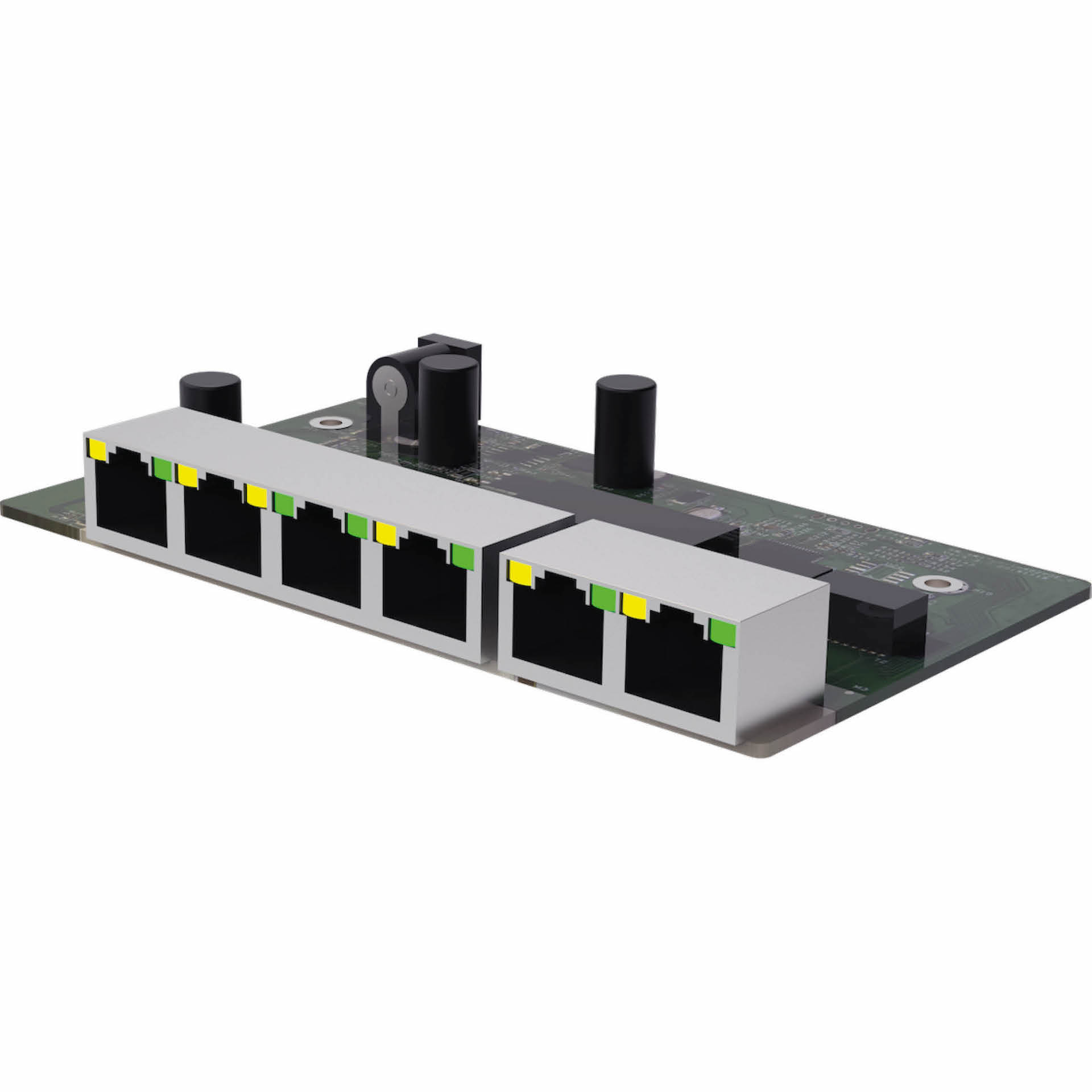

About PoE from Milleteknik
The series is designed to power PoE devices such as access systems, surveillance cameras and other equipment that can be operated with Power over Ethernet.

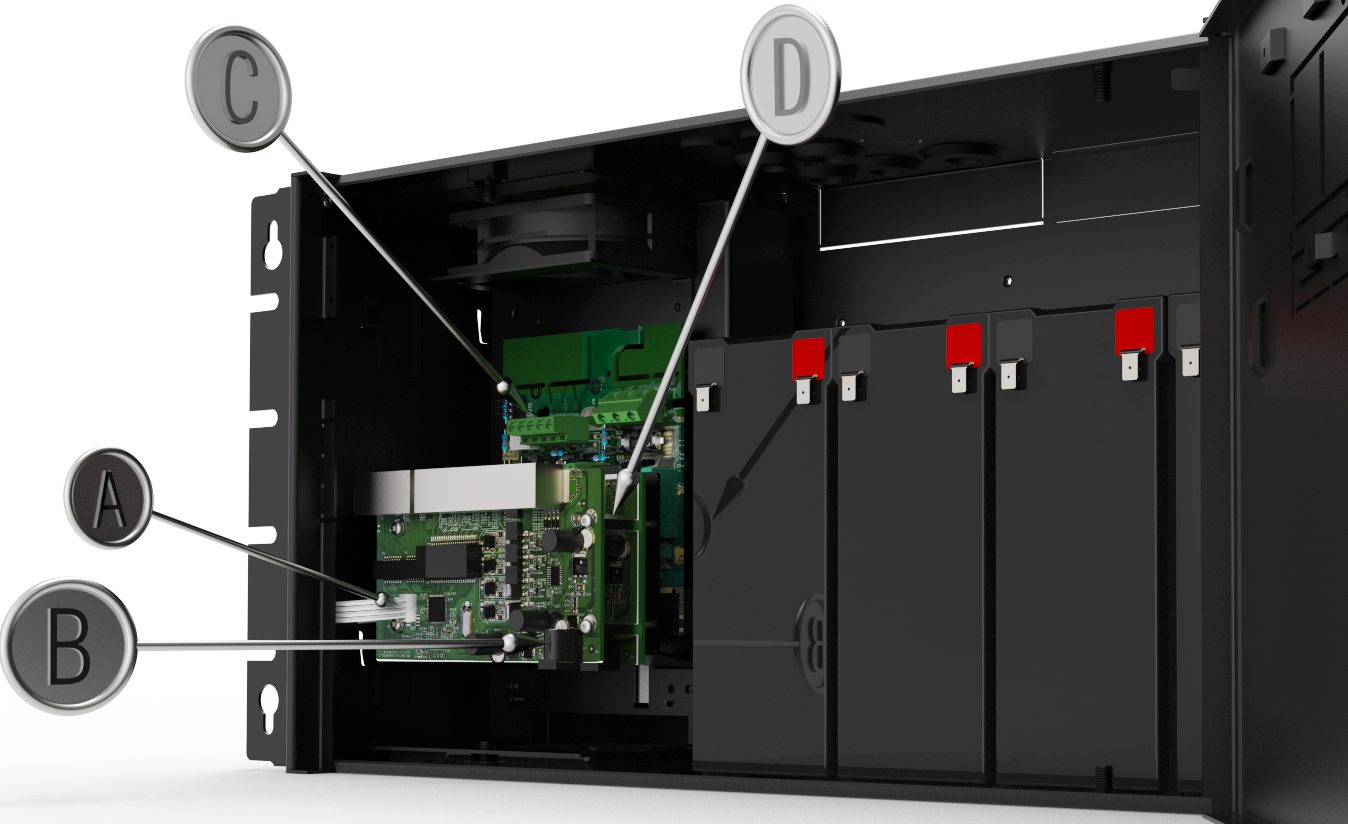

Mounting and connection in PoE switch 4p FLX S
Letter | Explanation |
|---|---|
A | Cable for data transfer between the PoE switch cards |
B | Connection of power supply from motherboard. |
C | Power supply to PoE switch via load port on motherboard. |
D | The card mounts on pre-assembled spacers on top of the first card in the unit. |

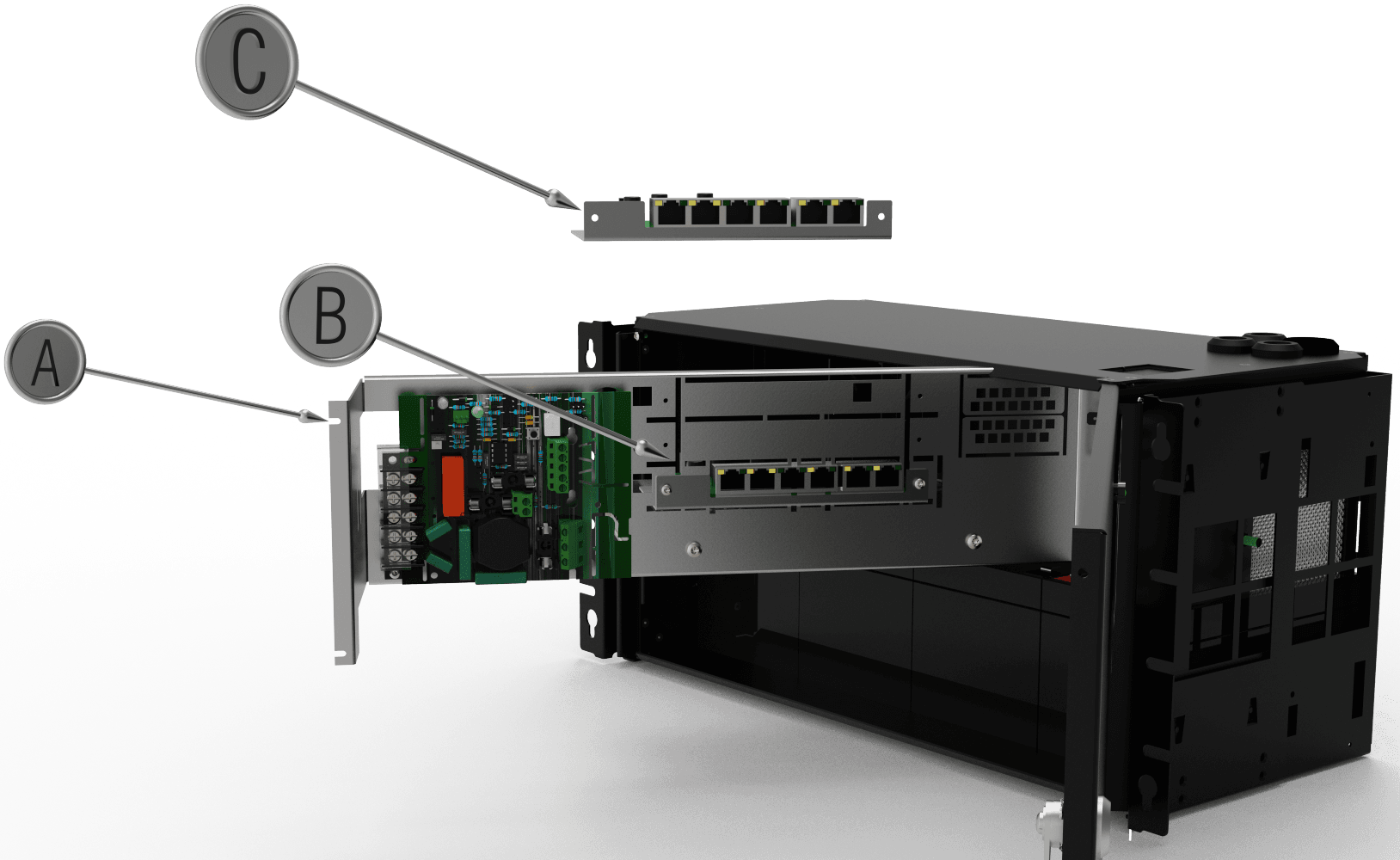

Mounting and connection in PoE switch 4p FLX M
Letter | Explanation |
|---|---|
A | Screw to be able to open the plate in the enclosure. |
B | Cut away the plate to mount the card. |
B | Slide the card in and screw it in place. |

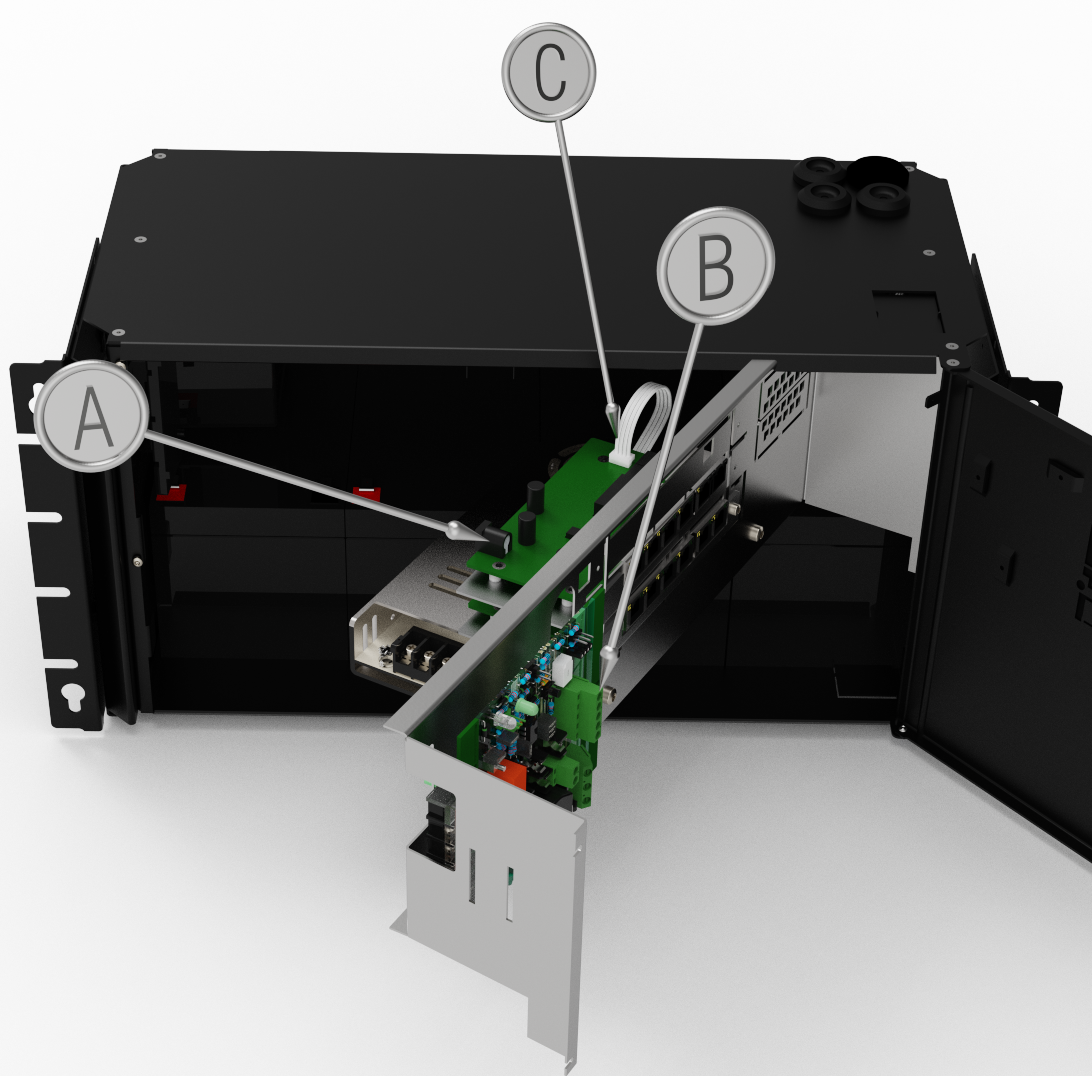

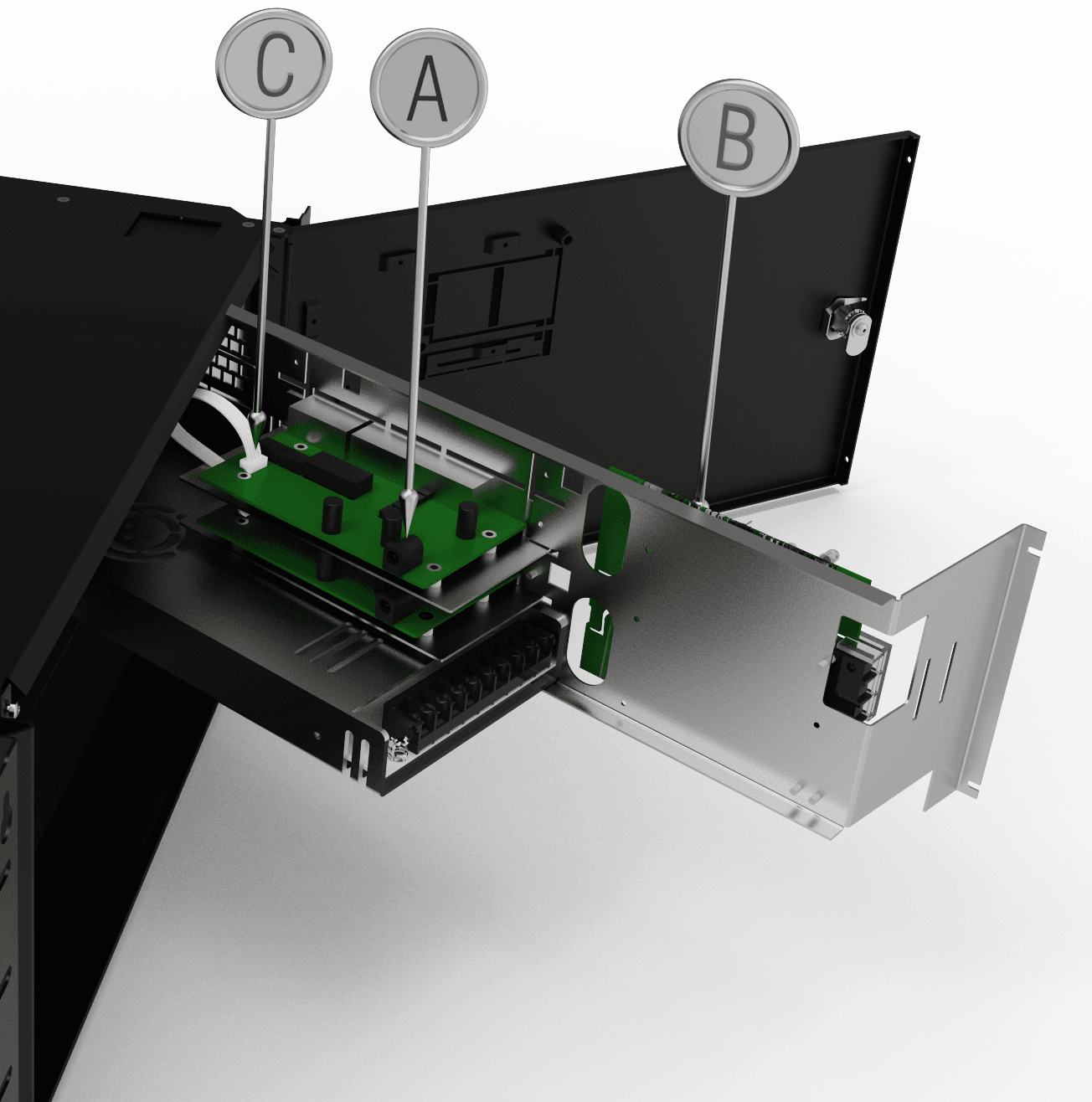

Letter | Explanation |
|---|---|
A | Connection of power supply from the motherboard (B). |
B | Power supply to PoE switch via load port on motherboard (A). |
C | Cable for data transfer between the PoE switch cards. |
Warranty
The product has a two-year warranty, from the date of purchase (unless otherwise agreed). Support during the warranty period can be reached at support@milleteknik.se or telephone, +46 31-34 00 230. Compensation for travel and / or working hours in connection with locating faults, installing repaired or replaced goods is not included in the warranty. Contact Milleteknik for more information. Milleteknik provides support during the product's lifetime, however, no later than 10 years after the date of purchase. Switching to an equivalent product may occur if Milleteknik deems that repair is not possible. Support costs may (at Milleteknik's discretion) occour after the warranty period has expired.
Product Identification
Product designation | Article number | E-number (SE) |
|---|
Technical data: PoE card
Limitations
Important
Note that 802.3at type2 is not supported, as the PoE card lacks a handshake function for type 2. Read more.
The product is tested and verified against Axema access systems and Dinbox access systems and is therefore recommended for use only with these systems. The product is currently not recommended for other products that have an af/at handshake procedure. The product deviates from standard IEEE 802.3af per port and IEEE 802.3at as the power is modified to be used together with Axema passer system and Dinbox passer system, which leads to shortcomings, (PoE-connected product does not start), against products that require handshake.
Product | Number of PoE / LAN ports | Max power per port | PoE, continuous power | Ethernet type | Mains ports | Interface | Functions | Type, injector and switch |
|---|---|---|---|---|---|---|---|---|
PoE switch 4p+ Expansion kit | 4/2 | 30,8 @ 54,6 V DC | 150W | Fast Ethernet Mbit PoE switch | 10 / 100 PoE | 1000Base-T RJ-45 | Auto-negotiation, Auto-uplink (auto MDI/MDI-X) | Unmanaged. There is no software interface to control the switch. |
Product life cycle, environmental impact and recycling
The product is designed and constructed for a long service life, which reduces the environmental impact. The product's service life depends on, among other things, environmental factors, mainly ambient temperature, unforeseen load on components such as lightning strikes, external damage, handling errors, and more. Products are recycled by being handed over to the nearest recycling station or sent back to the manufacturer. Contact your distributor for more information. Costs that arise in connection with recycling are not reimbursed.
