PoE switch 4p Expansions kit

Before you begin

Information

Read this first!

Electronics, regardless of enclosure, are intended for use in a controlled indoor environment. Mains voltage should be disconnected during installation.

It is the installer's responsibility that the system is suitable for its intended use. Only authorized persons should install and maintain the system.

All information subject to change.

Support

Do you need help with installation or connection? Scan the QR code to read the entire manual.

You will find answers to many questions at: www.milleteknik.se go to your product to read more, download manuals and other product information.

Telephone: +46 31- 340 02 30, e-mail: support@milleteknik.se.

Support is open: Monday-Thursday 08:00-16:00, Fridays 08:00-15:00. Closed 11:30-13:15.

Link to the latest information

Products and software are subject to updates, you will always find the latest information on our website.

PoE

Link to technical specifications

Help us make better products

With your help we can develop and produce better products, please fill in our form customer satisfaction survey.

Installation and commissioning

Instructions for installation and commissioning.

About PoE from Milleteknik

The series is designed to power PoE devices such as access systems, surveillance cameras and other equipment that can be operated with Power over Ethernet.

The PoE Switch 8p Expansion kit is for expanding the number of PoE connections in PoE switch 8p FLX L. Max two additional cards can be mounted for a total of 24 PoE ports. Read the PoE Device Software Setup Manual in the PoE Switch, or download from https://www.milleteknik.se/produkt/poe-m-switch-8p-flx-m/

Short description

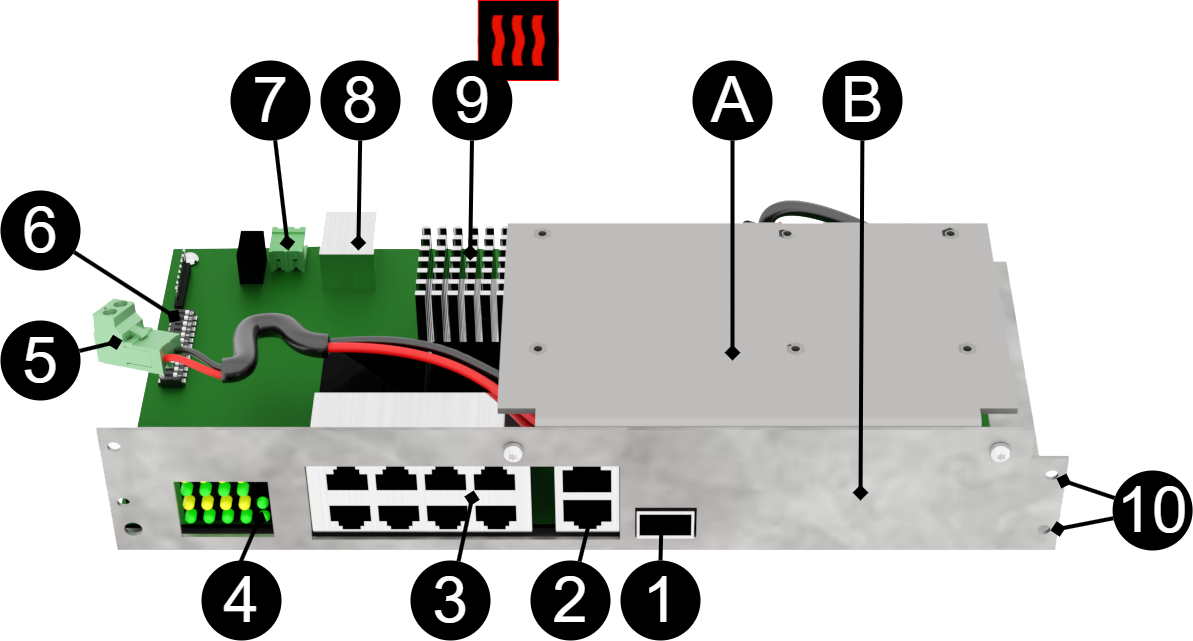

Table 1. Component Overview

Number/Letter	Explanation
1	SFP interface.
2	2 pcs. RJ45 ports for data
3	8 pcs. RJ-45 powered PoE ports for connecting PoE devices
4	Indication diodes, LEDs light up when external PoE is connected.
5	Connection to the power supply from the motherboard of the device.
6	DIP switch 1-12. Turns off alarms from PoE ports. Factory mode is OFF. Not normally used.
7	Alarm output.
8	Not normally used.
9	Heatsink, cables must not lie above the heatsink. Attention hot!
10	Mounting holes for mounting in battery backup.
A	Boost card, 24 V to 48 V to power PoE.
B	Sheet metal sled, pushed into battery backup.

Switching in - power supply and alarm

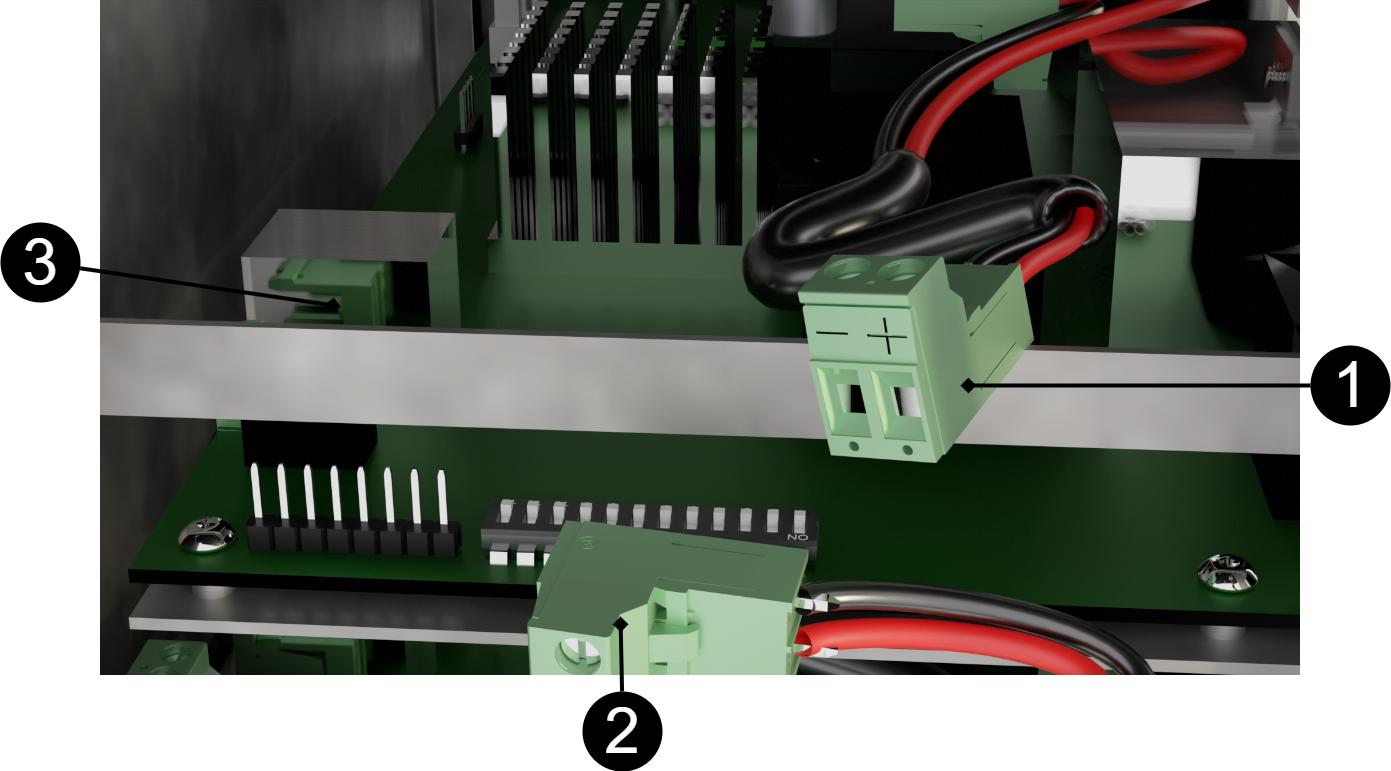

Table 2. Switching power supply and alarm

No.	Explanation
1	Pair with power supply from motherboard, B.
2	Power supply from motherboard.
3	Alarm, NC.

Fitting

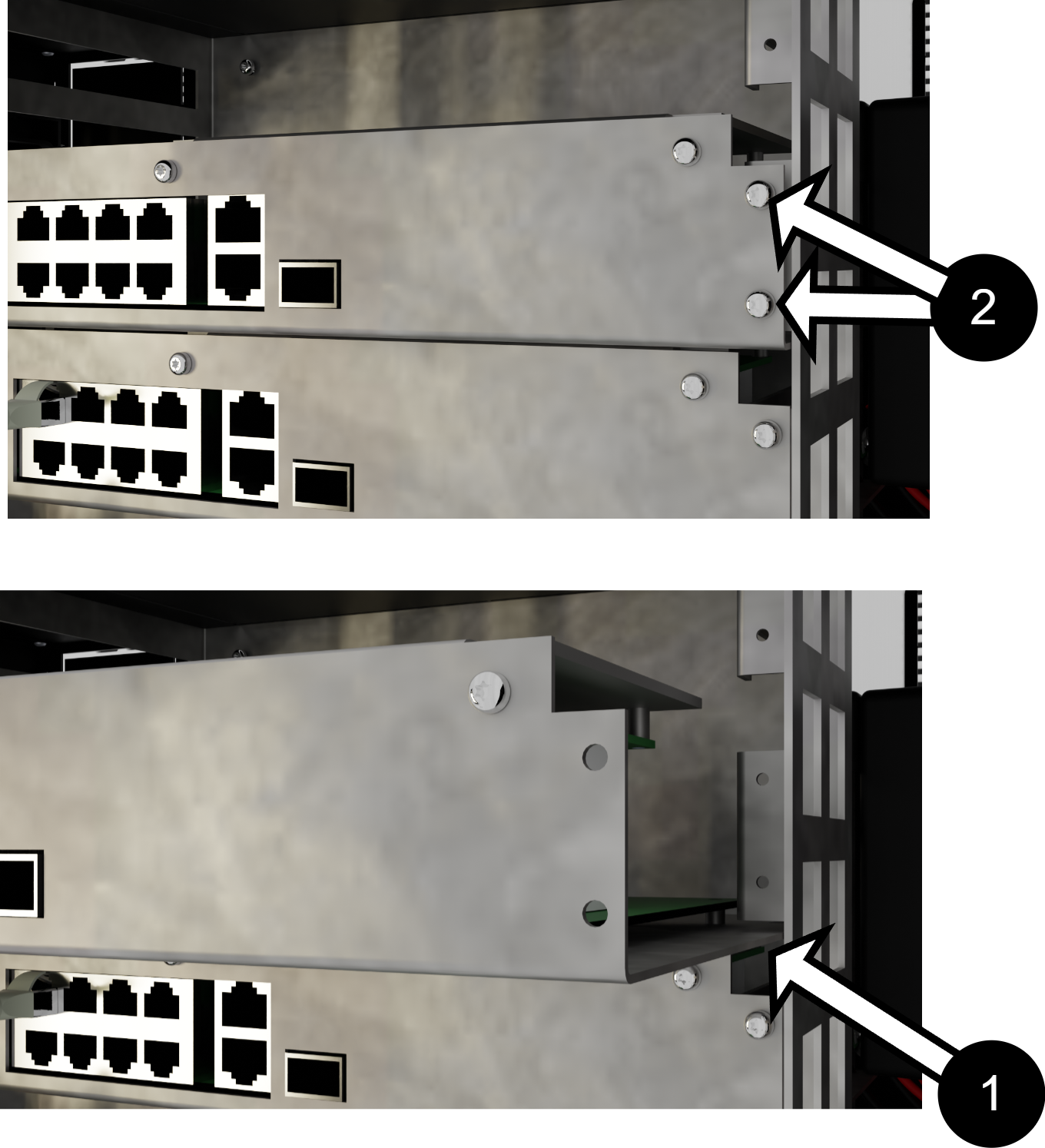

Table 3. Fitting

No.	Explanation.
1	Slide in sheet metal.
2	Screw on.

Product sheet - power supply / battery backup

Product Sheet

PoE

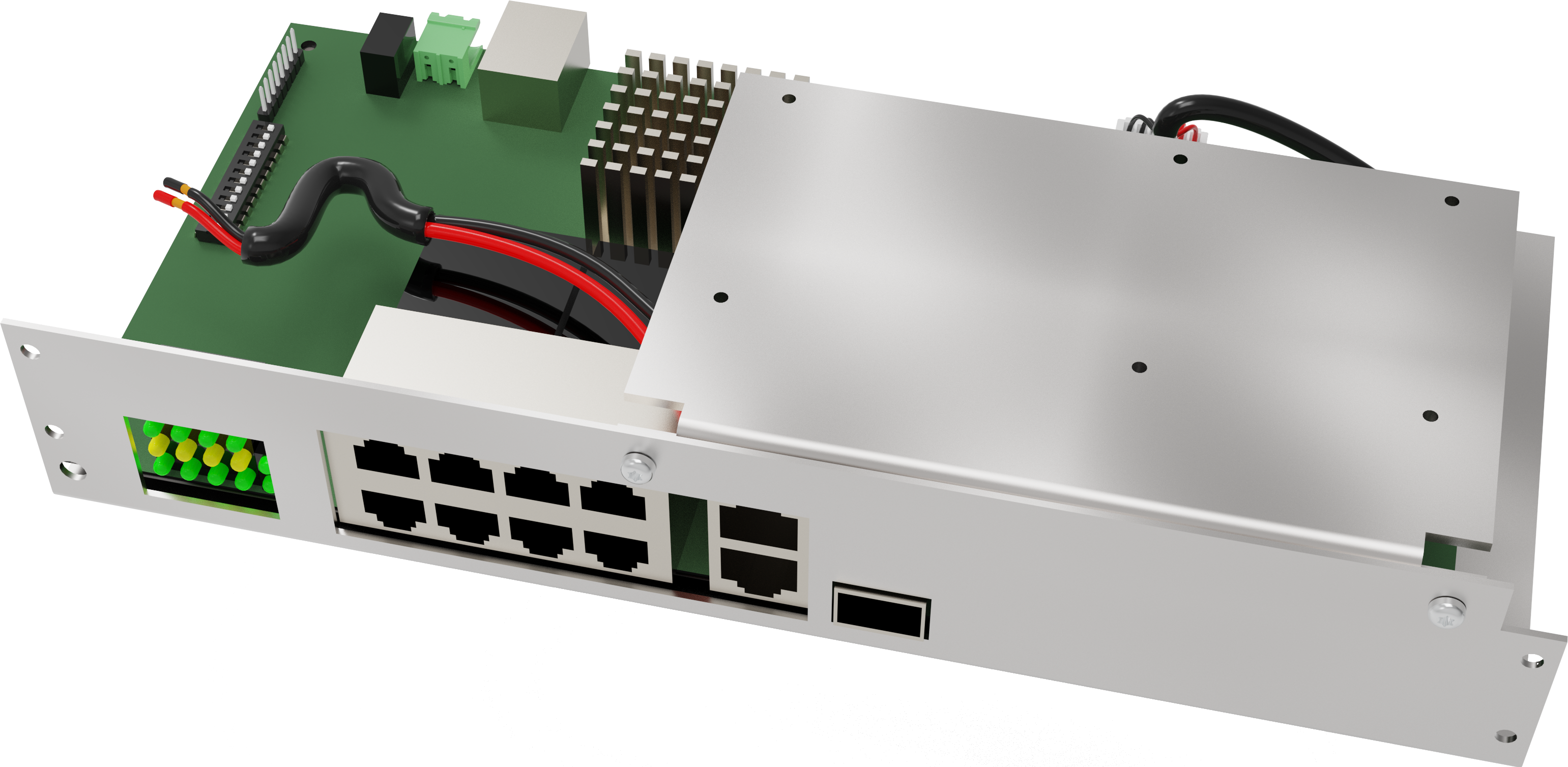

Product image

Product Identification

Table 4. Product designation, Part Number and E-Number

Product designation	Item No.	E-number (SE) (sv)
PoE Switch 8p Expansion Kit	OT00008PM01	51 730 95

Product Identification

Table 5. Product designation, part number and email number.

Product designation	Article number	E-number (SE)

Technical description

Batteries, for example, drive the access system further when the power grid goes down.

Plate for fastening of keystone modules.

Constant output voltage, , regardless of battery or mains operation, which allows the full battery capacity to be used.

PoE switch for expansion in Milleteknik PoE FLX L with 8 PoE ports and 2 LAN ports. Enables expansion of PoE connections in PoE FLX L. Up to two expansion cards can be installed for a total of 24 PoE ports. Maximum power per port 30.8 W and 22 W at 41 VDC for deep discharge. Support IEEE 802.3af 15.4W per port and IEEE 802.3at 30.8W per port

Table 6. Quick Facts

Quick Facts
Supply voltage (V)	230V AC, +/- 10%, 47Hz- 63Hz 48V DC
Voltage out (V)	54.6 V DC, (48 V DC)
Current output (A), max load current output.
Batteries^[a]
^[a]Recommended. If batteries are included, it is indicated, otherwise batteries are ordered separately

Areas of application

Table 7. Areas of application

Areas of application	Yes	No
IP camera, power supply.	✔
Networked devices that can be powered by PoE.	✔

Electrical data

Table 8. Electrical data

Electrical data
Supply voltage	230V AC, +/- 10%, 47Hz- 63Hz 48V DC
Charge current	Depending on the power outlet.
Efficiency^[a]
Standby consumption	2.69 W
Voltage out	54.6 V DC, (48 V DC)
Current (A)^[b]
Power (W)	30.8W per port
^[a]At rated load. ^[b]Power outlet/load is specified as max, normal current output should be 80% of max.

Table 9. Fuses

Fuses
Mains fuse
Load fuses
Battery fuse

Table 10. Printed circuit boards and Internal power consumption

Circuit Boards	Internal power consumption (during battery operation)	Other. info
PoE Switches 8p	56 mA

Load outputs

Table 11. Load outputs

Load outputs
Number of loading outputs	PoE switch can drive load. Load output to power other applications

Table 12. POE outputs

POE outputs
Number of PoE ports (RJ-45)	8
PoE budget
POE Budget/Max Power Per Port	! 8 30.8 W.
Number of LAN ports
Network ports/interfaces, RJ-45	100 Mbit/s 1000Mbps
Managed	No Yes

Alarm and protection

Table 13. Alarm and protection

Alarm and protection	Yes	No

Communication and Indications

Table 14. Communication and Indications

Communication and Indications	Yes	No	Other. info.
Communication		✘
Indicators/LEDs	✔		LED displays information and alarms on circuit boards and on the outside of the housing.

Battery

Table 15. Technical data - Batteries

Battery
Ref. Batteries^[a]
Battery type	Maintenance-free AGM (lead-acid) batteries
Deep discharge protection
^[a]If batteries are included, it is indicated, otherwise batteries are ordered separately.

Enclosure and Mechanics

Table 16. Enclosure and Mechanics

Enclosure and Mechanics
Type	Printed circuit board, product does not have enclosure
IP class
Material	Powder coated sheet metal.
Colour
Height units
Cable grommets
Knockout hole	1 pc. on the back
Fan in enclosure	✘

Assembly, installation and eligibility requirements

Table 17. Fitting

Fitting	Yes	No

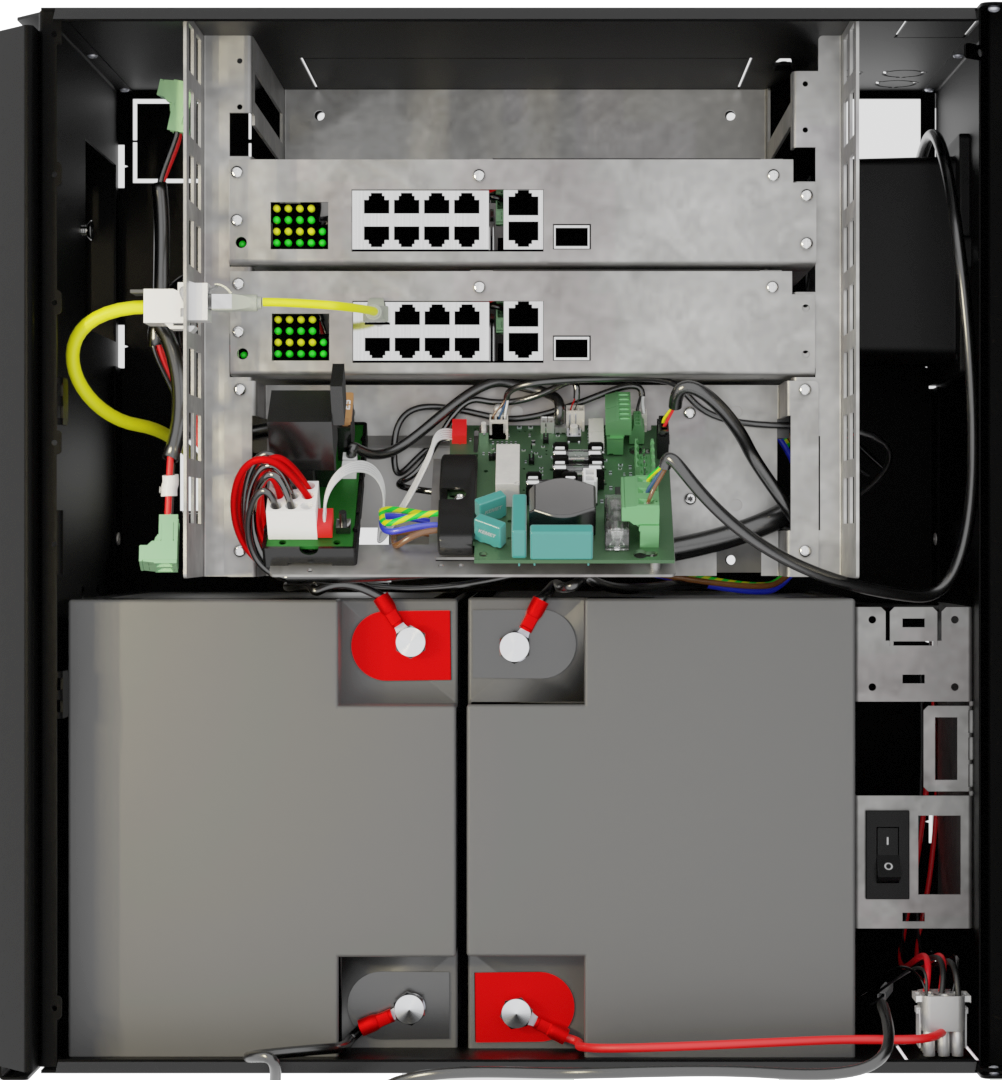

19" rack.	✔
Wall.	✔
In product (optionally fitted in compatible product).	✔

Table 18. Installation

Installation	Yes	No
Fixed installation.	✔
Installed in product.	✔

Dimensions, weight and packaging information

Table 19. Dimensions

Dimensions, (WxHxD).	Dimensions with packaging^[a]
45 x 225 x 125mm	100 x 210 x 155 mm
^[a]Dimensions (WxHxD) of product and packaging may differ, this is because the product may be oriented differently in the package.

Table 20. Weight

Net weight	Weight with packaging
0.85 kg	1.0 kg

Table 21. Packaging

Packaging
Packaging	Cardboard and impact protection in cardboard.
Quantity in pack	1 pc.
Packaging Type (GS1 T0137)	BX box.
Conditions EUR pallet	EUR pallets may not be stacked during transport or storage. Stacking may result in damage to product and packaging
Transport environment	The product must be protected from condensation and direct precipitation during transportation.
Transport temperature (without battery)	−30 °C to +70 °C
Storage environment	Dry indoor environment, protected from condensation. Relative humidity: max 95%, non-condensing
Storage temperature without batteries	−20 °C to +60 °C

Contact

Table 22. Contact

Department
Switchboard	031-340 02 30
Support and technical issues	support@milleteknik.se
Sales	sales@milleteknik.se
WWW	www.milleteknik.se
Address	Ögärdesvägen 8B, 433 30 Partille

About this information

All information is published subject to possible errors. Information is updated without prior notice.

Publication date 2026-07-08

Compliance and regulatory compliance

Delivery time, warranty and terms

Table 23. Delivery time, warranty and terms

Delivery time, warranty and terms
Warranty period^[a]	The product has a two (2) year warranty against manufacturing defects.In addition to the regular warranty period, an additional three (3) year warranty can be purchased.
Special warranty conditions	Batteries and wear parts are not covered by warranty. See also general terms and conditions.
General Terms and Conditions	ALEM09 with exceptions, see: www.milleteknik.se/conditions/
Support	Telephone support and email support during the warranty period are free of charge. For spare parts that are not covered by warranty, there is a charge
Delivery and stock
Delivery time^[b]	Or as per agreement. Delivery from factory, transportation time is added.
^[a]If the device is purchased through a wholesaler or other supplier, other warranty conditions may apply. ^[b]In the case of larger orders, delivery time increases, acc. to agreement.

Operation and maintenance

Table 24. Operation

Operation	Data	Other. info
Environment	Indoor environmental class 1.
Operating temperature (recommended)	+15°C to +25°C	For the best battery life. Higher temperatures significantly shorten the life of the batteries.
Operating temperature (permissible)^[a]	+5°C to +40°C	Class 1 according to EN 50131-6/ EN 60839-11
Load, power supply	80%	Average load shall not exceed 80% of the rated capacity of the power supply.
Ventilation, free distance around the enclosure.	100 mm	Ventilation openings must not be blocked or covered.
^[a]Specifies the permissible ambient temperature range in which the product can operate without damage. See also table on battery life.

Table 25. Maintenance

Yes	No	Interval	Other. info
	✔		Maintenance-free.

Certifications and approvals

Table 26. Approved according to

Complies with	Directives
PoE	IEEE 802.3af, IEEE 802.3at/30.8 W. Note that 802.3at type2 is not supported, as the PoE card does not have a type 2 handshake function.
C.E.	CE marking according to Regulation (EC) No 765/2008
RoHS	RoHS Directive 2011/65/EU, including amendment (EU) 2015/863
EMC	EMC Directive 2014/30/EU
Electric (LVD)	Low Voltage Directive 2014/35/EU

Environmental data

Table 27. Environmental data

Environmental data	J/N	Informație	Other. info.
Building Product Declaration (BPD)	✔	Yes, see iBvd at www.milleteknik.se.	-
REACH Information Obligation (EC) No 1907/2006	✔	Yes, see the DoC at www.milleteknik.se The product complies with REACH Regulation (EC) No 1907/2006.	If empty, the product is not covered.
SVHC substances, CAS/EC	✔	Yes, lead, 7439-92-1/231-100-4	For text, see iBvd at www.milleteknik.se. If blank, substance is missing.
Subject to the RoHS Directive, (EU) 2015/863)	✔	Yes, see the DoC at www.milleteknik.se
WEEE 2012/19/EU	✔	The product contains electrical components or wiring and is covered by the WEEE Directive (2012/19/EU).	If empty, the product is not covered. End-of-life products must be returned to a recycling centre
Battery Regulation (EU) 2023/1542	✗
SCIP No 2008/98/EC	✔	Yes, registered under the EU Waste Directive where applicable, (2008/98/EC).	If empty, no SCIP number is needed.
Conflict minerals (EU) 2017/821	✗/✗/✗/✗/✔	No=Gold, Tungsten, Tantalum, Cobalt. Yes=Tin	Tin in solders in printed circuit boards purchased through a Swedish supplier.
Contains nanomaterials: EC 1272/2008	✗	The product does not contain nanomaterials.
Ecodesign 2009/125/EC	Milleteknik's products are intended for professional use and are therefore not directly covered by the Ecodesign Regulation (EU 2019/1782). As some components may be covered, we nevertheless disclose relevant information^[a], where applicable, to provide our customers with confidence in their choice.
Machine Directive 2006/42/EC	The product is part of electrical systems, is subject to the relevant electrical and safety directives and is not a machine according to the Machinery Directive (2006/42/EC). Will be replaced by Machinery Regulation (EU) 2023/1230, which will apply in 2027.
The product is designed and constructed for a long service life, which reduces the environmental impact. The life of the product (except wearing parts) depends on, among other things, environmental factors, mainly ambient temperature, unforeseen load on components such as lightning strikes, external impact, handling errors, etc. Products are recycled, simply because they are modular, by being left at the nearest recycling station or sent back to the manufacturer.^[b]Contact your distributor for more information. The product is designed for a long service life, which reduces the environmental impact. End-of-life products are handed over to the nearest recycling centre.
^[a]Standby consumption and power. ^[b]Costs incurred in connection with recycling are not reimbursed.

Manufacturer and country of origin

Table 28. Manufacturer and country of origin

Manufacturer^[a]

Milleteknik AB

Customs State. Nos.

85044095^[b]

Country of origin

Sweden

^[a]Manufacturer is the trademark indicated on the product, regardless of what is stated in this product sheet.

^[b]Verify with the Customs Ombud/Customs Service for export/import; alternative classification 85044055 may become applicable if the product is assessed as a battery charger.

Appendix

Backup operating time on batteries

The reserve operating time in battery operation depends on how large a load is connected to the power supply. If the load varies, as with frequent opening of door locks, the time that batteries can continue to power the security system decreases. To get an estimate of reserve operating times see: www.milleteknik.se/Manualer/FaQ/Reservdrifttider/

Eligibility requirements, installation

Eligibility requirements vary between countries. The table summarizes national requirements for fixed installation and connection of equipment with a plug socket, respectively.

Options on the secondary side of the product, such as 12 V, 24 V or 48 V DC, are connected according to the respective instructions. Work on the network connection of the product shall be carried out in accordance with national eligibility requirements

Table 29. Eligibility requirements by country. Applies only to the installation of this product in a fixed network connection

Permission Requirements for Installation	Fixed installation (230 V)	Plug	Other. info
Sweden	✔	✗	Fixed installation may be performed by technicians but shall be under the responsibility of a qualified installer. (Electrical Safety Act, SS 436 40 00) Plug may be connected without authorization.
Norway	✔	✔	Requirements for qualified electricians also for equipment with a plug socket in fixed installations. (NEK 400, DSB
Finland	✔	✗	Plug may be connected without authorization. (Tukes, SFS 6000
Denmark	✔	✗	Plug may be connected without authorization. (Safety Board
Germany	✔	✗	All fixed installations require a qualified electrician according to VDE 0100. Plug sockets may be connected without authorization, but only by person with basic electrical knowledge (“Elektrotechnisch unterwiesene Person”)

Miscellaneous

Table 30. Max power PoE.

-	PoE	Poe+	PoE++
Compatible^[a]	-	PoE	PoE, PoE+
Official name	IEEE 802.3af	IEEE 802.3at	IEEE 802.3bt
Maximum power	13 W	25 W	71 W
^[a]The power supply follows "up", but not "down". A PoE can never power a PoE+/PoE++ device that requires more than 13 W.

Reference table: environmental classes according to EN 50130-5 (referred to in EN 50131-6)

Table 31. Reference table: environmental classes according to EN 50130-5 (referred to in EN 50131-6)

Class	Type	Temperature range
Environmental Class 1	Heated indoors (type office/residence).	+5°C to +40°C
Environmental Class 2	Generally indoors (type warehouses/stairwells, not temperature controlled).	-10°C to +40°C
Environmental class 3	Protected outdoors.	-25°C to +50°C
Environmental class 4	Generally outdoors.	-25°C to +60°C

Reference table: manufacturer's stated service life and recommended battery replacement

Table 32. Reference table: manufacturer's stated service life and recommended battery replacement

Battery Type (Design Life)^[a]	Battery replacement time in normal operation, +20°C.	Replacement during hot operation, +30°C	Replacement during hot operation, +40°C
3 - 5 years	2 - 3 years	1 - 1.5 years	0.5 - 0.75 years
6 - 9 years	5 - 6 years	2.5 - 3 years	1.2 - 1.5 years
10 - 12 years	6 - 7 years	3 - 3.5 years	1.5 - 1.75 years
15 + years	10 - 12 years	5 - 6 years	2.5 - 3 years
^[a]Valid in case of completely unused battery stored under optimal conditions.

About this information

All information is published subject to possible errors. Information is updated without prior notice.

Publication date 2026-07-08
