Product Identification

Table 1. Product designation, Part Number and E-Number

Product designation

Item No.

E-number (SE) (sv)

PoE injector 4P expansion kit for 1U02

A-OT002404PI01

51 731 56

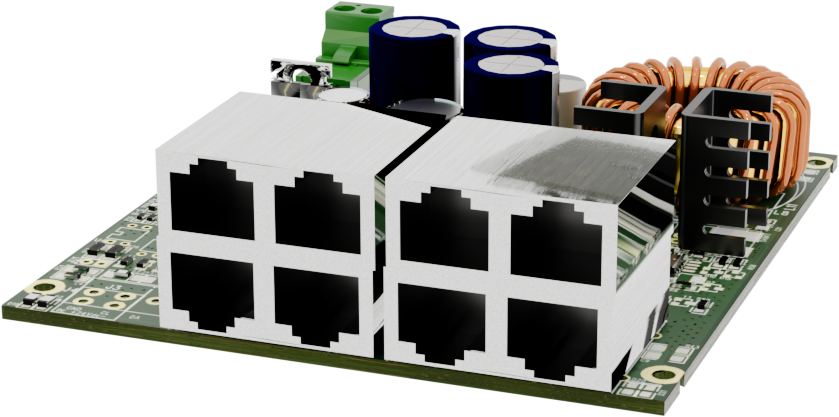

Product image


Area of use

The PoE injector 4P expansion kit for 1U02 feeds up to four devices with both power and data via PoE ports, without separate load outputs. Easily mounted in PoE injector 4p 1HE. Supply: 24 V in, output voltage: 48 V DC via PoE ports. Need more ports? Plug in up to three devices for a total of 12 PoE outputs

Installation and commissioning

Instructions for installation and commissioning.

Install the option in 1HE

Open the lid

Load is plugged in at the back. To reach the jackable terminals, the cover needs to be removed.

  • Unscrew the two screws on the front of the lid.

  • Press down with a screwdriver on the cap (B) while pushing out the cover.


Configuration varies but the cover is removed in the same way.

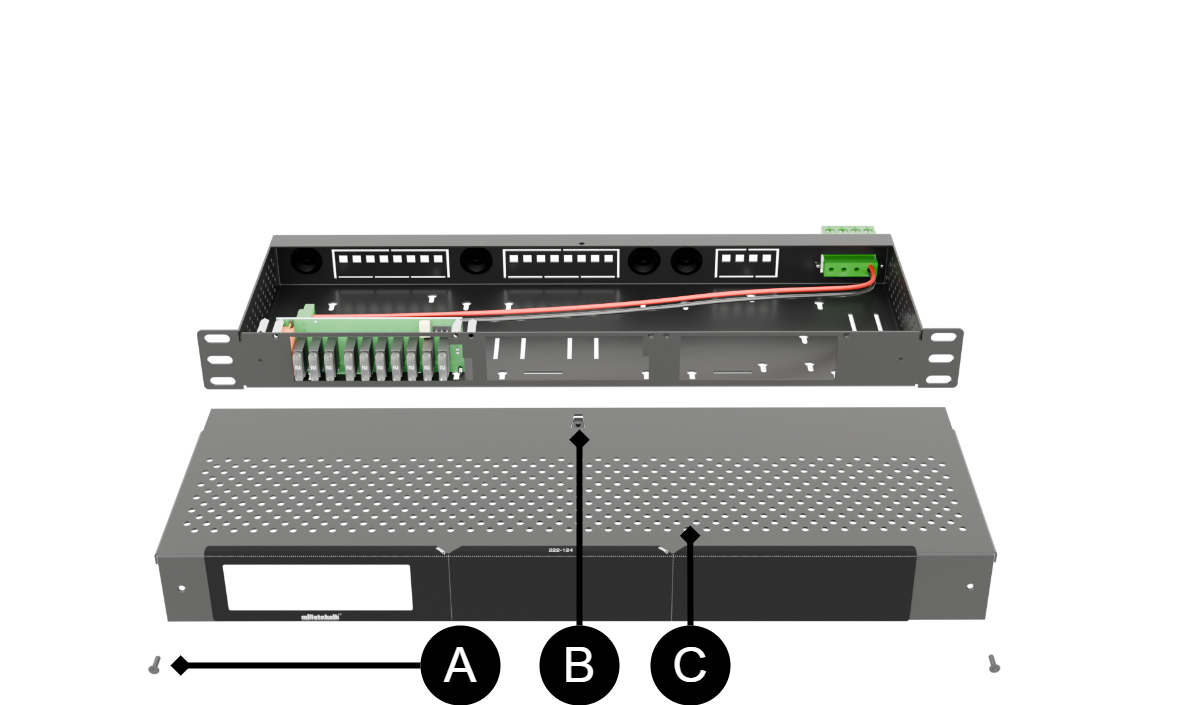

Table 2. Removing the cap on 1HE

Letter

Explanation

A

Screw.

B

Glue/fastener in lid and bottom.

C

Lid.

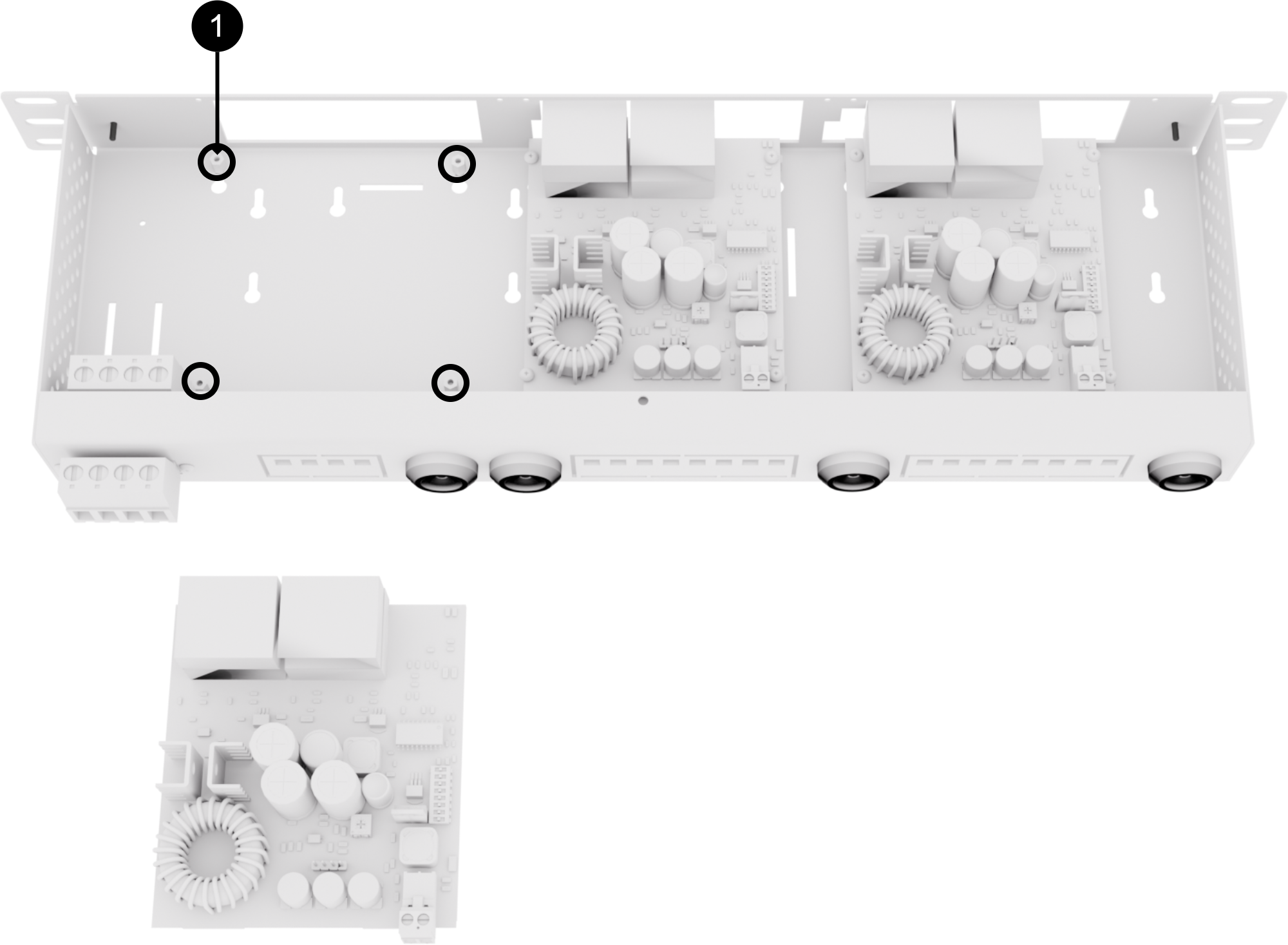

Mount the card in enclosure


Table 3. Mount the card in enclosure

No.

Explanation

1

Mount the board on spacers. Screw and spacers are provided in the included pouch



Plug into this order

  • Plugging in load.

  • Plug in power supply, .

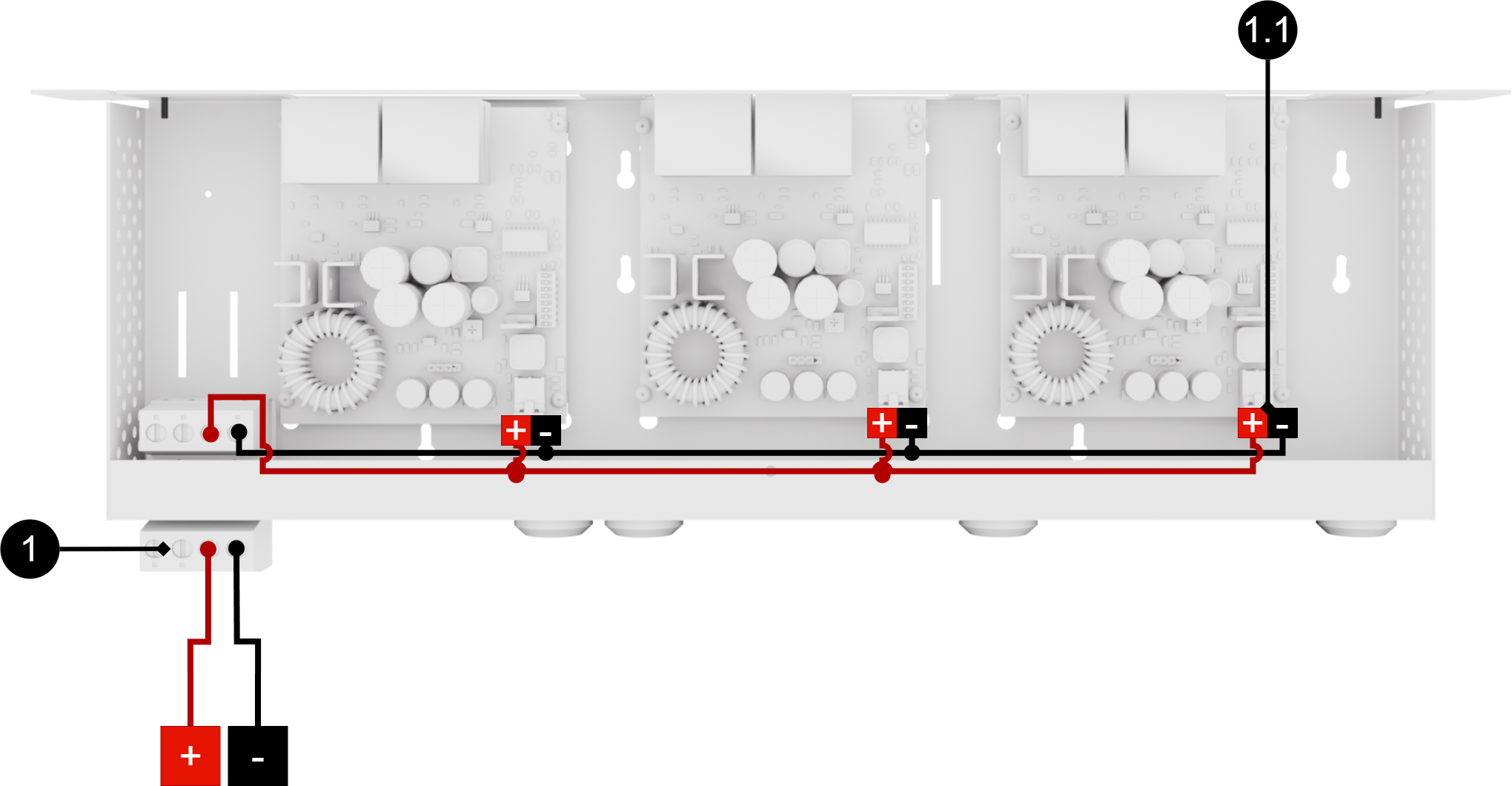

Table 4. Plug-in

No.

Explanation

1 & 1.1

Plug in power supply, .



Compatible Products

The product is compatible with all Milleteknik battery backups that supply out.

Product data sheet

Product Sheet

Product image


Product Identification

Table 5. Product designation, Part Number and E-Number

Product designation

Item No.

E-number (SE) (sv)

PoE injector 4P expansion kit for 1U02

A-OT002404PI01

51 731 56



Designation

Extends PoE injector 4p 1HE with four ports.

Area of use

The PoE injector 4P expansion kit for 1U02 feeds up to four devices with both power and data via PoE ports, without separate load outputs. Easily mounted in PoE injector 4p 1HE. Supply: 24 V in, output voltage: 48 V DC via PoE ports. Need more ports? Plug in up to three devices for a total of 12 PoE outputs

Common uses

  • Power supply for CCTV cameras where PoE support is missing.

  • Extension of network capacity for security systems.

  • Adds PoE function to network connectivity.

  • Operation of wireless access points.

Technical description

PoE injector 48 V. Four inputs and four outputs. Can be expanded to a total of 12 PoE ports if required.

Voltage, current and power

Voltage in: 27.3 V DC, (24 V).

Voltage Out: 48 IN DC.

Max power per port: 30.8 W.

Outputs

Four PoE ports and two LAN ports.

Weight

Table 7. Weight.

Name

Net weight

Weight incl. packaging

PoE injector 4P expansion kit for 1U02

0.3 kg

0.4 kg



Installation requirements

Can only be installed in PoE injector 4p 1HE

Requirements that the product meets

Table 8. The product meets the following requirements.

EMC:

EMC Directive 2014/30/EU

Electricity:

Low Voltage Directive 2014/35/EU

CE marking:

Regulation (EC) No 765/2008

Environment

REACH: The product complies with REACH Regulation (EC) No 1907/2006.

RoHS Directive 2011/65/EU, including amendment (EU) 2015/863

SCIP: registered under the EU Waste Directive where applicable, (2008/98/EC).

WEEE: The product contains electrical components or wiring and is covered by the WEEE Directive (2012/19/EU). End-of-life products must be returned to a recycling centre

Batteries: If the product is supplied with batteries, it is covered by the Battery Regulation (2023/1542). Expired batteries must be removed from the product and returned to a recycling centre

Machinery Directive

The product is part of electrical systems, is subject to the relevant electrical and safety directives and is not a machine according to the Machinery Directive (2006/42/EC).

Ecodesign

Milleteknik's products are intended for professional use and are therefore not directly covered by the Ecodesign Regulation (EU 2019/1782). As some components may be covered, we nevertheless disclose relevant information to give our customers confidence in their choice



Denomination

Efficiency (%)[a]

Standby consumption, typical (W):

[a] At rated load.

soptunna_atervinning.ai

Guarantee

Manufacturing, lifespan, environmental impact and recycling

Manufactured by Milleteknik in Partille, Sweden.

Link to technical specifications

Miscellaneous

Table 9. Max power PoE.

-

PoE

Poe+

PoE++

Compatible[a]

-

PoE

PoE, PoE+

Official name

IEEE 802.3af

IEEE 802.3at

IEEE 802.3bt

Maximum power

13 W

25 W

71 W

[a] The power supply follows "up", but not "down". A PoE can never power a PoE+/PoE++ device that requires more than 13 W.



About this information

All information is published subject to possible errors. Information is updated without prior notice.

Publication date 2026-07-09
