PoE 8p expansion 1HE

Product Identification

Table 1. Product designation, Part Number and E-Number

Product designation	Item No.	E-number (SE) (sv)
PoE switch 8p expansion kit for 1U02	A-OT002408PU01	51 731 55

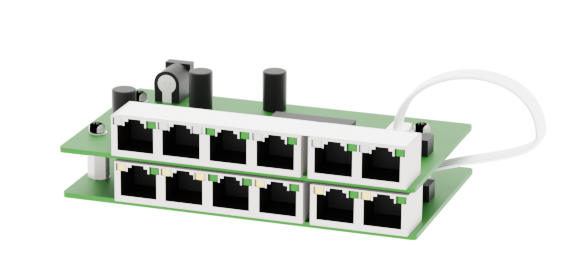

Product image

Area of use

PoE switch 8p expansion kit for 1U02 distributes both power and data via PoE ports as well as data via LAN ports. PoE Switch 8p 1HE Expandable with one card to for a total of 16 PoE ports, with a power of 30.8W per port

Installation and commissioning

Instructions for installation and commissioning.

Install the option in 1HE

Open the lid

Load is plugged in at the back. To reach the jackable terminals, the cover needs to be removed.

Unscrew the two screws on the front of the lid.
Press down with a screwdriver on the cap (B) while pushing out the cover.

Configuration varies but the cover is removed in the same way.

Table 2. Removing the cap on 1HE

Letter	Explanation
A	Screw.
B	Glue/fastener in lid and bottom.
C	Lid.

Mount the card in enclosure

Table 3. Mount the card in enclosure

No.	Explanation
1	Mount the board on spacers. Screw and spacers are provided in the included pouch

Plug into this order

Plugging in load.
Plug in power supply, .

Table 4. Plug-in

No.	Explanation
1 & 1.1	Plug in power supply, .

Compatible Products

The product is compatible with all Milleteknik battery backups that supply out.

Product data sheet

Product Sheet

Product image

Product Identification

Table 5. Product designation, Part Number and E-Number

Product designation	Item No.	E-number (SE) (sv)
PoE switch 8p expansion kit for 1U02	A-OT002408PU01	51 731 55

Designation

Extends PoE switch 8p 1HE with eight ports.

Area of use

Common uses

Power and data to security cameras.
Connection of access points and IP telephones.
Network management in security installations.

Technical description

PoE switch for up to AT standard. Delivers 30.8W per PoE port. No 24 V load outputs are available on this unit

Voltage, current and power

Voltage in: 48 IN DC.

Voltage Out: 48 IN DC.

Max power per port: 30.8 W.

Self-consumption is the power outlet the circuit board has when the system is deployed and in battery operation.

Table 6. Self-consumption

Circuit Boards	Self-consumption (in battery operation)	Comments
PoE switch 8p expansion kit	56 mA

Outputs

Eight PoE ports for both power and data, and four LAN ports for network connectivity. No separate loading outputs

Weight

Table 7. Weight.

Name	Net weight	Weight incl. packaging
PoE switch 8p expansion kit for 1U02	0.3 kg	0.4 kg

Installation requirements

Can only be installed in PoE Switch 8p 1HE

Requirements that the product meets

Table 8. The product meets the following requirements.

EMC:	EMC Directive 2014/30/EU
Electricity:	Low Voltage Directive 2014/35/EU
CE marking:	Regulation (EC) No 765/2008
Environment	REACH: The product complies with REACH Regulation (EC) No 1907/2006. RoHS Directive 2011/65/EU, including amendment (EU) 2015/863 SCIP: registered under the EU Waste Directive where applicable, (2008/98/EC). WEEE: The product contains electrical components or wiring and is covered by the WEEE Directive (2012/19/EU). End-of-life products must be returned to a recycling centre Batteries: If the product is supplied with batteries, it is covered by the Battery Regulation (2023/1542). Expired batteries must be removed from the product and returned to a recycling centre
Machinery Directive	The product is part of electrical systems, is subject to the relevant electrical and safety directives and is not a machine according to the Machinery Directive (2006/42/EC).
Ecodesign	Milleteknik's products are intended for professional use and are therefore not directly covered by the Ecodesign Regulation (EU 2019/1782). As some components may be covered, we nevertheless disclose relevant information to give our customers confidence in their choice

Denomination	Efficiency (%)^[a]	Standby consumption, typical (W):
^[a]At rated load.

Limitations

Important

Note that 802.3at type2 is not supported, as the PoE card lacks a handshake function for type 2. Read more.Areas of use

The product is tested and verified against Axema access systems and Dinbox access systems and is therefore recommended for use only with these systems. The product is currently not recommended for other products that have an af/at handshake procedure. The product deviates from standard IEEE 802.3af per port and IEEE 802.3at as the power is modified to be used together with Axema passer system and Dinbox passer system, which leads to shortcomings, (PoE-connected product does not start), against products that require handshake.

Guarantee

Manufacturing, lifespan, environmental impact and recycling

Manufactured by Milleteknik in Partille, Sweden.

Link to technical specifications

Miscellaneous

Table 9. Max power PoE.

-	PoE	Poe+	PoE++
Compatible^[a]	-	PoE	PoE, PoE+
Official name	IEEE 802.3af	IEEE 802.3at	IEEE 802.3bt
Maximum power	13 W	25 W	71 W
^[a]The power supply follows "up", but not "down". A PoE can never power a PoE+/PoE++ device that requires more than 13 W.

About this information

All information is published subject to possible errors. Information is updated without prior notice.

Publication date 2026-07-09
