[sv] Om
[sv] Voltage converter 24V-12A 1A är ett tillvalskort med en utgång.
[sv] Envägsriktat, 24 volt till 12 volt.
[sv] Plint för enkel inkoppling av 24 V.
[sv] En lastutgång, max lastström: 1 A.
[sv] Färgkodat kablage för enkel inkoppling av 12 V last.
Installation and commissioning
Instructions for installation and commissioning. A product sheet is included and supplements the instructions with technical specifications.
[sv] Montering i batteribackup
[sv] Kortet behöver inte monteras på plåt eller plasthållare. Kortet skruvas direkt med kabel på lastutgång på moderkortet eller vid applikation som behöver 12 V.

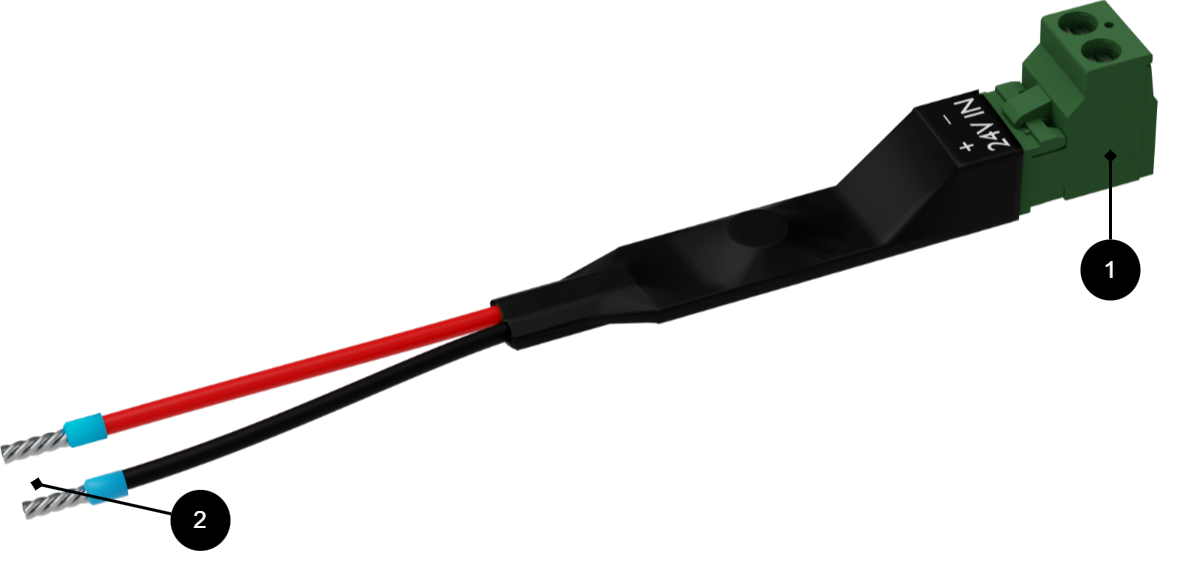

[sv] Kortbeskrivning och inkoppling
[sv] Nr | [sv] Förklaring |
|---|---|
1 | [sv] 24 V in. Kablage från moderkort medföljer ej - använd 4mm2. Notera +/--märkningen vid plinten. |
2 | [sv] 12 V ut. Rött= plus, svart = minus. |
Important
[sv] Kortet är envägsriktat. Det går endast att omvandla 24 V till 12 V.
Product data sheet
Product Sheet

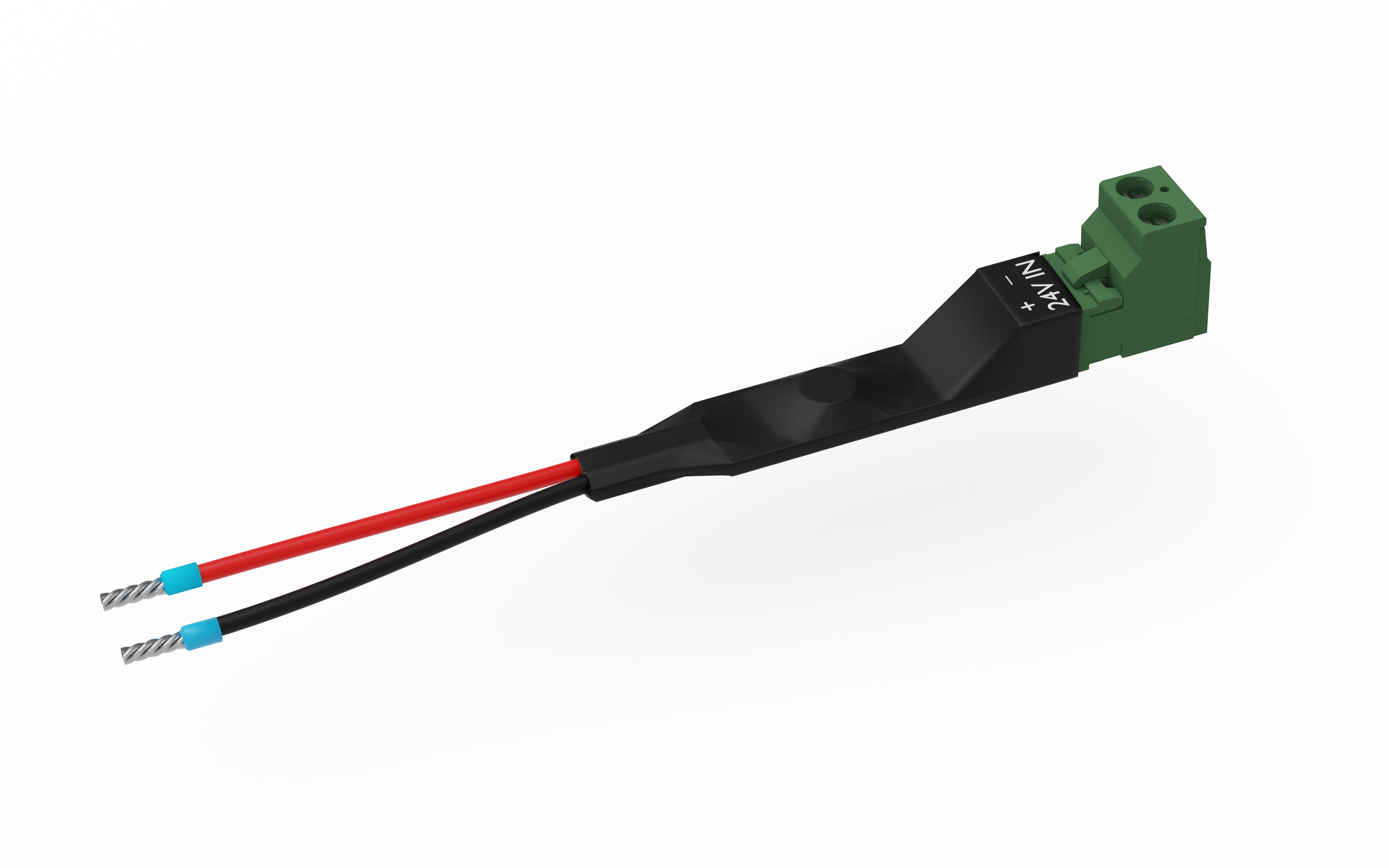

Product image
Designation
Option for voltage conversion from 24 V to 12 V. Max. 1 A load current.
Area of use
The product converts 24 V to 12 V and is ideal for use to power an application that requires 12 V.
Technical description
The card provides 0.8 A continuously, 1.0 A in peak (short-term).
Voltage, current and power
Voltage in: 27.3 V DC, (24 V).
Voltage Out: 12 in DC.
Power Outlet: 1 A.
Outputs
One load output.
Enclosure
The product lacks an enclosure and is mounted in an existing enclosure.
Weight
Name | Net weight | Weight incl. packaging |
|---|---|---|
Voltage converter 24V-12V 1A | 0.09 kg, (9 grams) | 0.1 kg |
Installation requirements
The product must be installed in a compatible product from Milleteknik.
The accessories fits in
24 V power supply from Milleteknik with at least one free (24 V) load output.
For a complete list of options suitable for the product, see Optional and compatible devices
Requirements that the product meets
EMC: | EMC Directive 2014/30/EU |
Electricity: | Low Voltage Directive 2014/35/EU |
CE marking: | Regulation (EC) No 765/2008 |
Environment | REACH: The product complies with REACH Regulation (EC) No 1907/2006. RoHS Directive 2011/65/EU, including amendment (EU) 2015/863 SCIP: registered under the EU Waste Directive where applicable, (2008/98/EC). WEEE: The product contains electrical components or wiring and is covered by the WEEE Directive (2012/19/EU). End-of-life products must be returned to a recycling centre Batteries: If the product is supplied with batteries, it is covered by the Battery Regulation (2023/1542). Expired batteries must be removed from the product and returned to a recycling centre |
Machinery Directive | The product is part of electrical systems, is subject to the relevant electrical and safety directives and is not a machine according to the Machinery Directive (2006/42/EC). |
Ecodesign | Milleteknik's products are intended for professional use and are therefore not directly covered by the Ecodesign Regulation (EU 2019/1782). As some components may be covered, we nevertheless disclose relevant information to give our customers confidence in their choice |
Denomination | Efficiency (%)[a] | Standby consumption, typical (W): | |||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1. Accessories, expansion or optional cards that do not convert energy themselves, but only control, monitor or distribute it, do not fall under the Ecodesign Directive | |||||||||||||||||||||||||||||||||||||||||||||||||
-! 1 | 0.01 W | ||||||||||||||||||||||||||||||||||||||||||||||||
[a] At rated load. | |||||||||||||||||||||||||||||||||||||||||||||||||
Guarantee
Manufacturing, lifespan, environmental impact and recycling
Manufactured by Milleteknik in Partille, Sweden.
About this information
Specifications are subject to change without notice. Milleteknik accepts no liability for typographical errors. Information is updated without prior notice. |
Publication date 2026-10-28
