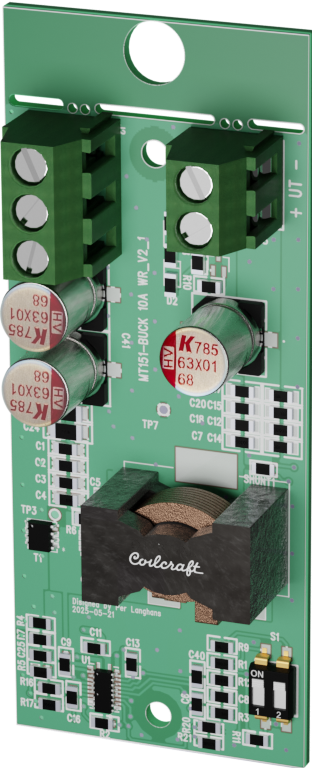

Voltage Converter WR 48-24-12V

Supply voltage (V)

[sv] 48, 24, 12 V DC.

Voltage out (V)

[sv] 24, 12, 6, 5 V DC.

Accessories for

Outdoor Enclosures.

[sv] Används där annan, lägre, spänningsnivå krävs för att driva exempelvis dörrläsare, lås och andra anslutna enheter

✔

[sv] Matningsspänning

[sv] 48, 24, 12 V DC.

[sv] Standbyförbrukning

[sv] 0,53 W

[sv] Spänning ut

[sv] 24, 12, 6, 5 V DC.

[sv] 24 V

[sv] 2,3 A

[sv] -

-

[sv] 12 V

[sv] 3,7 A

[sv] 5,5 A

-

[sv] 6 V

[sv] 7,5 A

[sv] -

[sv] 4,0 A

[sv] 5 V

[sv] 7,7 A

[sv] -

[sv] 4,9 A

[sv] 24 V

[sv] 1,8 A

-

-

[sv] 12 V

[sv] 3,0 A

[sv] 4,4 A

-

[sv] 6 V

[sv] 6,0 A

-

[sv] 3,2 A

[sv] 5 V

[sv] 6,2 A

-

[sv] 3,9 A

Number of load outputs

Communication

✘

Alarm feedback to power supply

✔

Indicators/LEDs

✔

Enclosure

Does not have enclosure

In product (optionally fitted in compatible product).

✔

Installed in product.

✔

Packaging

Cardboard and impact protection in cardboard.

Quantity in pack

1 pc.

Packaging Type (GS1 T0137)

BX box.

Conditions EUR pallet

EUR pallets may not be stacked during transport or storage. Stacking may result in damage to product and packaging

Transport environment

The product must be protected from condensation and direct precipitation during transportation.

Transport temperature (without battery)

−30 °C to +70 °C

Storage environment

Dry indoor environment, protected from condensation. Relative humidity: max 95%, non-condensing

Storage temperature without batteries

−20 °C to +60 °C

ECO

M, L

2,4

ECO, NEO, NOVA

FLX S

2

EN54, NEO, NOVA

FLX M

3

NEO, NOVA

FLX L

3

19 rack module holders

4U

8

Switchboard

031-340 02 30

Support and technical issues

support@milleteknik.se

Sales

sales@milleteknik.se

WWW

www.milleteknik.se

Address

Ögärdesvägen 8B, 433 30 Partille

Warranty period^[a]

[sv] Produkten har två (2) års garanti mot tillverkningsfel.

Special warranty conditions

See also general terms and conditions.

General Terms and Conditions

ALEM09 with exceptions, see: www.milleteknik.se/conditions/

Support

Telephone support and email support during the warranty period are free of charge. For spare parts that are not covered by warranty, there is a charge

Delivery and stock

Delivery time^[b]

5 working days. Or as per agreement. Delivery from factory, transportation time is added.

Environment

Indoor environmental class 1.

Operating temperature (recommended)

+15°C to +25°C

Operating temperature (permissible)^[a]

+5°C to +40°C

Class 1 according to EN 50131-6/ EN 60839-11

✔

Maintenance-free.

C.E.

CE marking according to (EC) 765/2008

EMC

EMC Directive 2014/30EU

Electric (LVD)

Low Voltage Directive: 2014/35/EU

Building Product Declaration (BPD)

✔

Yes, see iBvd at www.milleteknik.se.

-

REACH Information Obligation

(EC) No 1907/2006

✔

Yes, see the DoC at www.milleteknik.se The product complies with REACH Regulation (EC) No 1907/2006.

If empty, the product is not covered.

SVHC substances, CAS/EC

✔

Yes, lead, 7439-92-1/231-100-4

For text, see iBvd at www.milleteknik.se. If blank, substance is missing.

Subject to the RoHS Directive, (EU) 2015/863)

✔

Yes, see the DoC at www.milleteknik.se

WEEE

2012/19/EU

✔

The product contains electrical components or wiring and is covered by the WEEE Directive (2012/19/EU).

If empty, the product is not covered. End-of-life products must be returned to a recycling centre

Battery Regulation

(EU) 2023/1542

✗

SCIP No

2008/98/EC

✔

Yes, registered under the EU Waste Directive where applicable, (2008/98/EC).

If empty, no SCIP number is needed.

Conflict minerals

(EU) 2017/821

✗/✗/✗/✗/✔

No=Gold, Tungsten, Tantalum, Cobalt. Yes=Tin

[sv] Tenn i lödningar i kretskort som köps in via svensk leverantör.

Contains nanomaterials:

EC 1272/2008

✗

The product does not contain nanomaterials.

Ecodesign

2009/125/EC

Milleteknik's products are intended for professional use and are therefore not directly covered by the Ecodesign Regulation (EU 2019/1782). As some components may be covered, we nevertheless disclose relevant information^[a], where applicable, to provide our customers with confidence in their choice.

Machine Directive

2006/42/EC

The product is part of electrical systems, is subject to the relevant electrical and safety directives and is not a machine according to the Machinery Directive (2006/42/EC).

Will be replaced by Machinery Regulation (EU) 2023/1230, which will apply in 2027.

Manufacturer^[a]

Milleteknik AB

Customs State. Nos.

[sv] 85044095^[b]

Country of origin

Sweden

Sweden

✔

✗

Fixed installation may be performed by technicians but shall be under the responsibility of a qualified installer. (Electrical Safety Act, SS 436 40 00) Plug may be connected without authorization.

Norway

✔

✔

Requirements for qualified electricians also for equipment with a plug socket in fixed installations. (NEK 400, DSB

Finland

✔

✗

Plug may be connected without authorization. (Tukes, SFS 6000

Denmark

✔

✗

Plug may be connected without authorization. (Safety Board

Germany

✔

✗

All fixed installations require a qualified electrician according to VDE 0100. Plug sockets may be connected without authorization, but only by person with basic electrical knowledge (“Elektrotechnisch unterwiesene Person”)

Environmental Class 1

Heated indoors (type office/residence).

+5°C to +40°C

Environmental Class 2

Generally indoors (type warehouses/stairwells, not temperature controlled).

-10°C to +40°C

Environmental class 3

Protected outdoors.

-25°C to +50°C

Environmental class 4

Generally outdoors.

-25°C to +60°C
