Installation and commissioning

Instructions for installation and commissioning.

About PoE from Milleteknik

The series is designed to power PoE devices such as access systems, surveillance cameras and other equipment that can be operated with Power over Ethernet.

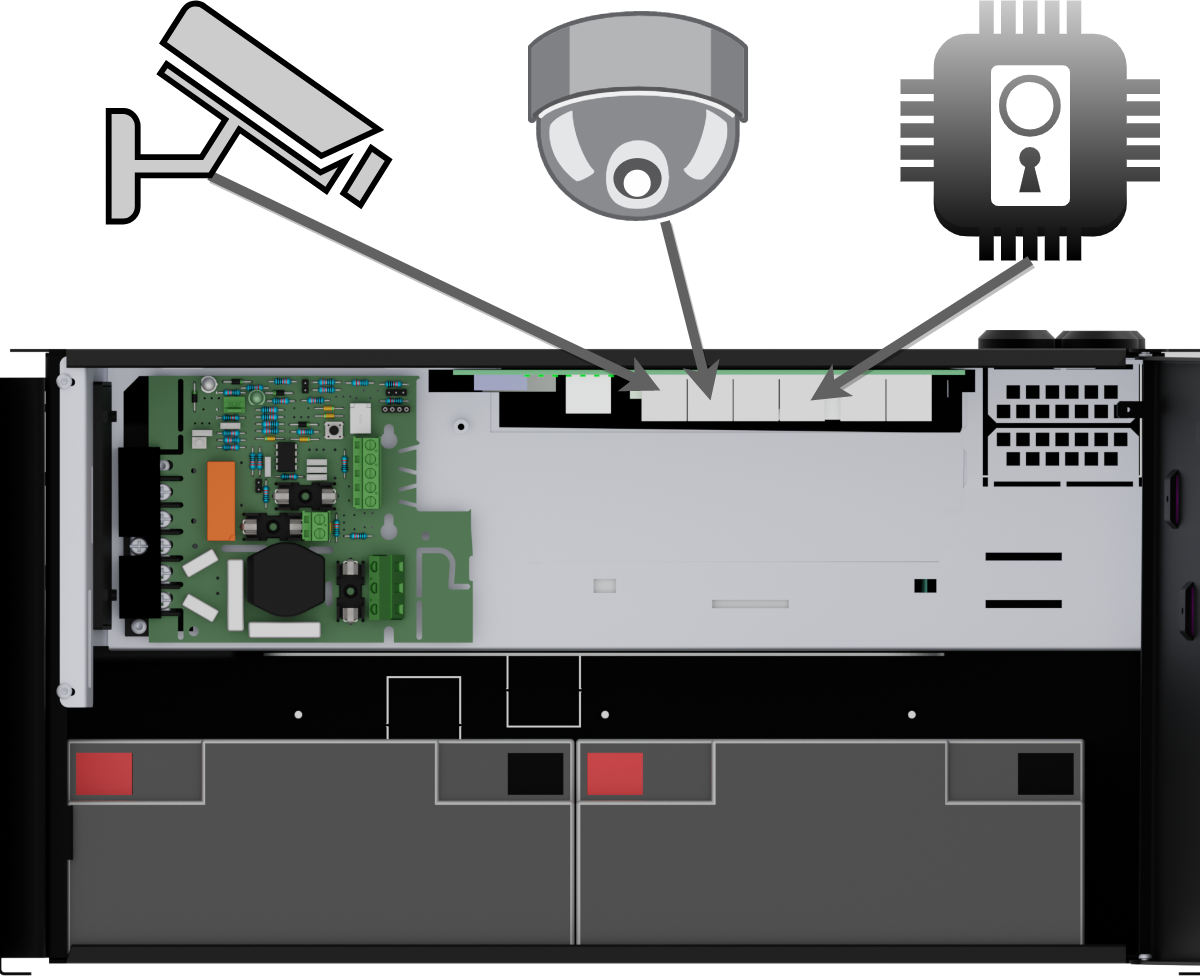

PoE powers devices connected to the power supply


PoE can power, for example, surveillance cameras.

Connect external devices to be powered via PoE in PoE ports.

Connect other devices that do not need to be power supplied in LAN ports.

Component overviews

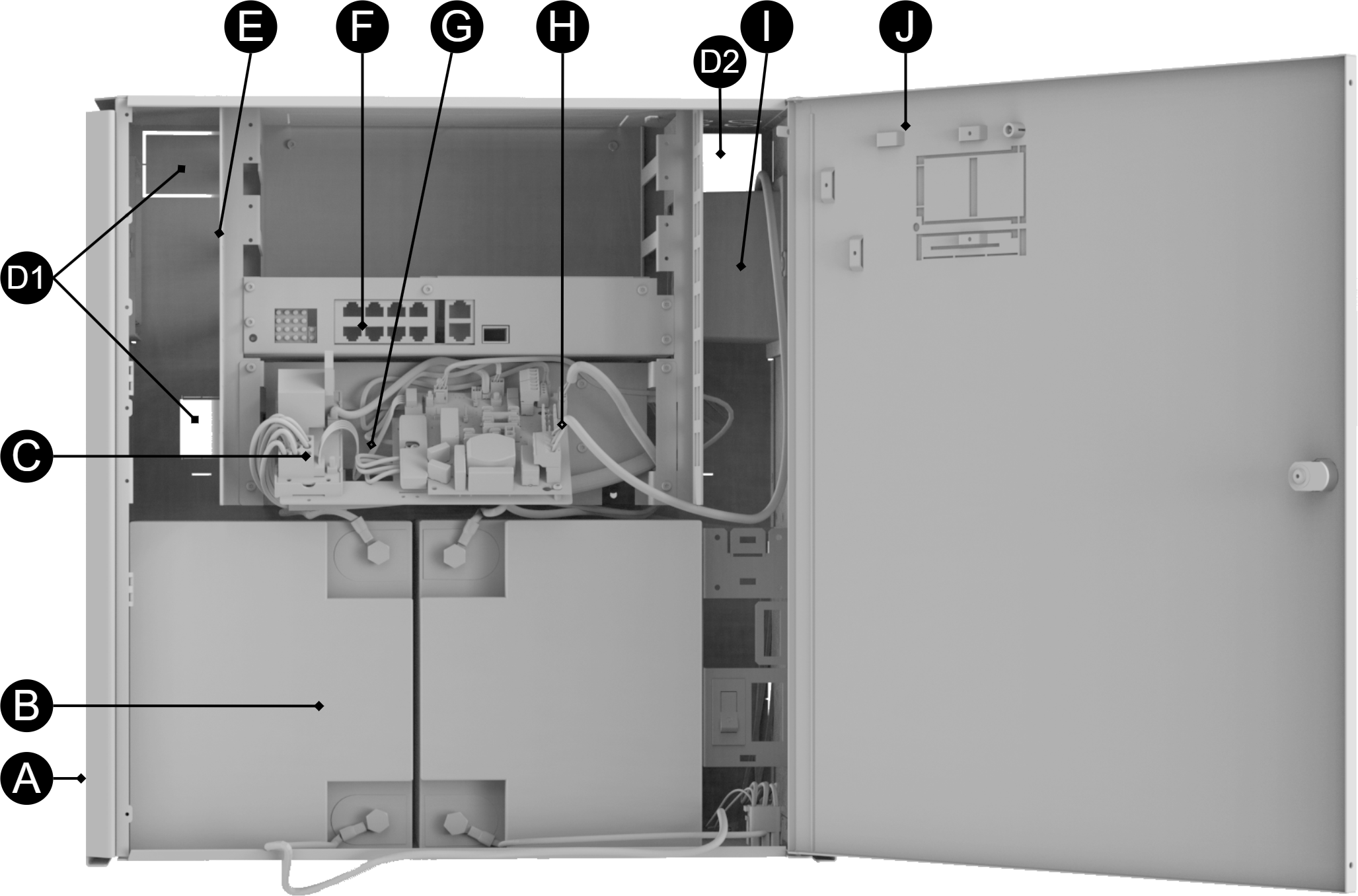

Component overview

Table 1. Component overview

Number

Explanation

B1 -, B2 -

Battery cable -

B

Indicator diode

C

Power board.

[sv] D1-D2

Motherboard

E

Battery fuse

F

Connection Load. If there are optional cards in the unit, the load must be connected there, see 8.

G

Weather protection.

H

Protection for temperature cable and battery.

I

[sv] Fläkt

J

Heating cable.

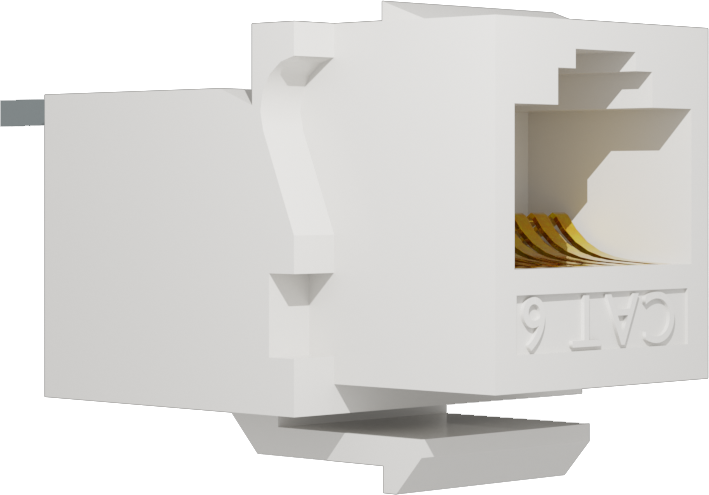

Keystone

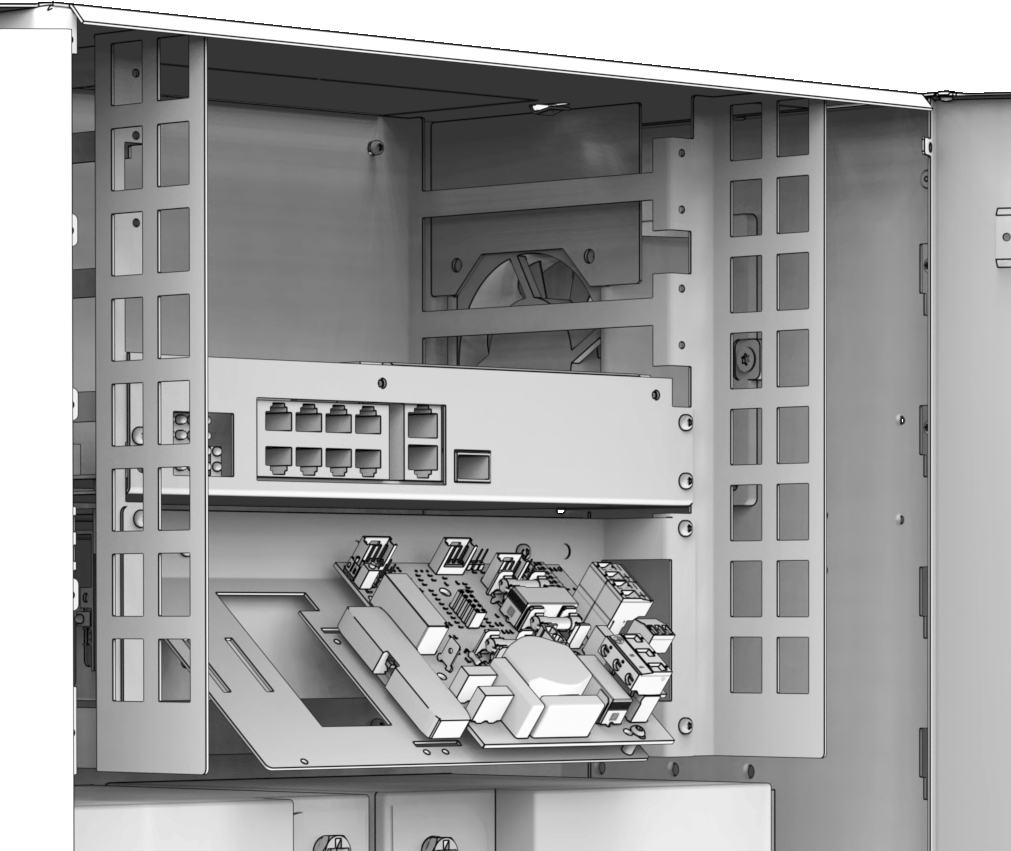

A plate for keystone modules makes the installation of PoE devices easier.

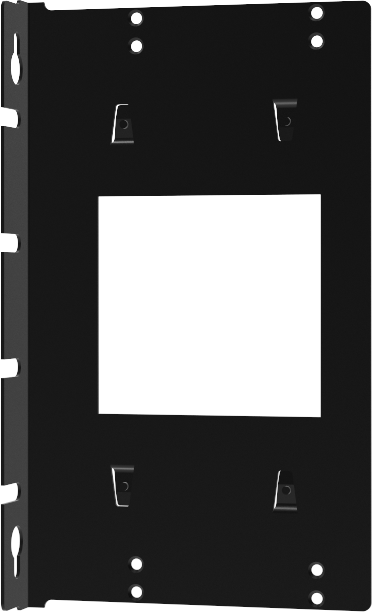

Bracket for FLX M and FLX L

Bracket is reversible and can be mounted in two ways. It comes with brackets in to the device.


Batteries - placement and connection

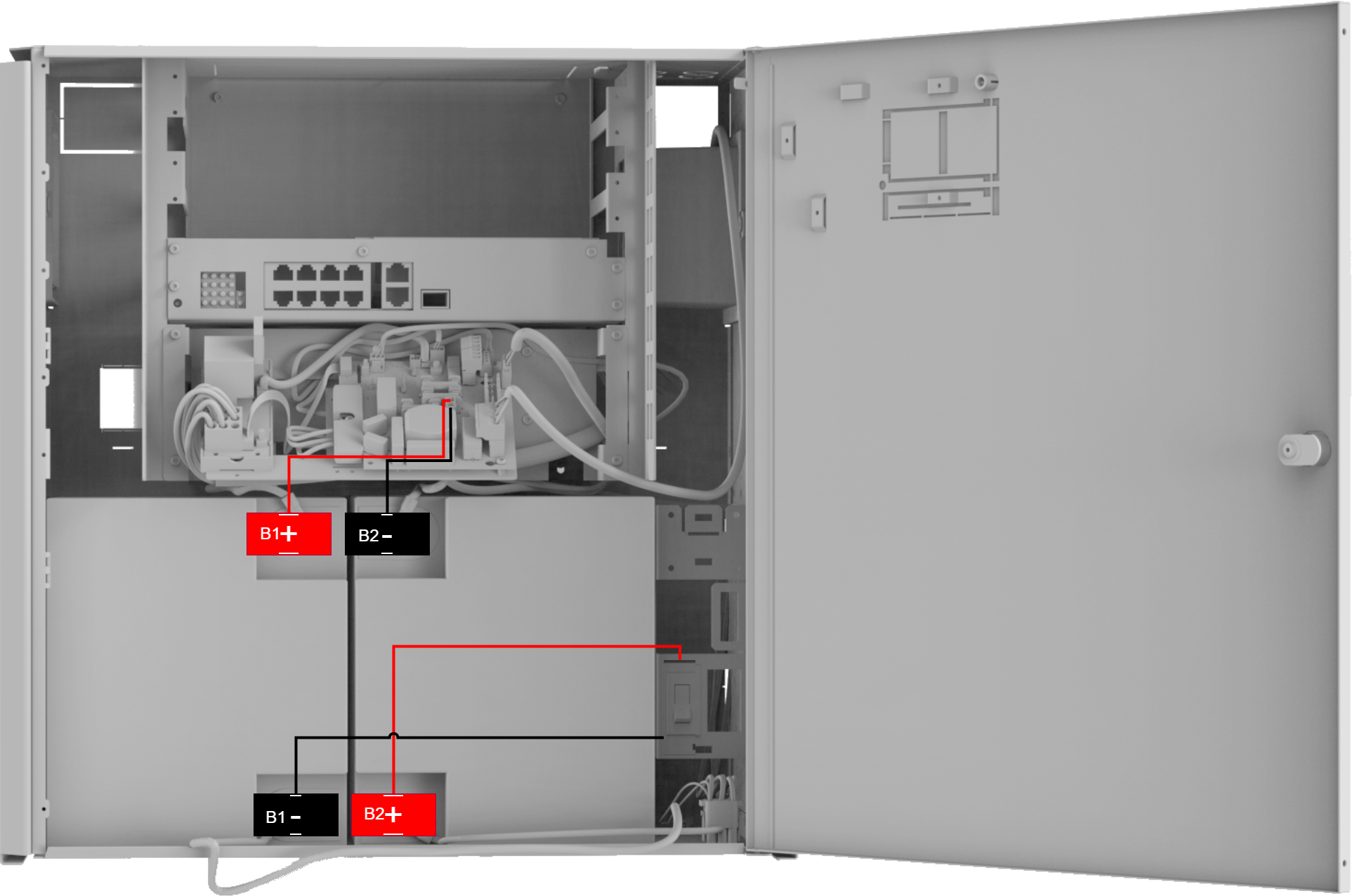

Connection of batteries in FLX S, FLX M and FLX L

Battery wiring is mounted on the circuit board upon delivery. Pictures below only show how to connect wiring.

  1. Place the batteries in the cabinet with the battery terminals facing outwards.

  2. Connect the battery cable. Red cable on + and black cable on -.

  3. Plug in battery fuse.

  • If possible, disconnect mains voltage when replacing the battery.

Figure 1. Wiring diagram for batteries in battery backup
Wiring diagram for batteries in battery backup

Connect the terminals correctly so that you do not damage the equipment.



Table 2. Electrical scheme

No.

Explanation

1

Battery 2.

2

Battery fuse.

3

Battery 1.

4

Incoming mains voltage, 230 V AC.

5

Rectifier 24 V DC.

6

Load, 24 V DC.



Connecting batteries


Note that configuration may differ by product.

Table 3. Connecting batteries.

Nr

Explanation

B1+

Plus terminal to battery fuse.

B1-

Minus terminal to motherboard.

B2-

Minus terminal to battery fuse.

B2+

Plus terminal to motherboard.



Motherboard description

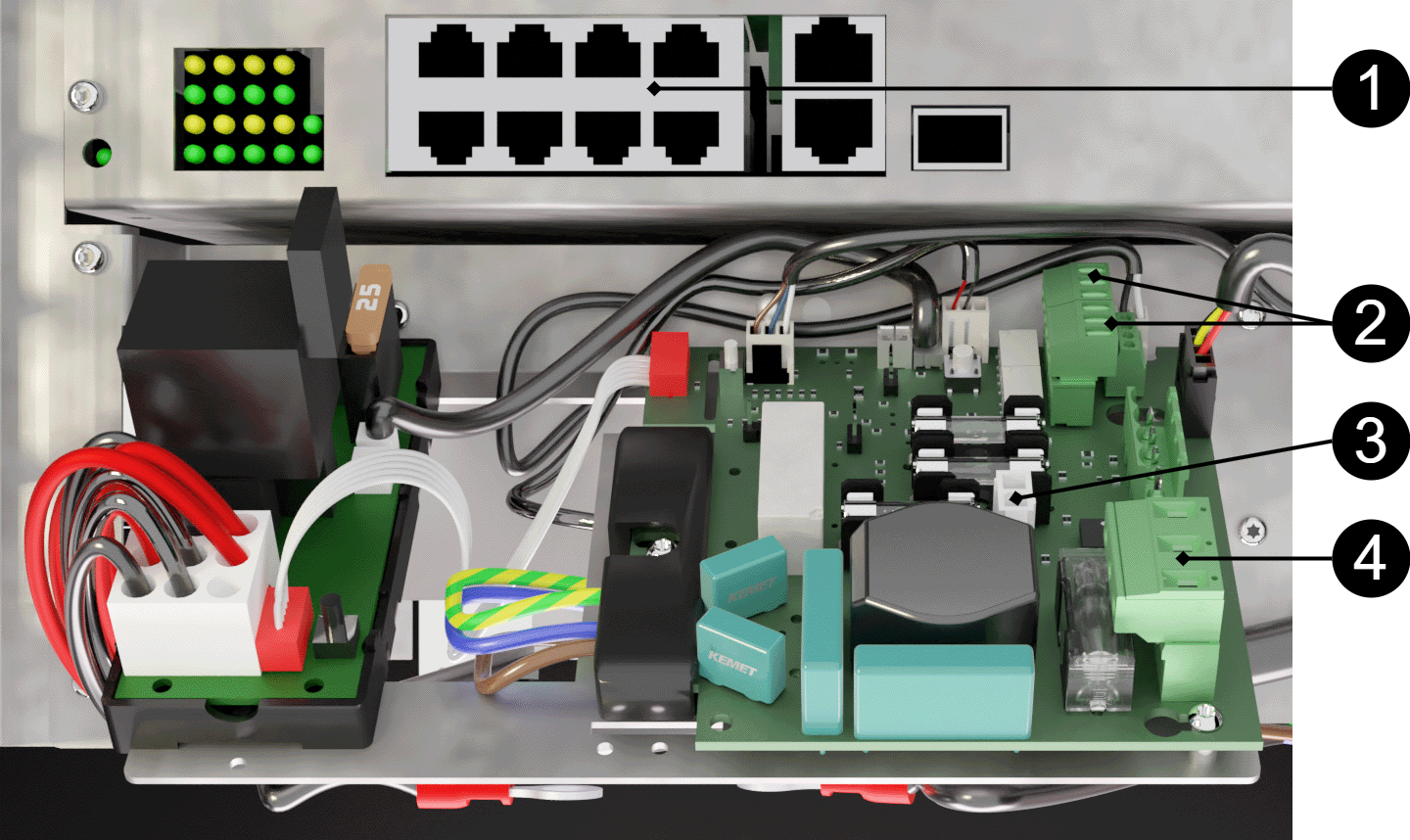

Connect in this order

To minimize the risk of short-circuit errors, connect the components to the motherboard in the following order.

Table 4. Connect in this order

No.

Explanation

1

Connect load.

2

Connect alarms.

3

Connect batteries.

4

Connect the mains.

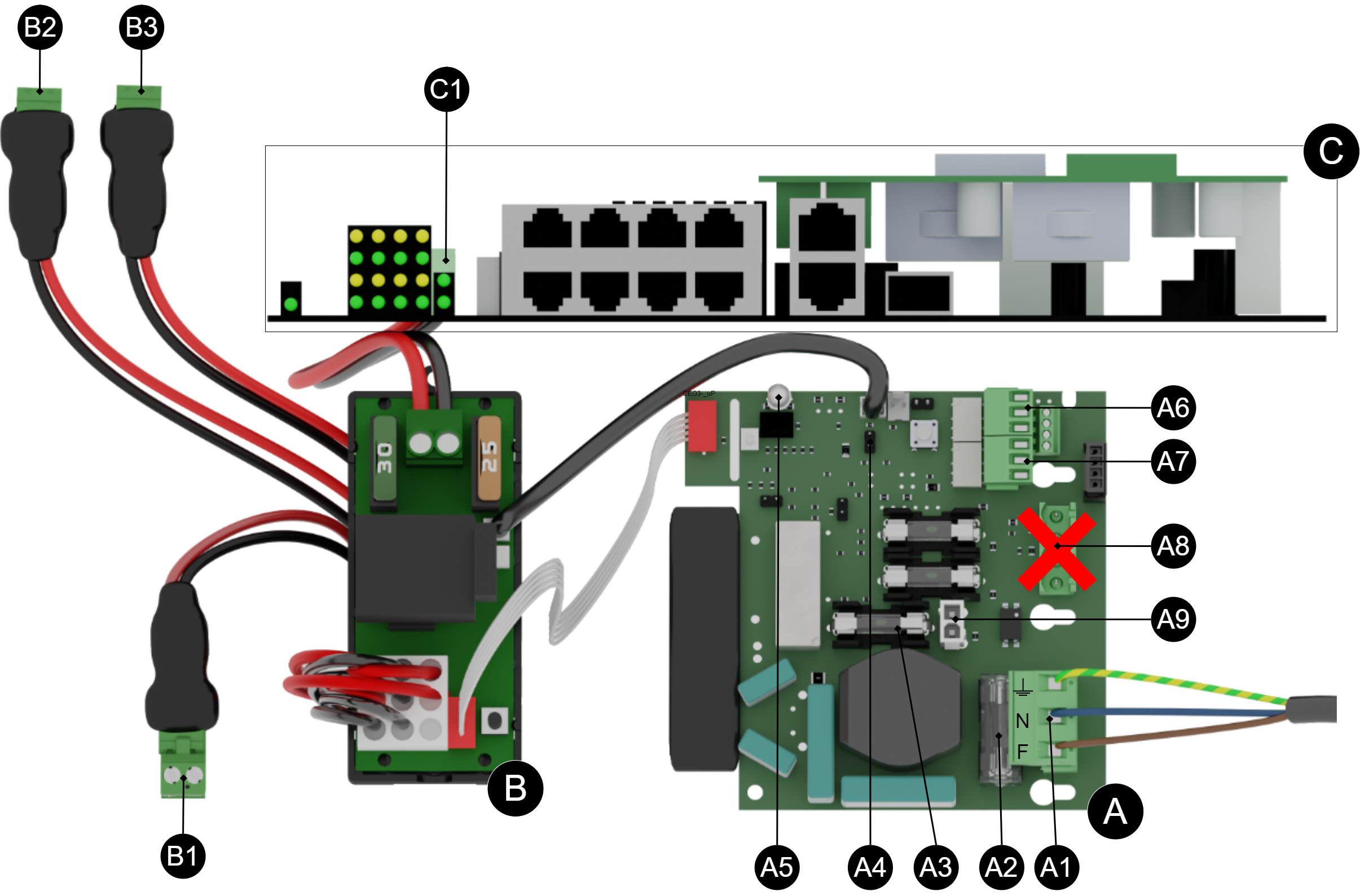

Figure 2. Description: CEO3 uP with power card
Description: CEO3 uP with power card


Short

Designation

Explanation

A

Motherboard.

A1

Connection mains, F, N, PE.

A2

Power grid fuse, T2,5A.

A3

Battery fuse +, T16A

A4

Jumper for alarm control. Lowers the alarm threshold when switching.

A5

Indication diode.

A6

Summing alarm, see Connect alarm on P3.

A7

Power outage alarm, see Connect alarm on P3.

A8

Sheep EJ be used. Use B1 to power 24 V load.

A9

Battery cables +/ -.

B

Power card.

B1

24 V load output, +/-.

B2

Connection to PoE card 2.

B3

Connection to PoE card 2.

C

Poe card.

C1

Connection to, installed, PoE card 1.

Connect alarm on P3

Alarm is connected to terminal P3

Table 5. Connect alarm P3

P3:1-6

Explanation

Sum alarm

P3:1

NC

P3:2

CO

P3:3

NO

Sum-alarm*

P3:4

NC

P3:5

CO

P3:6

NO



Total alarm: Broken fuse on load, broken fuse from external distribution board, broken battery fuse, low battery voltage in battery operation, batteries not connected, overvoltage.

Danger

Mains voltage must be disconnected when working with stripped cables. It is the installer's responsibility to ensure that the correct skills are available for connecting 230 V to the unit. Maximum cable area is 4 mm2

Connect mains

Before connecting, the supply circuit should be disconnected and voltage-free. Verify that the conductor area and cable type meet the applicable installation rules and that the strain relief and insulation levels comply with the requirements for 230 V AC

After connection, all screw connections should be checked and tightened. Tensioning shall only take place after mechanical protection, caps and housing have been reassembled and comply with the contact protection according to EN 62368-1

Secure F and N with cable ties.

Important

Protective earth (PE) must be connected to the PE terminal on the motherboard. The motherboard is grounded via its mounting points in the enclosure, ensuring proper potential equalization between PCB and enclosure. Also the cover is grounded through ground cable/earth braid between cover and enclosure to maintain continuity and EMC

Mains wiring must be kept separate from other wiring to avoid EMC interference.

The protective earth (PE) must be connected to the PE terminal on the motherboard. The motherboard is grounded via its mounting points in the enclosure, ensuring correct equipotential bonding between the circuit board and the enclosure. The cover is also grounded via a grounding cable / grounding braid between the cover and the enclosure to maintain continuity and EMC function.

Check that the marking on the circuit board matches the wiring order on the terminal block.

Figure 3. Mains connection is made to the terminal block on the motherboard.
Mains connection is made to the terminal block on the motherboard.

Connect the mains cable to the terminal block before it is re-inserted into the motherboard. Secure L (F in picture) and N with cable ties for electrical safety.



Table 6. Electrical network connections

Letter

Explanation

L

Fas

N

Neutral

PE



The differences between PoE switches

Product

PoE switch installed

Can additional PoE switches be installed?

[sv] PoE Switch Managed 8p FLX L

[sv] 1 st. åtta-portars PoE-switch

[sv] Ja, 1-2 st. 8 Portars PoE-switchar kan installeras. Totalt kan enheten bestyckas med tre PoE-switchar med, som mest, 24 utgångar.

Commissioning - how to start the unit

Connect in this order

To minimize the risk of short-circuit errors, connect the components to the motherboard in the following order.

Table 7. Connect in this order

No.

Explanation

1

Connect load.

2

Connect alarms.

3

Connect batteries.

4

Connect the mains.



It may take up to 72 hours for the batteries to be fully charged.

How the PoE switch software is accessed

How the software is accessed in the PoE Switch


This section shows how to log in to the switch's configuration web page.

To configure the software in the switch, the correct IP address needs to be set on the computer.

Access to the switch's software is through a browser, (such as: Chrome, Edge, Firefox, etc.).

Follow the steps to access the switch's settings.

Note

The settings shown are settings for PC, (Windows 7 - Windows 11). Windows and names may vary between different versions of Windows. Unfortunately, we cannot provide support for settings of your computer.

Note

IP address of the switch (factory setting): 192.168.2.1

Password (factory setting): admin

Notice

The address of the PoE switch is: 192.168.2.1 and username and password are: admin/admin The IP address in the switch is static (fixed) and therefore the computer's IP address and subnet mask must be static.

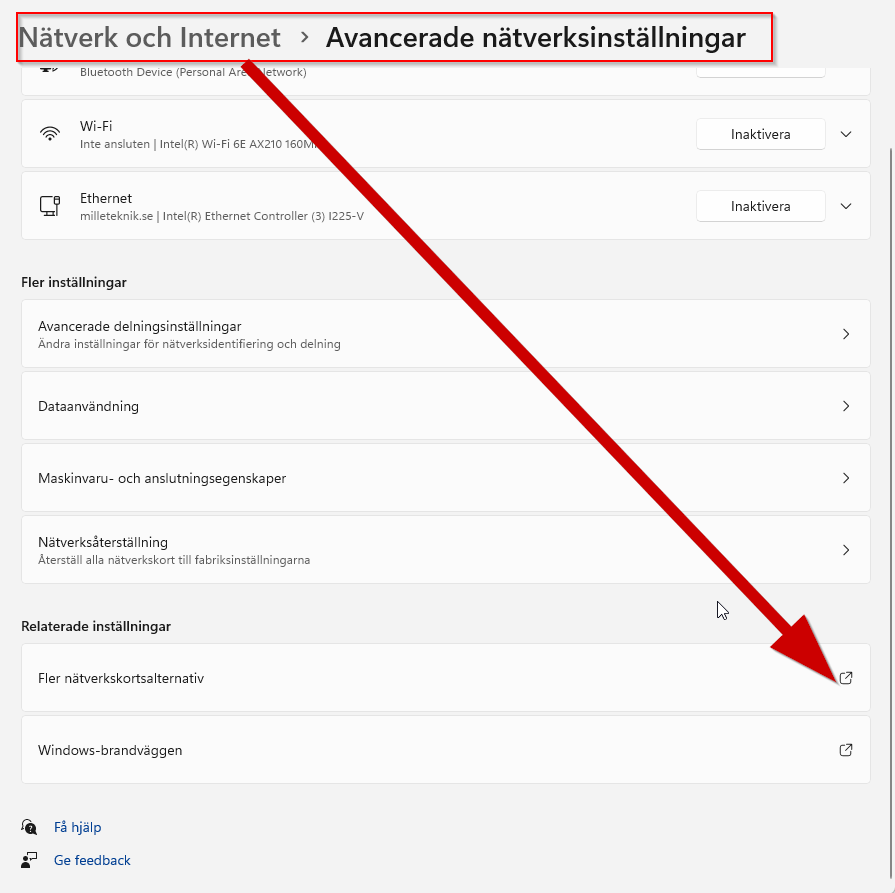

  1. Open settings and go to Network and Internet -> Advanced network settings. Open more network card options.

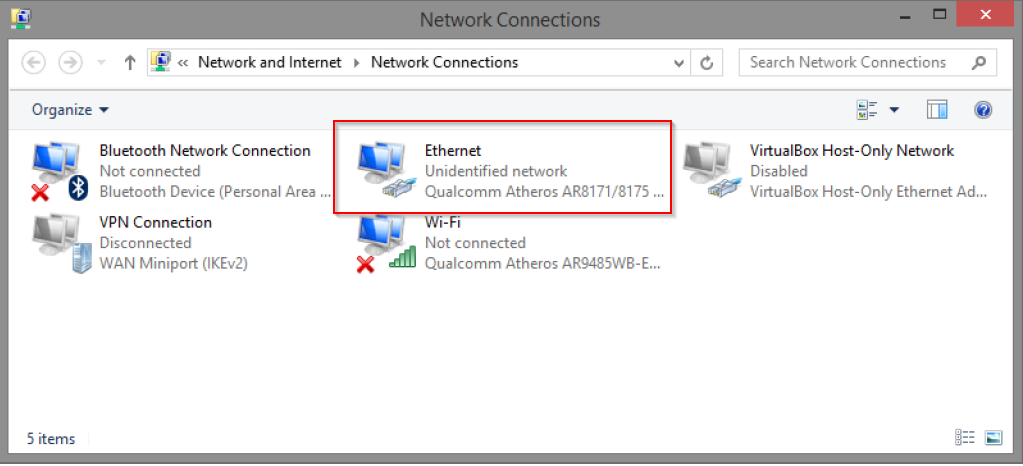

  2. A Network Connections window will appear showing all available network connections on the computer. Double-click the network connection you use to connect to the switch.

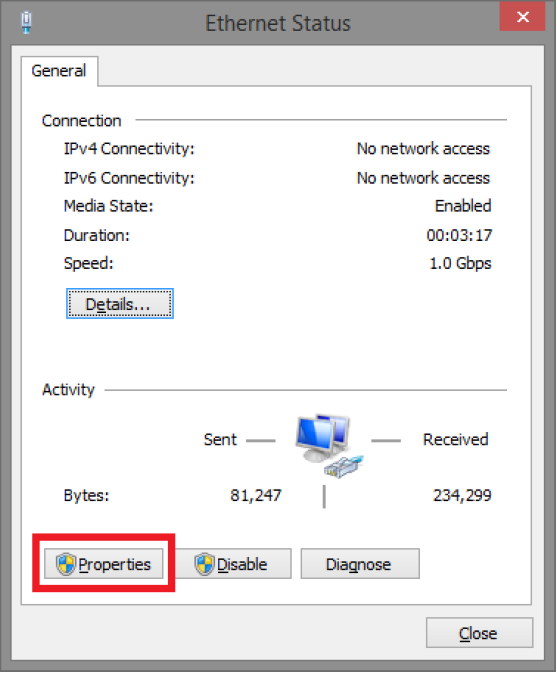

  3. Ethernet status window appears. Click the button Characteristics as shown in the figure below.

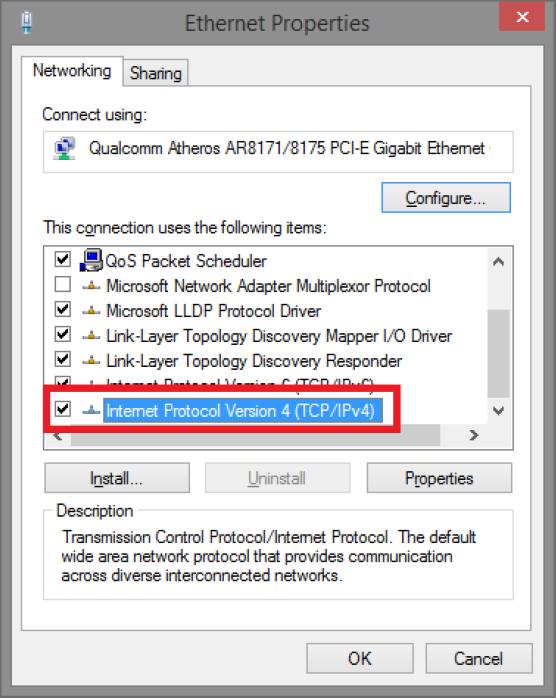

  4. Double-click: Internet Protocol Version 4 (TCP / IPv4).

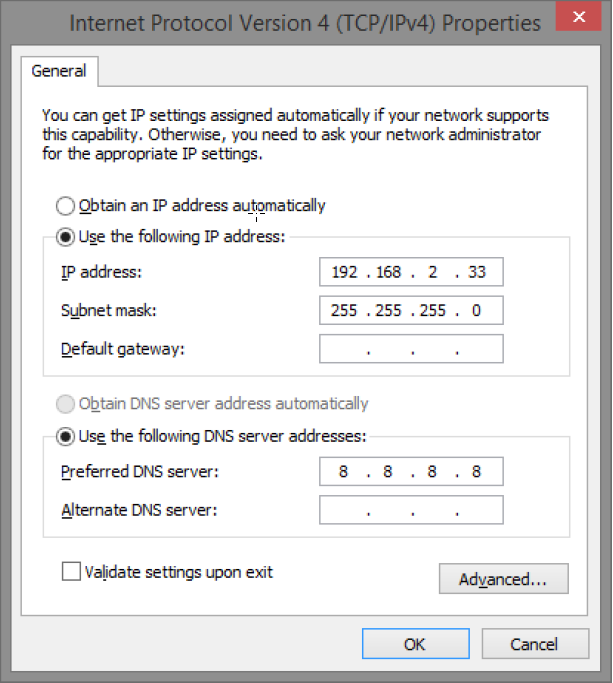

  5. Set the computer's IP address and subnet mask as shown in the figure below. By default, the product's IP address be 192.168.2.1. You can set any IP address as long as it is not the same as your switch's IP address and is in the same network segment as your switch's IP address. Press on OK to apply the TCP/IPv4 settings you just made. Now you can connect to your switch using a web browser (Chrome, Edge or Firefox).

  6. Connect an RJ-45 cable and connect to the PoE switch.

Log in to the PoE switch

Note

IP address of the switch (factory setting): 192.168.2.1

Password (factory setting): admin

Note

If you get a warning that the page is not secure/the connection is not private, click "advanced" and then "continue".

  1. Start the browser on your computer.

  2. Login to PoE switch.

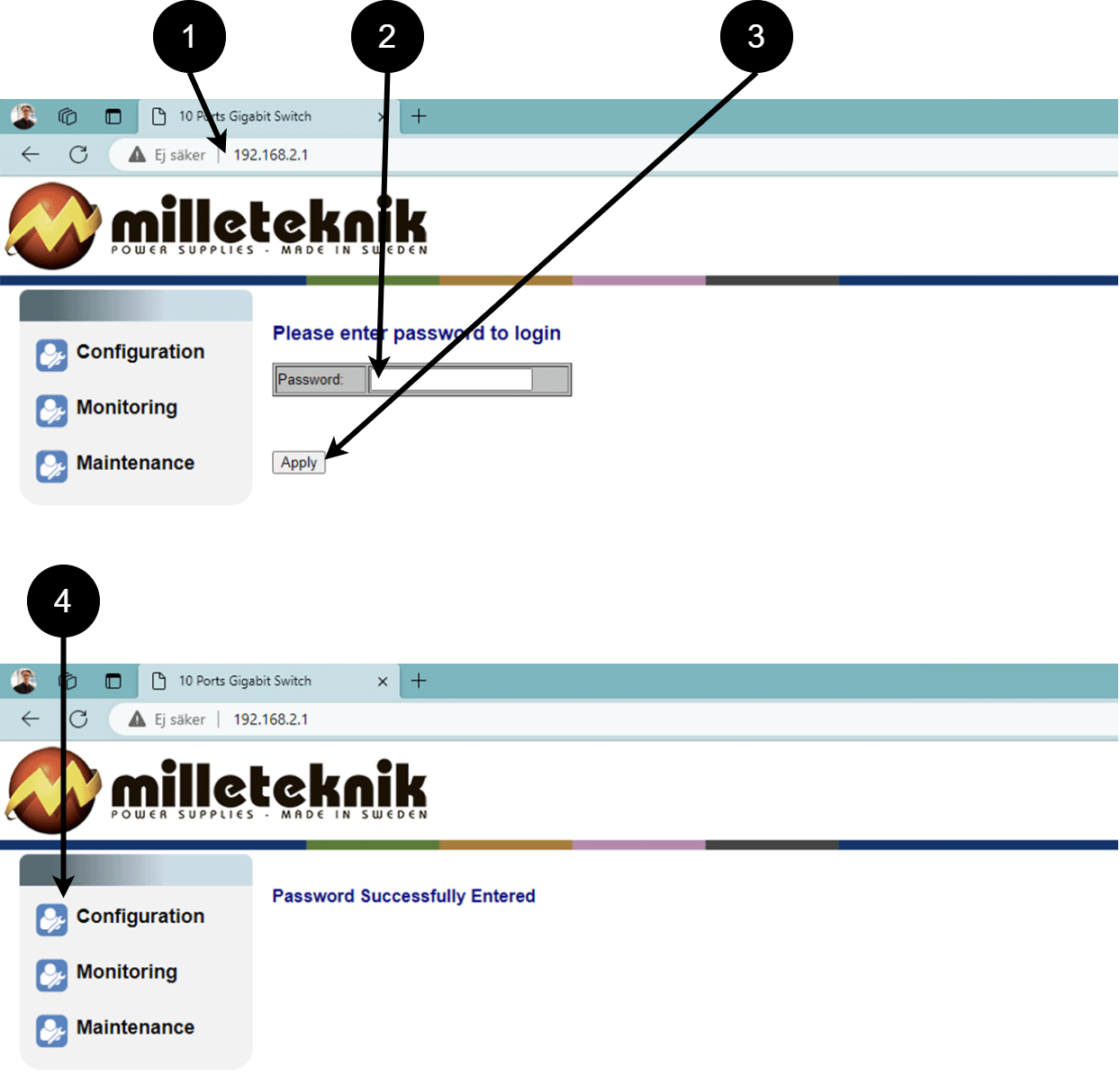

    Table 8. Log in to the switch.

    Number

    Explanation

    1

    IP address of the PoE switch: 192.168.2.1

    2

    Password: admin

    3

    Apply = Ok

    4

    Menu in the PoE switch



Configuration

System, configuration

Table 9. System, configuration.

Letter, number

Explanation

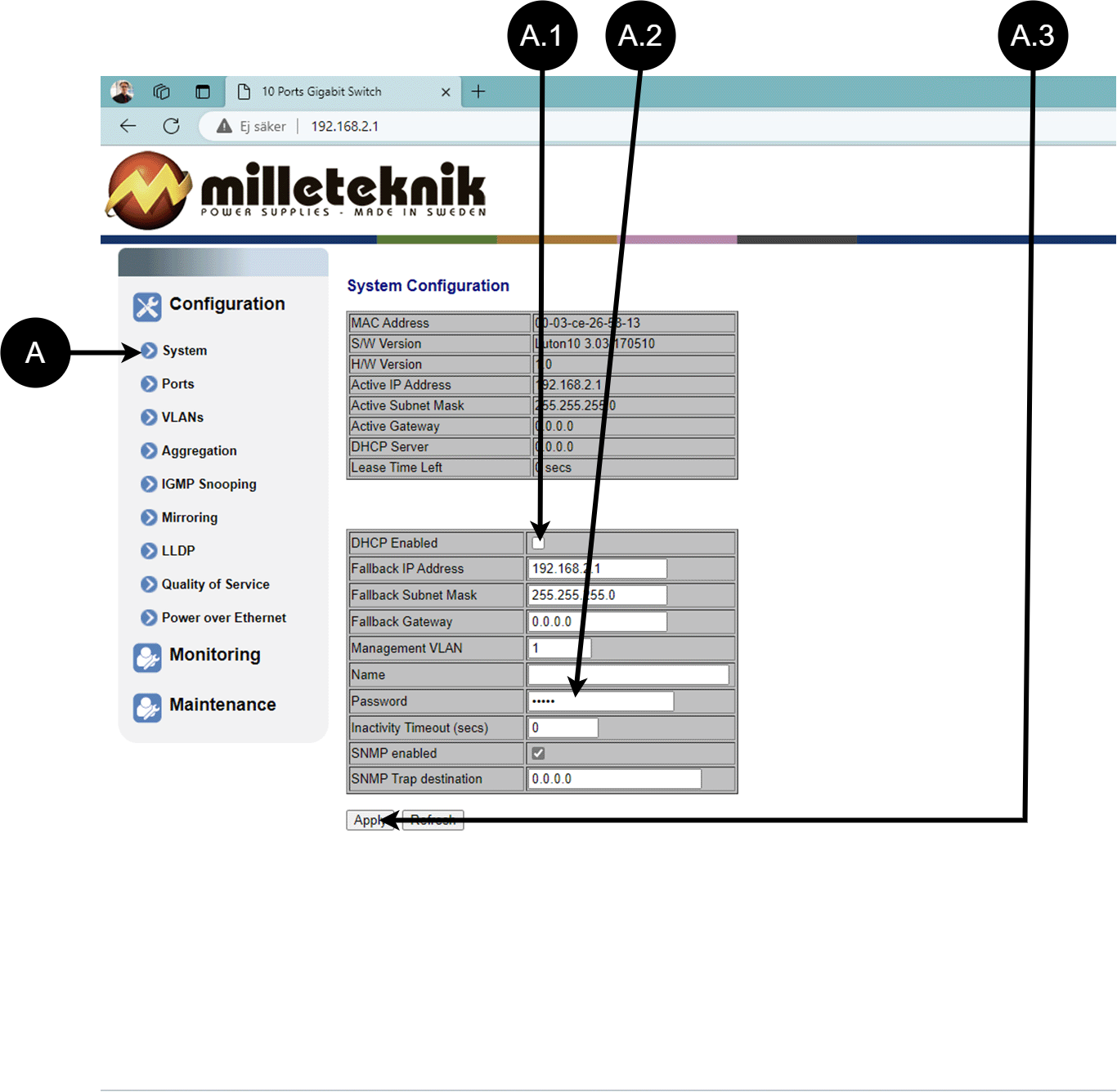

A

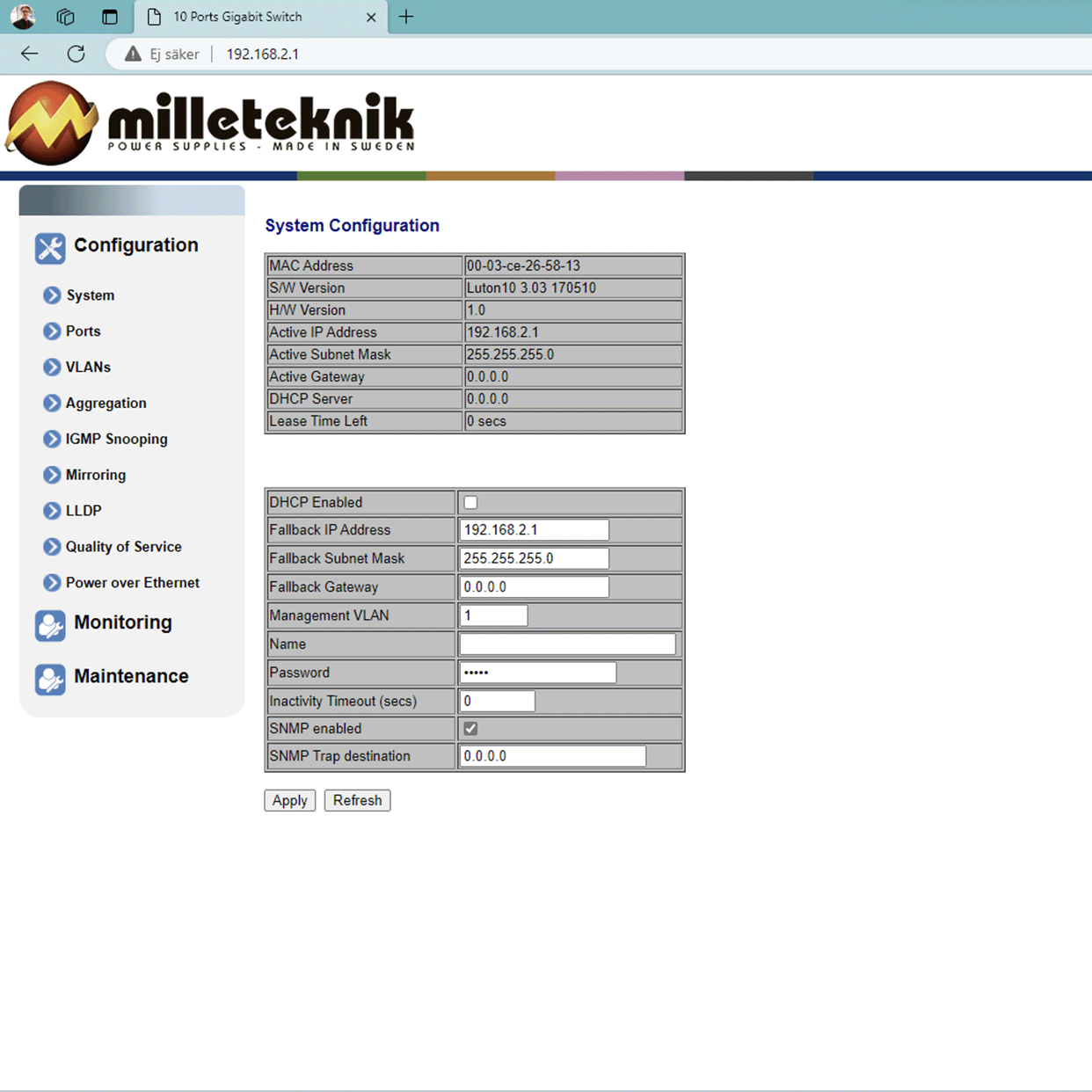

PoE switch system configuration page

A.1

Tick here if you are going to use DHCP, see warning below.

A.2

Changes the factory default password, (admin).

A.3

If you have made any changes, you need to click "Apply" to save the changes.



Ports, configuration

Table 10. Ports, configuration.

Letter, number

Explanation

B

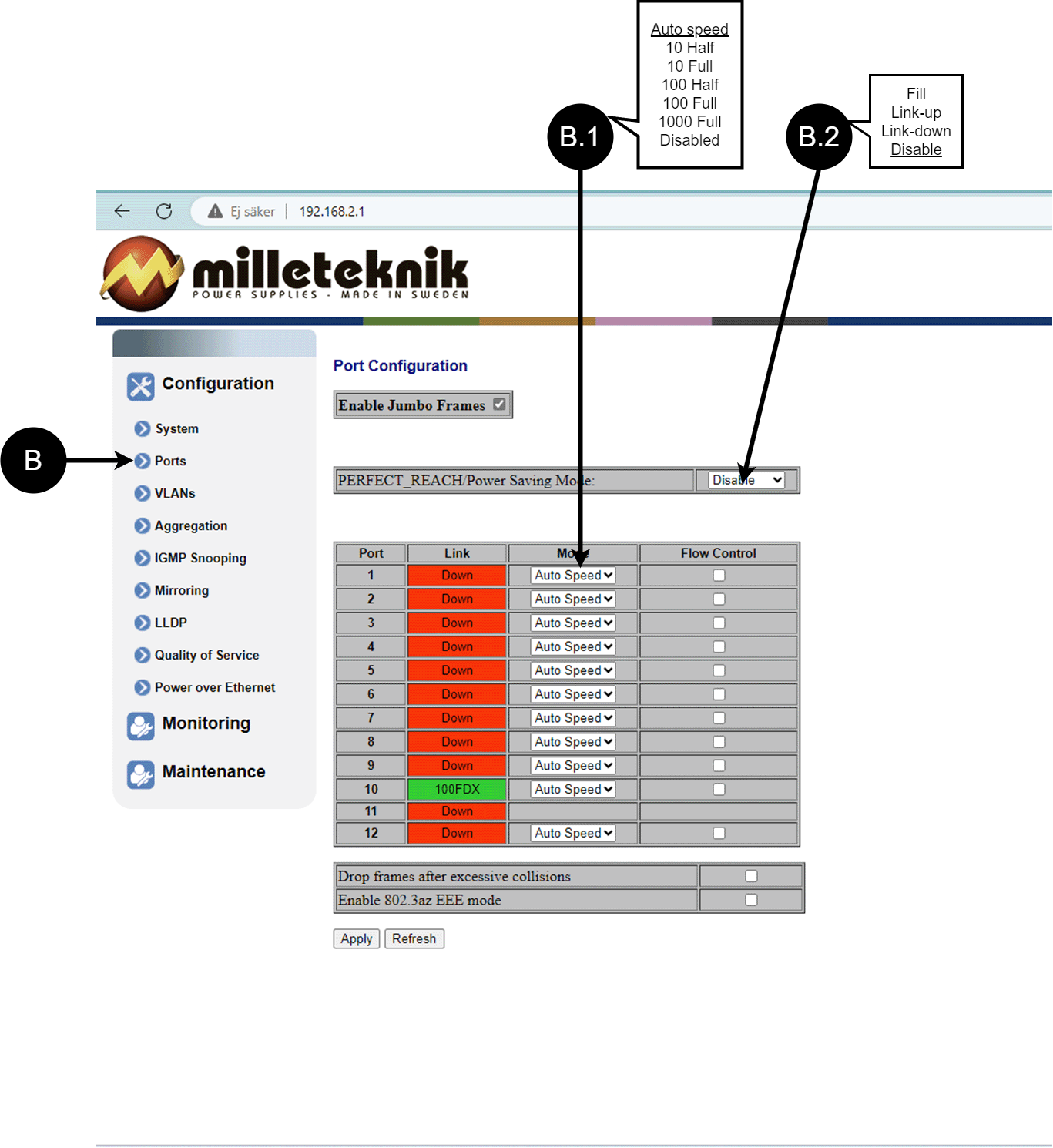

Gates

B.1

This setting normally does not need to be changed. Select the speed of the PoE switch's ports.

B.2

This setting normally does not need to be changed.



VLAN configuration

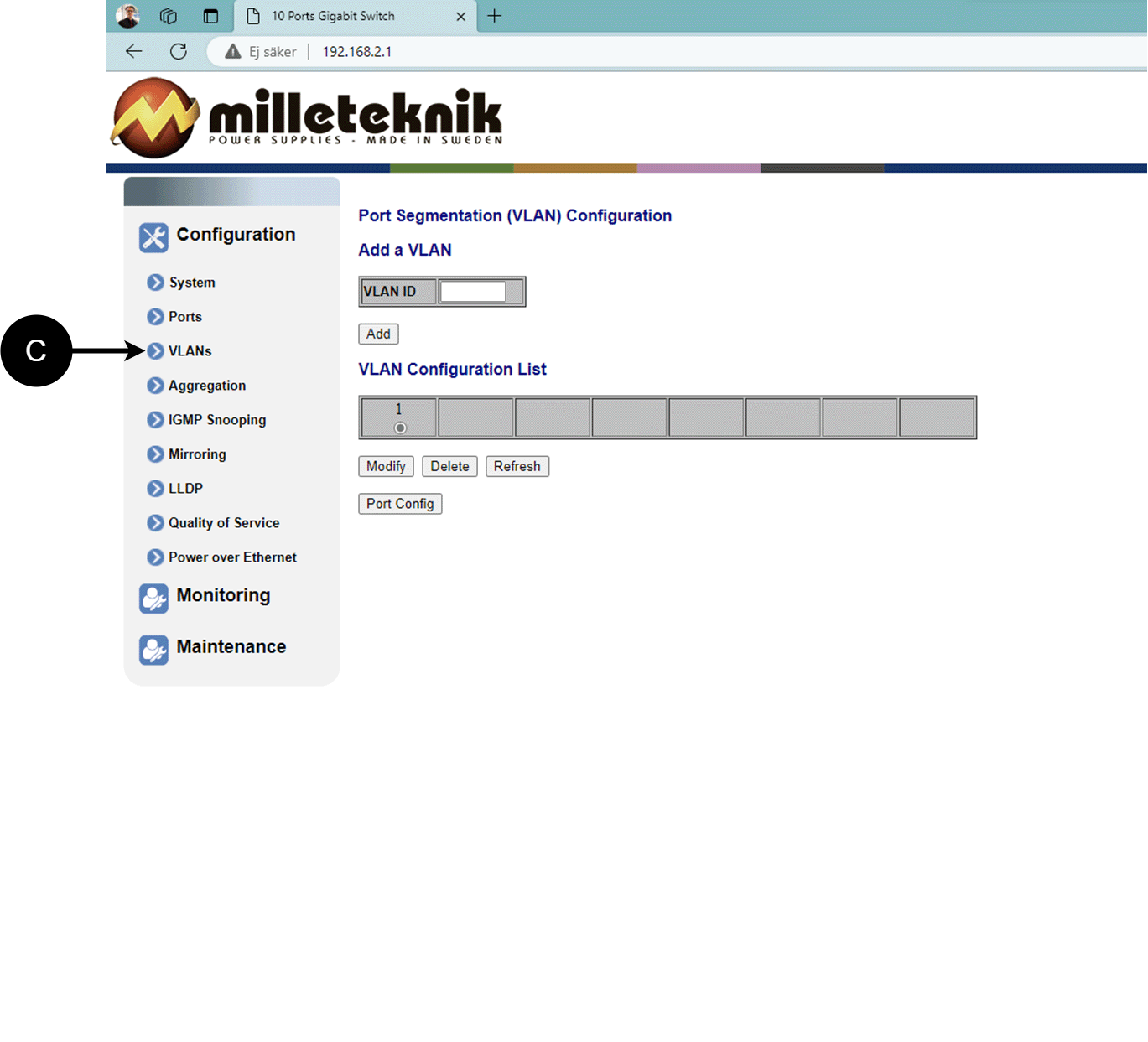

C: Configuration of Virtual LAN.

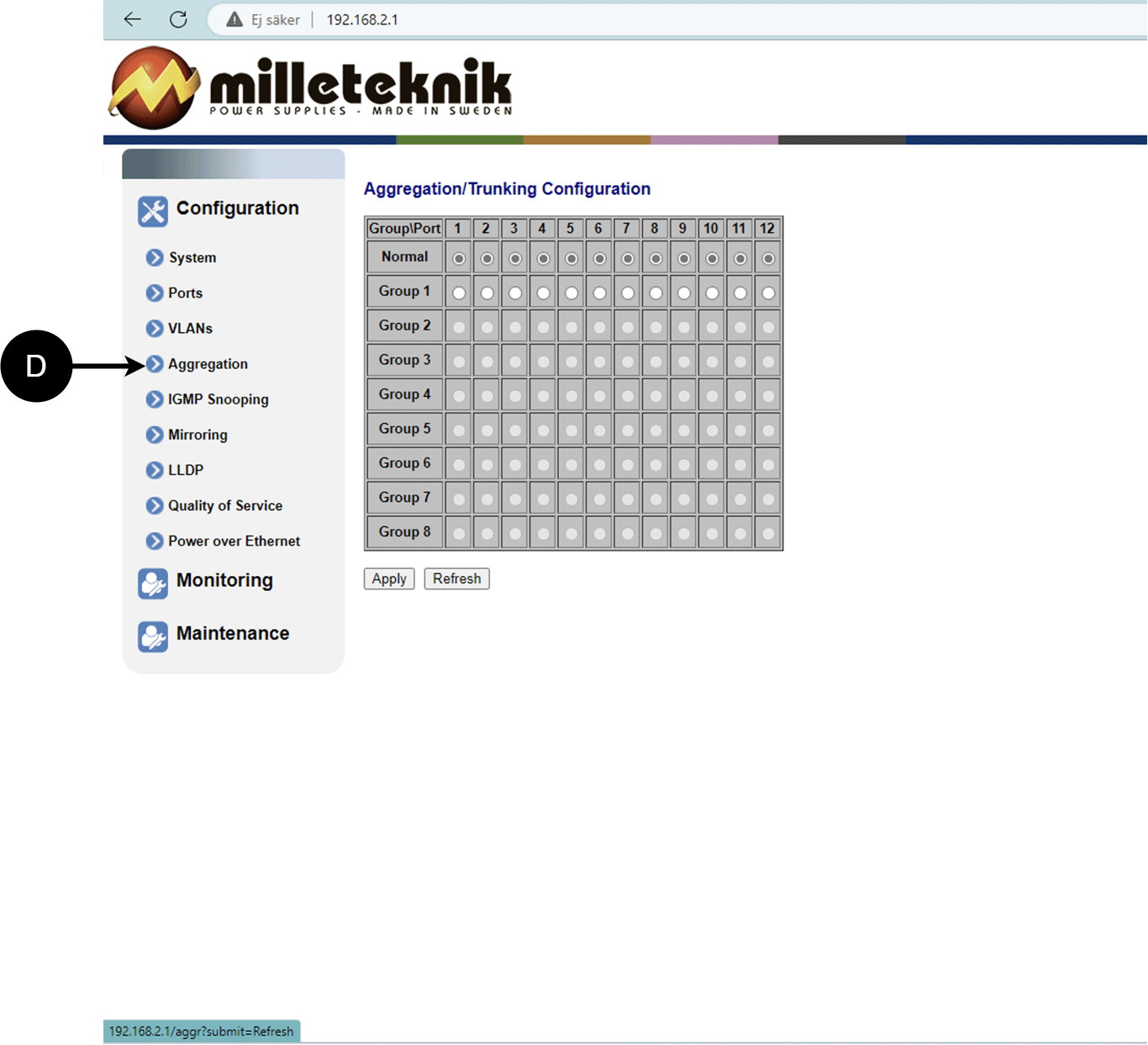

Aggregation, configuration


D: Load balancing between the ports.

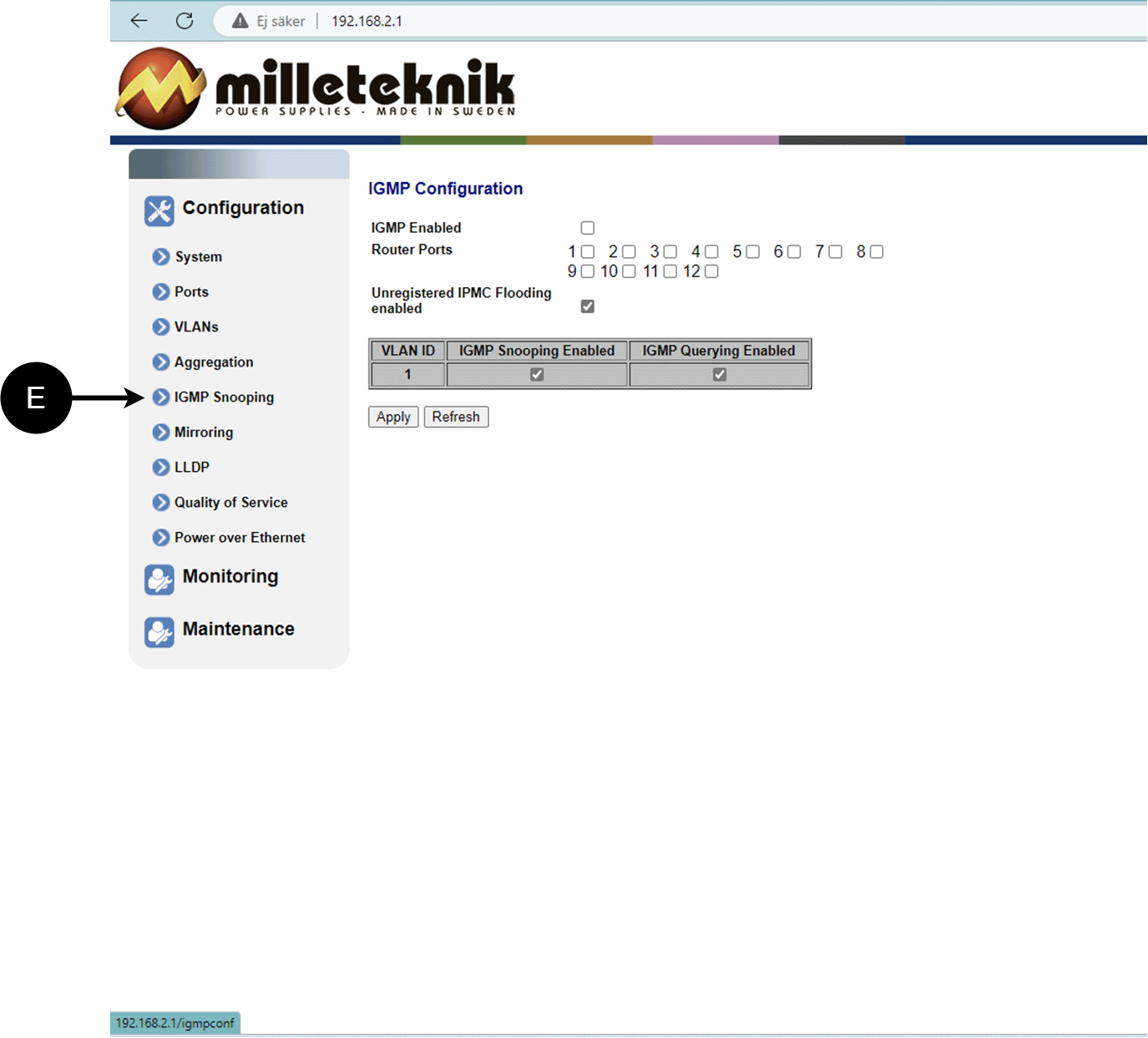

IGMP Snooping, configuration


E: Switch that controls reception.

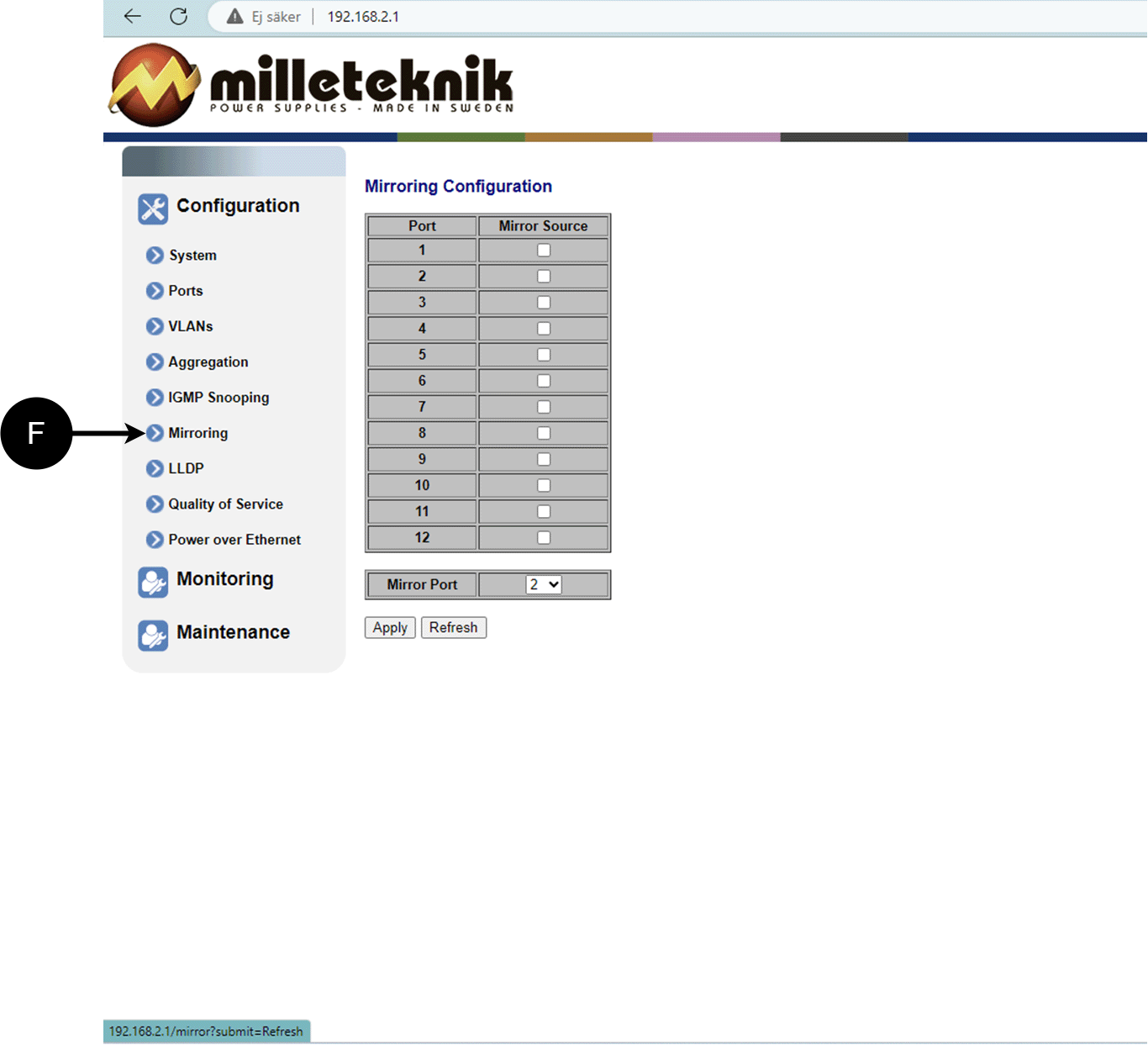

Mirroring, configuration


F: Mirroring of ports.

LLDP configuration

Table 11. LLDP configuration.

Letter, number

Explanation

G

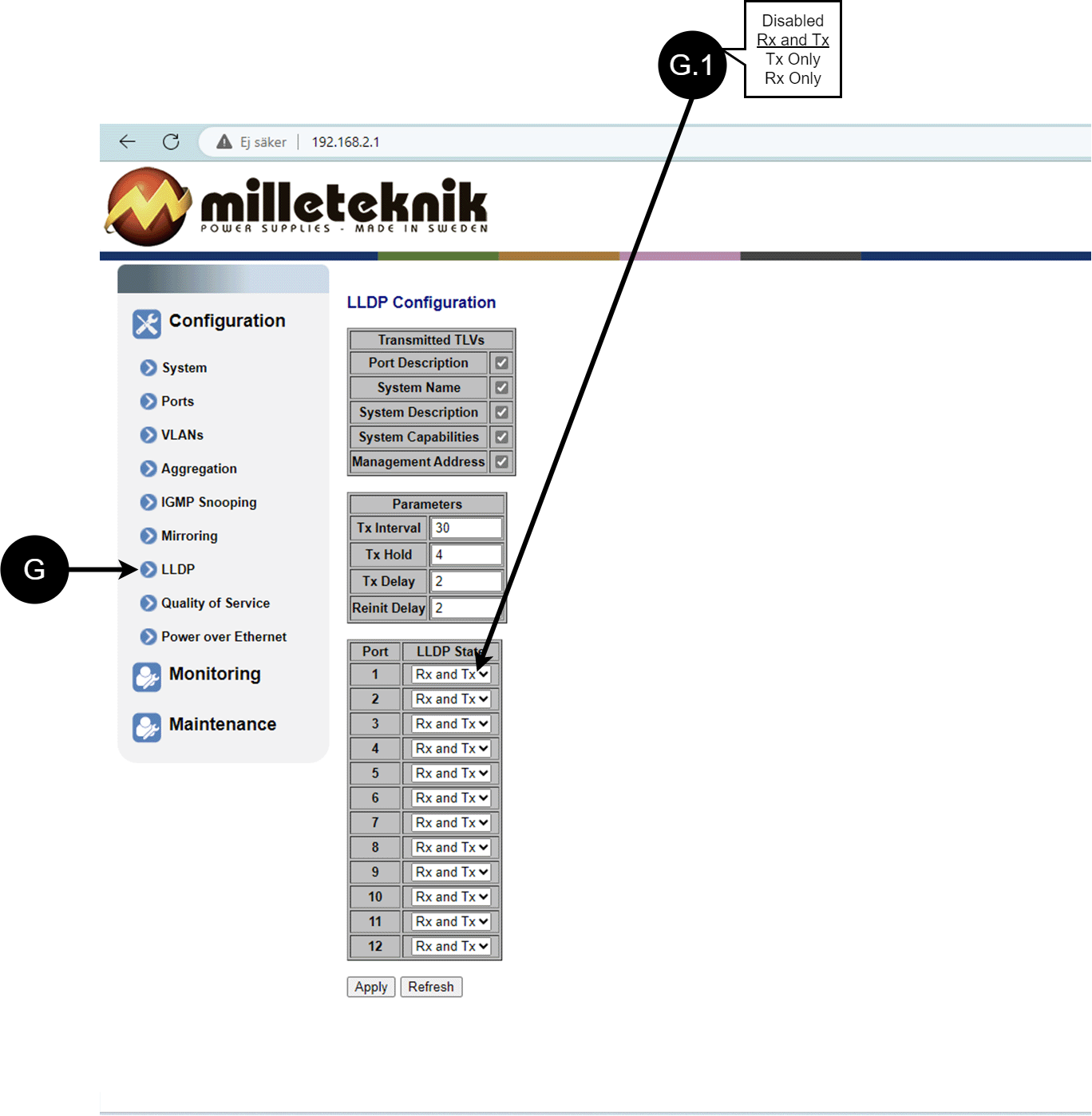

LLDP stands for "Link Layer Discovery Protocol", which is a network protocol standard used to discover and communicate information about network devices connected to the same Ethernet network. The protocol allows devices such as switches and routers to send and receive messages containing information about the device's identification, capabilities, and connection topology.

G.1

RX and TX are abbreviations used in electronics, communications, and computer networking to indicate the direction of data flow between devices. RX: The abbreviation "RX" stands for "Receive" or "Reception". It indicates that the device is receiving data or signals from another device. When a device has an RX input, it means that it is designed to receive data or information from a transmitting device. TX: The abbreviation "TX" stands for "Transmit" or "Transmission". It indicates that the device is transmitting data or signals to another device. If a device has a TX output, it means that it is designed to transmit data or information to a receiving device. These abbreviations are especially common when it comes to data communication, such as in the context of network cables where there are specific RX and TX wires that allow for two-way communication between devices.



QoS, configuration

Table 12. QoS, configuration.

Letter, number

Explanation

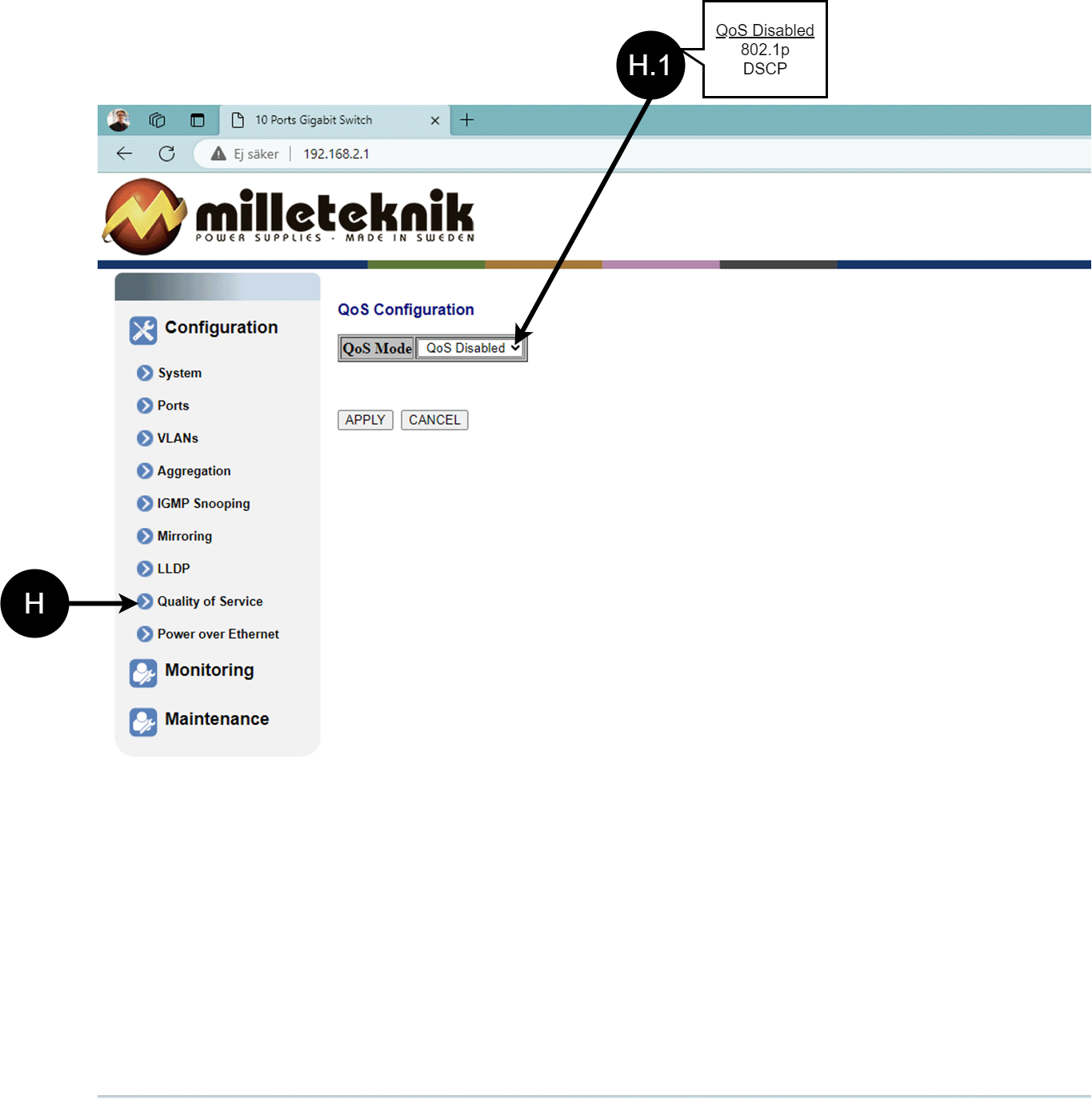

H

QoS gives different network traffic different priority, helping to ensure that important services are delivered with sufficient bandwidth and minimal delay even when the network is under load.

H.1

Sets whether QoS is active.



PoE, configuration

Table 13. PoE, configuration

Letter, number

Explanation

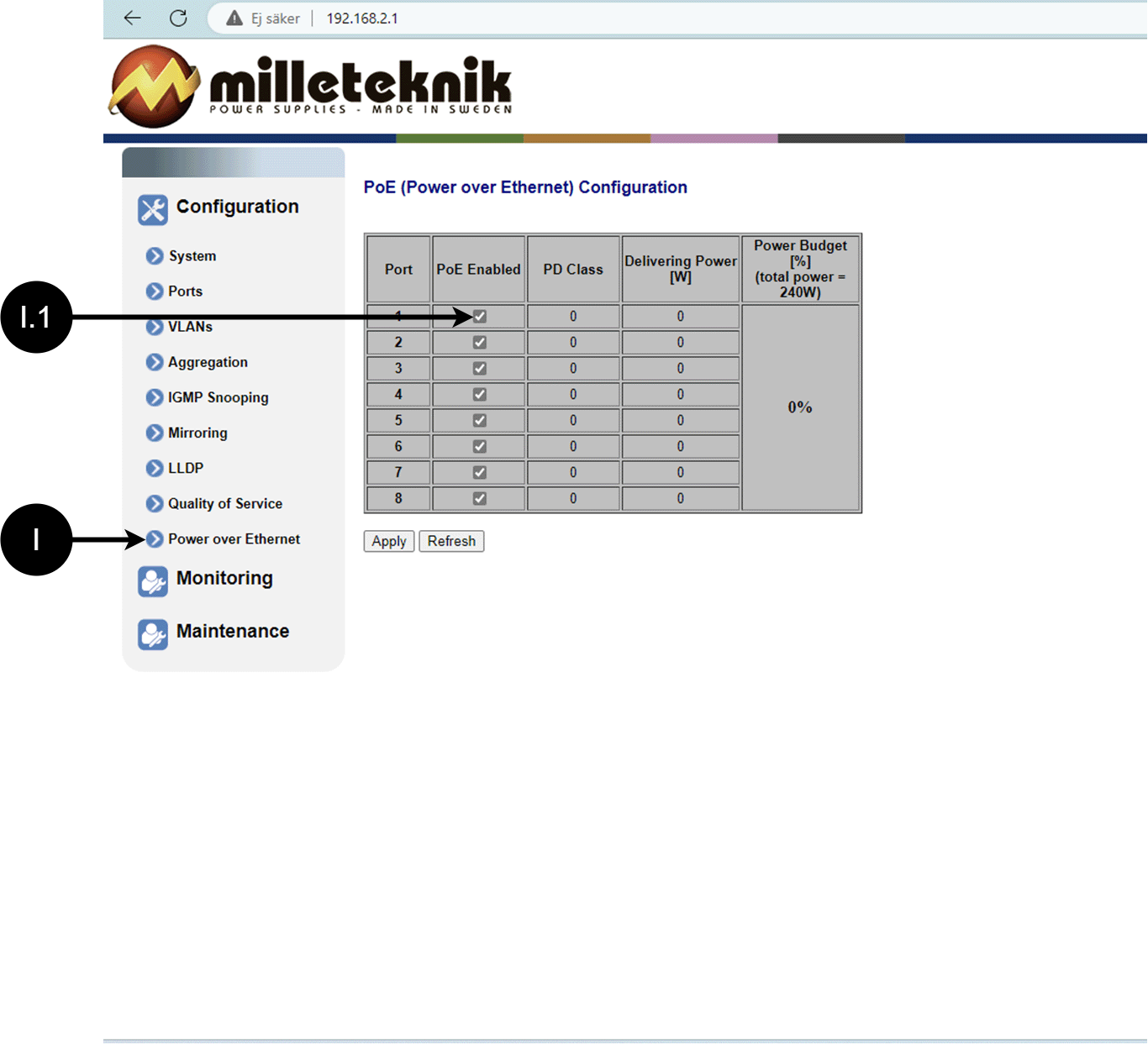

I

Power over Ethernet

I.1

Turns PoE function/port on or off. Remember to press "Apply" to save changes.



Monitoring

Statistics, overview

Table 14. Statistics, overview.

Letter, number

Explanation

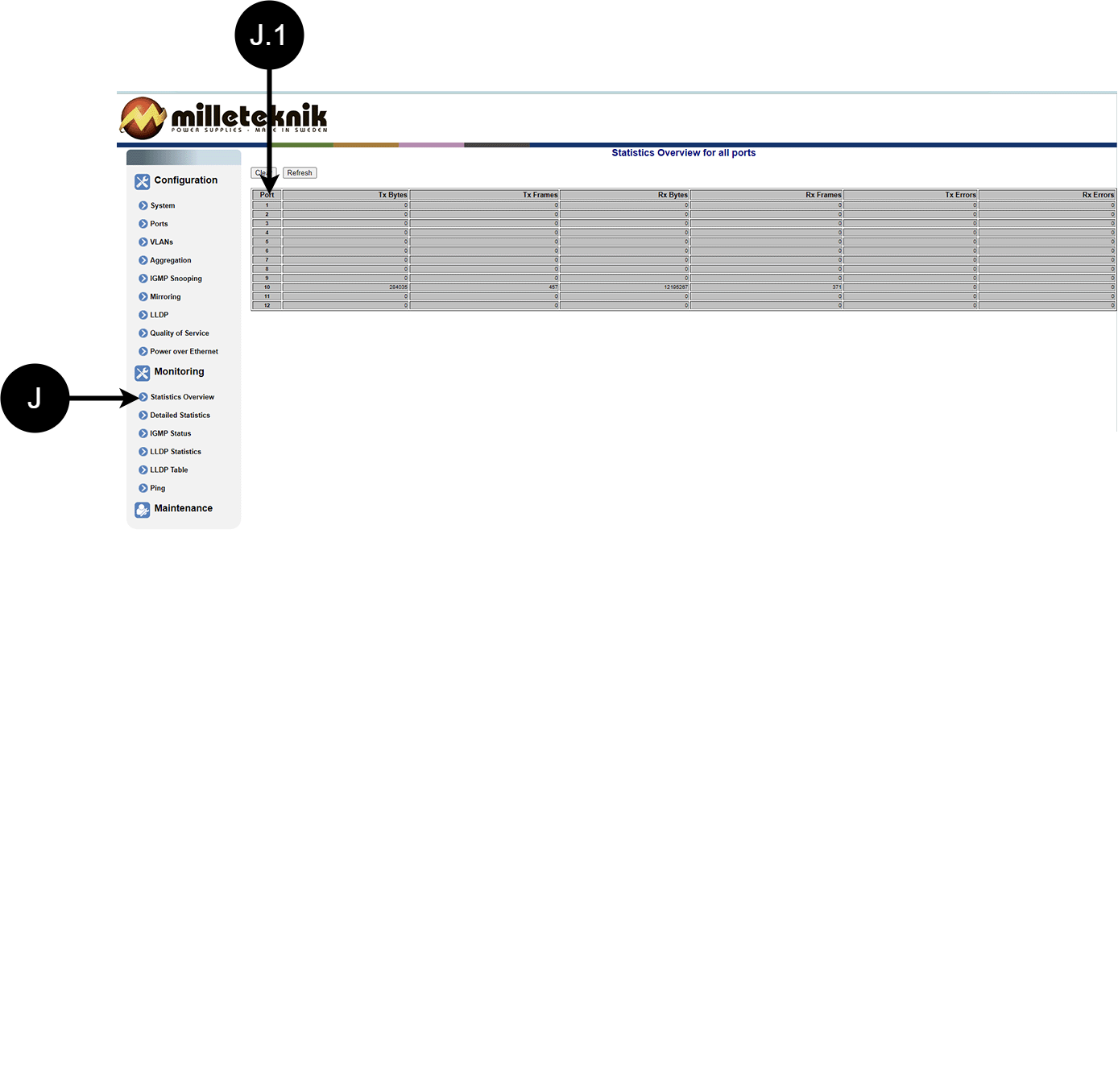

J

Statistics, overview

J.1

Traffic per port.



Statistics, detailed

Table 15. Statistics, detailed.

Letter, number

Explanation

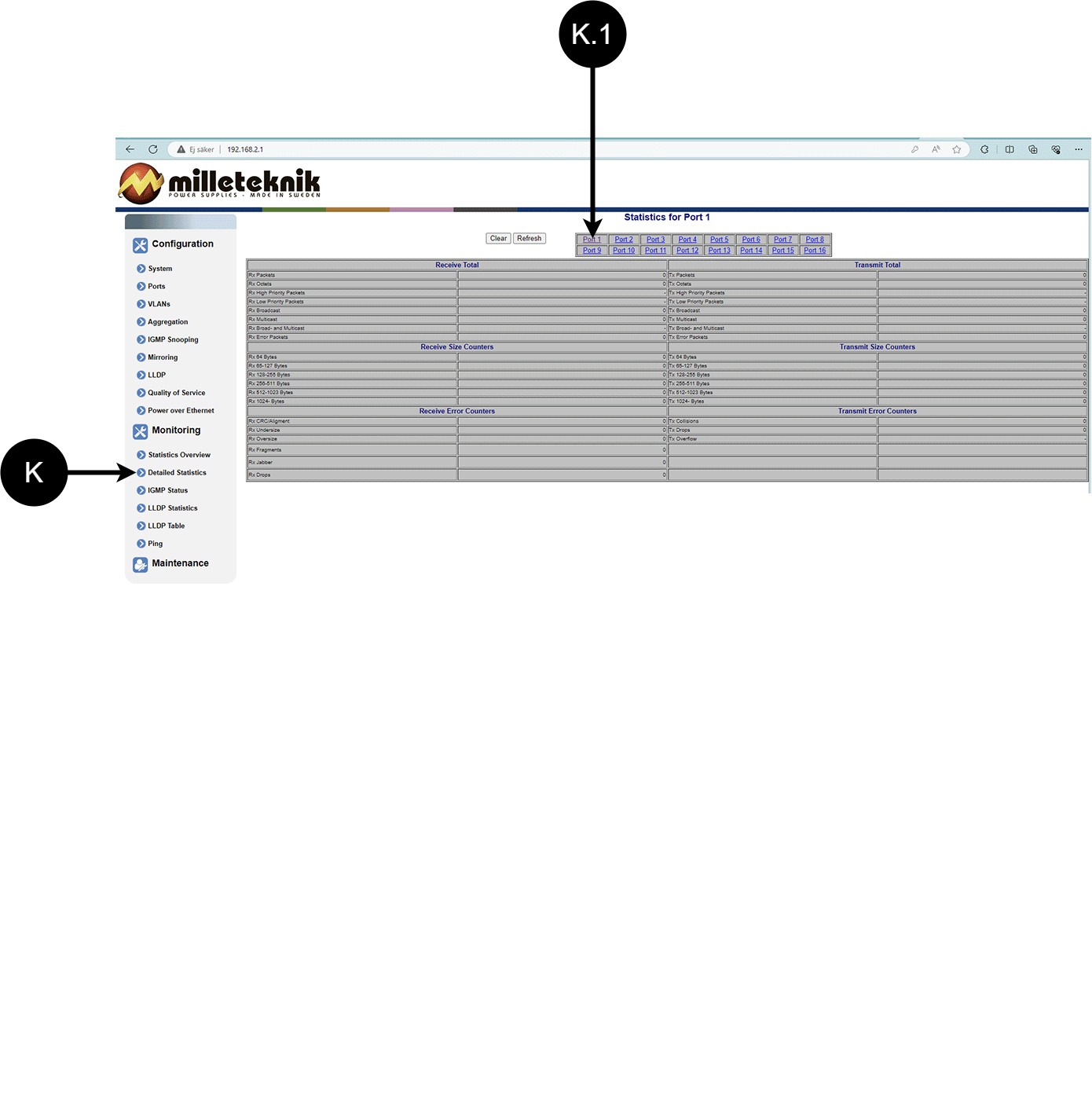

K

Detailed statistics

K.1

Select the port for which you want statistics.



IGMP status

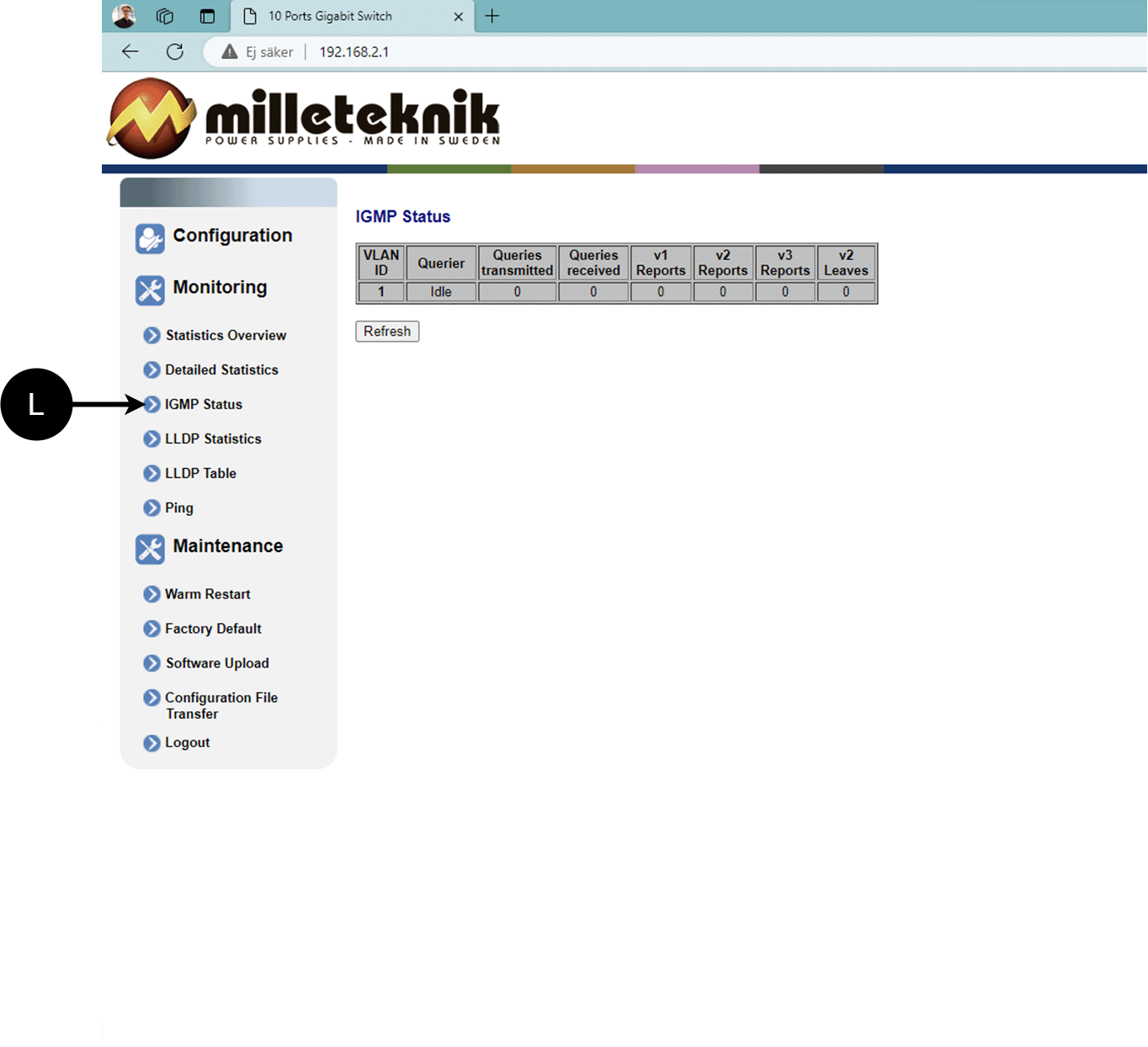

L: Status of IGMP

LLDP statistics

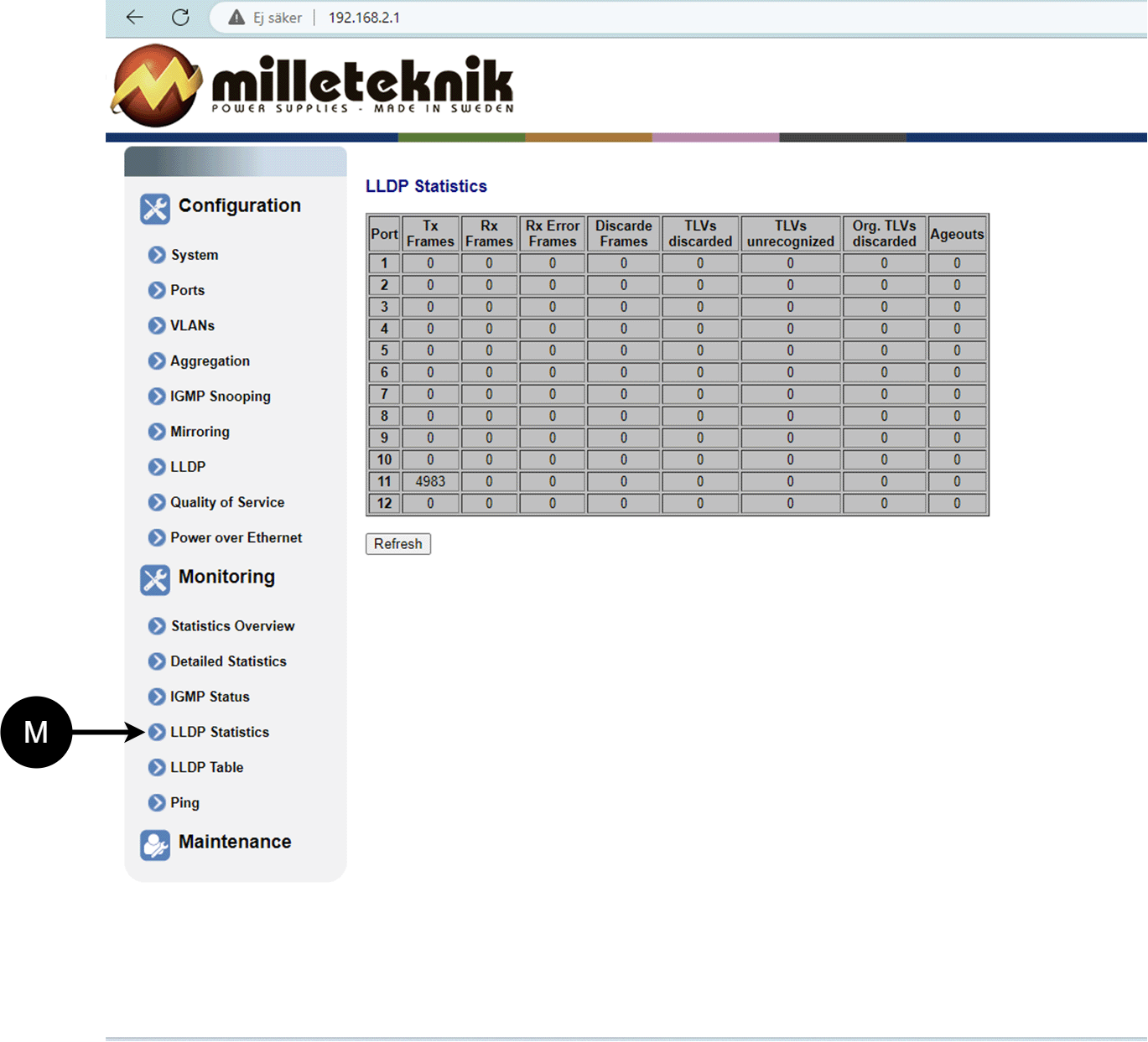

M: LLDP statistics

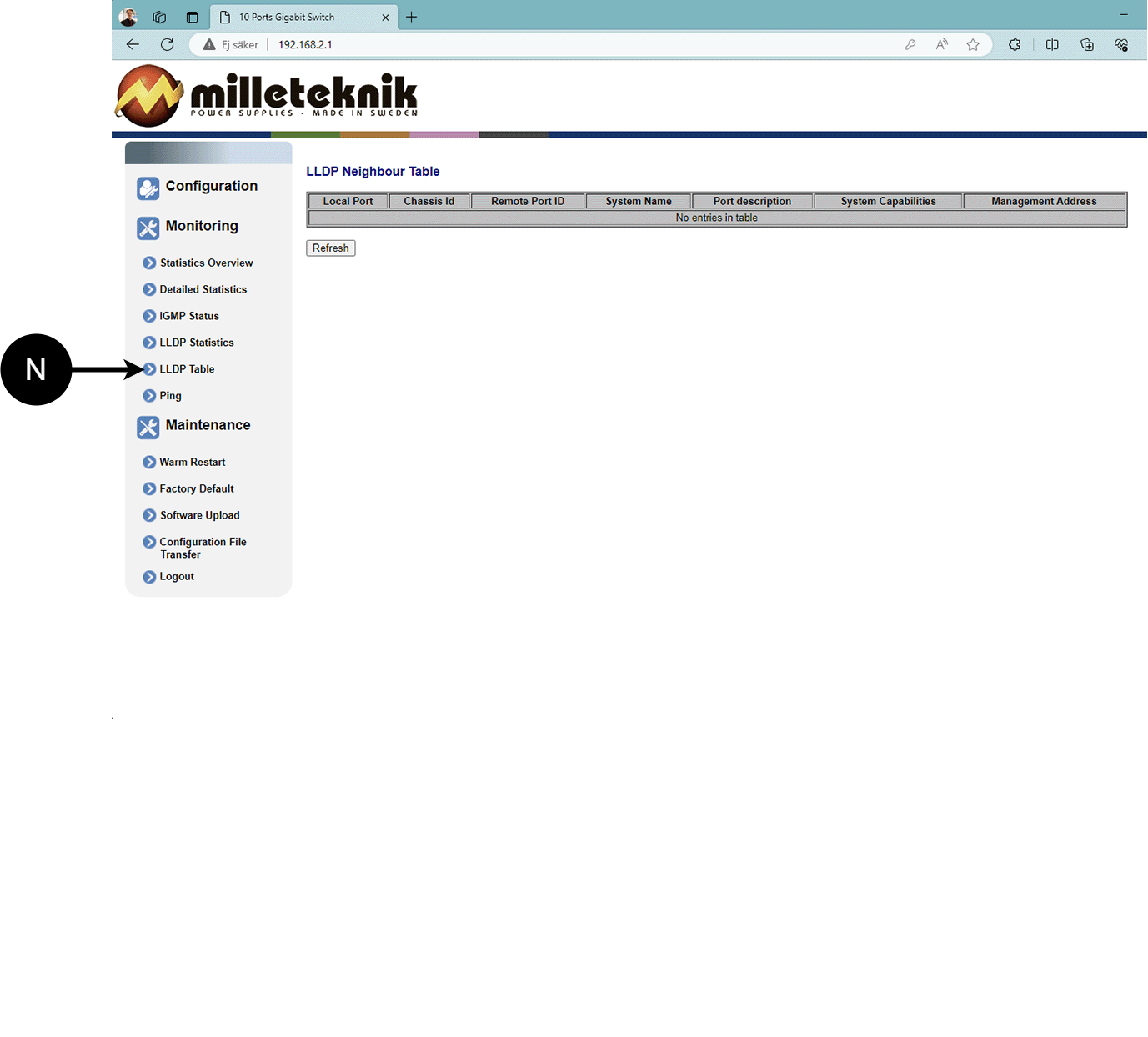

LLDP table


N: LLDP overview.

Ping

Table 16. Ping.

Letter, number

Explanation

O

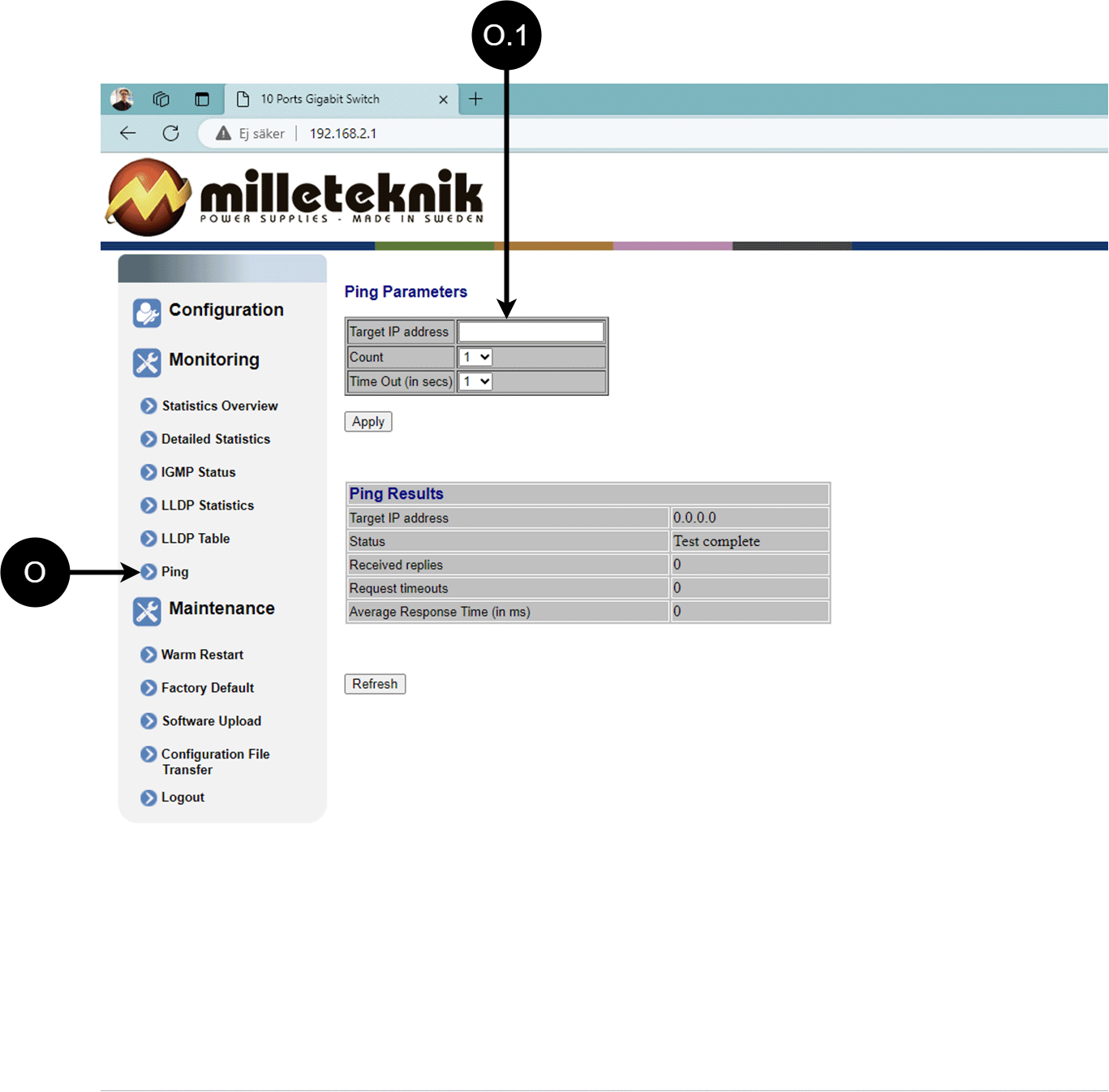

Ping

[sv] O.1

Input address to test the connection and response time.



Maintenance

Reboot

Warning

Restart is done by PoE switch, battery backup is not restarted. Upon reboot, connected devices will lose connection. Alarm can be set to battery backup, but it disappears when the PoE switch is back on.

Table 17. Restarting the PoE switch.

Letter, number

Explanation

P

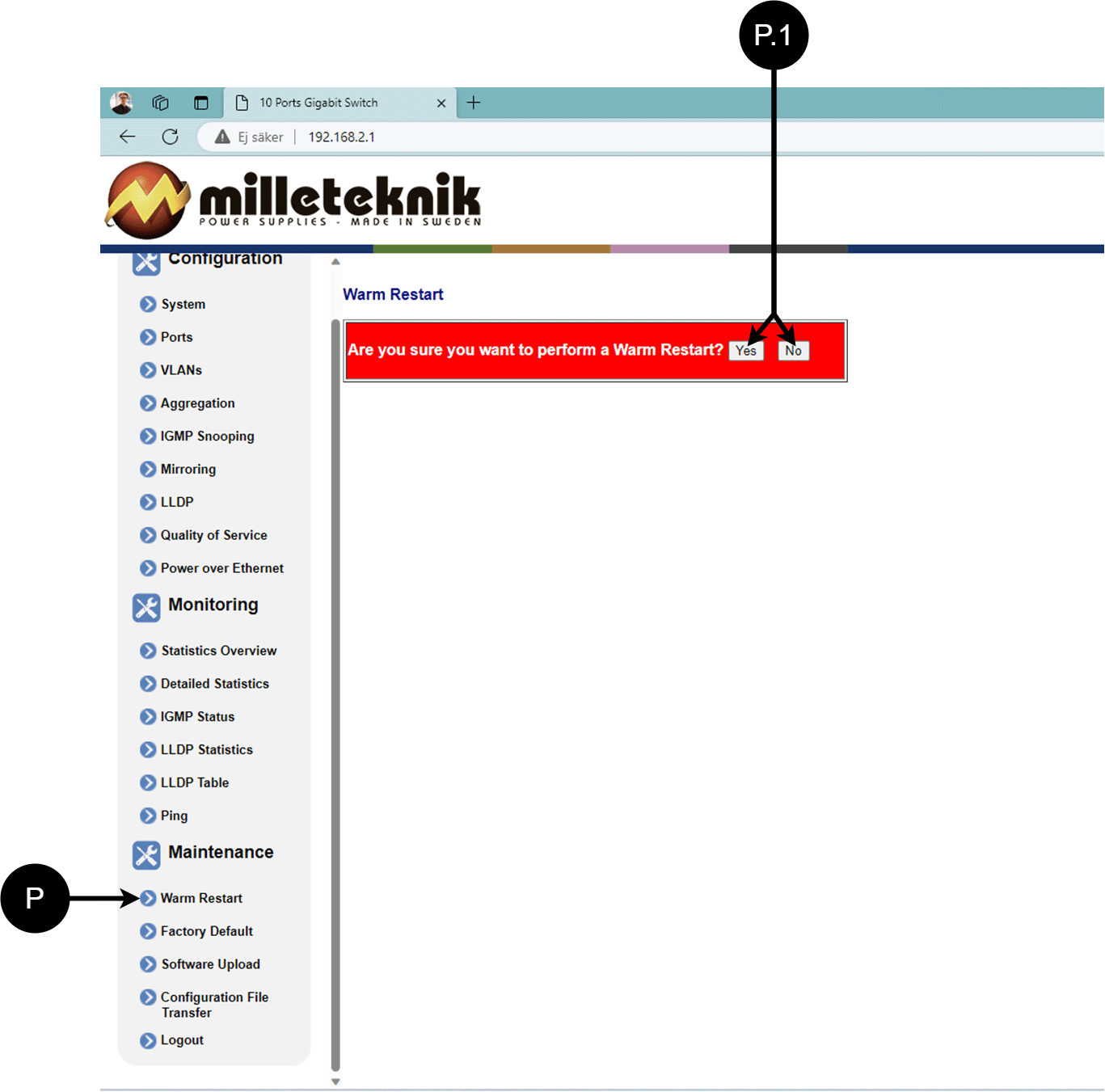

Rebooting the PoE switch.

P.1

Select "Yes" to reboot the switch.



Factory reset

Warning

Factory reset is done by PoE switch. Battery backup is not restored. On reset, connected devices will lose connection. Alarm can be set to battery backup, but it disappears when the PoE switch is back on.

Factory reset of the switch can only be done from the software's (this) interface.

Recommendation: Keep IP address 192.168.2.1 and note password.

Important

During a factory reset, all settings, including IP settings, are lost. Save configuration before factory reset. See Upload new software

Table 18. PoE switch factory reset.

Letter, number

Explanation

Q

Factory reset the PoE switch.

Q.1

Select "Yes" to factory reset the PoE switch.



Upload new software

Warning

Only use software you received from Milleteknik's support. Milleteknik assumes no responsibility for software or consequences such as damage to the device or peripheral equipment or other damage that may arise from uploading unapproved software.

Table 19. Upload new software.

Letter, number

Explanation

R

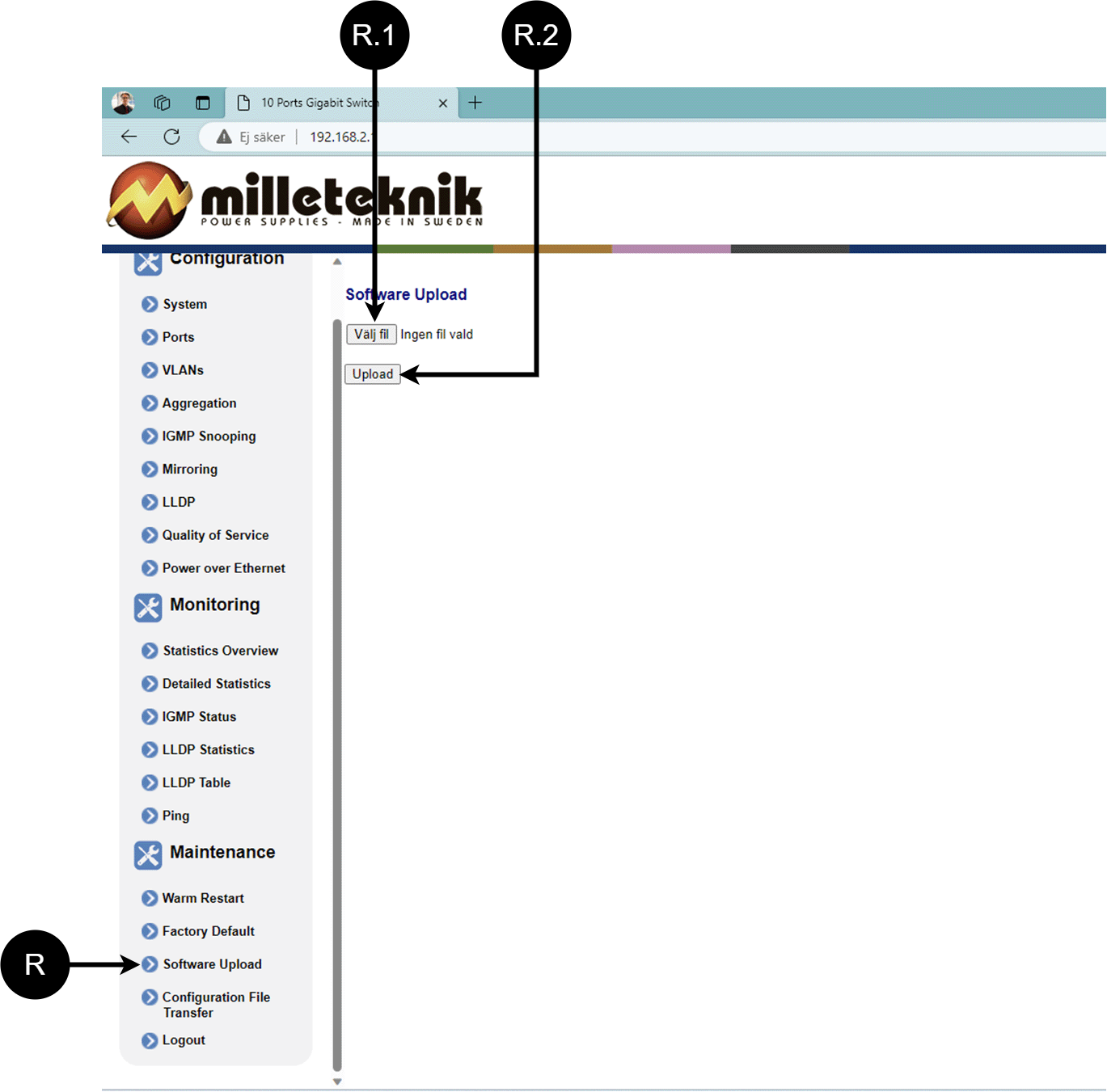

Upload new software to the Switch.

R.1

Navigate to the location on your computer where you saved the file.

R.2

Click "Upload" to upload the software.



Load and save configuration file

Table 20. Load and save configuration file.

Letter, number

Explanation

S

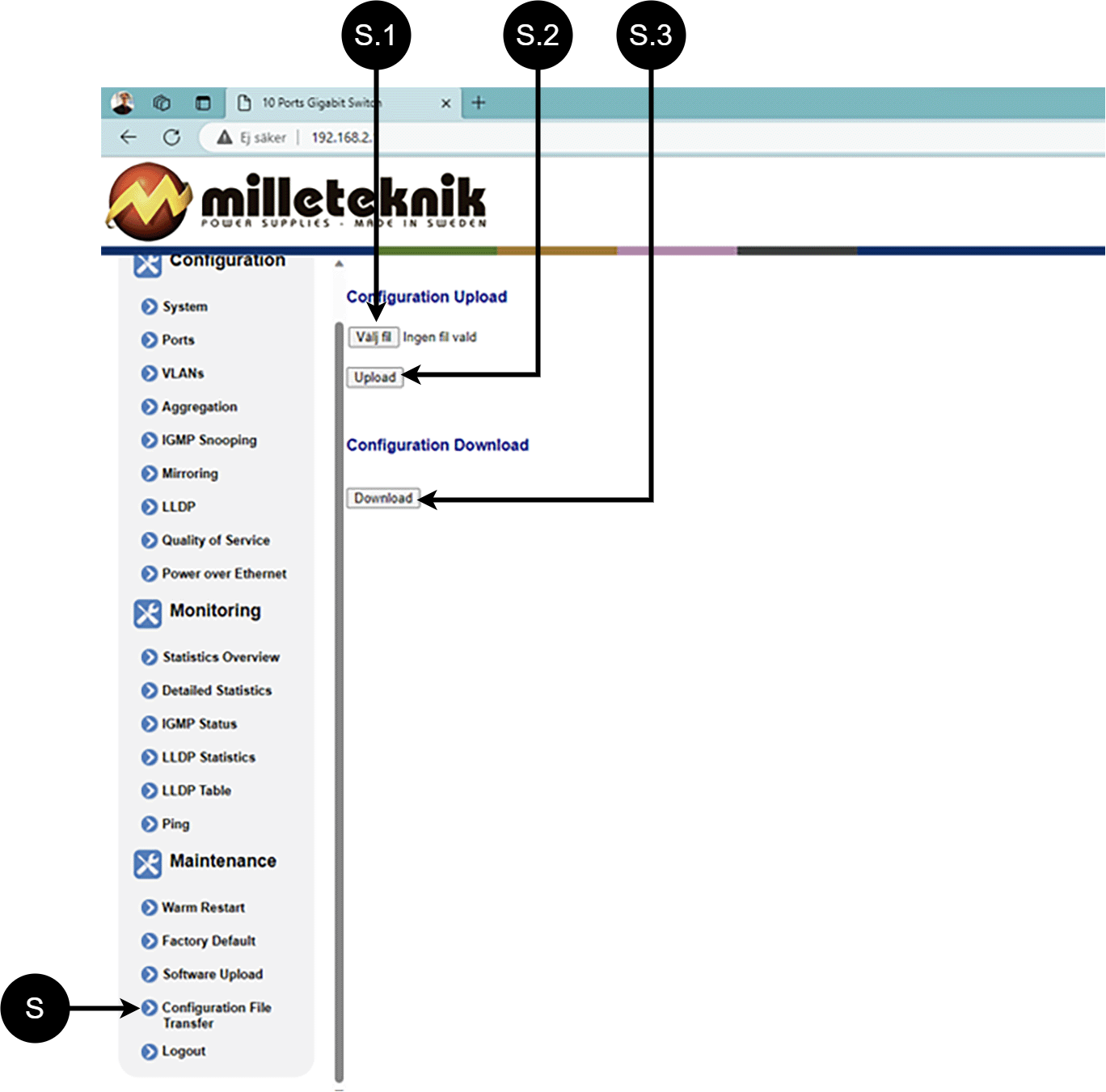

Upload or download the switch's configuration.

S.1

Select new configuration file.

S.2

Upload new configuration file.

S.3

Download configuration file to computer[a].

[a] Newer Windows computers do not allow *.cfg files to be downloaded without additional approval in the browser when downloading. Antivirus programs may delete the file during download.



Sign out

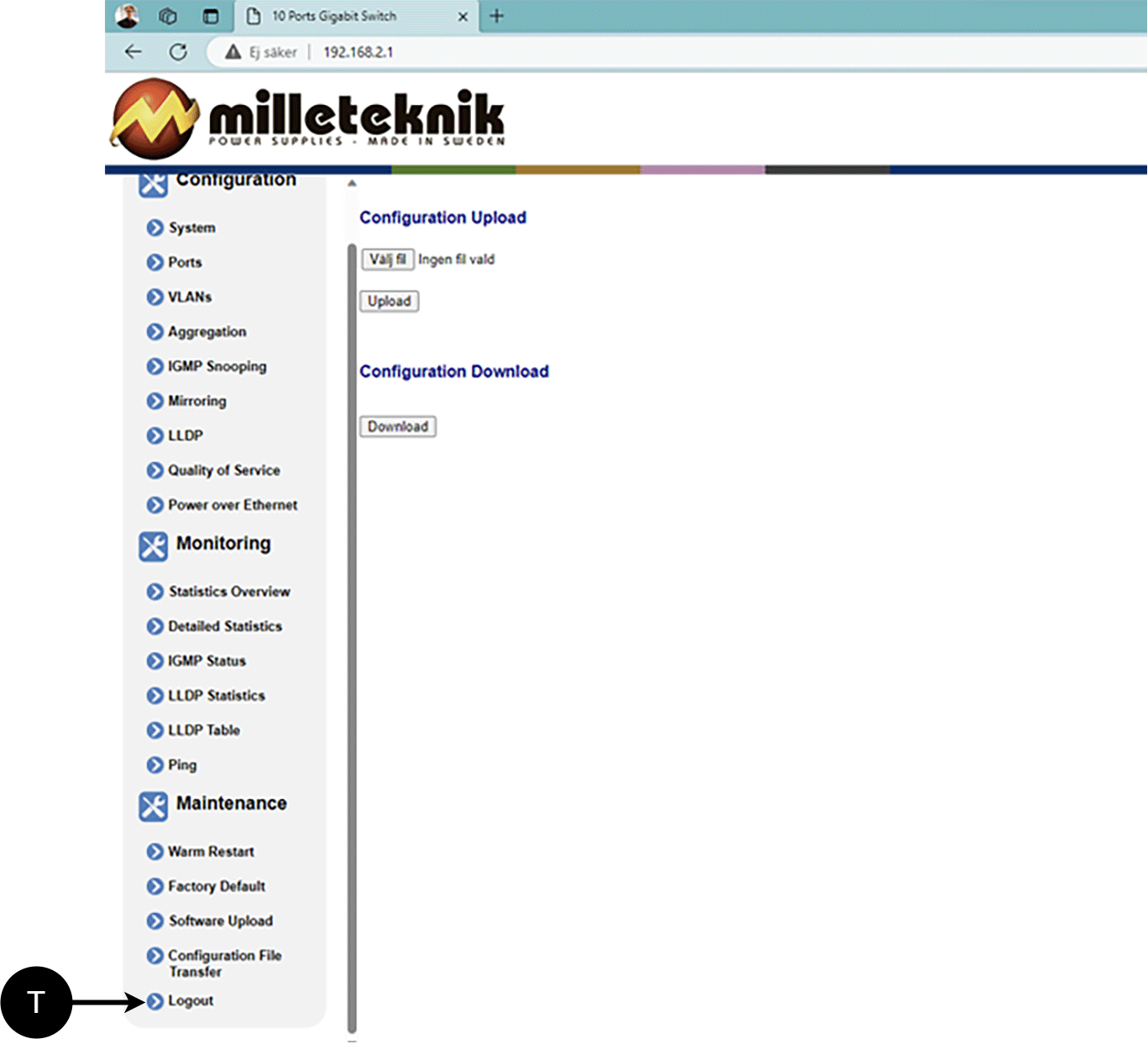

T: Log out of the switch. This does not affect the operation of the switch.

About this information

All information is published subject to possible errors. Information is updated without prior notice.

Milleteknik with the associated logo is a trademark of Milleteknik AB.

PowerWatch is a trademark of Milleteknik AB.

Publication date 2026-07-08

Alarm displayed on cabinet door

In normal mode, the indicator LED shows a solid green light.

Table 21. The indicator diode shows.

The indicator diode shows

Explanation

Solid green light

Normal operation.

Solid amber glow

Mains failure.

Solid red light

Battery not connected / blown fuse.



When operating system: If the indicator LED is off, deep discharge protection has been activated.

Notice

If the indicator light flashes every 15 seconds, the battery is fully charged and the charge is in rest phase to extend battery life. In the event of a power failure during the rest phase, the battery backup switches to battery operation as usual

Maintenance

The system with the exception of batteries is maintenance-free when installed in an indoor environment.

battery change

  • If possible, disconnect mains (voltage) when replacing the battery.

  • Disconnect battery cables. Note how battery cables are mounted before removing them.

  • Remove battery fuse between batteries.

  • Insert and fasten the new batteries.

  • Connect the battery cables in the same way as before.

  • Connect battery fuse between batteries.

  • Switch on mains voltage. The indicator LED may not be green (up to 72 hours), until the batteries are charged.

  • Test the system by briefly disconnecting the mains voltage, (= the load is driven by the batteries), and then switch on the mains voltage again.

Product sheet - power supply / battery backup

Product Sheet

PoE


Product Identification

Table 22. Product designation, part number and email number.

Product designation

Article number

E-number (SE)

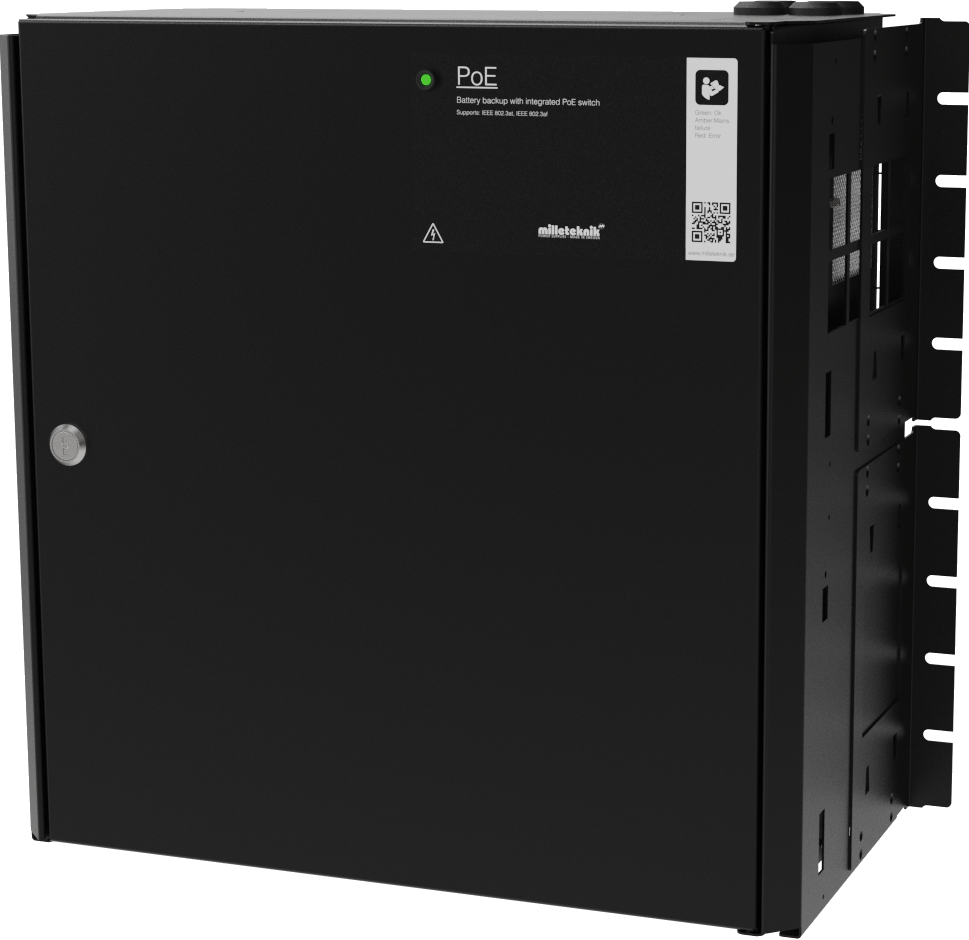

Konverter PoE Managed 8p FLX L

FL01N10224P25008PM

51,729 48



Technical description

Power supply with backup power to power PoE devices such as surveillance cameras and other PoE powered devices. A plate for keystone modules makes the installation of PoE devices easier An additional load output to power other 24 V applications.

Batteries, for example, drive the access system further when the power grid goes down.

Plate for fastening of keystone modules.

Constant output voltage, 24 V (which is boosted to 48 V), regardless of battery or mains operation, which allows the full battery capacity to be used.

For mounting on a wall or in a 19" rack.

Table 23. Quick Facts

Quick Facts

Supply voltage (V)

230V AC, +/- 10%, 47Hz- 63Hz 48V DC

Voltage out (V)

27.3 V DC boosted to 54 V DC Auxiliary voltage 24 V DCAlso applicable in battery operation.

Current output (A), max load current output.

5 A on 24 V load output

Batteries[a]

2 x 45 Ah

[a] Recommended. If batteries are included, it is indicated, otherwise batteries are ordered separately



Areas of application

Table 24. Areas of application

Areas of application

Yes

No

IP camera, power supply.

Networked devices that can be powered by PoE.



Electrical data

Table 25. Electrical data

Electrical data

Supply voltage

230V AC, +/- 10%, 47Hz- 63Hz 48V DC

Charge current

Depending on the power outlet. Max 1 A Max 25A

Efficiency[a]

90%

Standby consumption

1.27 W

Voltage out

27.3 V DC boosted to 54 V DC Auxiliary voltage 24 V DCAlso applicable in battery operation.

Current (A)[b]

5 A on 24 V load output

Power (W)

30.8W per port

[a] At rated load.

[b] Power outlet/load is specified as max, normal current output should be 80% of max.



Table 26. Fuses

Fuses

Mains fuse

2.5 A

Load fuses

Fuse on supply to PoE switch (8p): T10A Load output fuse: 10 A

Battery fuse

30A



Table 27. Printed circuit boards and Internal power consumption

Circuit Boards

Internal power consumption (during battery operation)

Other. info

CEO3 48V

32 mA

PoE Switches Managed 8p

Data is missing



Load outputs

Table 28. Load outputs

Load outputs

Number of loading outputs

PoE switch can drive load to eight PoE devices and motherboards can drive one (1) 24 V load output to power other applications.



Table 29. Total maximum load and recommended load.

Model

Recommended total load (80%)[a]

10A

8A

[a] Typically, 70-80% of the maximum load is recommended in continuous operation, depending on the thermal margins of the product.



Table 30. POE outputs

POE outputs

Number of PoE ports (RJ-45)

8

PoE budget

600W

POE Budget/Max Power Per Port

! 8 30.8 W.

Number of LAN ports

2

Network ports/interfaces, RJ-45

100 Mbit/s 1000Mbps

Managed

No Yes



Alarm and protection

Table 31. Number of relay on which alarm can be given

Number of Relays

Alarm on switching relay?[a]

1

[b]

[a] Relay, alternating potential-free contacts.

[b] Relay, alternating potential-free contacts.



Table 32. Alarm over communication and on LEDs on motherboards: CEO3

Alarms

Indication[a].

Delayed power outage alarm or low battery voltage*

Fuse failure*

Disconnected batteries at boot*

Alarm limit control

Undervoltage

✔, Glows red in case of power failure until battery voltage drops below alarm limit

*Sum Alarm

[a] Indication diode on main board and LED on door



Table 33. Alarms

Alarms

Yes

No

Power Outage Alarm



Table 34. Alarm and protection

Alarm and protection

Yes

No

Battery charge protection/controlled charging[a]

✔ Batteries are charged with a maximum of 0.5 A.[b]

Deep discharge protection, see Battery[c]

Overload Protection/Surge Protection

Over-temperature protection

Short circuit protection

[a] Controlled charging protects and extends battery life.

[b] Factory setting. Adjustable in PowerWatch

[c] When the deep discharge protection is activated, the device turns off and the LED goes out.



Communication and Indications

Table 35. Communication and Indications

Communication and Indications

Yes

No

Other. info.

Communication

RJ-45

Refer to manual for alarms that PoE switch can provide.

Port control via connected computer

Indicators/LEDs

LED displays information and alarms on circuit boards and on the outside of the housing.



Battery

Table 36. Technical data - Batteries

Battery

Ref. Batteries[a]

2 x 45 Ah

Battery type

Maintenance-free AGM (lead-acid) batteries

Deep discharge protection

Activates when the system voltage drops below about 20 V DC.

Other sizes of batteries that can be used

2 x 28 Ah

[a] If batteries are included, it is indicated, otherwise batteries are ordered separately.



Enclosure and Mechanics

Table 37. Enclosure and Mechanics

Enclosure and Mechanics

Type

Universal enclosure for wall and rack

IP class

IP32

Material

Powder coated sheet metal.

Colour

Black

Height units

10

Cable grommets

4 pcs

Knockout hole

1 pc. on the back

Lock

✔ 2 keys included

Fan in enclosure



Assembly, installation and eligibility requirements

Table 38. Fitting

Fitting

Yes

No

19" rack.

Wall.



Table 39. Installation

Installation

Yes

No

Fixed installation.



Dimensions, weight and packaging information

Table 40. Dimensions

Dimensions, (WxHxD).

Dimensions with packaging[a]

444 x 437 x 212 mm

550 x 500 x 300 mm

[a] Dimensions (WxHxD) of product and packaging may differ, this is because the product may be oriented differently in the package.



Table 41. Weight

Net weight

Weight with packaging

14 kg

15 kg



Table 42. Packaging

Packaging

Packaging

Cardboard and plastic shock protection. Cardboard and impact protection in cardboard.

Quantity in pack

1 pc.

Packaging Type (GS1 T0137)

BX box.

Conditions EUR pallet

EUR pallets may not be stacked during transport or storage. Stacking may result in damage to product and packaging

Transport environment

The product must be protected from condensation and direct precipitation during transportation.

Transport temperature (without battery)

−30 °C to +70 °C

Storage environment

Dry indoor environment, protected from condensation. Relative humidity: max 95%, non-condensing

Storage temperature without batteries

−20 °C to +60 °C



Contact

Table 43. Contact

Department

Switchboard

031-340 02 30

Support and technical issues

support@milleteknik.se

Sales

sales@milleteknik.se

WWW

www.milleteknik.se

Address

Ögärdesvägen 8B, 433 30 Partille



About this information

All information is published subject to possible errors. Information is updated without prior notice.

Milleteknik with the associated logo is a trademark of Milleteknik AB.

PowerWatch is a trademark of Milleteknik AB.

Publication date 2026-07-08

Compliance and regulatory compliance

Delivery time, warranty and terms

Table 44. Delivery time, warranty and terms

Delivery time, warranty and terms

Warranty period[a]

The product has a two (2) year warranty against manufacturing defects.In addition to the regular warranty period, an additional three (3) year warranty can be purchased.

Special warranty conditions

Batteries and wear parts are not covered by warranty. See also general terms and conditions.

General Terms and Conditions

ALEM09 with exceptions, see: www.milleteknik.se/conditions/

Support

Telephone support and email support during the warranty period are free of charge. For spare parts that are not covered by warranty, there is a charge

Delivery and stock

Delivery time[b]

Or as per agreement. Delivery from factory, transportation time is added.

[a] If the device is purchased through a wholesaler or other supplier, other warranty conditions may apply.

[b] In the case of larger orders, delivery time increases, acc. to agreement.



Operation and maintenance

Table 45. Operation

Operation

Data

Other. info

Environment

Indoor environmental class 1.

Operating temperature (recommended)

+15°C to +25°C

For the best battery life. Higher temperatures significantly shorten the life of the batteries.

Operating temperature (permissible)[a]

+5°C to +40°C

Class 1 according to EN 50131-6/ EN 60839-11

Load, power supply

80%

Average load shall not exceed 80% of the rated capacity of the power supply.

Ventilation, free distance around the enclosure.

100 mm

Ventilation openings must not be blocked or covered.

[a] Specifies the permissible ambient temperature range in which the product can operate without damage. See also table on battery life.



Table 46. Maintenance

Yes

No

Interval

Other. info

Annually

The fan should be cleaned annually. Battery terminal voltage must be measured. Ensure that the average load does not exceed 80% of the rated capacity of the power supply.



Certifications and approvals

Table 47. Approved according to

Complies with

Directives

PoE

IEEE 802.3af, IEEE 802.3at/30.8 W up to type2, class 4.

C.E.

CE marking according to Regulation (EC) No 765/2008

RoHS

RoHS Directive 2011/65/EU, including amendment (EU) 2015/863

EMC

EMC Directive 2014/30/EU

Electric (LVD)

Low Voltage Directive 2014/35/EU



Environmental data

Table 48. Environmental data

Environmental data

J/N

Informație

Other. info.

Building Product Declaration (BPD)

Yes, see iBvd at www.milleteknik.se.

-

REACH Information Obligation

(EC) No 1907/2006

Yes, see the DoC at www.milleteknik.se The product complies with REACH Regulation (EC) No 1907/2006.

If empty, the product is not covered.

SVHC substances, CAS/EC

Yes, lead, 7439-92-1/231-100-4

For text, see iBvd at www.milleteknik.se. If blank, substance is missing.

Subject to the RoHS Directive, (EU) 2015/863)

Yes, see the DoC at www.milleteknik.se

WEEE

2012/19/EU

The product contains electrical components or wiring and is covered by the WEEE Directive (2012/19/EU).

If empty, the product is not covered. End-of-life products must be returned to a recycling centre

Battery Regulation

(EU) 2023/1542

SCIP No

2008/98/EC

Yes, registered under the EU Waste Directive where applicable, (2008/98/EC).

If empty, no SCIP number is needed.

Conflict minerals

(EU) 2017/821

✗/✗/✗/✗/✔

No=Gold, Tungsten, Tantalum, Cobalt. Yes=Tin

Tin in solders in printed circuit boards purchased through a Swedish supplier.

Contains nanomaterials:

EC 1272/2008

The product does not contain nanomaterials.

Ecodesign

2009/125/EC

Milleteknik's products are intended for professional use and are therefore not directly covered by the Ecodesign Regulation (EU 2019/1782). As some components may be covered, we nevertheless disclose relevant information[a], where applicable, to provide our customers with confidence in their choice.

Machine Directive

2006/42/EC

The product is part of electrical systems, is subject to the relevant electrical and safety directives and is not a machine according to the Machinery Directive (2006/42/EC).

Will be replaced by Machinery Regulation (EU) 2023/1230, which will apply in 2027.

The product is designed and constructed for a long service life, which reduces the environmental impact. The life of the product (except wearing parts) depends on, among other things, environmental factors, mainly ambient temperature, unforeseen load on components such as lightning strikes, external impact, handling errors, etc. Products are recycled, simply because they are modular, by being left at the nearest recycling station or sent back to the manufacturer.[b]Contact your distributor for more information.

[a] Standby consumption and power.

[b] Costs incurred in connection with recycling are not reimbursed.



soptunna_atervinning.ai

Manufacturer and country of origin

Table 49. Manufacturer and country of origin

Manufacturer[a]

Milleteknik AB

Customs State. Nos.

85044095[b]

Country of origin

Sweden

[a] Manufacturer is the trademark indicated on the product, regardless of what is stated in this product sheet.

[b] Verify with the Customs Ombud/Customs Service for export/import; alternative classification 85044055 may become applicable if the product is assessed as a battery charger.



Appendix

Backup operating time on batteries

The reserve operating time in battery operation depends on how large a load is connected to the power supply. If the load varies, as with frequent opening of door locks, the time that batteries can continue to power the security system decreases. To get an estimate of reserve operating times see: www.milleteknik.se/Manualer/FaQ/Reservdrifttider/

Eligibility requirements, installation

Eligibility requirements vary between countries. The table summarizes national requirements for fixed installation and connection of equipment with a plug socket, respectively.

Options on the secondary side of the product, such as 12 V, 24 V or 48 V DC, are connected according to the respective instructions. Work on the network connection of the product shall be carried out in accordance with national eligibility requirements

Table 50. Eligibility requirements by country. Applies only to the installation of this product in a fixed network connection

Permission Requirements for Installation

Fixed installation (230 V)

Plug

Other. info

Sweden

Fixed installation may be performed by technicians but shall be under the responsibility of a qualified installer. (Electrical Safety Act, SS 436 40 00) Plug may be connected without authorization.

Norway

Requirements for qualified electricians also for equipment with a plug socket in fixed installations. (NEK 400, DSB

Finland

Plug may be connected without authorization. (Tukes, SFS 6000

Denmark

Plug may be connected without authorization. (Safety Board

Germany

All fixed installations require a qualified electrician according to VDE 0100. Plug sockets may be connected without authorization, but only by person with basic electrical knowledge (“Elektrotechnisch unterwiesene Person”)



Miscellaneous

Table 51. Max power PoE.

-

PoE

Poe+

PoE++

Compatible[a]

-

PoE

PoE, PoE+

Official name

IEEE 802.3af

IEEE 802.3at

IEEE 802.3bt

Maximum power

13 W

25 W

71 W

[a] The power supply follows "up", but not "down". A PoE can never power a PoE+/PoE++ device that requires more than 13 W.



Reference table: environmental classes according to EN 50130-5 (referred to in EN 50131-6)

Table 52. Reference table: environmental classes according to EN 50130-5 (referred to in EN 50131-6)

Class

Type

Temperature range

Environmental Class 1

Heated indoors (type office/residence).

+5°C to +40°C

Environmental Class 2

Generally indoors (type warehouses/stairwells, not temperature controlled).

-10°C to +40°C

Environmental class 3

Protected outdoors.

-25°C to +50°C

Environmental class 4

Generally outdoors.

-25°C to +60°C



Reference table: manufacturer's stated service life and recommended battery replacement

Table 53. Reference table: manufacturer's stated service life and recommended battery replacement

Battery Type (Design Life)[a]

Battery replacement time in normal operation, +20°C.

Replacement during hot operation, +30°C

Replacement during hot operation, +40°C

3 - 5 years

2 - 3 years

1 - 1.5 years

0.5 - 0.75 years

6 - 9 years

5 - 6 years

2.5 - 3 years

1.2 - 1.5 years

10 - 12 years

6 - 7 years

3 - 3.5 years

1.5 - 1.75 years

15 + years

10 - 12 years

5 - 6 years

2.5 - 3 years

[a] Valid in case of completely unused battery stored under optimal conditions.



About this information

All information is published subject to possible errors. Information is updated without prior notice.

Milleteknik with the associated logo is a trademark of Milleteknik AB.

PowerWatch is a trademark of Milleteknik AB.

Publication date 2026-07-08
