Installation and commissioning

Instructions for installation and commissioning.

Product Identification

Table 1. Product designation, article number and e-number.

Product designation

Article number

E-number (SE)

ECO 24V 1A Mini 1.2Ah 230V

MI01C10524P010B01

52 137 97



ECO power supply with battery backup

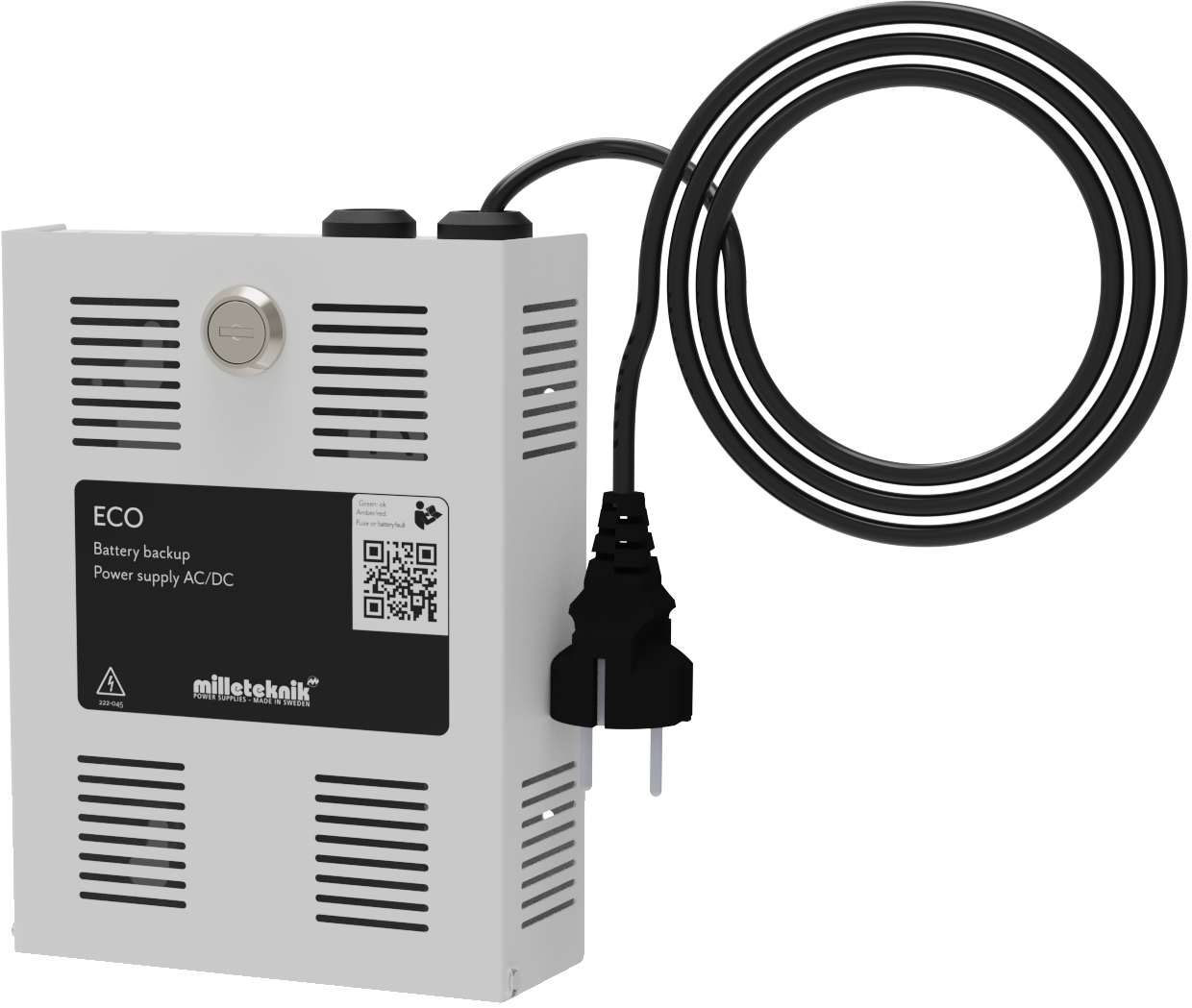

Figure 1. ECO 24V 1A Mini
ECO 24V 1A Mini

ECO 24V 1A Mini is delivered with 230 V mains cable installed.



Technical description

ECO 24V 1A Mini is a compact and reliable battery backup for 24V applications where easy installation and safe backup power are required. The unit is designed for control and operation of smaller loads and comes with two 1.2 Ah batteries mounted in the housing. The battery backup has built-in charging, load output, potential-free alarm output and clear indication for normal operation, mains interruption/low battery voltage and triggered load protection. The power cut/low battery voltage function can be selected via jumper. The ECO 24V 1A Mini is mounted in a powder-coated metal cabinet and connects to 230 V AC via the supplied cable with plug

Table 2. Quick Facts

Quick Facts

Supply voltage (V)

230V AC, +/- 10%, 47Hz- 63Hz

Voltage out (V)

27.3 V DC, (24 V DC)

Current output (A), max load current output.

1 A

Batteries[a]

2 x 1.2Ah

[a] Recommended. If batteries are included, it is indicated, otherwise batteries are ordered separately



Enclosures

General assembly instructions

Mounting - wall mounting

  • Enclosure must be mounted vertically.

  • For good ventilation, at least 100 mm of free space should be provided above and on the sides of the enclosure. Do not block the flow of air on the sides

  • The device should be mounted at a comfortable working height, normally between 1.4 and 1.8 m.

  • Recommended distance between screw head and wall should be 1.5-2 mm.

  • Avoid placement in direct sunlight, near heat sources, or in environments with high humidity or dust.

  • Installation shall be carried out in accordance with the applicable installation rules and by a competent installer.

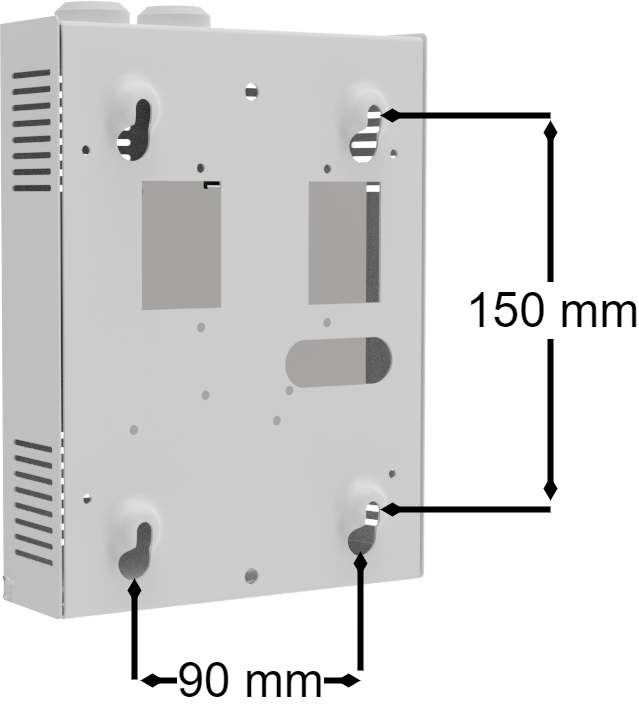

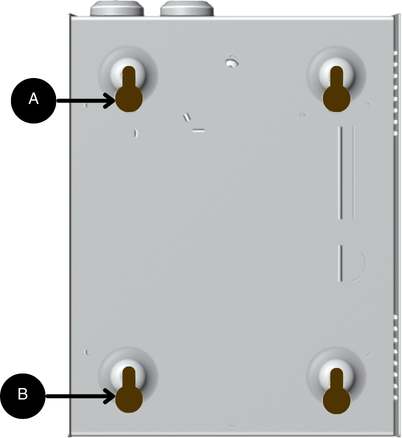

Mounting holes, spacing and ø.

Table 3. ø mounting holes

Designation

Explanation

ø mounting holes

A

Upper mounting holes.

6.5mm

B

Lower mounting holes.

6.5mm



Table 4. Dimensions

Enclosure, dimensions (WxHxD).

Mounting hole inside (W x H)

External mounting dimensions (W x H)

202 x 148 x 62mm

90 x 150 mm

-



Wall mounting

Distance between screw head and wall should be 1.5–2 mm. Preferably leave a 100 mm air gap around the unit.


Component overviews

Component overview ECO 24V 1A S

Table 5. Component overview

Letter

Explanation

A

Cabinet in powder-coated sheet metal.

B

Batteries.

C

Battery fuse.

D

Motherboard.

E

Cable entries.

F

230 V cable with plug.

G

Power supply.



Technical data: CEO 3

Figure 2. ECO Mini3
ECO Mini3


Table 6. Connections

Nr

In short

Explanation

1

P1: 1-3

Connection to mains, 230 V.

2.1

P1:3

Ground (PE), connection to mains, 230 VAC.

2.2

P1:2

Zero/Neutral (N), connection to mains, 230 VAC.

2.3

F6

Load securing: T2A.

3

D1

Indicator diode, see table below.

4

P2: 3-4

Control of load output. Shipped assembled with jumper. If the jumper is removed, the load output is switched off (de-energized). NC when bridging. Current through circuit is max 100 mA.

5

P2: 1-2

Connect load.

6

JU2

Alarm-level, with jumper 24V, without jumper: in the event of a power outage.

7

Start without mains voltage

Button for starting without mains voltage.

8.1

P2:5

NO, Potential-free relay output, NO+COM in case of alarm.

8.2

P2:4

COM, Potential-free relay output, NO+COM in case of alarm.

8.3

P2:3

NC, Potential-free relay output

9.1

P2:2

Load output, -, (minus)

9.2

P2:1

Load output, +, (plus)

10

D1

Indicating diode, lights green when load voltage is present.

11

J1

Sums.



Table 7. Alarm via buzzer

No.

On circuit boards

Explanation

11

Sums

JU1

JU1

Sets alarm on buzzer, on/off.

Without pin on jumper = alarm is not given on buzzer. The device is supplied without a jumper

Jumper on pin=alarm is given on sums.

JU2

JU2

Sets the level for when the alarm should be set at buzzer.

With jumper, alarm is given at 24 V DC. The device comes with jumper on

Without jumper, alarm is given at 26.5V DC to indicate a power outage.



Table 8. Indications and alarms

Nr

In short

Indicator diode

Buzzer

Explanation

4

D1

Green

No

OK - normal operation.

Yellow / orange

Yes if JU1 has a jumper.

Power failure / low battery voltage. Controlled via jumper on JU2.

RED

Yes if JU1 has a jumper.

Triggered load securing

10

D1

Green

No

Glows green when load voltage is present.



Batteries - placement and connection

Batteries are fitted

The unit comes with batteries installed. For connecting batteries to the motherboard, see Commissioning - how to start the unit.Commissioning - how to start the unit

Connection of batteries in FLX S, FLX M and FLX L

Battery wiring is mounted on the circuit board upon delivery. Pictures below only show how to connect wiring.

  1. Place the batteries in the cabinet with the battery terminals facing outwards.

  2. Connect the battery cable. Red cable on + and black cable on -.

  3. Plug in battery fuse.

  • If possible, disconnect mains voltage when replacing the battery.

Figure 3. Wiring diagram for batteries in battery backup
Wiring diagram for batteries in battery backup

Connect the terminals correctly so that you do not damage the equipment.



Table 9. Electrical scheme

No.

Explanation

1

Battery 2.

2

Battery fuse.

3

Battery 1.

4

Incoming mains voltage, 230 V AC.

5

Rectifier 24 V DC.

6

Load, 24 V DC.

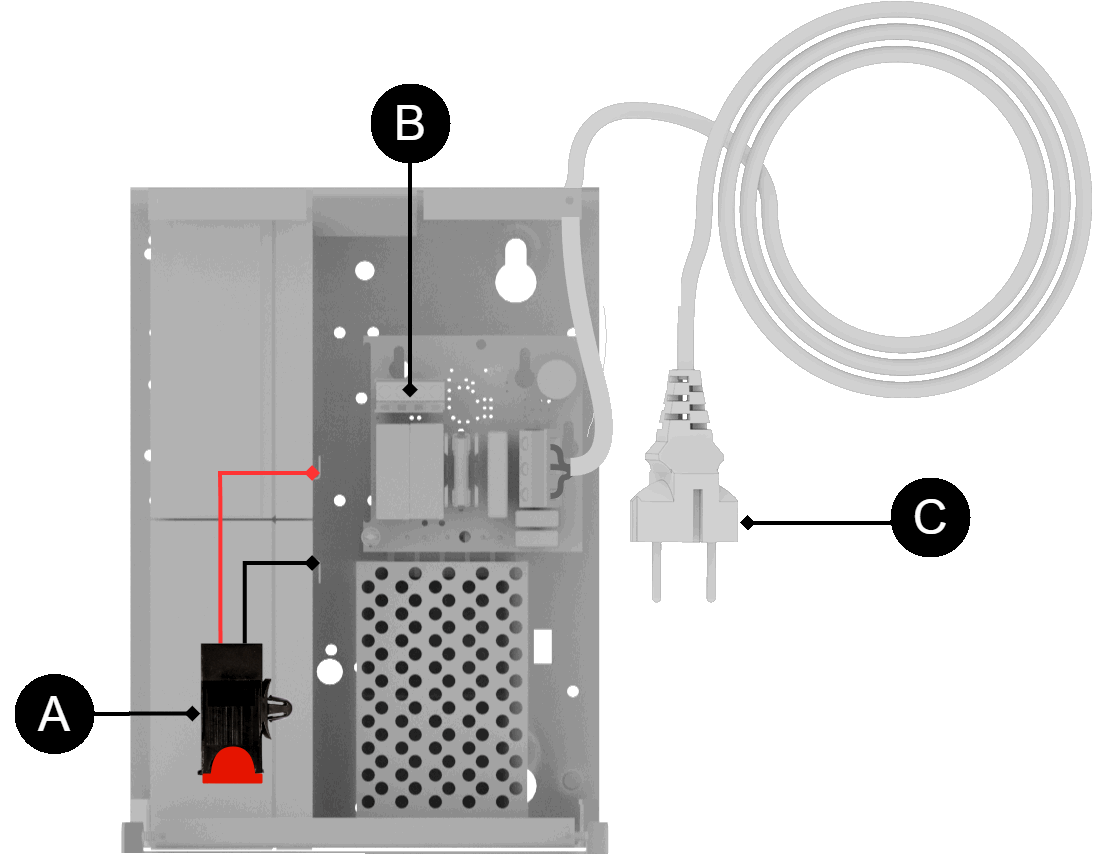

Commissioning - how to start the unit


After connection, start-up must take place in the following steps:

Table 10. Commissioning

Step

Explanation

A

Insert the fuse into the fuse holder.

B

Connect load, alarm and other connections.

C

Connect mains. Screw the mains cable into the terminal block and attach the terminal block to the motherboard.

The unit operates normally when the indicator diode on the outside of the cabinet door is illuminated with a solid green light.



Product sheet - power supply / battery backup

Product Sheet

ECO power supply with battery backup

Figure 4. ECO 24V 1A Mini
ECO 24V 1A Mini

ECO 24V 1A Mini is delivered with 230 V mains cable installed.



Product Identification

Table 11. Product designation, article number and e-number.

Product designation

Article number

E-number (SE)

ECO 24V 1A Mini 1.2Ah 230V

MI01C10524P010B01

52 137 97



Technical description

ECO 24V 1A Mini is a compact and reliable battery backup for 24V applications where easy installation and safe backup power are required. The unit is designed for control and operation of smaller loads and comes with two 1.2 Ah batteries mounted in the housing. The battery backup has built-in charging, load output, potential-free alarm output and clear indication for normal operation, mains interruption/low battery voltage and triggered load protection. The power cut/low battery voltage function can be selected via jumper. The ECO 24V 1A Mini is mounted in a powder-coated metal cabinet and connects to 230 V AC via the supplied cable with plug

Table 12. Quick Facts

Quick Facts

Supply voltage (V)

230V AC, +/- 10%, 47Hz- 63Hz

Voltage out (V)

27.3 V DC, (24 V DC)

Current output (A), max load current output.

1 A

Batteries[a]

2 x 1.2Ah

[a] Recommended. If batteries are included, it is indicated, otherwise batteries are ordered separately



Areas of application

Table 13. Areas of application

Areas of application

Yes

No

Access system (door reader, magnetic lock, electric terminal plate, etc)

Burglar alarm



Electrical data

Table 14. Electrical data

Electrical data

Supply voltage

230V AC, +/- 10%, 47Hz- 63Hz

Charge current

Depending on the power outlet. Max 1 A

Efficiency[a]

86%

Standby consumption

1.26 W

Voltage out

27.3 V DC, (24 V DC)

Current (A)[b]

1 A

[a] At rated load.

[b] Power outlet/load is specified as max, normal current output should be 80% of max.



Table 15. Fuses

Fuses

Mains fuse

2.5 A

Load fuses

1 A

Battery fuse

10A



Load outputs

Table 16. Load outputs

Load outputs

Number of load outputs

! 1



Alarm and protection

Table 17. Alarm and protection

Alarm and protection

Yes

No

Cold Start

Deep discharge protection, see Battery[a]

Overload Protection/Surge Protection

Over-temperature protection

Short circuit protection

[a] When the deep discharge protection is activated, the device turns off and the LED goes out.



Communication and Indications

Table 18. Communication and Indications

Communication and Indications

Yes

No

Other. info.

Communication

Indicators/LEDs



Battery

Table 19. Technical data - Batteries

Battery

Ref. Batteries[a]

2 x 1.2Ah

Battery type

Maintenance-free AGM (lead-acid) batteries

Deep discharge protection

Activates when the system voltage drops below about 20 V DC.

Other sizes of batteries that can be used

2 x 2.3 Ah.

[a] If batteries are included, it is indicated, otherwise batteries are ordered separately.



Enclosure and Mechanics

Table 20. Enclosure and Mechanics

Enclosure and Mechanics

Type

Universal enclosure for wall

IP class

IP20

Colour

White

Knockout hole

1 pc. on the back

Lock

✔ 2 keys included

Fan in enclosure



Assembly, installation and eligibility requirements

Table 21. Fitting

Fitting

Yes

No

Wall.



Table 22. Installation

Installation

Yes

No

Fixed installation



Dimensions, weight and packaging information

Table 23. Dimensions

Dimensions, (WxHxD).

Dimensions with packaging[a]

202 x 148 x 62mm

100 x 210 x 155 mm

[a] Dimensions (WxHxD) of product and packaging may differ, this is because the product may be oriented differently in the package.



Table 24. Weight

Net weight

Weight with packaging

2.1 kg

2.2 kg



Table 25. Packaging

Packaging

Packaging

Quantity in pack

1 pc.

Packaging Type (GS1 T0137)

BX box.

Conditions EUR pallet

EUR pallets may not be stacked during transport or storage. Stacking may result in damage to product and packaging

Transport environment

The product must be protected from condensation and direct precipitation during transportation.

Transport temperature (with battery)

−20 °C to +50 °C

Storage environment

Dry indoor environment, protected from condensation. Relative humidity: max 95%, non-condensing

Storage temperature with batteries

0 °C to +40 °C



Fits

Optional card cannot be attached to the product

Contact

Table 26. Contact

Department

Switchboard

031-340 02 30

Support and technical issues

support@milleteknik.se

Sales

sales@milleteknik.se

WWW

www.milleteknik.se

Address

Ögärdesvägen 8B, 433 30 Partille



About this information

All information is published subject to possible errors. Information is updated without prior notice.

Publication date 2026-06-29

Compliance and regulatory compliance

Delivery time, warranty and terms

Table 27. Delivery time, warranty and terms

Delivery time, warranty and terms

Warranty period[a]

The product has a two (2) year warranty against manufacturing defects.

Special warranty conditions

See also general terms and conditions.

General Terms and Conditions

ALEM09 with exceptions, see: www.milleteknik.se/conditions/

Support

Telephone support and email support during the warranty period are free of charge. For spare parts that are not covered by warranty, there is a charge

Delivery and stock

Delivery time[b]

Or as per agreement. Delivery from factory, transportation time is added.

[a] If the device is purchased through a wholesaler or other supplier, other warranty conditions may apply

[b] In the case of larger orders, delivery time increases, acc. to agreement.



Operation and maintenance

Table 28. Operation

Operation

Data

Other. info

Environment

Operating temperature (recommended)

+15°C to +25°C

Operating temperature (permissible)[a]

+5°C to +40°C

Class 1 according to EN 50131-6/ EN 60839-11

Load, power supply

80%

Average load shall not exceed 80% of the rated capacity of the power supply.

Ventilation, free distance around the enclosure.

100 mm

Ventilation openings must not be blocked or covered.

[a] Specifies the permissible ambient temperature range in which the product can operate without damage. See also table on battery life.



Table 29. Maintenance

Yes

No

Interval

Other. info

Annually

Battery terminal voltage must be measured. Ensure that the average load does not exceed 80% of the rated capacity of the power supply.



Certifications and approvals

Table 30. Approved according to

Complies with

Directives

Emissions

Immunity

EN61000-6-2:2005, EN61000-4-2, -3, 4, -5, -6, -11 SS-EN 50130-4:2011 Edition 2, EN50131-6

C.E.

CE marking according to (EC) 765/2008

EMC

EMC Directive 2014/30EU

Electric (LVD)

Low Voltage Directive: 2014/35/EU



Environmental data

Table 31. Environmental data

Environmental data

J/N

Informație

Other. info.

Building Product Declaration (BPD)

Yes, see iBvd at www.milleteknik.se.

-

REACH Information Obligation

(EC) No 1907/2006

If empty, the product is not covered.

SVHC substances, CAS/EC

For text, see iBvd at www.milleteknik.se. If blank, substance is missing.

Subject to the RoHS Directive, (EU) 2015/863)

WEEE

2012/19/EU

If empty, the product is not covered. End-of-life products must be returned to a recycling centre

Battery Regulation

(EU) 2023/1542

SCIP No

2008/98/EC

If empty, no SCIP number is needed.

Conflict minerals

(EU) 2017/821

✗/✗/✗/✗/✔

No=Gold, Tungsten, Tantalum, Cobalt. Yes=Tin

Tin in solders in printed circuit boards purchased through a Swedish supplier.

Contains nanomaterials:

EC 1272/2008

The product does not contain nanomaterials.

Ecodesign

2009/125/EC

Milleteknik's products are intended for professional use and are therefore not directly covered by the Ecodesign Regulation (EU 2019/1782). As some components may be covered, we nevertheless disclose relevant information[a], where applicable, to provide our customers with confidence in their choice.

Machine Directive

2006/42/EC

The product is part of electrical systems, is subject to the relevant electrical and safety directives and is not a machine according to the Machinery Directive (2006/42/EC).

Will be replaced by Machinery Regulation (EU) 2023/1230, which will apply in 2027.

The product is designed for a long service life, which reduces the environmental impact. End-of-life products are handed over to the nearest recycling centre.

[a] Standby consumption and power.



soptunna_atervinning.ai

Manufacturer and country of origin

Table 32. Manufacturer and country of origin

Manufacturer[a]

Customs State. Nos.

85044095[b]

Country of origin

[a] Manufacturer is the trademark indicated on the product, regardless of what is stated in this product sheet.

[b] Verify with the Customs Ombud/Customs Service for export/import; alternative classification 85044055 may become applicable if the product is assessed as a battery charger.



Appendix

Backup operating time on batteries

The reserve operating time in battery operation depends on how large a load is connected to the power supply. If the load varies, as with frequent opening of door locks, the time that batteries can continue to power the security system decreases. To get an estimate of reserve operating times see: www.milleteknik.se/Manualer/FaQ/Reservdrifttider/

Eligibility requirements, installation

Eligibility requirements vary between countries. The table summarizes national requirements for fixed installation and connection of equipment with a plug socket, respectively.

Options on the secondary side of the product, such as 12 V, 24 V or 48 V DC, are connected according to the respective instructions. Work on the network connection of the product shall be carried out in accordance with national eligibility requirements

Table 33. Eligibility requirements by country. Applies only to the installation of this product in a fixed network connection

Permission Requirements for Installation

Fixed installation (230 V)

Plug

Other. info

Sweden

Fixed installation may be performed by technicians but shall be under the responsibility of a qualified installer. (Electrical Safety Act, SS 436 40 00) Plug may be connected without authorization.

Norway

Requirements for qualified electricians also for equipment with a plug socket in fixed installations. (NEK 400, DSB

Finland

Plug may be connected without authorization. (Tukes, SFS 6000

Denmark

Plug may be connected without authorization. (Safety Board

Germany

All fixed installations require a qualified electrician according to VDE 0100. Plug sockets may be connected without authorization, but only by person with basic electrical knowledge (“Elektrotechnisch unterwiesene Person”)



Reference table: environmental classes according to EN 50130-5 (referred to in EN 50131-6)

Table 34. Reference table: environmental classes according to EN 50130-5 (referred to in EN 50131-6)

Class

Type

Temperature range

Environmental Class 1

Heated indoors (type office/residence).

+5°C to +40°C

Environmental Class 2

Generally indoors (type warehouses/stairwells, not temperature controlled).

-10°C to +40°C

Environmental class 3

Protected outdoors.

-25°C to +50°C

Environmental class 4

Generally outdoors.

-25°C to +60°C



Reference table: manufacturer's stated service life and recommended battery replacement

Table 35. Reference table: manufacturer's stated service life and recommended battery replacement

Battery Type (Design Life)[a]

Battery replacement time in normal operation, +20°C.

Replacement during hot operation, +30°C

Replacement during hot operation, +40°C

3 - 5 years

2 - 3 years

1 - 1.5 years

0.5 - 0.75 years

6 - 9 years

5 - 6 years

2.5 - 3 years

1.2 - 1.5 years

10 - 12 years

6 - 7 years

3 - 3.5 years

1.5 - 1.75 years

15 + years

10 - 12 years

5 - 6 years

2.5 - 3 years

[a] Valid in case of completely unused battery stored under optimal conditions.



About this information

All information is published subject to possible errors. Information is updated without prior notice.

Publication date 2026-06-29
