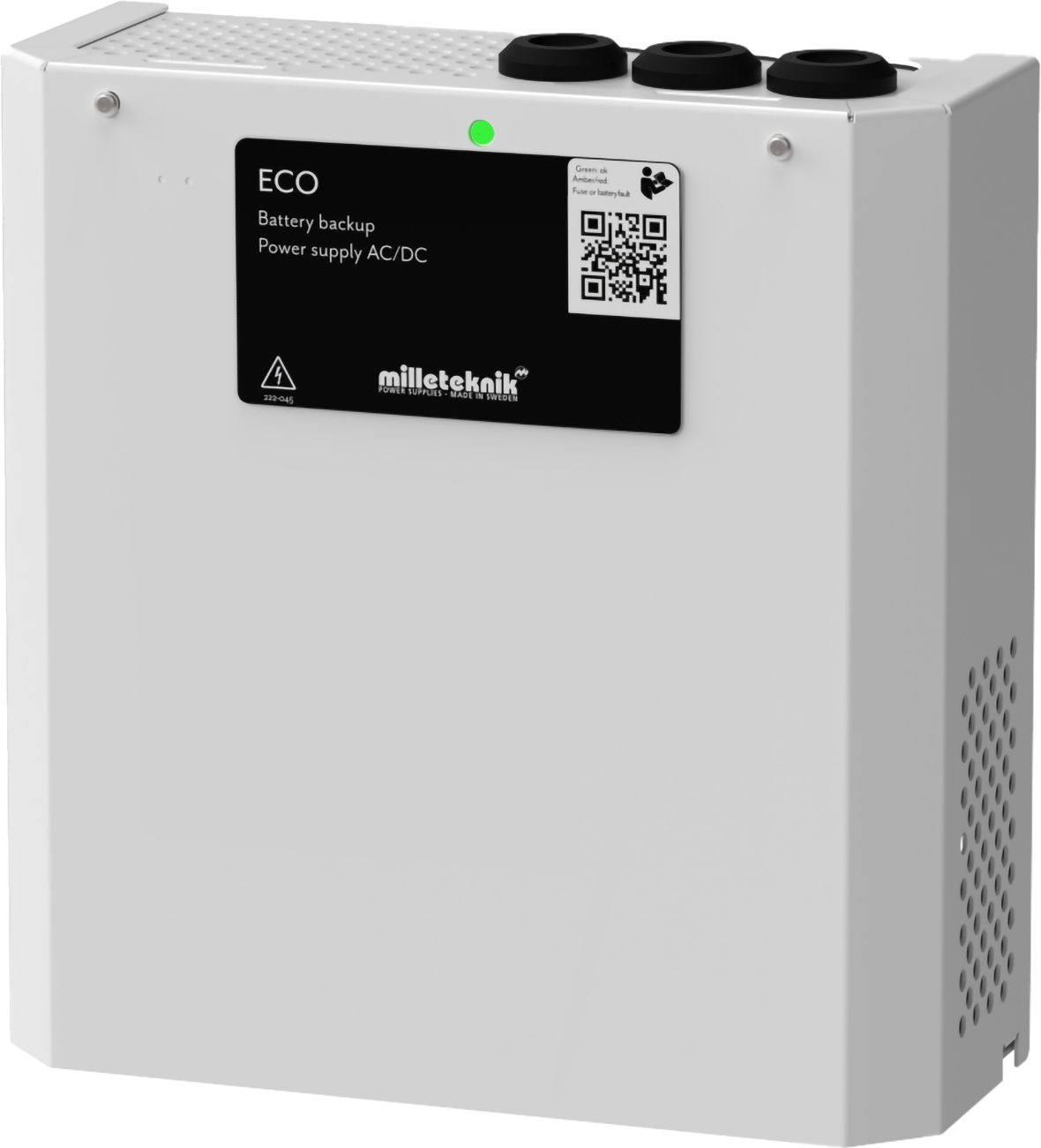

ECO 24V 1A S

Supply voltage (V)

230V AC, +/- 10%, 47Hz- 63Hz

Voltage out (V)

27.3 V DC, (24 V DC) Also applicable in battery operation.

Current output (A), max load current output.

1 A

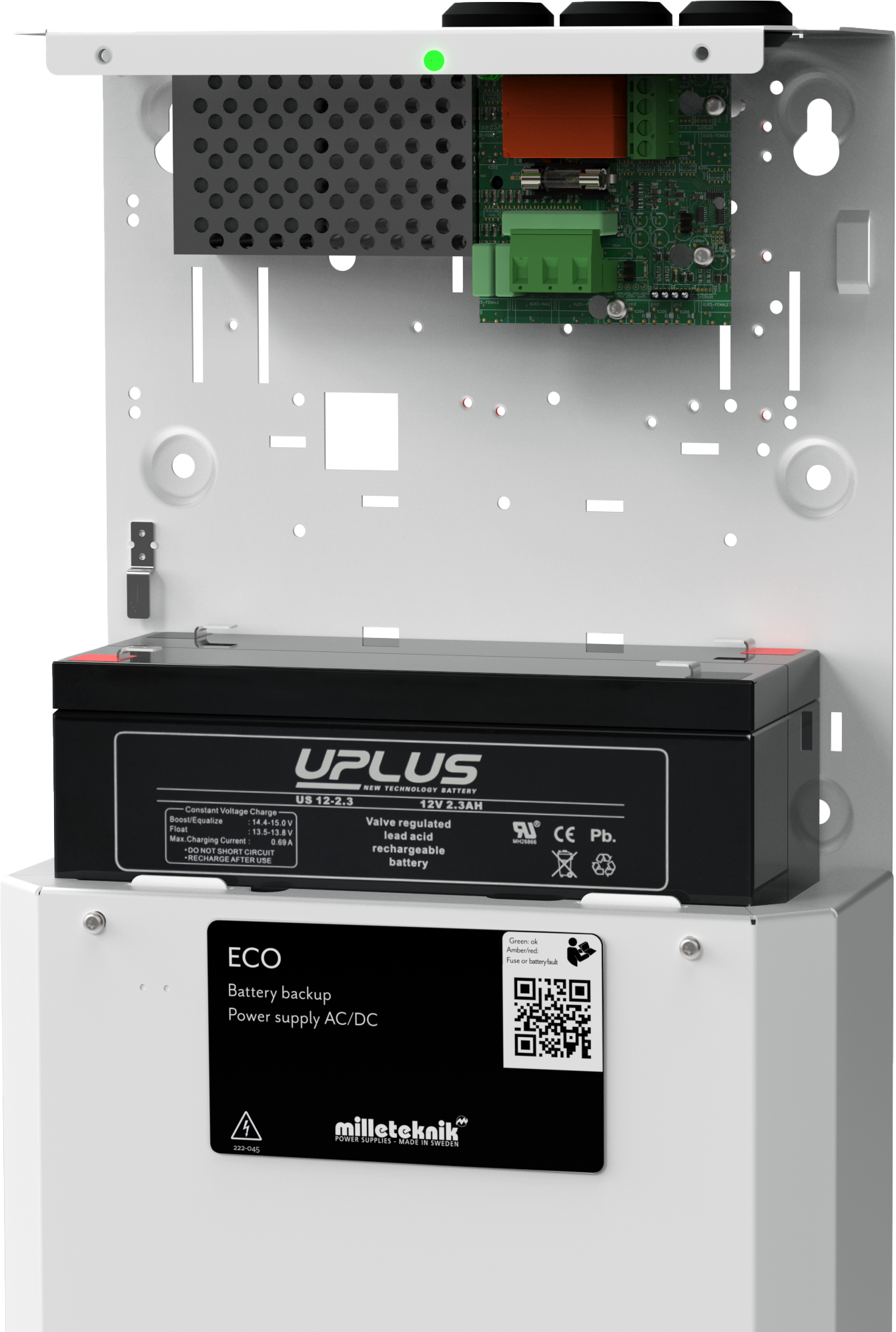

Batteries^[a]

2 x 2.3 Ah

Access system (door reader, magnetic lock, electric terminal plate, etc)

✔

Burglar alarm

✔

Supply voltage

230V AC, +/- 10%, 47Hz- 63Hz

Charge current

Max 1 A

Efficiency^[a]

86%

Standby consumption

1.26 W

Voltage out

27.3 V DC, (24 V DC) Also applicable in battery operation.

Current (A)^[b]

1 A

Mains fuse

2.5 A

Load fuses

1 A

Battery fuse

16A

Number of load outputs

! 2^[a]

Communication

✘

Communication with the parent system is not supported.

Indicators/LEDs

✔

LED displays information and alarms on circuit boards and on the outside of the housing.

Ref. Batteries^[a]

2 x 2.3 Ah

Battery type

Maintenance-free AGM (lead-acid) batteries

Deep discharge protection

Activates when the system voltage drops below about 20 V DC.

Type

Universal enclosure for wall

IP class

IP20

Material

Powder coated sheet metal.

Colour

White

Height units

6

Cable grommets

2 pcs

Knockout hole

1 pc. on the back

Fan in enclosure

✘

19" rack.

✔

Wall.

✔

Fixed installation.

✔

Packaging

Cardboard and impact protection in cardboard.

Quantity in pack

1 pc.

Packaging Type (GS1 T0137)

BX box.

Conditions EUR pallet

EUR pallets may not be stacked during transport or storage. Stacking may result in damage to product and packaging

Transport environment

The product must be protected from condensation and direct precipitation during transportation.

Transport temperature (without battery)

−30 °C to +70 °C

Storage environment

Dry indoor environment, protected from condensation. Relative humidity: max 95%, non-condensing

Storage temperature without batteries

−20 °C to +60 °C

Switchboard

031-340 02 30

Support and technical issues

support@milleteknik.se

Sales

sales@milleteknik.se

WWW

www.milleteknik.se

Address

Ögärdesvägen 8B, 433 30 Partille

Warranty period^[a]

The product has a two (2) year warranty against manufacturing defects.In addition to the regular warranty period, an additional three (3) year warranty can be purchased.

Special warranty conditions

Batteries and wear parts are not covered by warranty. See also general terms and conditions.

General Terms and Conditions

ALEM09 with exceptions, see: www.milleteknik.se/conditions/

Support

Telephone support and email support during the warranty period are free of charge. For spare parts that are not covered by warranty, there is a charge

Delivery and stock

Delivery time^[b]

3 working days. Or as per agreement. Delivery from factory, transportation time is added.

Environment

Indoor environmental class 1.

Operating temperature (recommended)

+15°C to +25°C

For the best battery life. Higher temperatures significantly shorten the life of the batteries.

Operating temperature (permissible)^[a]

+5°C to +40°C

Class 1 according to EN 50131-6/ EN 60839-11

Load, power supply

80%

Average load shall not exceed 80% of the rated capacity of the power supply.

Ventilation, free distance around the enclosure.

100 mm

Ventilation openings must not be blocked or covered.

✔

Maintenance-free.

C.E.

CE marking according to Regulation (EC) No 765/2008

RoHS

RoHS Directive 2011/65/EU, including amendment (EU) 2015/863

EMC

EMC Directive 2014/30/EU

Electric (LVD)

Low Voltage Directive 2014/35/EU

Building Product Declaration (BPD)

✔

Yes, see iBvd at www.milleteknik.se.

-

REACH Information Obligation

(EC) No 1907/2006

✔

Yes, see the DoC at www.milleteknik.se The product complies with REACH Regulation (EC) No 1907/2006.

If empty, the product is not covered.

SVHC substances, CAS/EC

✔

Yes, lead, 7439-92-1/231-100-4

For text, see iBvd at www.milleteknik.se. If blank, substance is missing.

Subject to the RoHS Directive, (EU) 2015/863)

✔

Yes, see the DoC at www.milleteknik.se

WEEE

2012/19/EU

✔

The product contains electrical components or wiring and is covered by the WEEE Directive (2012/19/EU).

If empty, the product is not covered. End-of-life products must be returned to a recycling centre

Battery Regulation

(EU) 2023/1542

✔✗

If the product is supplied with batteries, it is covered by the Battery Regulation otherwise no.

Expired batteries must be removed from the product and returned to a recycling centre.

SCIP No

2008/98/EC

✔

Yes, registered under the EU Waste Directive where applicable, (2008/98/EC).

If empty, no SCIP number is needed.

Conflict minerals

(EU) 2017/821

✗/✗/✗/✗/✔

No=Gold, Tungsten, Tantalum, Cobalt. Yes=Tin

Tin in solders in printed circuit boards purchased through a Swedish supplier.

Contains nanomaterials:

EC 1272/2008

✗

The product does not contain nanomaterials.

Ecodesign

2009/125/EC

Milleteknik's products are intended for professional use and are therefore not directly covered by the Ecodesign Regulation (EU 2019/1782). As some components may be covered, we nevertheless disclose relevant information^[a], where applicable, to provide our customers with confidence in their choice.

Machine Directive

2006/42/EC

The product is part of electrical systems, is subject to the relevant electrical and safety directives and is not a machine according to the Machinery Directive (2006/42/EC).

Will be replaced by Machinery Regulation (EU) 2023/1230, which will apply in 2027.

The product is designed and constructed for a long service life, which reduces the environmental impact. The life of the product (except wearing parts) depends on, among other things, environmental factors, mainly ambient temperature, unforeseen load on components such as lightning strikes, external impact, handling errors, etc. Products are recycled, simply because they are modular, by being left at the nearest recycling station or sent back to the manufacturer.^[b]Contact your distributor for more information.

Manufacturer^[a]

Milleteknik AB

Customs State. Nos.

85044095^[b]

Country of origin

Sweden

Sweden

✔

✗

Fixed installation may be performed by technicians but shall be under the responsibility of a qualified installer. (Electrical Safety Act, SS 436 40 00) Plug may be connected without authorization.

Norway

✔

✔

Requirements for qualified electricians also for equipment with a plug socket in fixed installations. (NEK 400, DSB

Finland

✔

✗

Plug may be connected without authorization. (Tukes, SFS 6000

Denmark

✔

✗

Plug may be connected without authorization. (Safety Board

Germany

✔

✗

All fixed installations require a qualified electrician according to VDE 0100. Plug sockets may be connected without authorization, but only by person with basic electrical knowledge (“Elektrotechnisch unterwiesene Person”)

Environmental Class 1

Heated indoors (type office/residence).

+5°C to +40°C

Environmental Class 2

Generally indoors (type warehouses/stairwells, not temperature controlled).

-10°C to +40°C

Environmental class 3

Protected outdoors.

-25°C to +50°C

Environmental class 4

Generally outdoors.

-25°C to +60°C

3 - 5 years

2 - 3 years

1 - 1.5 years

0.5 - 0.75 years

6 - 9 years

5 - 6 years

2.5 - 3 years

1.2 - 1.5 years

10 - 12 years

6 - 7 years

3 - 3.5 years

1.5 - 1.75 years

15 + years

10 - 12 years

5 - 6 years

2.5 - 3 years
