Name, article number and e-number
Name | Item number | E-number (sv) |
|---|---|---|
10 Output Module ATO 24V 1HE | 1U02FU002410OP01 | 52 137 11 |
Area of use
10 Output Module ATO 24V 24V 1HE distributes and secures power to up to ten 24V applications. It is conveniently mounted in a 19” rack and alarms in case of fuse failure via LED and relay. Three of the cargo exits are priority, while seven are unprioritized. In the event of a power outage, the voltage on the unsecured outputs is broken. Need more connections? Easily expand with two extra cards and get a total of 30 outputs
Component overviews

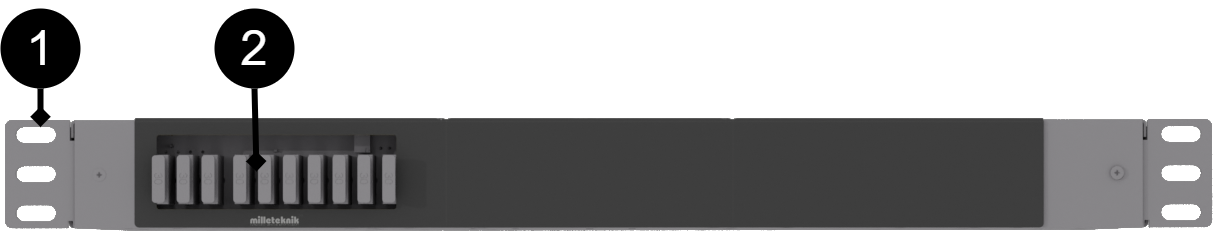

Component overview
No | Explanation |
|---|---|
1 | Motherboard. |
2 | 10 Output module ATO, load switching is done by opening the cover and connecting load on terminals on the back of the board. |

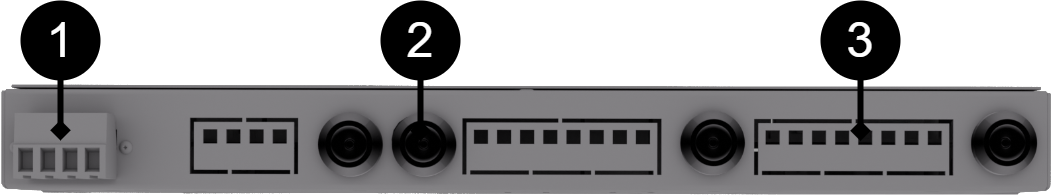

No . | Explanation | Comment |
|---|---|---|
1 | Connection of battery cables | 24V. |
2 | Load output 2 | The fuse on the front is the one closest to the display. |
3 | Load output 1 | Fuse on the front is the one closest to the corner. |
Mounting in 19" rack

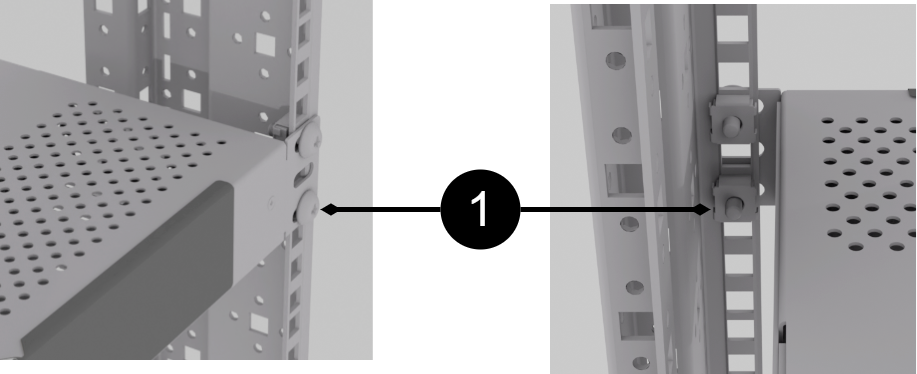

The unit is a height unit (44 mm) high, and should be mounted in 19" racks with two screws on each side (1).
Screw and nut for 19" rack not included.
Caution
Leave at least 100 mm above and below for best ventilation.

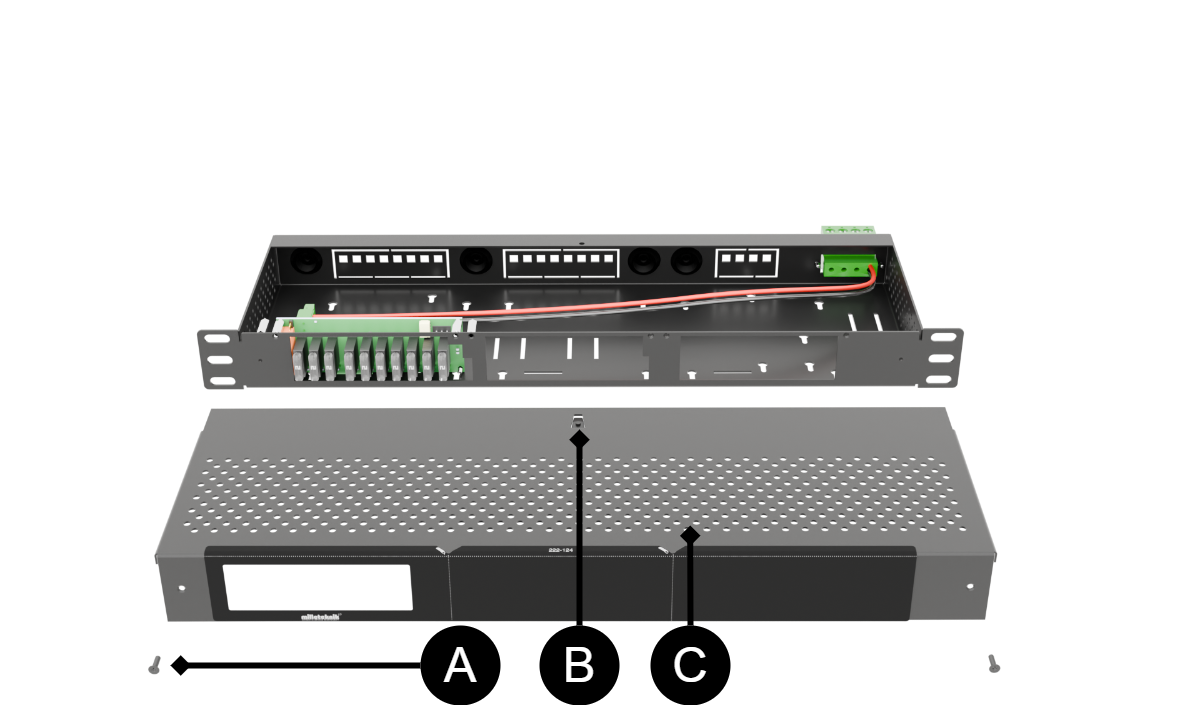

Open the lid
Load is plugged in at the back. To reach the jackable terminals, the cover needs to be removed.
Unscrew the two screws on the front of the lid.
Press down with a screwdriver on the cap (B) while pushing out the cover.
Configuration varies but the cover is removed in the same way.
Letter | Explanation |
|---|---|
A | Screw. |
B | Glue/fastener in lid and bottom. |
C | Lid. |
Plug into this order
Plugging in load and alarm.
Plug in power supply, 24V .

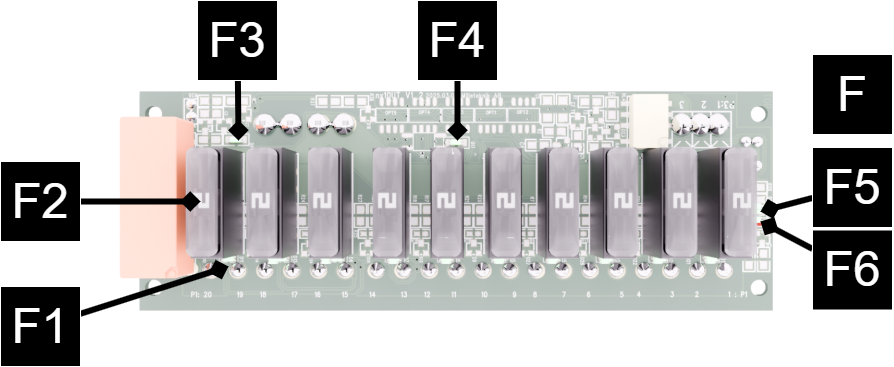

Description 10 Output module ATO
F=Front | Explanation |
|---|---|
F1 | LED, lights green when fuse is full. |
F2 | Fuse. |
F3 | LED - glows green at ten active outputs. |
F4 | Glows green at only seven active outputs in battery operation. |
F5 | LED, Glows green when all fuses are ok. |
F6 | LED, Glows red when any fuse is broken. |

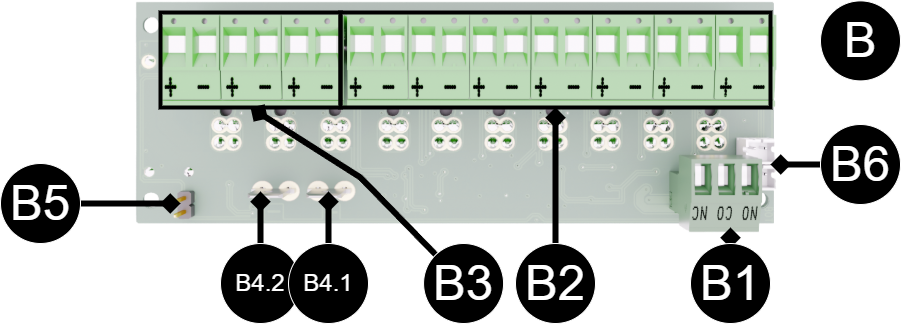

B=Back | Explanation |
|---|---|
B1 | Switching alarm, NC/COM/NO. |
B2 | Load output 1-7, priority. |
B3 | Load output 8-10, adjustable to priority. |
B4 | Connection 24 V in. |
B5 | Jumper to set whether output 8-10 should be priority or not. The card comes with a jumper and then the outputs (8-10) are prioritized. When jumper does not sit on jumper, exits are unprivileged |
B6 | White connector. |

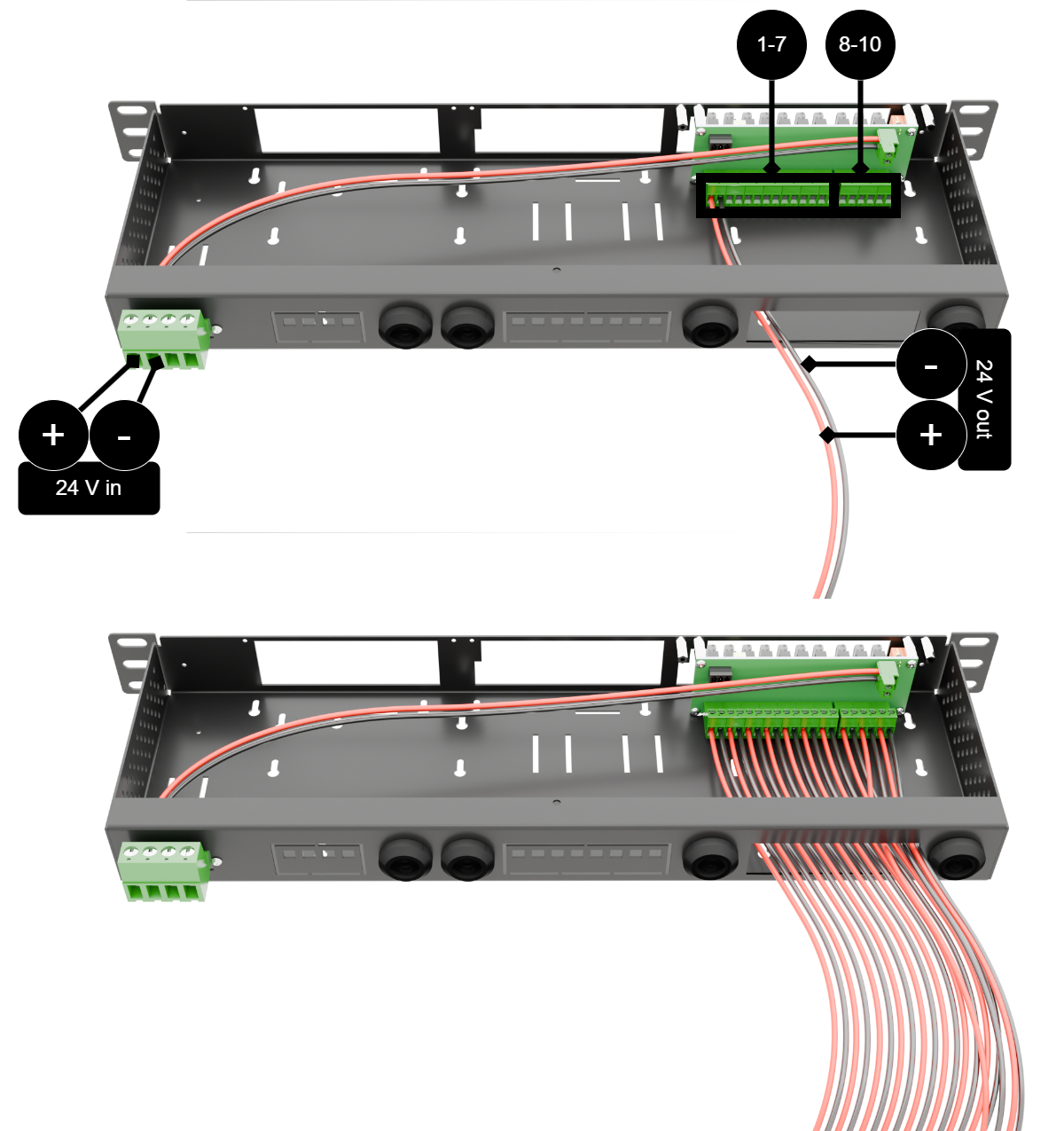

Plug-in - load
In picture | Explanation |
|---|---|
+/- 24V in | Incoming 24 V. |
1-7 | Load output 1-7, priority. Always active. |
8-10 | Load output 8-10, unsecured. Closes on battery operation, (if |
+/- 24V out | 24 V out. |

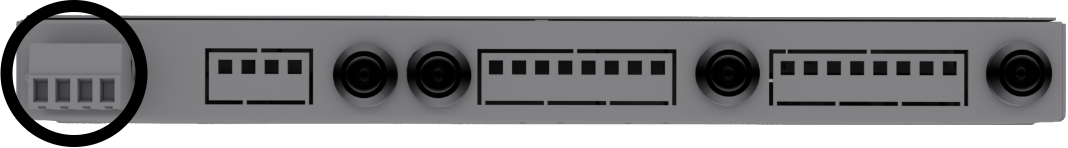

Plug-in - power supply
Switching on 24V takes place on the back, via the jackable terminal.
Compatible Products
The product is compatible with all Milleteknik battery backups that supply 24V DC out.
Product sheet - power supply / battery backup
Product sheet - power supply from Milleteknik

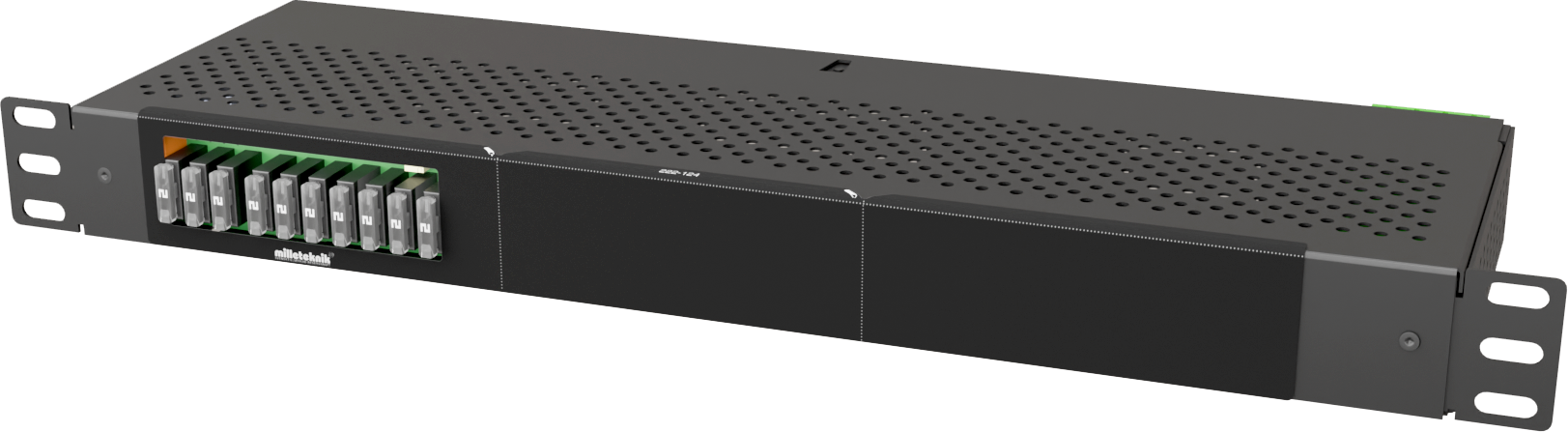

Product image
Name, article number and e-number
Name | Item number | E-number (sv) |
|---|---|---|
10 Output Module ATO 24V 1HE | 1U02FU002410OP01 | 52 137 11 |
Designation
Fuse board with 10 load outputs, protected with blade fuses, in enclosure for 19" rack.
Area of use
10 Output Module ATO 24V 24V 1HE distributes and secures power to up to ten 24V applications. It is conveniently mounted in a 19” rack and alarms in case of fuse failure via LED and relay. Three of the cargo exits are priority, while seven are unprioritized. In the event of a power outage, the voltage on the unsecured outputs is broken. Need more connections? Easily expand with two extra cards and get a total of 30 outputs
Common uses
For the expansion of more 24V applications in access systems, such as door environments.
For more devices in security applications in alarm systems, such as magnetic holders.
Technical description
Cancellation board with ten 1-pole capped outputs. Each output has a blade fuse and can be loaded with up to 2 A per output and a maximum of 10 A for the entire board Can be expanded with two additional cards for a total of 30 outputs.
Voltage, current and power
Voltage in: 27.3 V DC, (24 V).
Voltage Out: 27.3 V DC, (24 V).
Power Outlet: 10 A. Max 2 A per output.
Outputs
Ten 1-pole secured load outputs, three of which can be configured as unsecured to break in the event of a power outage.
Alarm
Fuse failure is indicated via LED and a switching relay for quick troubleshooting.
Fuses
Load fuses:
Indications and communication
LED on card lights up when incoming supply is connected and output is connected.
Enclosure
Sheet metal box for mounting in a 19" rack stand. Powder coated black.
Weight
Name | Net weight | Weight incl. packaging |
|---|---|---|
10 Output Module ATO 24V 1HE | 1.7kg | 2.0 kg |
10 Output module for 1U02 | 0.2 kg | 0.3 kg |
Installation requirements
The device is intended for fixed installation. The unit must be installed indoors, environmental class 1, ambient temperature: +5°C to +40°C.
Requirements that the product meets
EMC: | EMC Directive 2014 / 30EU |
Electricity: | Low voltage directive: 2014/35 / EU |
CE: | CE directive according to: 765/2008 |
Environment | REACH Regulation: Directive 1907/2006, WEEE Regulation: Directive 20021961E, RoHS Regulation: Directive 2015/863 |
Note
The product is part of electrical systems, is subject to the relevant electrical and safety directives and is not a machine according to the Machinery Directive (2006/42/EC).
Guarantee
Manufacturing, lifespan, environmental impact and recycling
Manufactured by Milleteknik in Partille, Sweden.
About this information
All information is published subject to possible errors. Information is updated without prior notice. |
Publication date 2025-04-30
