Name, article number and e-number
Name | Item number | E-number (sv) |
|---|---|---|
10 Output module for 1U02 | A-FU002410OP02 | 52 137 12 |

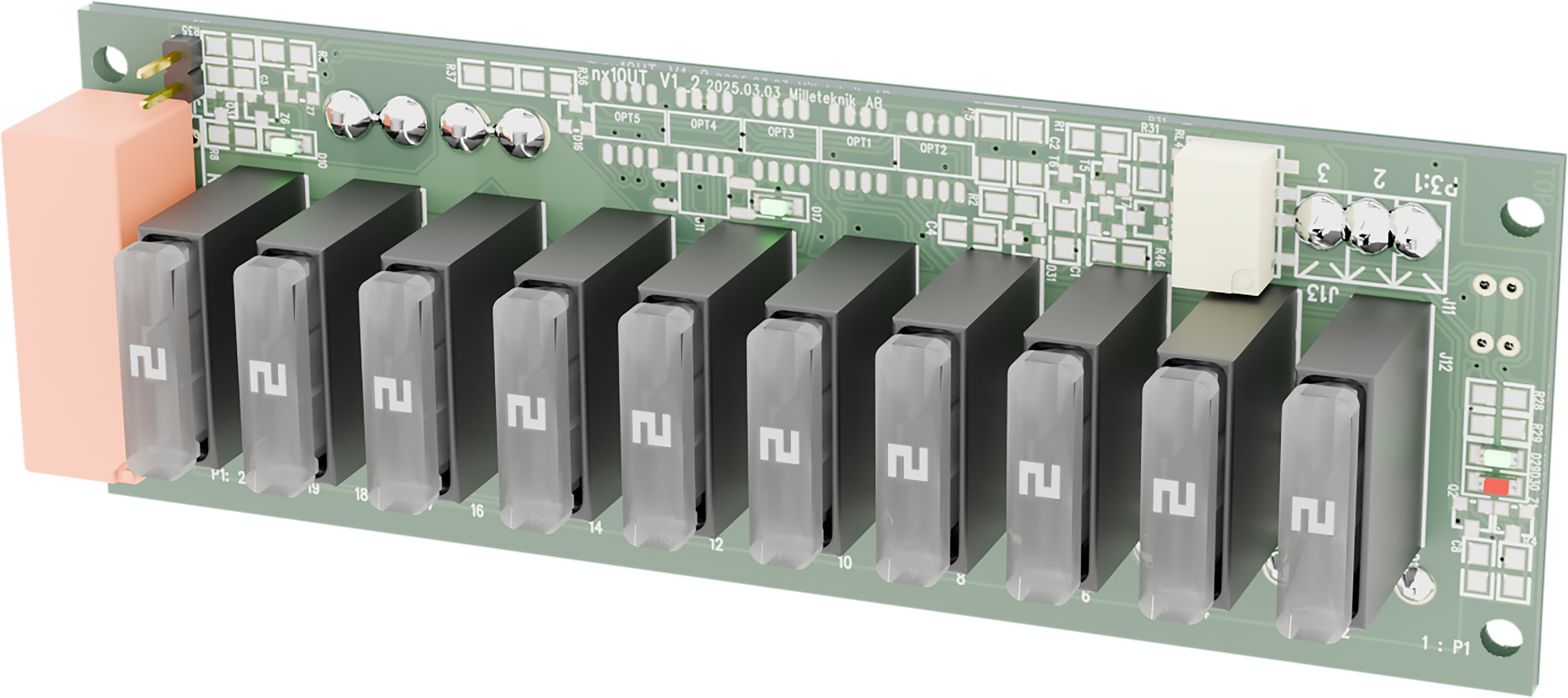

Product image
Area of use
10 Output Module ATO 24V distributes and secures power to up to ten 24V applications. It fits seamlessly into 10 Output Module ATO 24V 24V 1HE. Alarm in case of fuse failure via LED and relay. Three of the cargo exits are priority, while seven are unpriority. In the event of a power outage, the voltage on the unsecured outputs is broken. Need more connections? Easily expand with two extra cards and get a total of 30 outputs
Install the option in 1HE

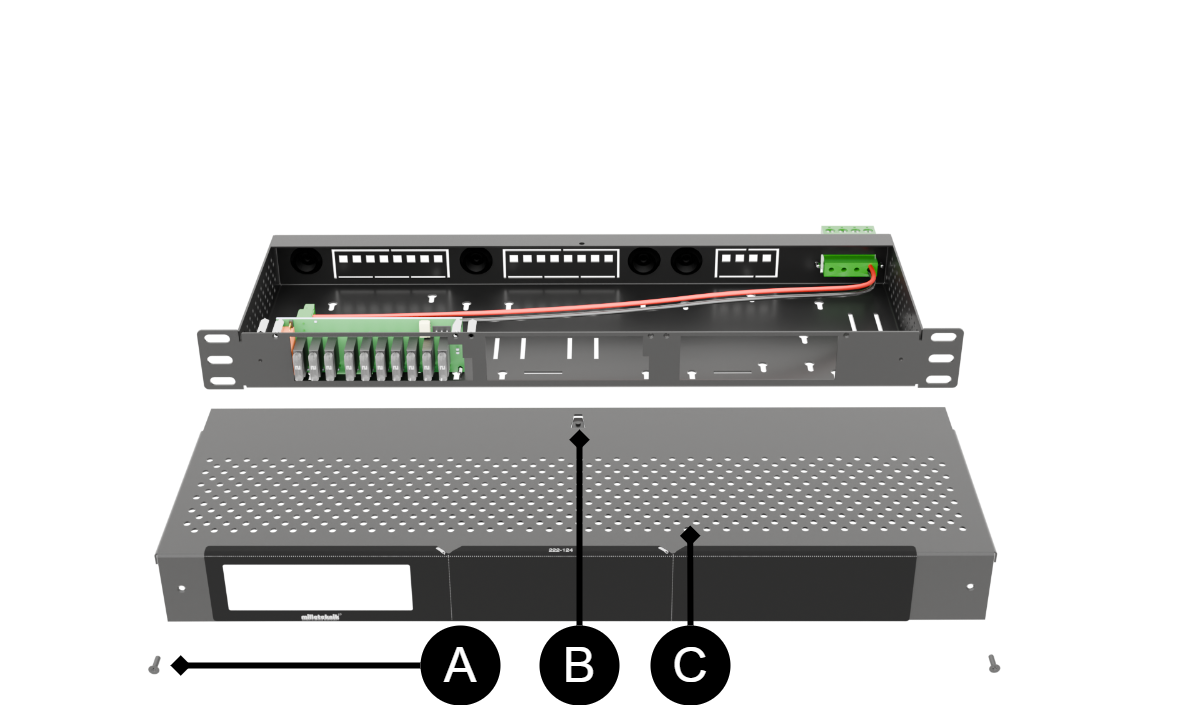

Open the lid
Load is plugged in at the back. To reach the jackable terminals, the cover needs to be removed.
Unscrew the two screws on the front of the lid.
Press down with a screwdriver on the cap (B) while pushing out the cover.
Configuration varies but the cover is removed in the same way.
Letter | Explanation |
|---|---|
A | Screw. |
B | Glue/fastener in lid and bottom. |
C | Lid. |

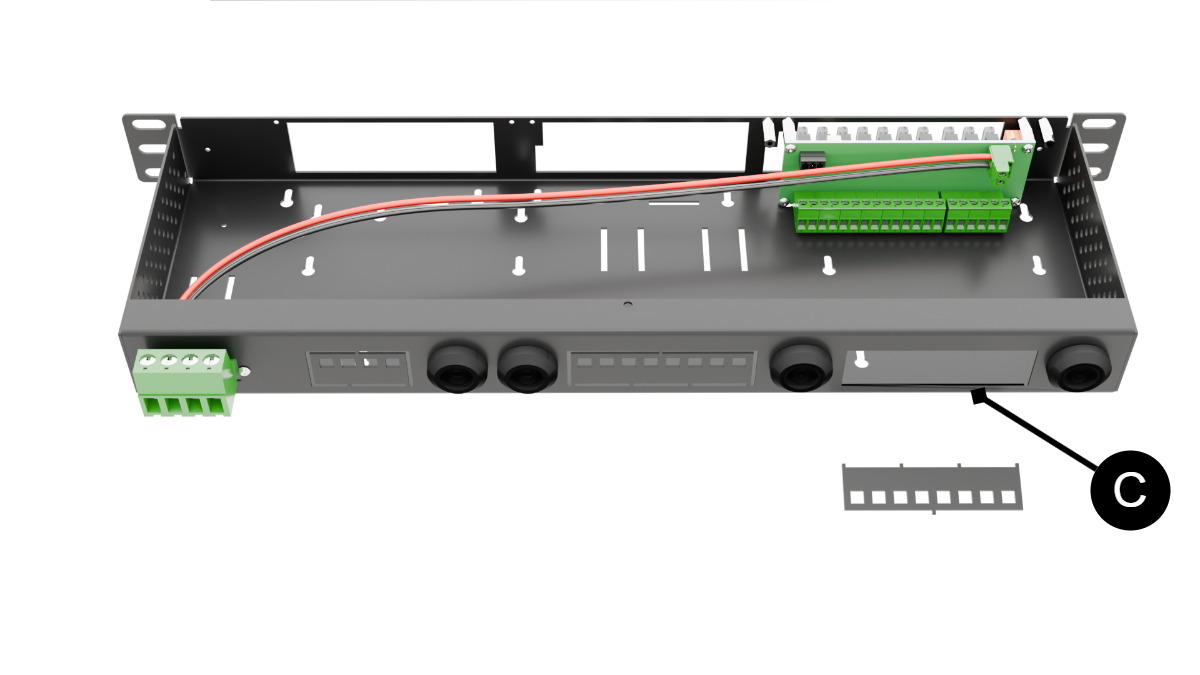

Removing knock-out on the back
Cut off the plate with which the knock-out (C) is stuck.

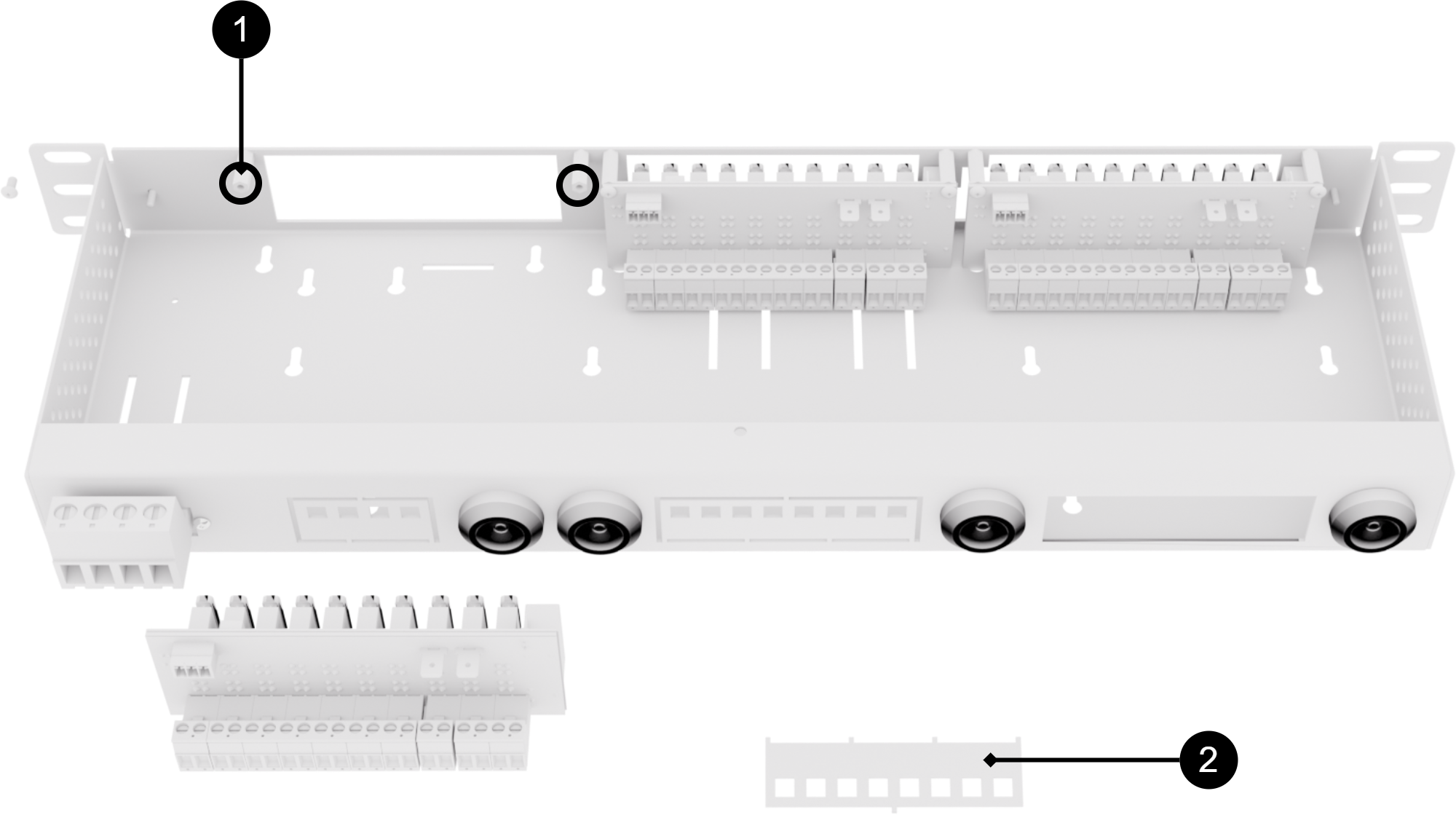

Mount the card in enclosure
No. | Explanation |
|---|---|
1 | Mount the board on spacers. Screw and spacers are provided in the included pouch |
2 | Cut away the knock-out. |

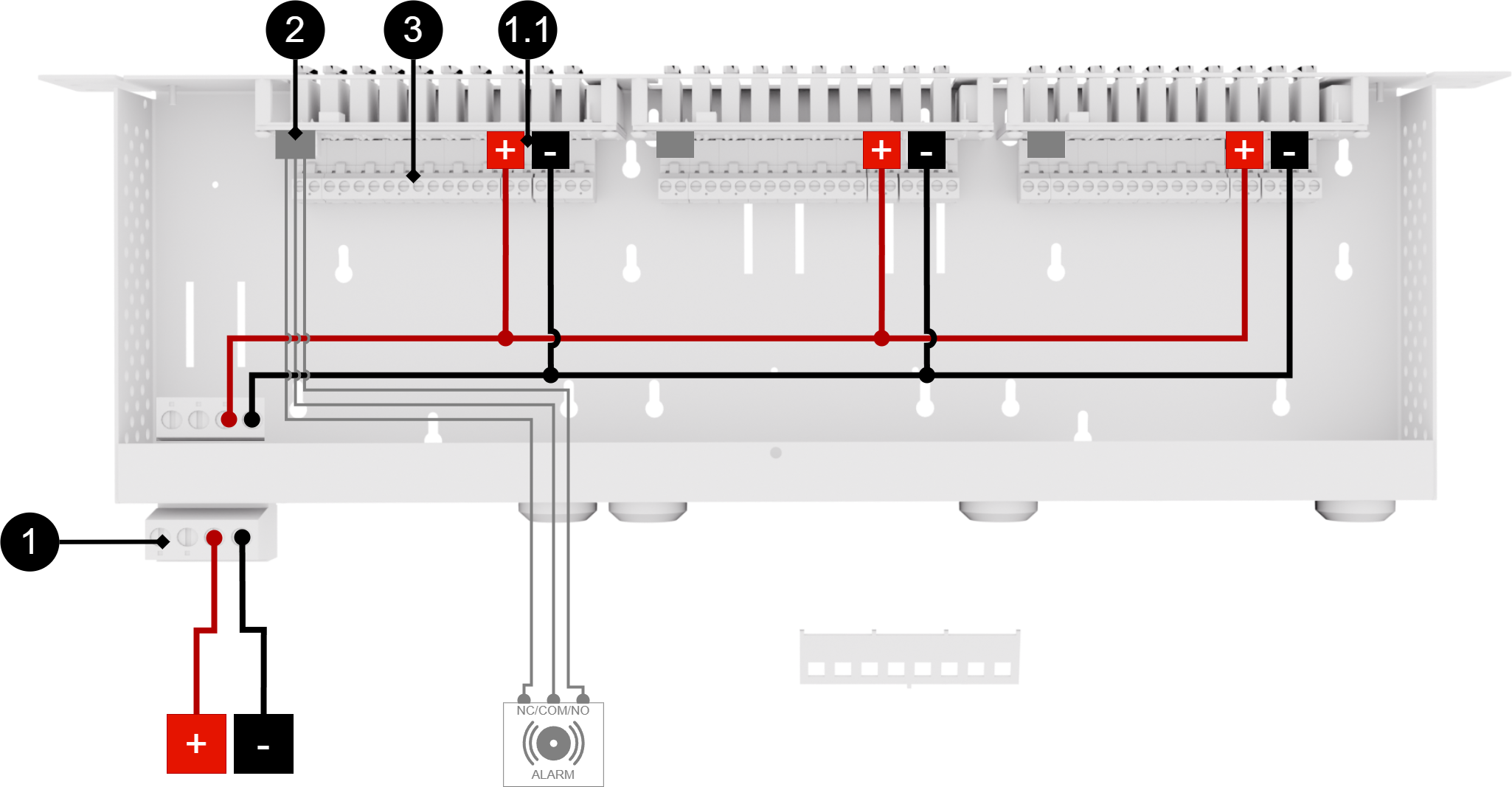

Plug into this order
Plugging in load.
Plug in power supply, .
No. | Explanation |
|---|---|
1 & 1.1 | Plug in power supply, . |
2 | Plug in alarm, NC/COM/NO. |
3 | Plug in load +/-. |
Compatible Products
The product is compatible with all Milleteknik battery backups that supply out.
Product sheet - power supply / battery backup
Product sheet - power supply from Milleteknik
Product image
Name, article number and e-number
Name | Item number | E-number (sv) |
|---|---|---|
10 Output module for 1U02 | A-FU002410OP02 | 52 137 12 |
Designation
Extends 10 output module ATO 24V 1HE with ten outputs.
Area of use
10 Output Module ATO 24V distributes and secures power to up to ten 24V applications. It fits seamlessly into 10 Output Module ATO 24V 24V 1HE. Alarm in case of fuse failure via LED and relay. Three of the cargo exits are priority, while seven are unpriority. In the event of a power outage, the voltage on the unsecured outputs is broken. Need more connections? Easily expand with two extra cards and get a total of 30 outputs
Common uses
For the expansion of more 24V applications in access systems, such as door environments.
For more devices in security applications in alarm systems, such as magnetic holders.
Technical description
Cancellation board with ten 1-pole capped outputs. Each output has a blade fuse and can be loaded with up to 2 A per output and a maximum of 10 A for the entire board
Voltage, current and power
Voltage in: 27.3 V DC, (24 V).
Voltage Out: 27.3 V DC, (24 V).
Outputs
Ten 1-pole secured load outputs, three of which can be configured as unsecured to break in the event of a power outage.
Alarm
Fuse failure is indicated via LED and a switching relay for quick troubleshooting.
Fuses
Load fuses:
Indications and communication
LED on card lights up when incoming supply is connected and output is connected.
Weight
Name | Net weight | Weight incl. packaging |
|---|---|---|
10 Output module ATO | 0.1 kg | 0.2 kg |
Installation requirements
Can only be installed in 10 Output Module ATO 24V 1HE
Requirements that the product meets
EMC: | EMC Directive 2014 / 30EU |
Electricity: | Low voltage directive: 2014/35 / EU |
CE: | CE directive according to: 765/2008 |
Environment | REACH Regulation: Directive 1907/2006, WEEE Regulation: Directive 20021961E, RoHS Regulation: Directive 2015/863 |
Note
The product is part of electrical systems, is subject to the relevant electrical and safety directives and is not a machine according to the Machinery Directive (2006/42/EC).
Guarantee
Manufacturing, lifespan, environmental impact and recycling
Manufactured by Milleteknik in Partille, Sweden.
About this information
All information is published subject to possible errors. Information is updated without prior notice. |
Publication date 2025-04-30
