Name, article number and e-number
Name | Item number | E-number (sv) |
|---|---|---|
PoE injector 4p 1HE | 1U02PI002404OP01 | 51 731 54 |
Area of use
PoE injector 4p 1HE supplies up to four devices with both power and data via PoE ports, without separate load outputs. Adds PoE feed to network connections that lack PoE. Easily mounted in a 19” rack. Supply: 24 V in, output voltage: 48 V DC via PoE ports. Need more ports? Plug in up to three devices for a total of 12 PoE outputs
Component overviews
Component overview
No | Explanation |
|---|---|
1 | Bracket for 19" rack. |
2 | PoE in (over) |
3 | PoE out (below) |

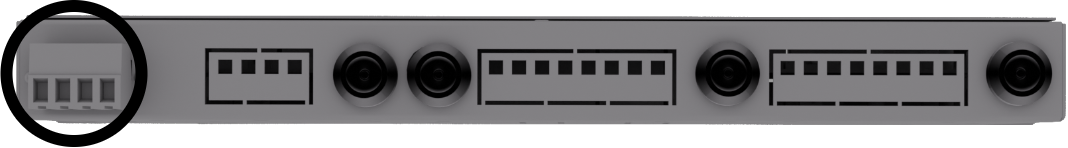

No . | Explanation | Comment |
|---|---|---|
1 | Connection of battery cables | 24V. |
2 | Load output 2 | The fuse on the front is the one closest to the display. |
3 | Load output 1 | Fuse on the front is the one closest to the corner. |

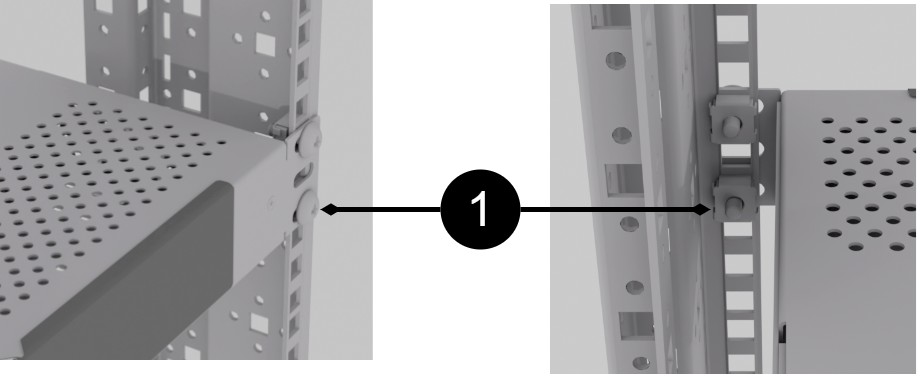

Mounting in 19" rack
The unit is a height unit (44 mm) high, and should be mounted in 19" racks with two screws on each side (1).
Screw and nut for 19" rack not included.
Caution
Leave at least 100 mm above and below for best ventilation.
Plug into this order
Plugging in load.
Plug in power supply, 24V .

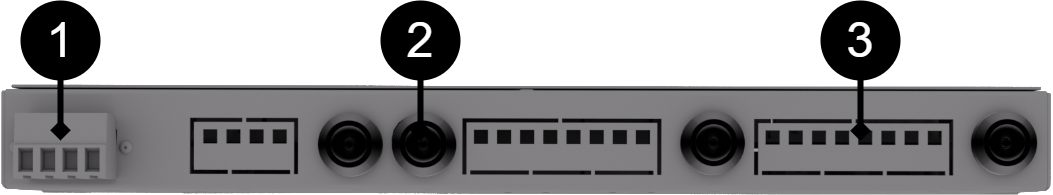

Wiring, Circuit Board Overview
PoE Injector starts as soon as 24 V DC is plugged in.

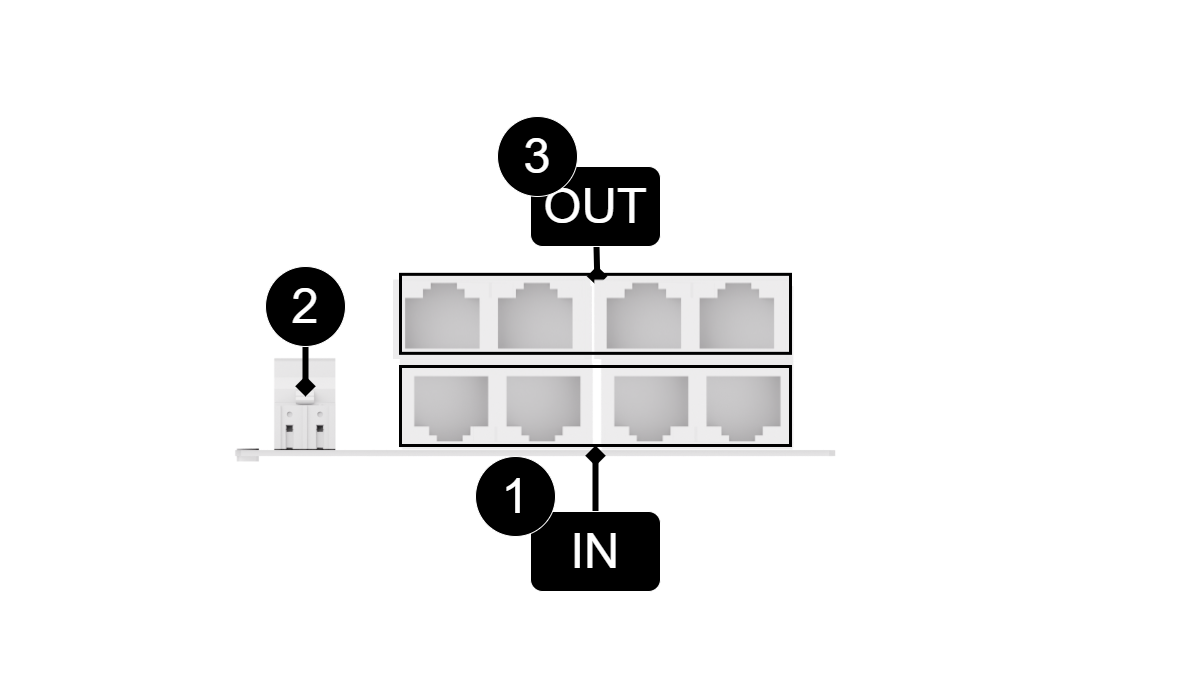

No | Explanation |
|---|---|
1 | PoE in. |
2 | Power supply to the PoE card. |
3 | PoE out. |
Plug-in - power supply
Switching on 24V takes place on the back, via the jackable terminal.
Compatible Products
The product is compatible with all Milleteknik battery backups that supply 24V DC out.
Product sheet - power supply / battery backup
Product sheet - power supply from Milleteknik

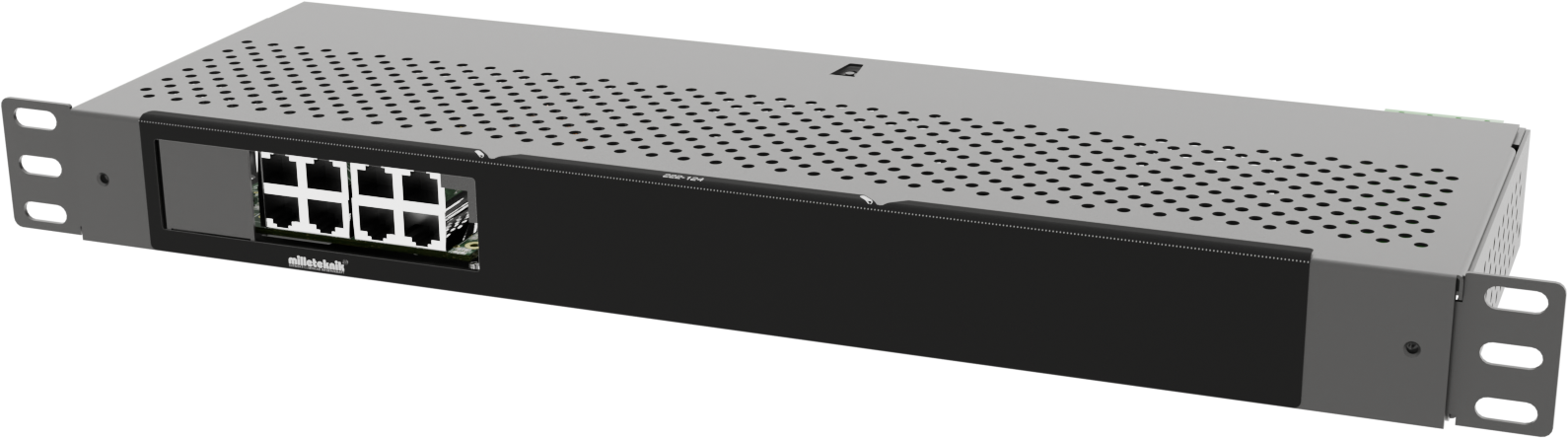

Product image
Name, article number and e-number
Name | Item number | E-number (sv) |
|---|---|---|
PoE injector 4p 1HE | 1U02PI002404OP01 | 51 731 54 |
Designation
Four-port PoE injector in enclosure for 19" rack.
Area of use
PoE injector 4p 1HE supplies up to four devices with both power and data via PoE ports, without separate load outputs. Adds PoE feed to network connections that lack PoE. Easily mounted in a 19” rack. Supply: 24 V in, output voltage: 48 V DC via PoE ports. Need more ports? Plug in up to three devices for a total of 12 PoE outputs
Common uses
Power supply for CCTV cameras where PoE support is missing.
Extension of network capacity for security systems.
Adds PoE function to network connectivity.
Operation of wireless access points.
Technical description
PoE injector 48 V. Four inputs and four outputs.
Voltage, current and power
Voltage in: 27.3 V DC, (24 V).
Voltage Out: 48 IN DC.
Max power per port: 30.8 W.
Outputs
Four PoE ports and two LAN ports.
Enclosure
Sheet metal box for mounting in a 19" rack stand. Powder coated black.
Weight
Name | Net weight | Weight incl. packaging |
|---|---|---|
PoE injector 4p 1HE | 1.8kg | 2.1 kg |
Installation requirements
The device is intended for fixed installation. The unit must be installed indoors, environmental class 1, ambient temperature: +5°C to +40°C.
Requirements that the product meets
EMC: | EMC Directive 2014 / 30EU |
Electricity: | Low voltage directive: 2014/35 / EU |
CE: | CE directive according to: 765/2008 |
Environment | REACH Regulation: Directive 1907/2006, WEEE Regulation: Directive 20021961E, RoHS Regulation: Directive 2015/863 |
Note
The product is part of electrical systems, is subject to the relevant electrical and safety directives and is not a machine according to the Machinery Directive (2006/42/EC).
Guarantee
Manufacturing, lifespan, environmental impact and recycling
Manufactured by Milleteknik in Partille, Sweden.
Link to technical specifications
About this information
All information is published subject to possible errors. Information is updated without prior notice. |
Publication date 2025-04-30
