FLX M housing with insert for accessories for Sentrion S4.
Installation and commissioning

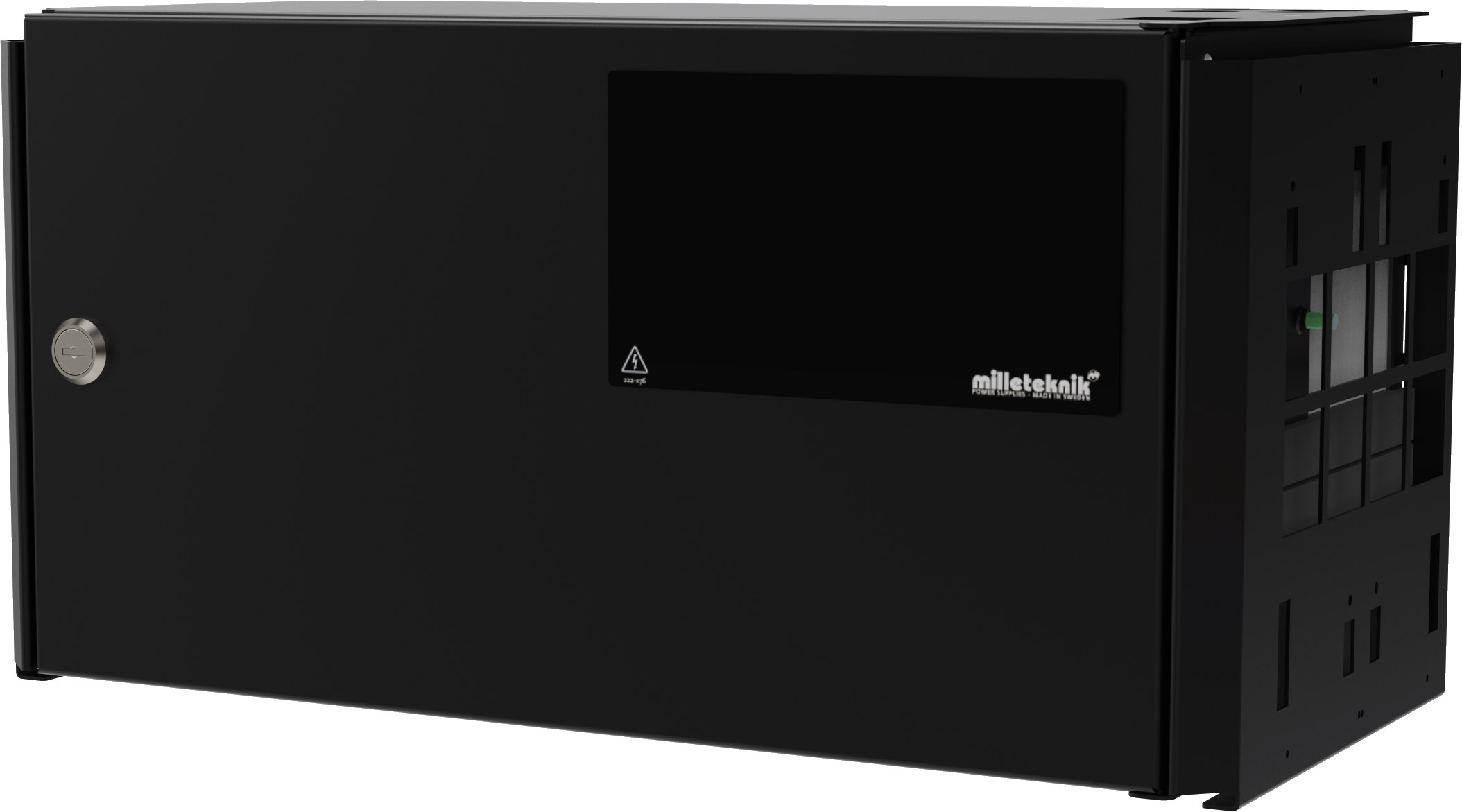

Product image
Name, article number and e-number
Name | Item number | E-number (sv) |
|---|---|---|
FLX M Cassette for Sentrion S4 | FM010000000FLX01 | 52 137 15 |

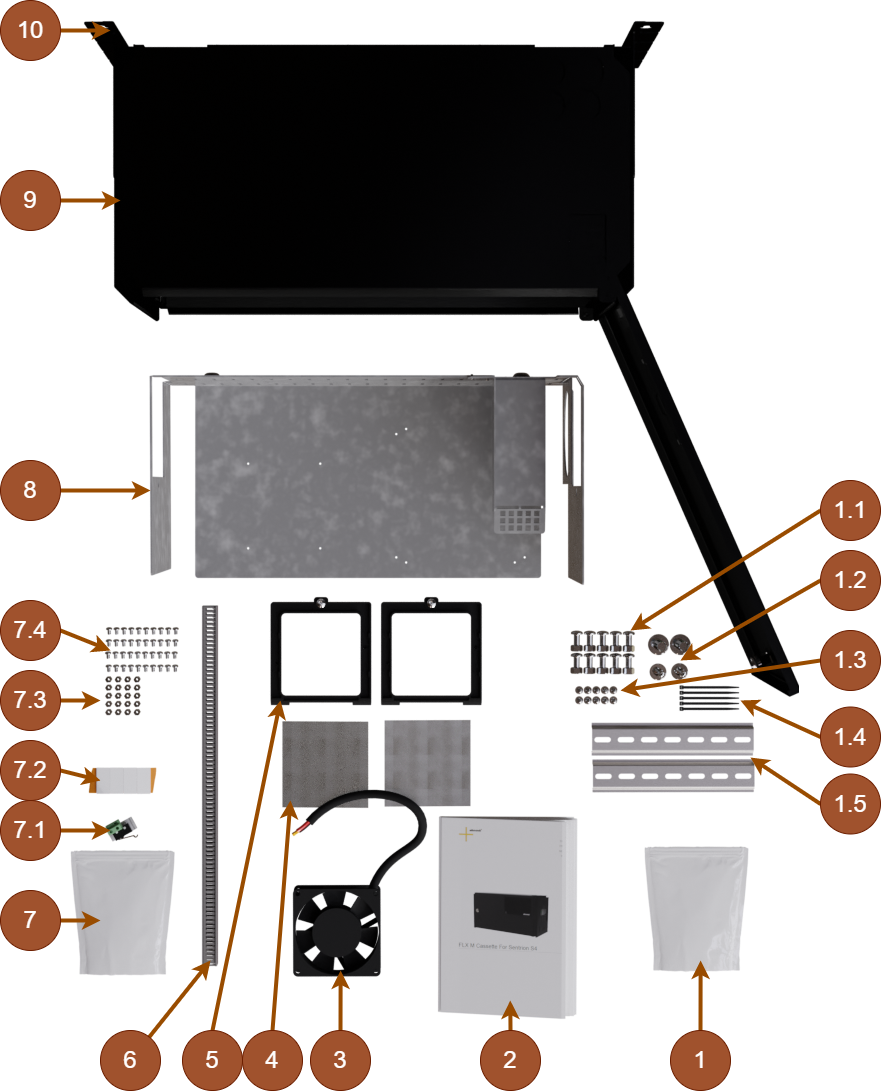

What comes with it?
No | Explanation |
|---|---|
1 | Pouch. |
1.1 | 10 pieces of screw, M5x6 and lock nut, M5. |
1.2 | Two screws, M5x16 and two screws, M5x6. |
1.3 | Ten screw, 2.9 mm. |
1.4 | Five cable ties, 9 mm. |
1.5 | Two DIN rails, 190 mm. |
2 | User manual in Swedish. |
3 | Fan, 24 V. |
4 | Ventilation grille. |
5 | Holder for ventilation grilles. |
6 | Cable channel, 400 mm. |
7 | Pouch. |
7.1 | Tamper switch, 12 V or 24 V. |
7.2 | Four attachment pads. |
7.3 | 20 spacers, M3, 10 mm. |
7.4 | 40 pieces TT screw M3x6. |
8 | Plate insert. |
9 | FLX M tin box. |
10 | Bracket for wall or 19" rack. |
Overview configurations

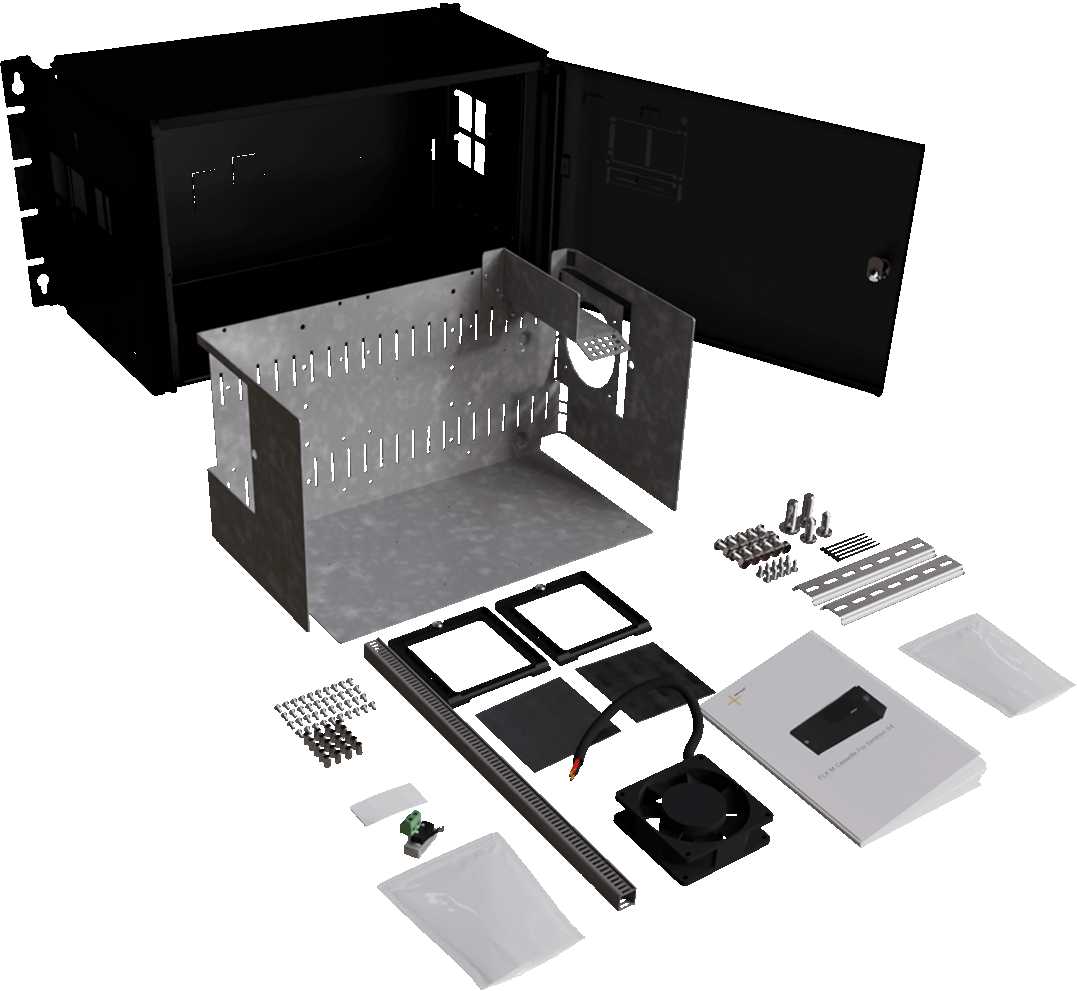

Image of how components can be assembled.
Image of how components can be assembled.

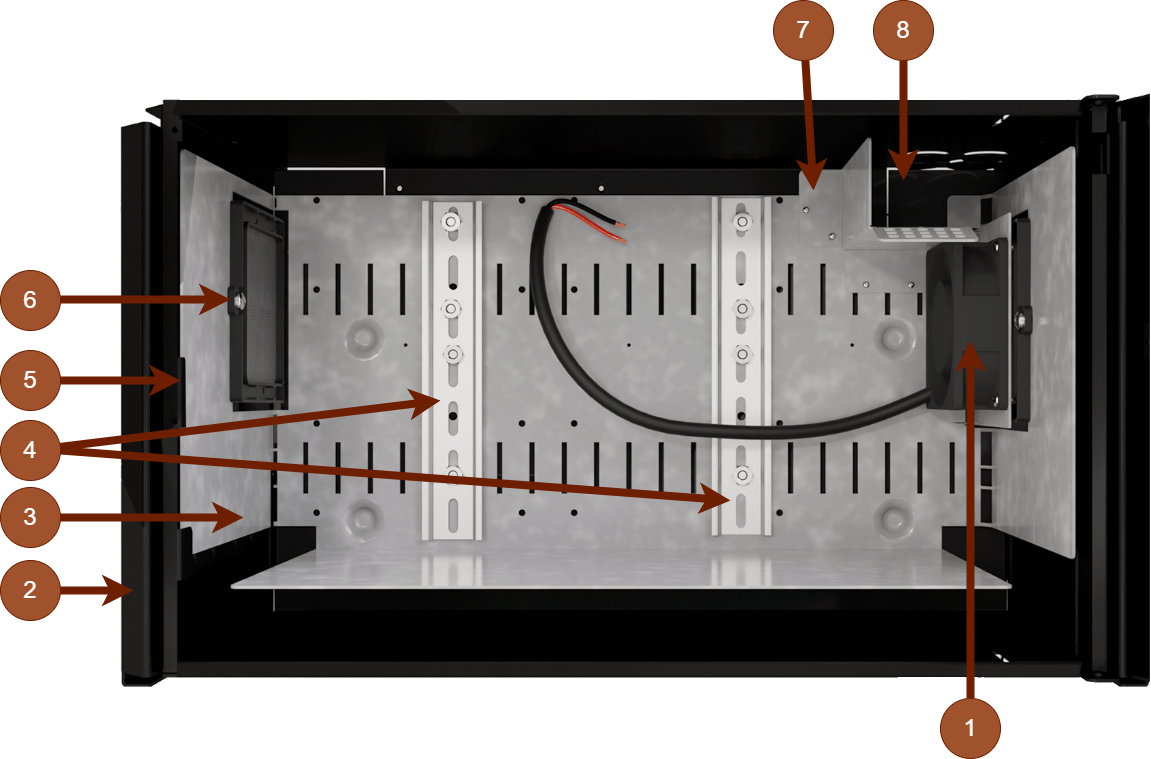

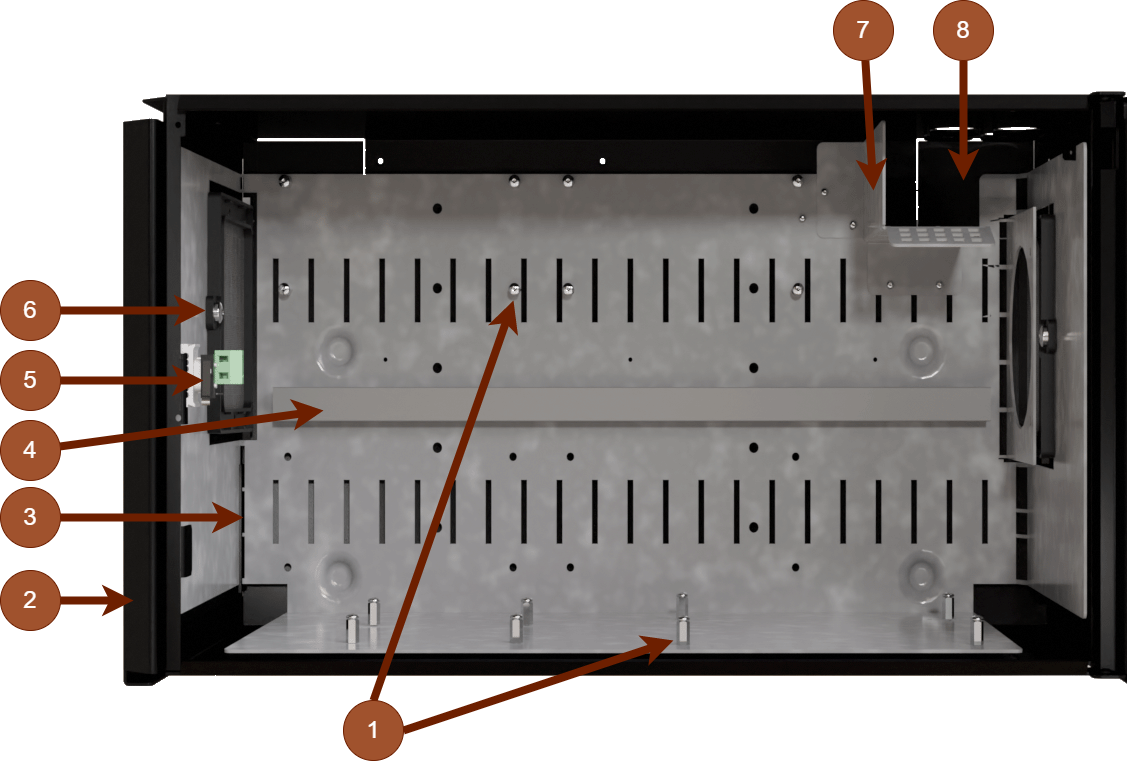

No | Explanation Both configurations | Explanation configuration 1 | Explanation configuration 2 |
|---|---|---|---|
1 | - | Distances. | Fan. |
2 | Enclosure. | ||
3 | Cassette plate. | ||
4 | - | Cable channel. | DIN rails. |
5 | Tamper contact, place for. | ||
6 | Ventilation grille. | ||
7 | Sheet metal cable channel. | ||
8 | Cable entries. | ||
Install the supplied components

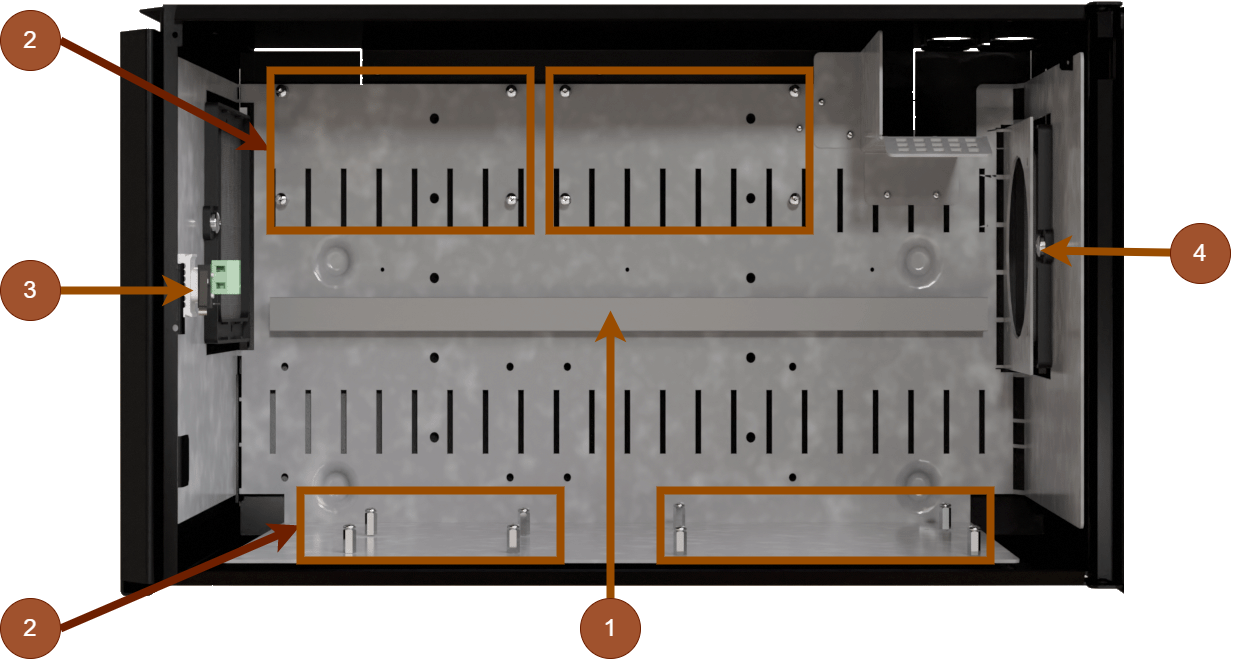

No | Explanation |
|---|---|
1 | Cable channel is screwed into sheet metal. |
2 | Mount spacers and screw on plate. Distances are screwed from both sides. Use two screws per spacer. |
3 | The tamper contact is pressed onto a sheet tongue in the enclosure. |
4 | Ventilation grilles are placed in holders and screwed into sheet metal. |

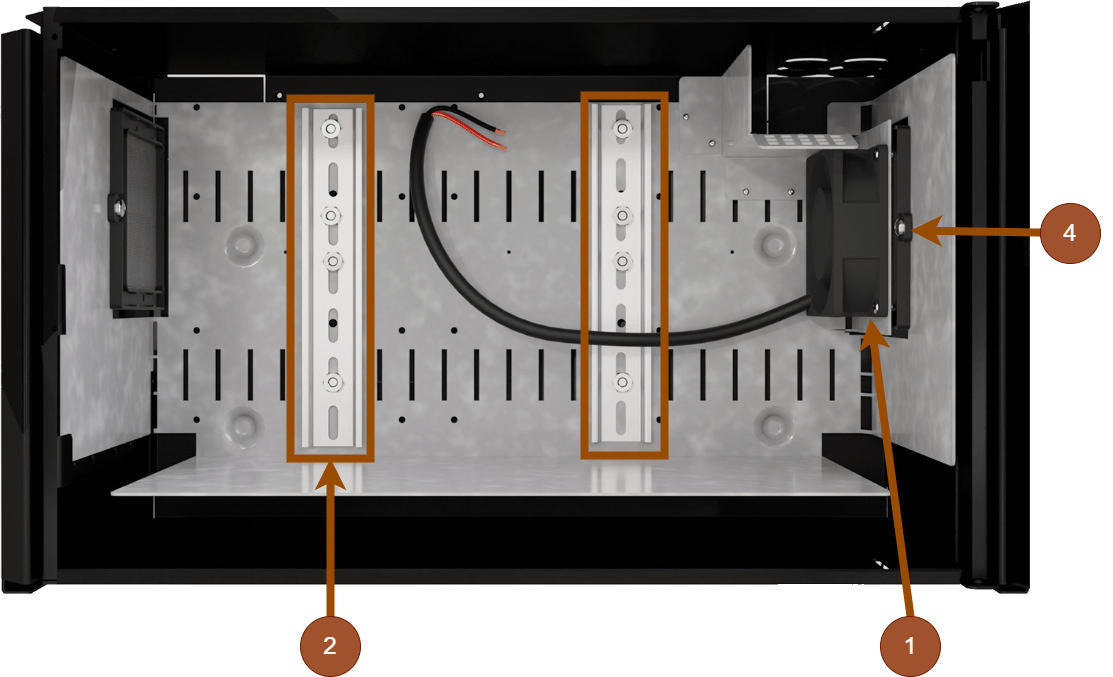

No | Explanation |
|---|---|
1 | Fan is screwed with four sheet metal screws. |
2 | Mount DIN rails with four screws and nuts in each DIN rail. |
3 | - |
4 | Ventilation grilles are placed in holders and screwed into sheet metal. |
Enclosures
Console

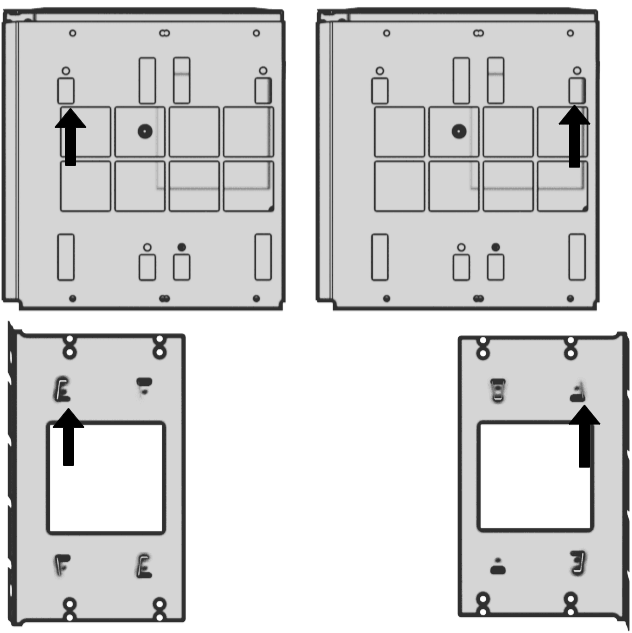

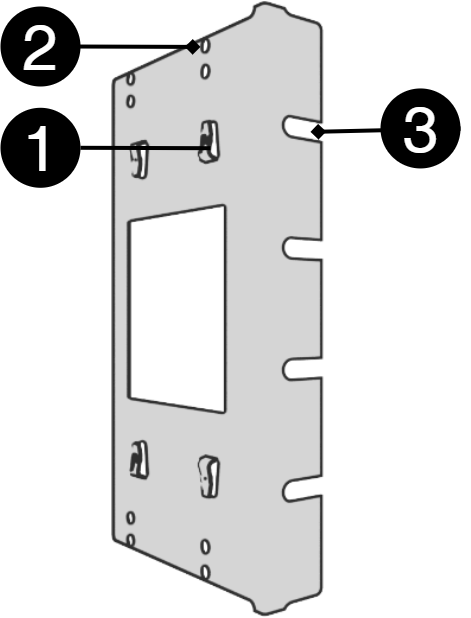

The supplied brackets can be attached in two ways: When mounting on a wall, the brackets must sit backwards, against the wall. When mounting in a 19" rack, the bracket must sit at the front of the unit.
[sv] Bokstav | Explanation |
|---|---|
A | Console is pushed in from the bottom up. |
B | Clip clicks in when bracket is pushed in correctly. |
Mounting
Use the appropriate screw for mounting on a wall or in a 19" rack. Screws for mounting on a wall or in a rack are not included.
Product sheet - power supply / battery backup
Product sheet - power supply from Milleteknik
Product image
Name, article number and e-number
Name | Item number | E-number (sv) |
|---|---|---|
FLX M Cassette for Sentrion S4 | FM010000000FLX01 | 52 137 15 |
Designation
Accessory box for Sentrion S4
Area of use
To install accessories for the Sentrion S4 in its own enclosure.
Technical description
Box with insert for attaching accessories to DIN rail or insert.
Enclosure
Weight
Name | Net weight | Weight incl. packaging |
|---|---|---|
FLX M Cassette for Sentrion S4 | 7.35 kg | 8.25 kg |
Installation requirements
The device is intended for fixed installation. The unit must be installed indoors, environmental class 1, ambient temperature: +5°C to +40°C. Recommended ambient temperature is +15°C to +25°C (for optimal battery life).
Requirements that the product meets
CE: | CE directive according to: 765/2008 |
Environment | REACH Regulation: Directive 1907/2006, WEEE Regulation: Directive 20021961E, RoHS Regulation: Directive 2015/863 |
Note
The product is part of electrical systems, is subject to the relevant electrical and safety directives and is not a machine according to the Machinery Directive (2006/42/EC).
Limitations
As the unit's details are not assembled, it is the installer's responsibility that these and components are assembled safely and correctly. If 230 V is drawn into the product, the components, plate and door must be earthed.
Guarantee
Manufacturing, lifespan, environmental impact and recycling
Manufactured by Milleteknik in Partille, Sweden.
Link to the latest information
Products and software are subject to updates, you will always find the latest information on our website.
About this information
All information is published subject to possible errors. Information is updated without prior notice. |
Publication date 2025-07-14
