MOVEO 24V 10A FLX L

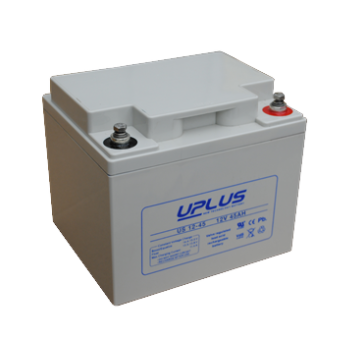

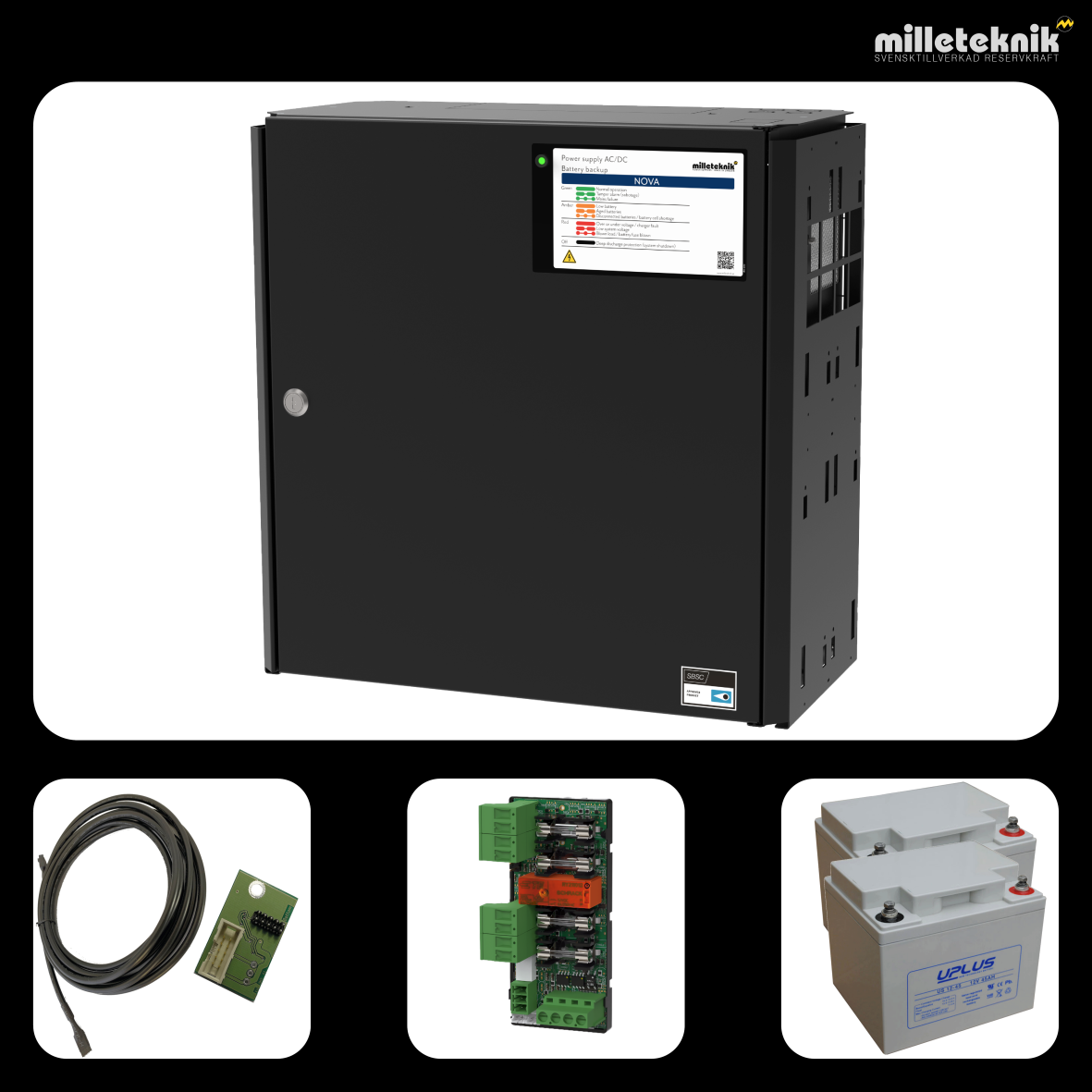

The MOVEO 24V 10A FLX L is mainly used in security systems where an SSF 1014* approved battery backup is required or where the requirements are more valid; higher flexibility, more alarm functions, longer back-up times or when the battery backup needs to handle higher loads. The MOVEO 24V 10A FLX L is SSF1014 certified with Integra. The MOVEO 24V 10A FLX L offers communication via RS232 against Integra MOVEO & MOVEO XL. RS232 card & 3 meter cable for communication between battery backup and central included as well as fuse card 2+2 output module. The MOVEO 24V 10A FLX L reads the connected system load and charges the batteries with available residual power from the power supply, but never charges the batteries by more than maximum 4A (applies to FLX S) in charge current. This prevents the batteries from overcharging and significantly extends their life span. The MOVEO 24V 10A FLX L is also equipped with internal power resistors (customized for system-tested battery) for qualified battery capacity testing, which notifies when batteries need to be replaced before batteries age. MOVEO 24V 10A FLX L is system certified together with / & to be used together with UPLUS 10+ Design Life AGM batteries according to SSF1014, 2x 45Ah batteries are included. The MOVEO 24V 10A FLX L offers intelligent charging which means that when the batteries are fully charged they will be electronically disconnected for standby mode for up to 20 days or when the batteries have reached 26.7V. By discharging the batteries and having them recharged continuously (instead of being unused), the system extends the battery life by up to 50%. The batteries automatically connect in less than 50 microseconds, if needed. The MOVEO 24V 10A FLX L shall be mounted on a wall or in a 19″ rack (reversible angles included). The MOVEO 24V 10A FLX L can be supplemented with up to 1 battery box. The battery box is connected via a 9-pin connector. The battery box can hold up to 2x 45Ah batteries. *Note that the battery backup should be system certified with the parent system for SSF1014 certificate to be valid.

Expected uptime in the event of potential power failure:
