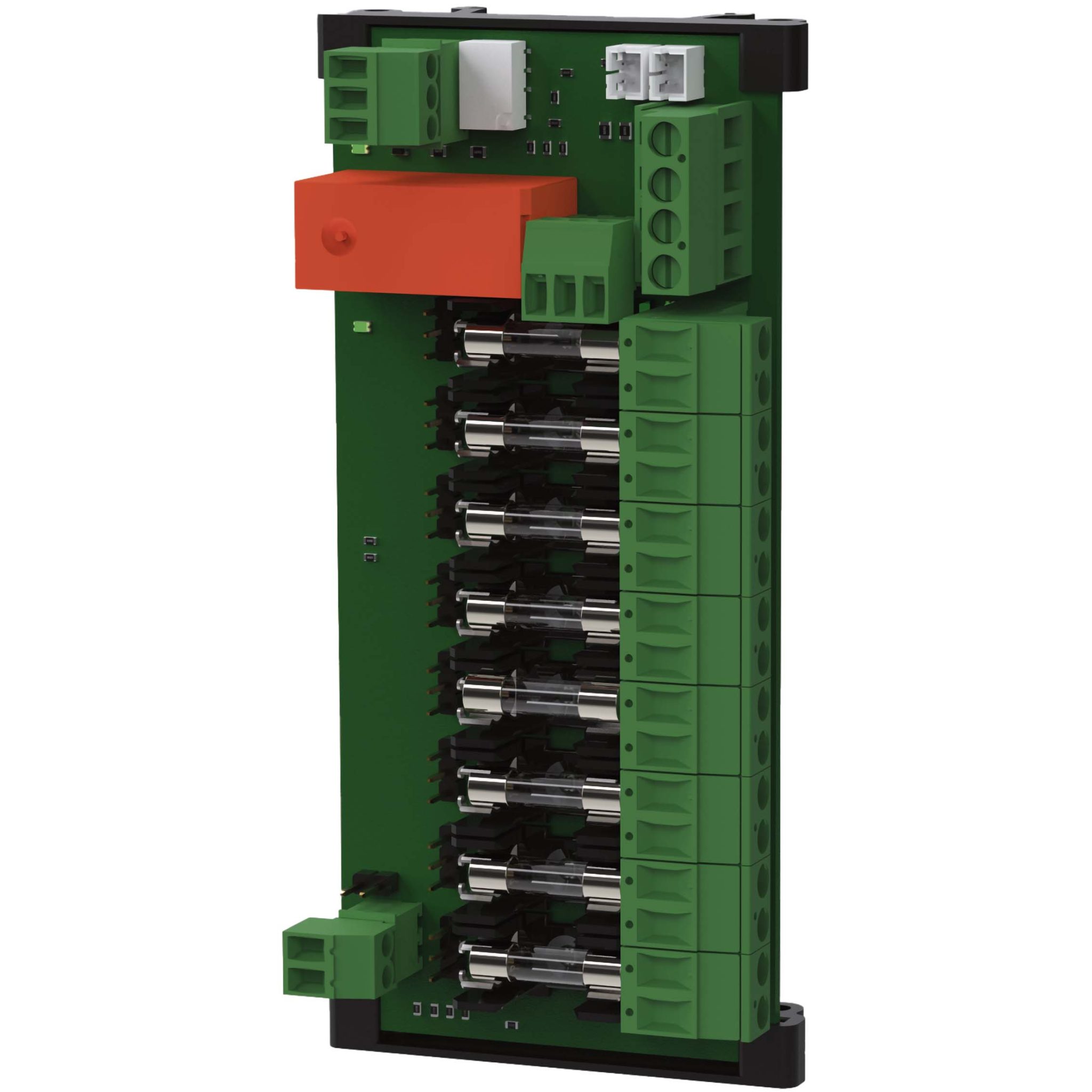

8 Output control module

Article Number: A-FU002408OP01C
E-number: 5213701

Controllable circuit breaker card with eight 1-pin fused outputs.

Fuse card with eight 1-pin fused outputs. Each output can be jumbled as active or inactive at any given signal. The unpriority exits are shut down in the event of a power failure or via the entrance of the adapter to control from an external system (e.g. fire alarm). Alarm for triggered load securing via alternating alarm relay or on separate entrance in the battery backup. F2A glass fuses can be secured up to 10 A per output. The maximum load for the entire card is 16 A.

Possible for mounting in the following products:

  • NEO FLX M, NOVA FLX M or EN54 FLX M can accommodate two 8 output module.
  • NEO FLX L or NOVA FLX L can accommodate two paragraphs 8 output module.
  • 19 rack module holder, holds four 8 output module.
  • DIN rail on the plastic carrier provided.
Recommended environment

Security class (IP-klass)

Recommended mounting

19 rack module holder, FLX L, FLX M

DIN-rail

Yes, possible with the accompanying plastic holder Note! To be mounted horizontally.

Dimensioner (Höjd x Bredd x Djup)

30 x 55 x 120 mm

Net weight

Voltage in (V)

27.3 VDC

Number of current inputs

2, makes any needed service easier

Current out

27.3 VDC (24 V)

Number of unsecured (load-) outputs

Type of fuse / ouput

8x F2A (glass)

Max current

Alarm via

Changeover relay, Pin list for connection to NEO / NOVA Series

Alarm functions

Fuse failure

In-stock article

Yes

Normal dlivery time

Guarantee period

2 years

Product meets requirements in accordance with

CE directive in accordance with:765/2008, EMC Directive 2014/30EU, Emission: EN61000-6-:2001, EN55022:1998:-A1:2000, A2:2003 Class B, EN61000-3-2:2001, Immunity: EN61000-6-2:2005, EN61000-4-2, -3, 4, -5, -6, -11

Producer

Milleteknik AB

Country of origin

Not

All specifications subject to change in event of product changes or incorrect data
