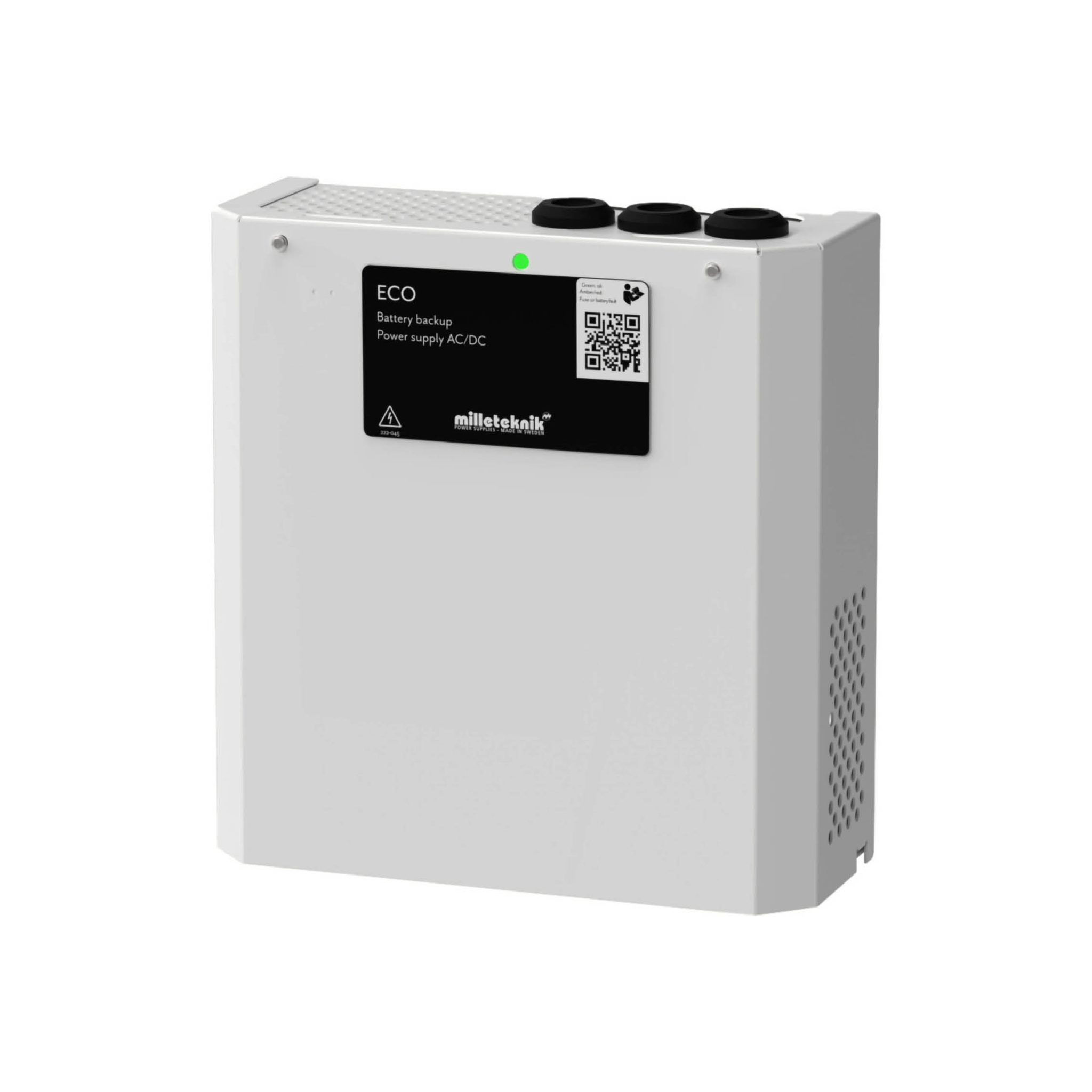

ECO 12V 5A S

Article Number: SM01C10212P050
E-number: 5213650

Primary switched battery backup 12 V 5 (A) Amps with room for a 7 Ah battery.

The ECO series consists of reliable and compact power supplies for use with access control systems, locking systems and smoke hacks. The battery backups of the ECO series have a built-in charge control that effectively prevents overcharging and thereby significantly extends the life of the batteries.

The battery backup can be deployed with only the batteries connected without the battery backup being connected to 230 V (cold start). This is convenient if the mains cable is not pulled or if the fitter is not a qualified electrician but still wants to be able to test the system. The battery backup is a fixed installation and should be installed by the competent installer. Mounting: ECO S mounted on wall. Installation and Deployment: Fixed Installation. The unit can be tested on battery power, (before 230 V is connected). Battery types: Lead acid, AGM batteries. Typical uses:

  • Passes
  • Locking system
  • Smoke hatches

Expected downtime:

Recommended environment

Security class (IP-klass)

Recommended mounting

Wall

Dimensioner (Höjd x Bredd x Djup)

230 x 216 x 85 mm

Net weight

Number of cable ports

3

Color

Built in cooling fan

No

Voltage in (V)

230 – 240 VAC, 50-60 Hz

Max current

Available charging current (A)

0.5 A

Rated power

35 W

Ripple i normal mode

150 mVp-p

Efficiency

heat generation at 50% / 80% of rated power

3 W / 4 W

Current in (A)

1.2 A

Number of unsecured (load-) outputs

Type of fuse / ouput

2 F5A (glass)

Deep discharge of battery occurs at

10,5 VDC

Battery type

12 V maintenance free AGM battery

Battery capacity

Recommended battery

1 UPLUS 12 V, 7.2 Ah battery

Batteries included

No

Protection against

, , , ,

Alarm via

Changeover relay

Alarm functions

Delayed power grid failure alarm (@26.5 V) or in the event of low battery voltage (@24 V), Fuse failure

Number of alarm outputs

1 (total alarm outputs)

Tamper switch

No

Lockable enclosure

Yes, two keys included.

Number of optional cards that can be placed

No optional card mounting possible

In-stock article

No

Normal dlivery time

Guarantee period

2 years

Product meets requirements in accordance with

CE directive in accordance with:765/2008, EMC Directive 2014/30EU, Emission: EN61000-6-:2001, EN55022:1998:-A1:2000, A2:2003 Class B, EN61000-3-2:2001, Immunity: EN61000-6-2:2005, EN61000-4-2, -3, 4, -5, -6, -11

Producer

Milleteknik AB

Country of origin

Not

All specifications subject to change in event of product changes or incorrect data
