NEO 12V 10A FLX M

Article Number: FM01N10112P100
E-number: 5213536

Primary switched battery backup 24 V 10 (A) Amps with room for two 20 Ah batteries Possible to expand with battery boxes for up to 180Ah battery capacity.

The NEO series is used in security facilities where the requirements are higher but where communication to the parent system is not required. More flexibility, more alarm functions, longer spare operating times and higher loads are the hallmark of the NEO battery backup series. The NEO series battery packs have controlled charging* that prevents batteries from being overcharged and significantly extends their life. NEO has intelligent charging which means that when the batteries are fully charged, they will be put in electronic standby mode for up to 20 days or when the battery voltage has reached 26.7 V. By discharging the batteries in a controlled way and recharging them cyclically (instead of not using them), the service life is extended by up to 50%. The batteries automatically connect in less than 50 microseconds, if needed. NEO can be supplemented with a battery box to extend the spare operating time. The battery box shall be placed under the battery backup and connected via a cable provided with the battery box. The battery box can accommodate 4x 14Ah batteries per each battery box. Mounting: NEO can be mounted on wall or in 19″ racks, reversible brackets included. Installation and Deployment: Fixed Installation. Battery types: Lead acid, AGM batteries. Connectable battery boxes: four battery boxes. Typical uses:

  • Passes
  • Locking system
  • Door environments

*Controlled charging means that the batteries are charged at a lower charge voltage to reduce battery wear. This means that batteries are charged full (100%) more slowly. A 12 V, 7.2 battery will be fully charged at most with 30% of 1.2 Ah = 2.16 Ah. If you need a controlled upload time, this is available in our EN54 series.   Expected downtime:

Recommended environment

Security class (IP-klass)

Recommended mounting

19" rack, Wall

Height units

5RU

Dimensioner (Höjd x Bredd x Djup)

224 x 437 x 212 mm

Net weight

Number of cable ports

4, possible to have outlet holes on rear

Color

Built in cooling fan

Yes

Voltage in (V)

230 – 240 VAC, 50-60 Hz

Current out

13.6 VDC (12 V)

Max current

Available charging current (A)

Dependent upon power outlet, though max 3.4 A

Rated power

150 W

Ripple i normal mode

150 mVp-p

Efficiency

heat generation at 50% / 80% of rated power

10 W / 16 W

Current in (A)

1.7 A

Number of unsecured (load-) outputs

Type of fuse / ouput

2 F10A (glass)

Deep discharge of battery occurs at

10,5 VDC

Battery type

12 V maintenance free AGM battery

Recommended battery

2 UPLUS 12V 20Ah batteries

Batteries included

No

Protection against

, , , ,

Alarm via

Changeover relay

Alarm functions

Battery disconnected (10 sec), Charger error overvoltage, Charger error undervoltage, Delayed power grid failure alarm (10 sec), Fuse failure (buzzer alarm, alarm output 2), Low battery voltage, Tampering

Number of alarm outputs

2, separate output for tamper switch placed by door opening

Tamper switch

Yes

Lockable enclosure

Yes, two keys included.

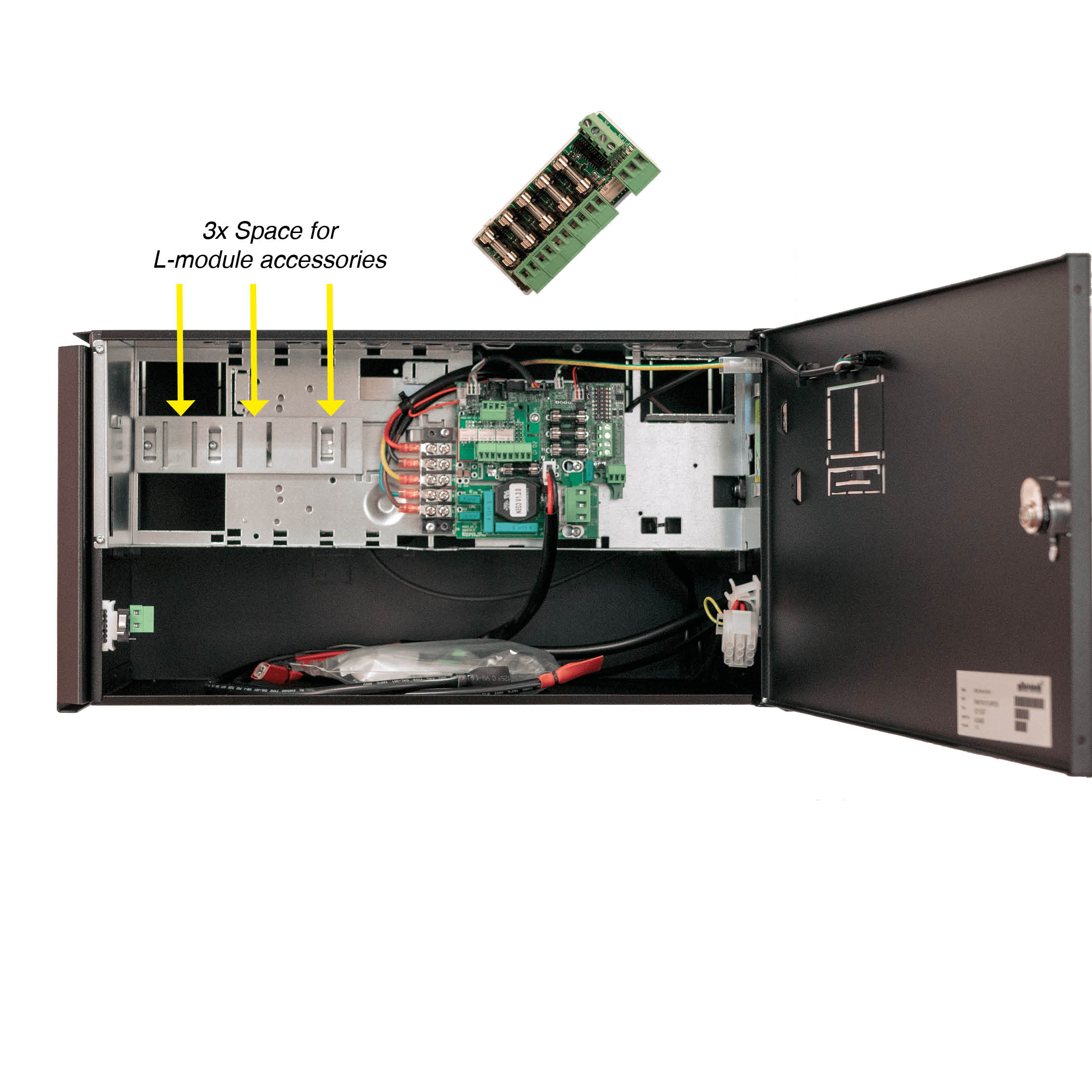

Number of optional cards that can be placed

Three L-module option

In-stock article

No

Normal dlivery time

Guarantee period

2 years

Product meets requirements in accordance with

CE directive in accordance with:765/2008, EMC Directive 2014/30EU, Emission: EN61000-6-:2001, EN55022:1998:-A1:2000, A2:2003 Class B, EN61000-3-2:2001, Immunity: EN61000-6-2:2005, EN61000-4-2, -3, 4, -5, -6, -11. SS-EN 50 130-4:2011 Edition 2 & SSF1014 Alarm class 1-2 (Burgler alarm), Low voltage directive: 2014/35/EU

Producer

Milleteknik AB

Country of origin

Not

All specifications subject to change in event of product changes or incorrect data
