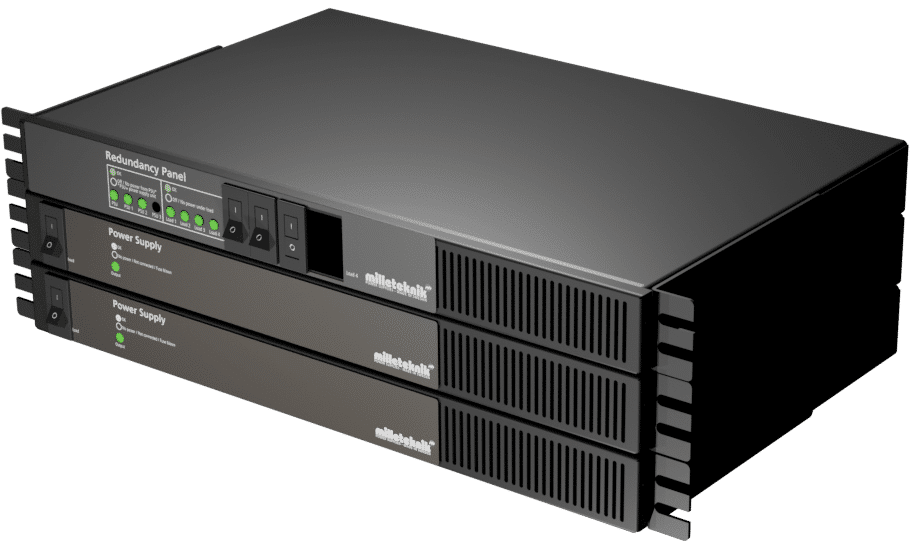

Power supply 24V 15A 1U has stabilized and filtered voltage. Used in conjunction with our 19″ redundancy panel at healthcare services such as hospitals where there is often a diesel generator and UPS for backup power. However, the voltage converter from 230 V to 24V DC is missing. 24 V DC is needed to operate the access system and other security applications in the building. network outages or triggered cargo securing alarms; Mounting: 19″ Rack mounting.
Power supply 24V 15A 1U
Article Number: 1U01D10024P1501
E-number: 5213517
High Efficiency Primary Switched Power Supply (85-90%).
| Recommended environment | |
|---|---|
| Security class (IP-klass) | |
| Recommended mounting | 19" rack |
| Dimensioner (Höjd x Bredd x Djup) | 44 x 438 x 132 mm |
| Height units | 1RU |
| Net weight | |
| Color | |
| Built in cooling fan | Yes |
| Voltage in (V) | 230 – 240 VAC, 50-60 Hz |
| Current out | 24 V |
| Adjustable output | No |
| Max current | |
| Rated power | 336 W |
| Ripple i normal mode | 150 mVp-p |
| Efficiency | |
| heat generation at 50% / 80% of rated power | 31 W / 49 W |
| Number of unsecured (load-) outputs | 1 with plug in connectors, 6mm, 2 terminal blocks in rear of cabinet |
| Current in (A) | 1.8 A |
| Protection against | Excessive temperature, Over voltage, Overload, Short circuit |
| Alarm via | Changeover relay |
| Alarm functions | Fuse failure, Power failure |
| Number of alarm outputs | 1 in the rear of the enclosure |
| Tamper switch | No |
| Lockable enclosure | No |
| In-stock article | No |
| Normal dlivery time | |
| Guarantee period | 2 years |
| Product meets requirements in accordance with | CE directive in accordance with:765/2008, EMC Directive 2014/30EU, Emission: EN61000-6-:2001, EN55022:1998:-A1:2000, A2:2003 Class B, EN61000-3-2:2001, Immunity: EN61000-6-2:2005, EN61000-4-2, -3, 4, -5, -6, -11 |
| Producer | Milleteknik AB |
| Country of origin | |
| Not | All specifications subject to change in event of product changes or incorrect data |
