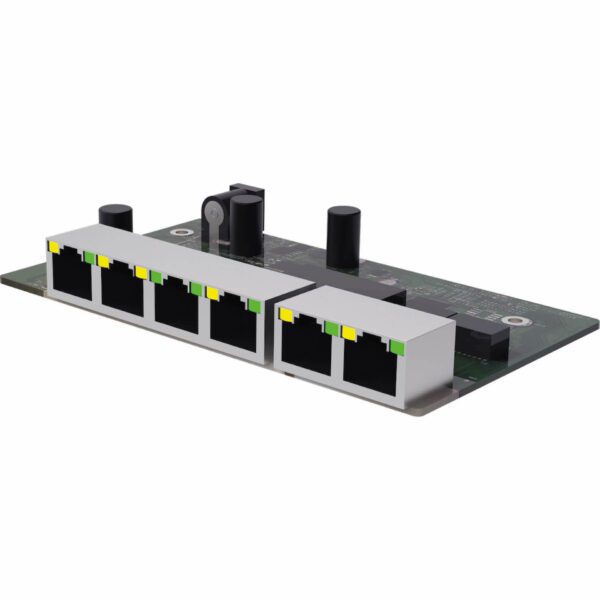

PoE Switch 4p Expansion Kit

Article Number: A-OT00004PU01
E-number: 5171954

PoE switch for extension of PoE FLX S & PoE FLX S M. Two LAN ports and four PoE ports.

PoE switch for extending the FLX S & M PoE battery backup with more PoE and LAN ports.

  • Maximum power per port: 30.8 W (22W@41VDC/for deep discharge batteries).
  • PoE Budget: 150 W
  • Support for PoE standard IEEE 802.3af/15.4W per port & IEEE 802.3at/30.8W per port. Supply voltage 48 VDC.
  • AC adapter not included.
  • Delivered mounted on adapter for easy mounting in PoE FLX S or PoE FLX M and connected with cabling already in the battery backup.
Recommended environment

Recommended mounting

In PoE battery backup

Dimensioner (Höjd x Bredd x Djup)

20 x 130 x 100 mm

Net weight

Voltage in (V)

54.6 VDC

Current out

PoE (48 V)

Number of LAN / PoE ports

2 / 4

Max effect per port

30.8 W

PoE budget

125 W

Ethernet type

Fast Ethernet Mbit PoE switch

Network port type

10 / 100 PoE+

Interface

1000Base-T RJ-45

Support for standard in accordance with

IEEE 802.3af, IEEE 802.3at

Functions

Auto-negotiation, Auto-uplink (auto MDI/MDI-X)

Manager bar

No

In-stock article

Yes

Normal dlivery time

Guarantee period

2 years

Product meets requirements in accordance with

CE directive in accordance with:765/2008, EMC Directive 2014/30EU, Emission: EN61000-6-:2001, EN55022:1998:-A1:2000, A2:2003 Class B, EN61000-3-2:2001, Immunity: EN61000-6-2:2005, EN61000-4-2, -3, 4, -5, -6, -11, Low voltage directive: 2014/35/EU

Producer

Milleteknik AB

Country of origin

Not

All specifications subject to change in event of product changes or incorrect data
