ECO mains failure alarm card

Article Number: A-AL1224ECO01
E-number: 5257559

Alert cards for ECO M and ECO FLX S where network failure alarms are needed.

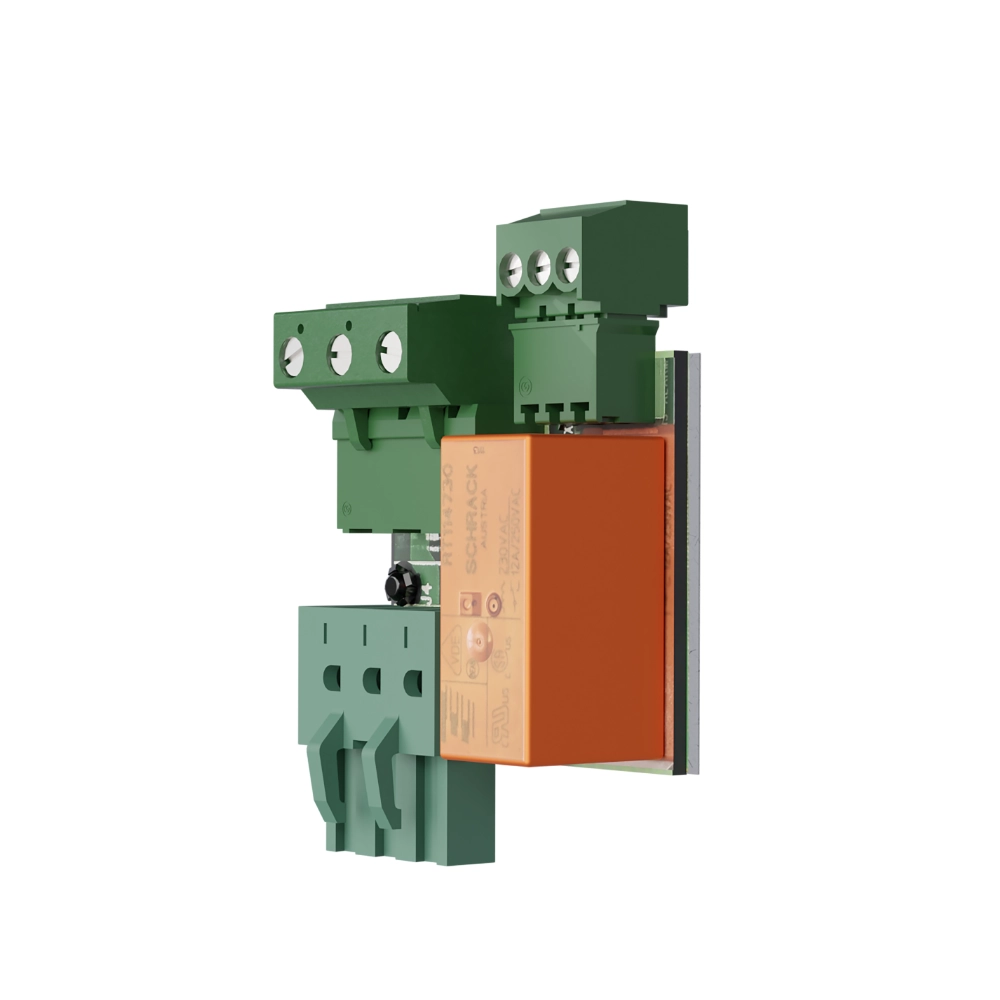

Alarm card for ECO M and ECO FLX S. The card is mounted on mains power and provides alarms via switch of relay for network failure. Contact sales@milleteknik.se, 031-34 00 230.

Recommended environment

Security class (IP-klass)

Recommended mounting

NOVA Series (5A & 10A only)
Voltage in (V)

13,6 VDC, 27.3 VDC
Alarm via

Changeover relay
Alarm functions

Battery disconnected (10 sec), Charger error overvoltage, Charger error undervoltage, Delayed power grid failure alarm (10 sec), Fuse failure, Low battery voltage, Low system voltage, Old battery, Tampering
Number of alarm outputs

4
In-stock article

No
Normal dlivery time

Guarantee period

2 years
Certified in accordance with

, , ,

Certificate number (SBSC)

20-117
Product meets requirements in accordance with

CE directive in accordance with:765/2008, EMC Directive 2014/30EU, Emission: EN61000-6-:2001, EN55022:1998:-A1:2000, A2:2003 Class B, EN61000-3-2:2001, Immunity: EN61000-6-2:2005, EN61000-4-2, -3, 4, -5, -6, -11. SS-EN 50 130-4:2011 Edition 2 & SSF1014 Alarm class 1-4 (Burgler alarm).
Producer

Milleteknik AB
Country of origin

Not

All specifications subject to change in event of product changes or incorrect data
